Braked axle 1300kg axle type DELTA SIN 12 Fendt 450J Saphir

Braked axle 1300kg EURO1 axle type DELTA SIN 12 FENDT 450J Saphir

BC: dimension A 1570mm, OHF: dimension C 2080mm, wheel connection 112x5, wheel brake type 2051 vers. Aa, offset (ET) 30mm, swing arm position 16°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Price 1.490,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 1226267

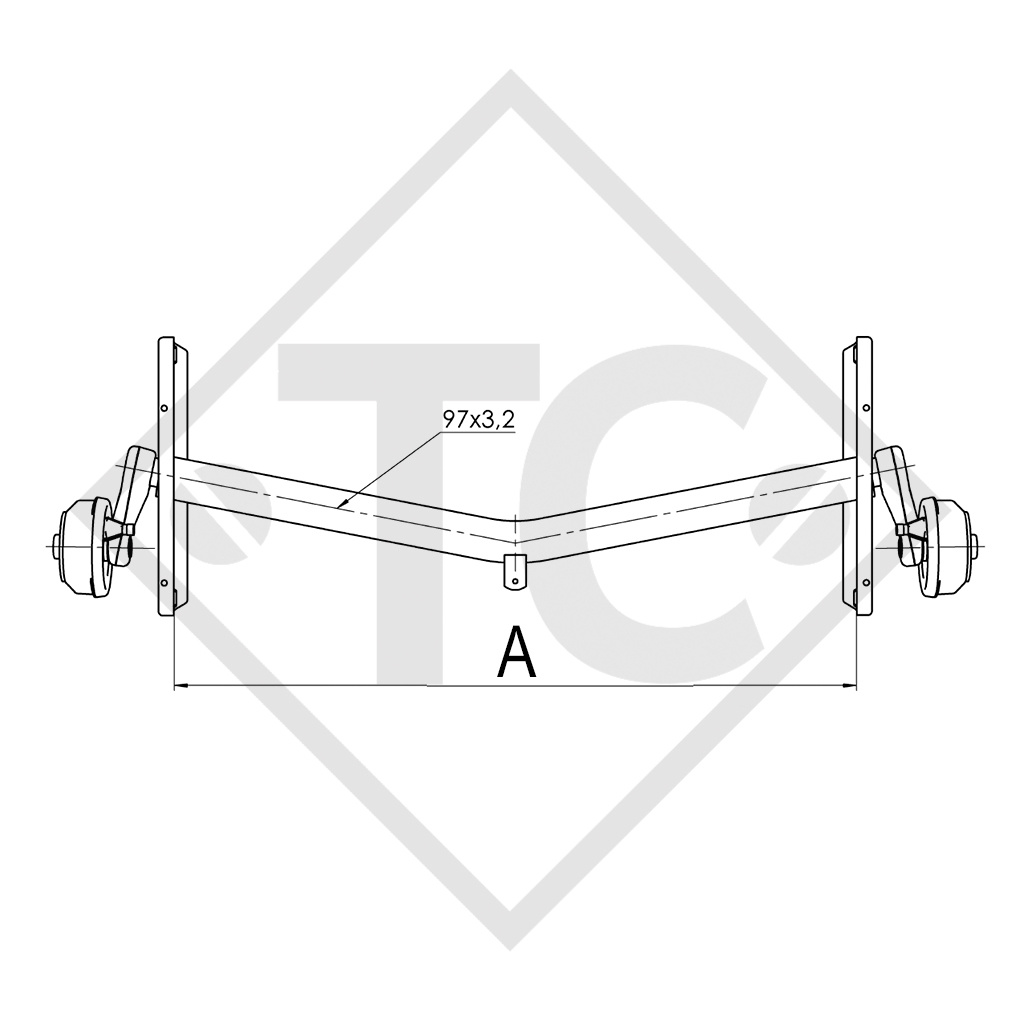

BC: dimension A 1570mm

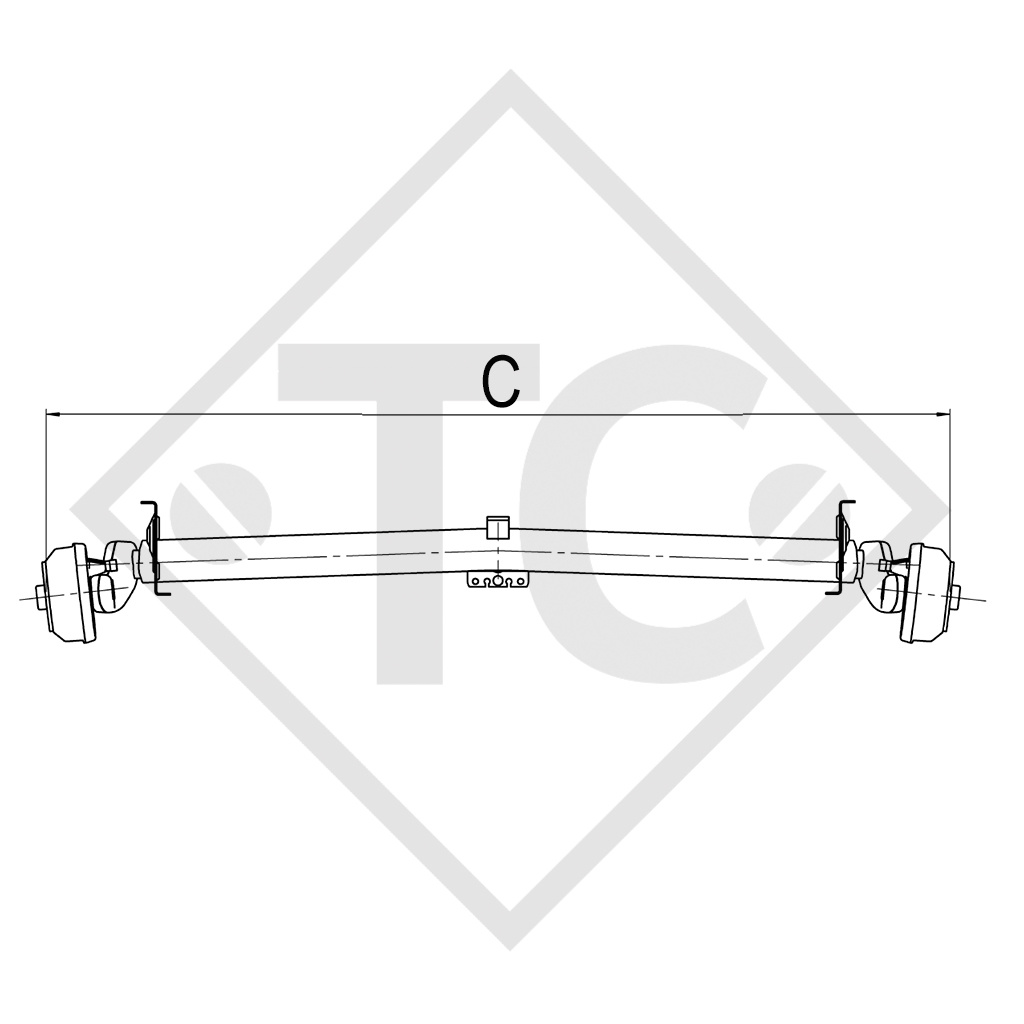

OHF: dimension C 2080mm
Wheel connection 112x5
Offset (ET) 30mm
Swing arm position 16°
Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) 811268

TECHNOLOGY
Model: EURO1
Axle type: DELTA SIN 12
Axle load: Single axle 1300kg
Wheel brake: 2051 vers. Aa
Suspension: Hexagonal rubber suspension
Swing arm length: 185mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose

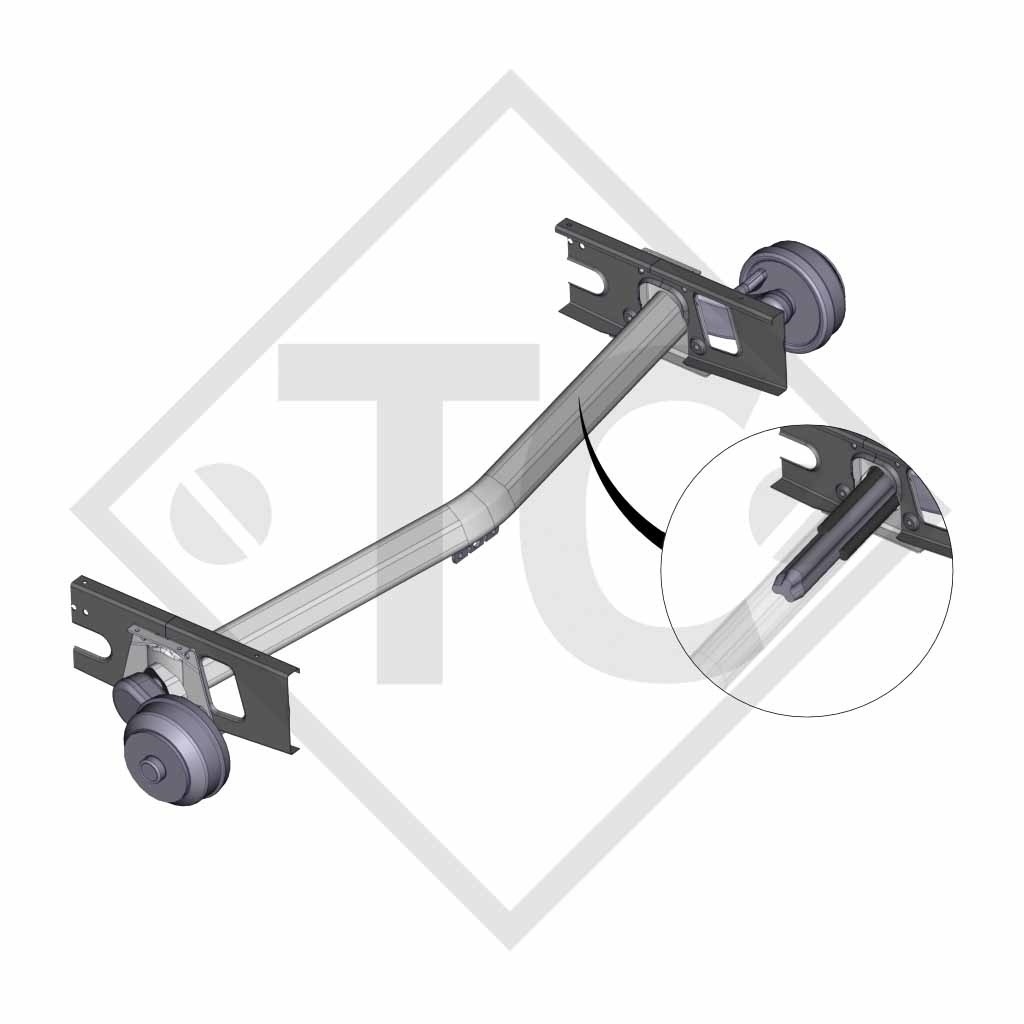

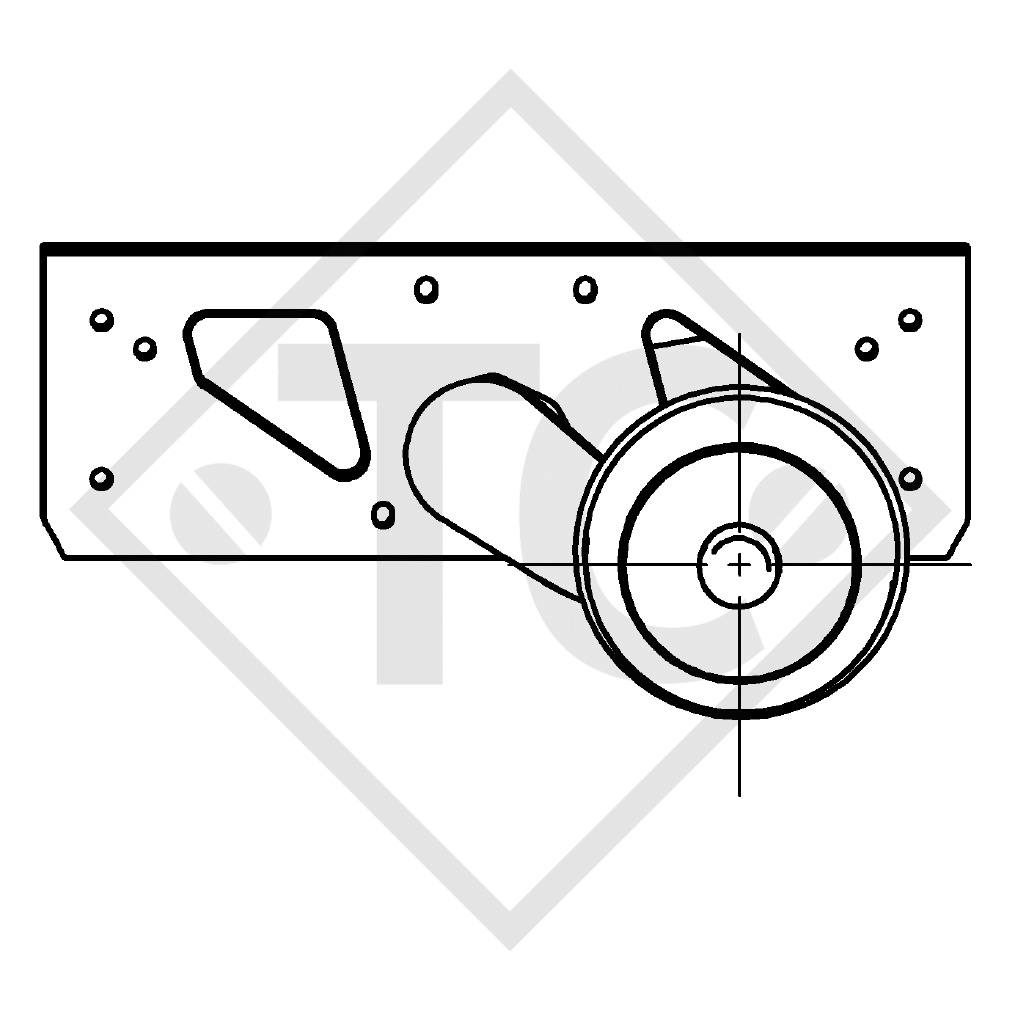

Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber
