Home / Braked axle 1360kg EURO Plus axle type DELTA SIN 12-3
BC: dimension A 1600mm, OHF: dimension C 2080mm, wheel connection 112x5, wheel brake type 2051 vers. Ab, offset (ET) 30mm, swing arm position 16°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 1213608

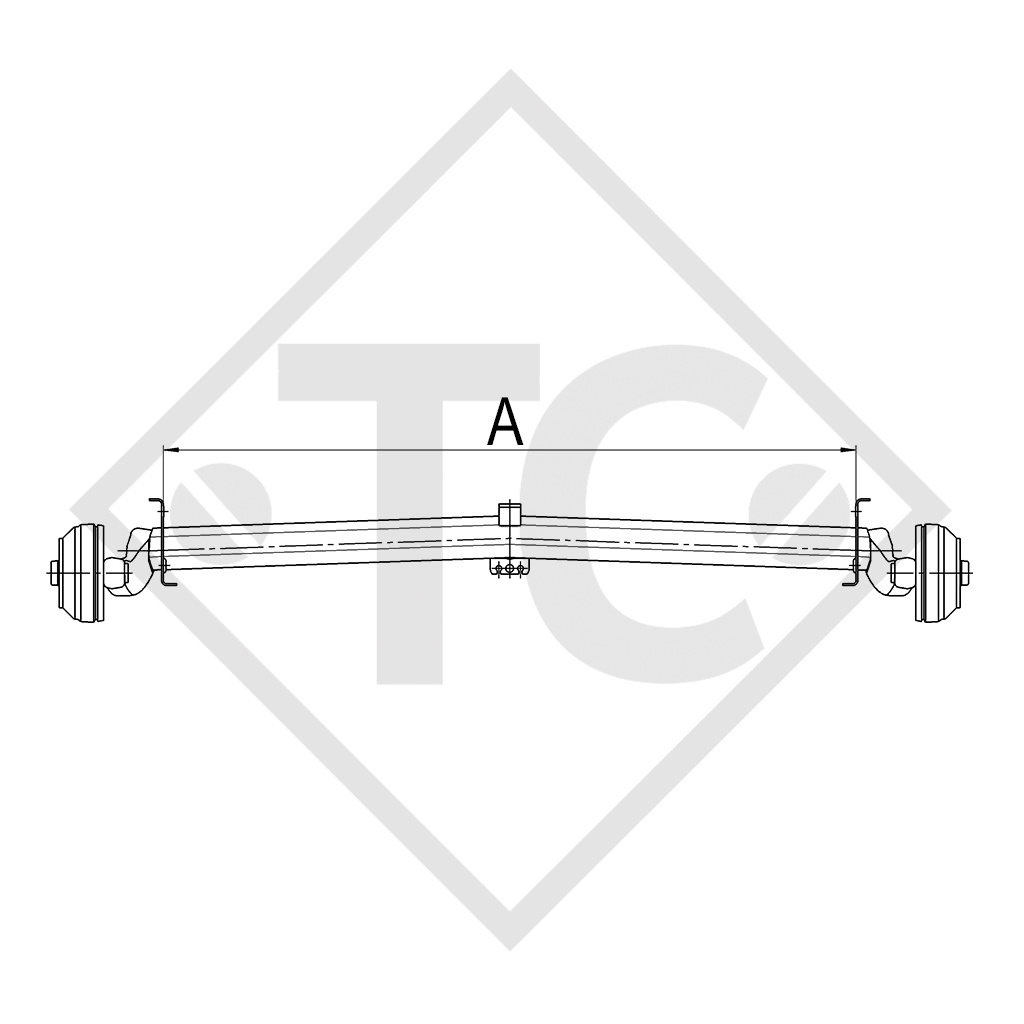

BC: dimension A 1600mm

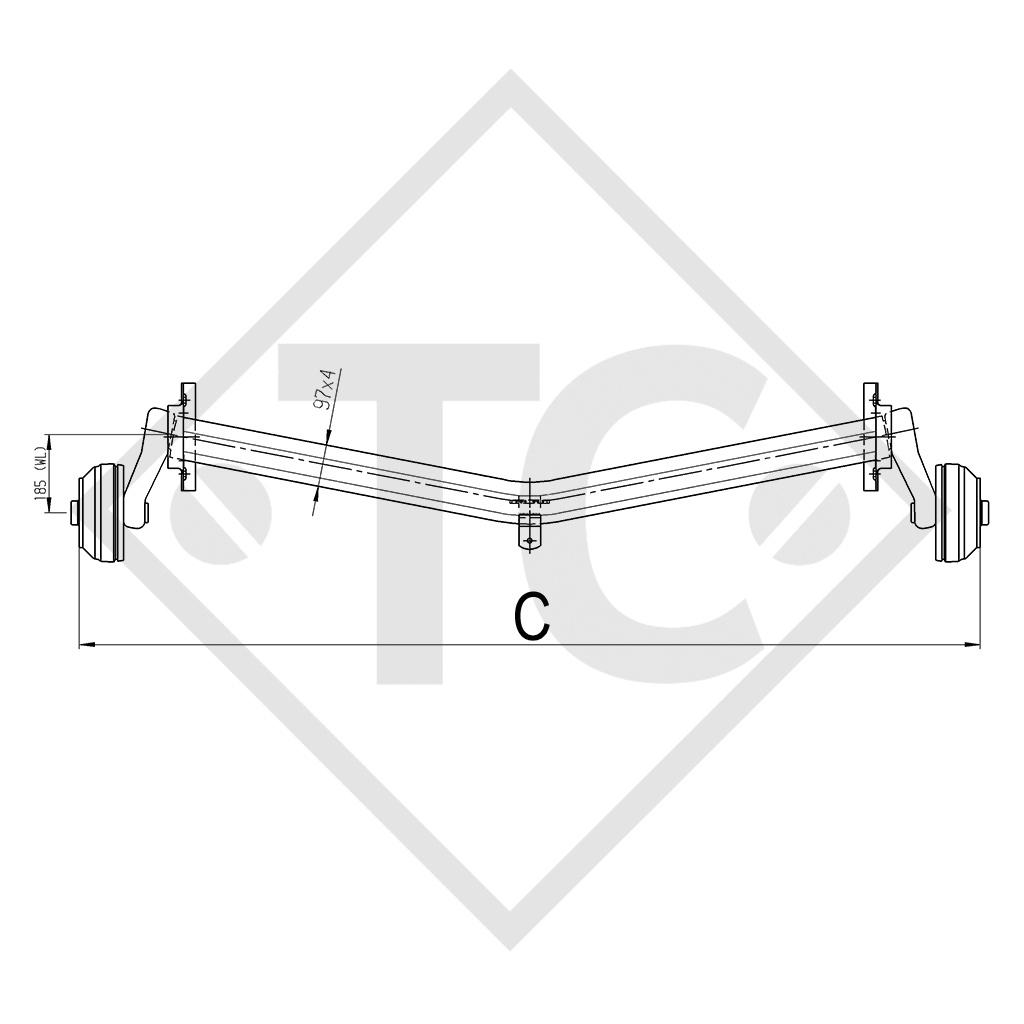

OHF: dimension C 2080mm
Wheel connection 112x5
Offset (ET) 30mm
Swing arm position 16°
Axle profile 97mm
Original operating instructions
TECHNOLOGY
Model: EURO Plus
Axle type: DELTA SIN 12-3
Axle load: Single axle 1360kg
Axle load: Tandem axle 2700kg
Wheel brake: 2051 vers. Ab
Suspension: Hexagonal rubber suspension
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
Axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
