Braked axle 1350kg RONDO axle type DB 1355, 45.25.379.472 - LOHJA CARAVANS Braked axle 1350kg RONDO axle type DB 1355, 45.25.379.472 - LOHJA CARAVANS Braked axle 1350kg RONDO axle type DB 1355, 45.25.379.472 - LOHJA CARAVANS Braked axle 1350kg RONDO axle type DB 1355, 45.25.379.472 - LOHJA CARAVANS Braked axle 1350kg RONDO axle type DB 1355, 45.25.379.472 - LOHJA CARAVANS
Braked axle 1350kg RONDO axle type DB 1355, 45.25.379.472 - LOHJA CARAVANS
Braked axle 1350kg RONDO axle type DB 1355, 45.25.379.472 - LOHJA CARAVANS
Braked axle 1350kg RONDO axle type DB 1355, 45.25.379.472 - LOHJA CARAVANS
Braked axle 1350kg RONDO axle type DB 1355, 45.25.379.472 - LOHJA CARAVANS
Braked axle 1350kg RONDO axle type DB 1355, 45.25.379.472 - LOHJA CARAVANS

BPW Braked axle 1350kg RONDO axle type DB 1355, 45.25.379.472 - LOHJA CARAVANS

Home / Braked axle 1350kg RONDO axle type DB 1355, 45.25.379.472 - LOHJA CARAVANS

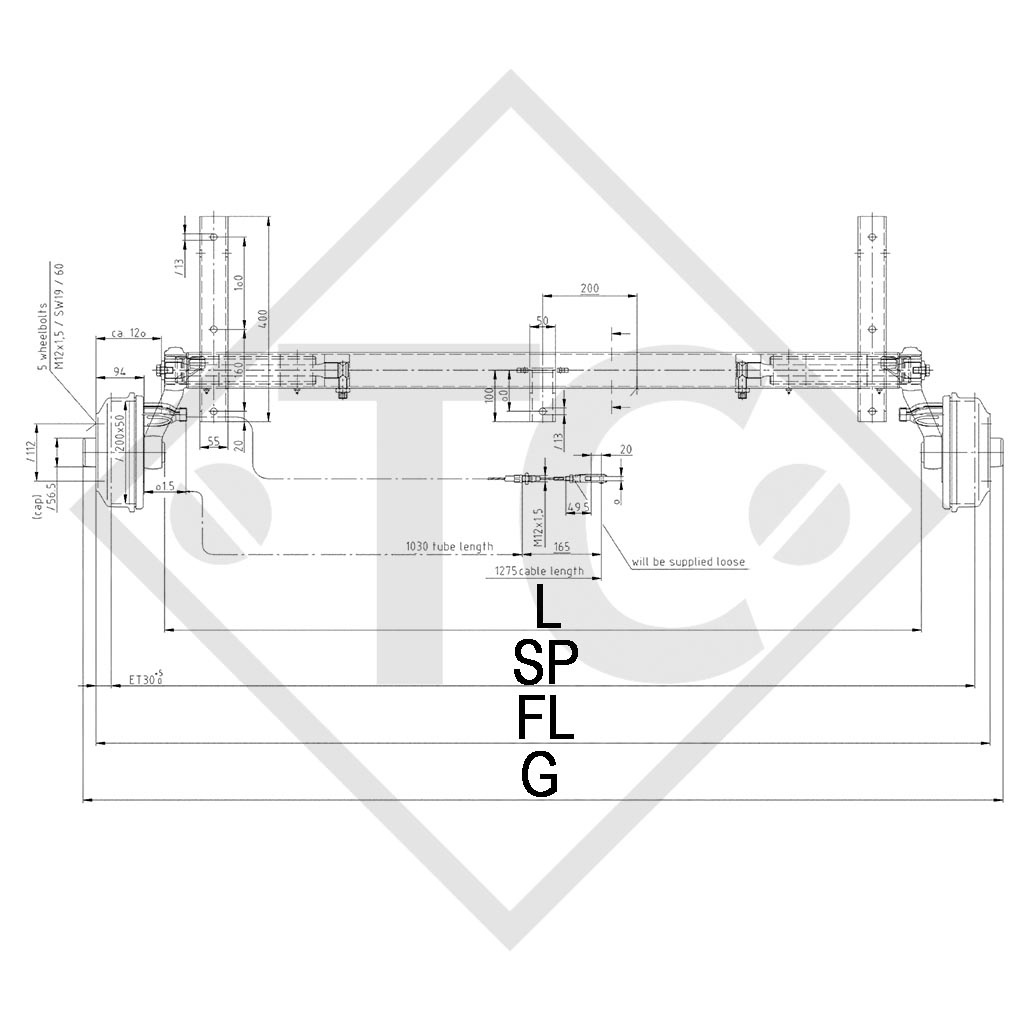

BC: dimension AM 1570mm, OHF: dimension FL 2020mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30-35mm, swing arm position 13°, axle profile 70mm, taper-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Product description

Part no. OLD 45.25.379.472
Part no. NEW 4025255

Dimension FL
 2020mm
Dimension SP
 1960mm

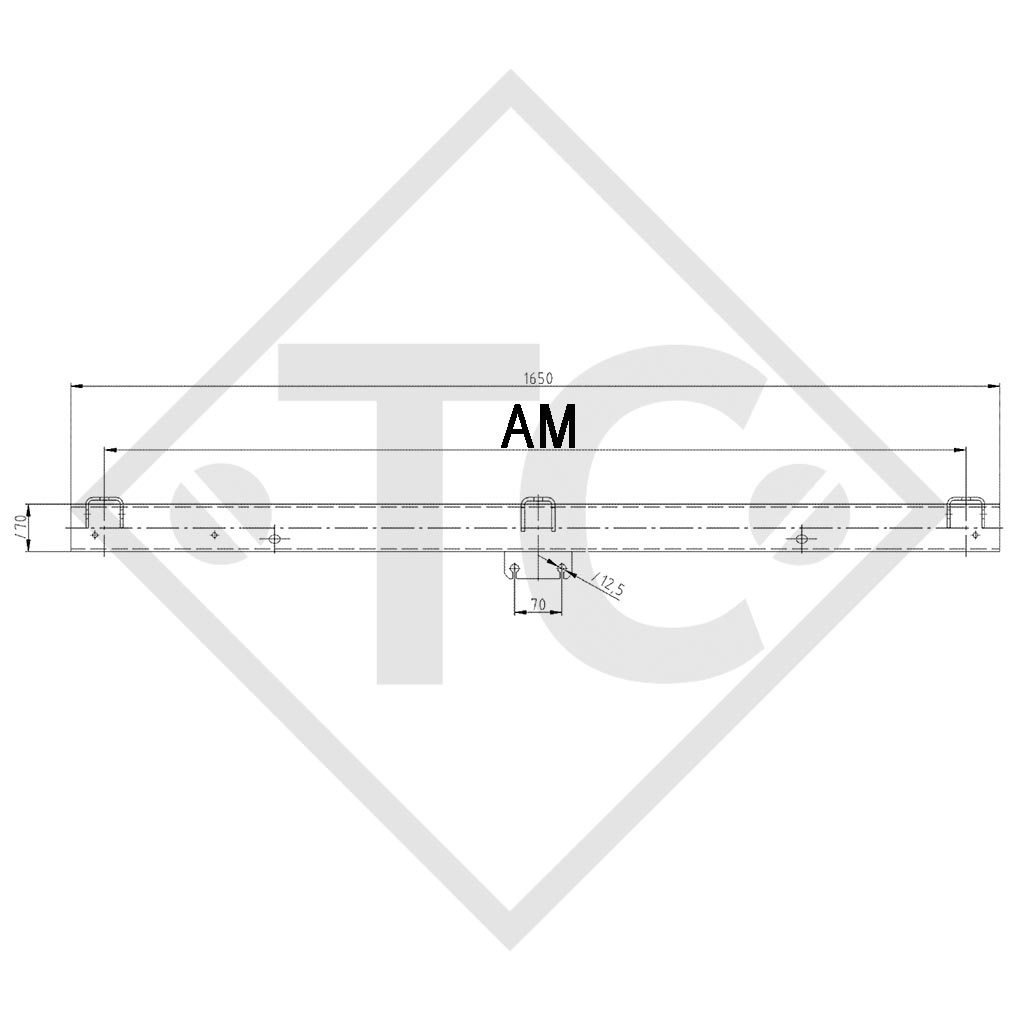

Dimension AM
 1570mm
Dimension L
 1751mm
Dimension G 2070mm
Model RONDO
Axle type DB1355
Axle load single axle 1350kg
Axle load: Tandem axel 2700kg
Wheel brake S 2005-7 RASK
Suspension rubber suspension

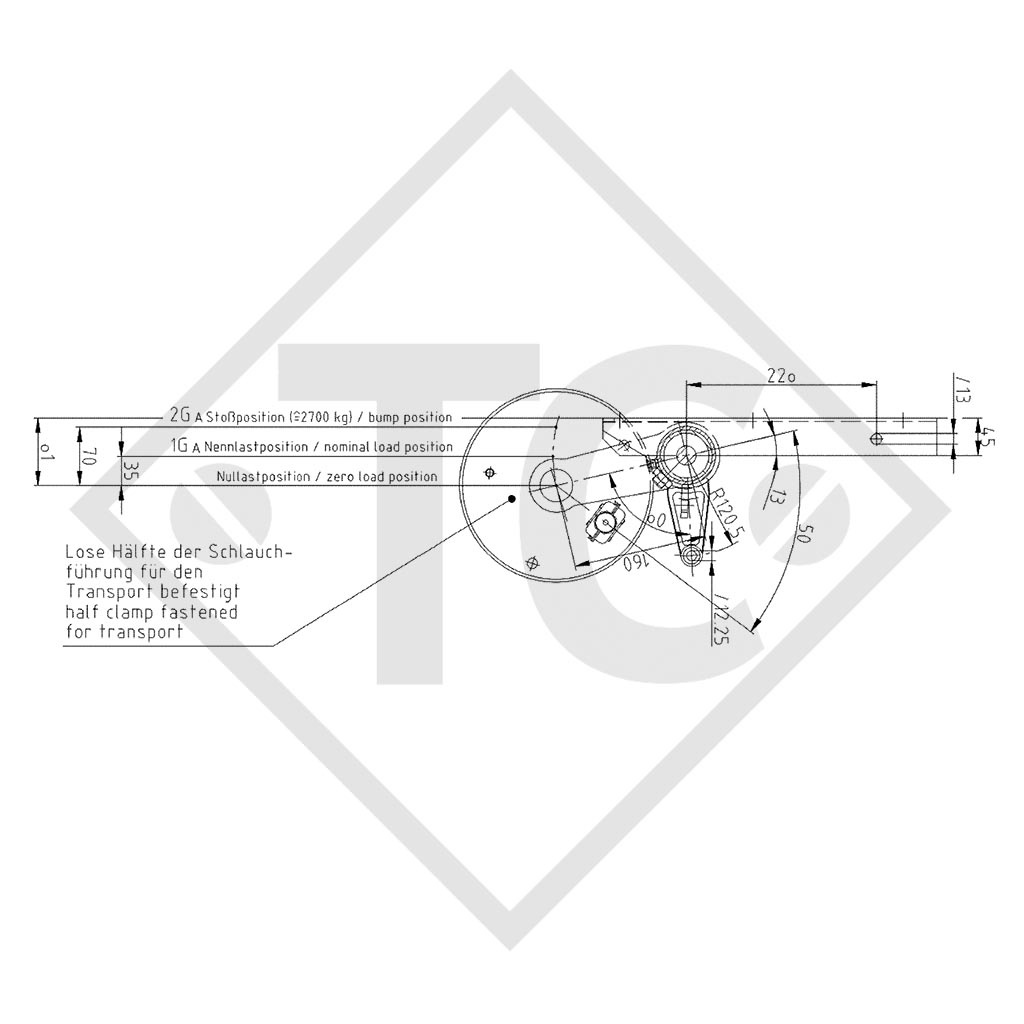

Swing arm 160mm
Wheel connection 112x5
Wheel bearing Compact bearings
Centre hole rim min. 56.5mm



Original operating instructions
Replacement part identification number (ETI) OLD XX.XX.379.XXX
Replacement part identification number (ETI) NEW 827030

SCOPE OF DELIVERY
Axle incl. bowden cables loose
Welded-on shock absorber brackets

DETAILS

  • Speed up to 140 km/h
  • Drawbar connection: Clamping shells see Accessories
  • Axle shock absorber see Accessories
  • Wheel connections: 98x4, 130x4, 120x5, 140x5 on demand
  • Special axle mounts and drawbar connections on demand
  • Also available with watertight bearings
  • Axle body fully hop-dip galvanised: Permanent surface protection
  • Independent wheel suspension: Optimum compensation of uneven road surfaces
  • Maintenance-free suspension: Lower maintenance costs
  • Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
  • Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
  • Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
  • Incl. shock absorber bracket
