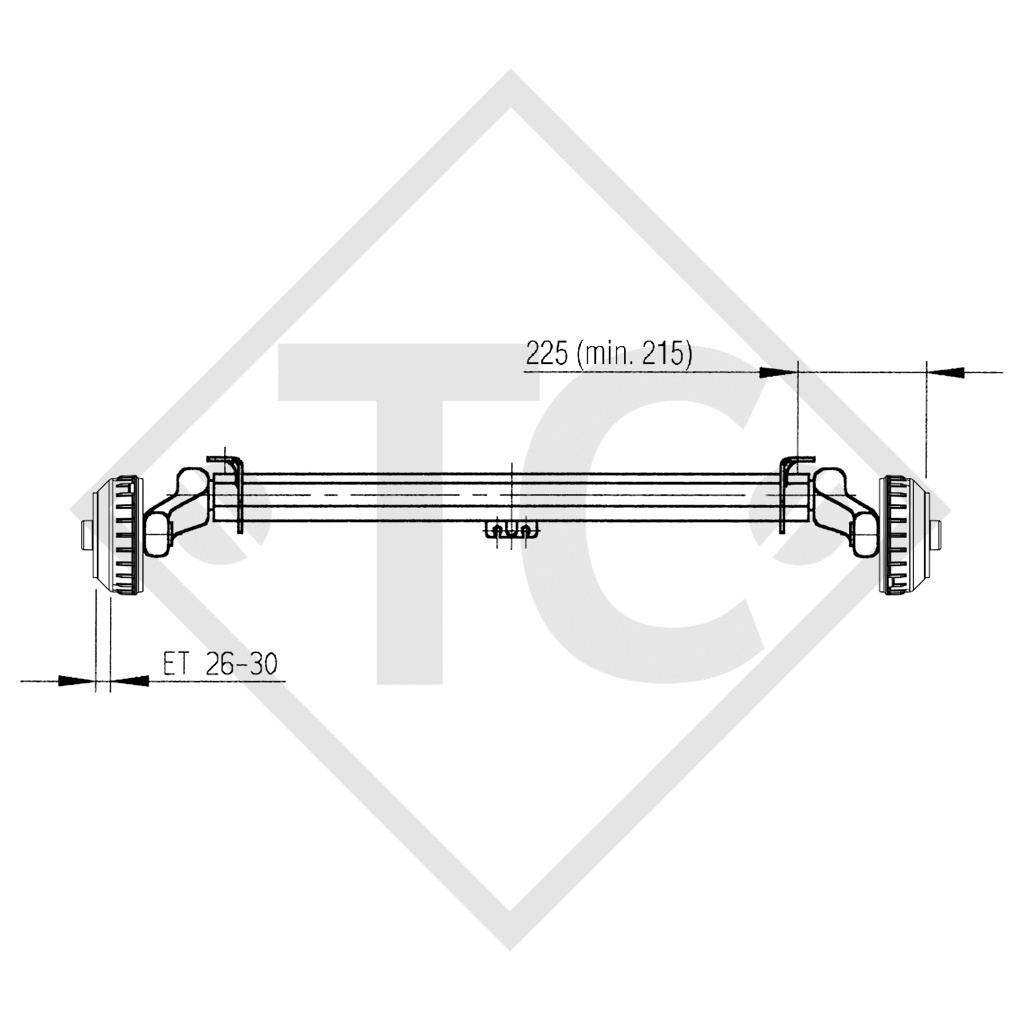

BC: dimension A 1140mm, OHF: dimension C 1600mm, wheel connection 139.7x4, wheel brake type 2051 Aa, swing arm position 25°, axle profile 97mm. Read more...

Wishlist: Add to comparison:

Part no. 642326
BC: dimension A 1140mm
OHF: dimension C 1600mm
Wheel connection 139.7x4

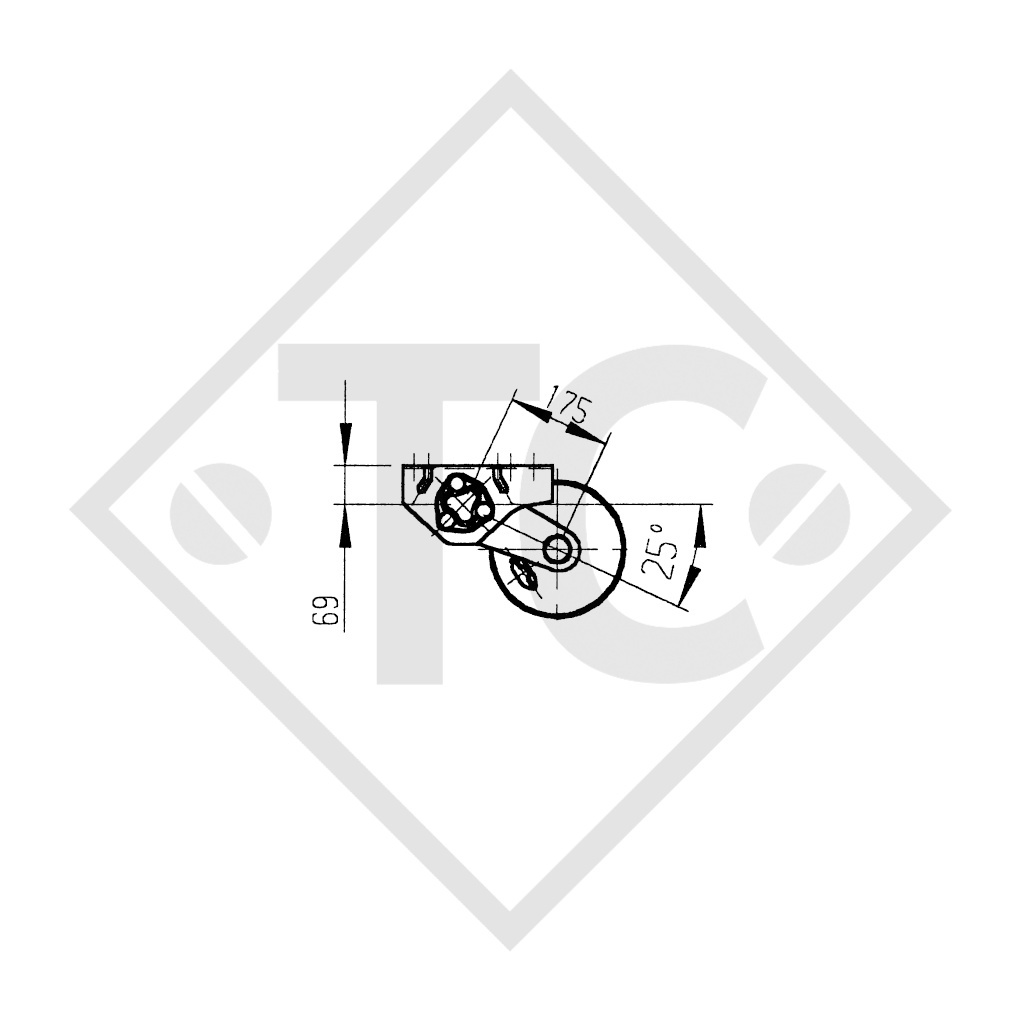

Swing arm position 25°
Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) OLD 811294
Replacement part identification number (ETI) NEW 811947

TECHNOLOGY
Model: EURO1
Axle type: B 1200-5
Axle load: Single axle 1300kg
Axle load: Tandem axle 2600kg
Wheel brake: 2051 Aa
Suspension: Hexagonal rubber suspension
Swing arm length: 175mm
Wheel bearing: Reinforced compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber
