BC: dimension A 1350mm, OHF: dimension C 1800mm, wheel connection 100x4, wheel brake type 2051 Aa, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm, taper-head wheel bolts M12x1.5. Read more...
Part no. 1522469

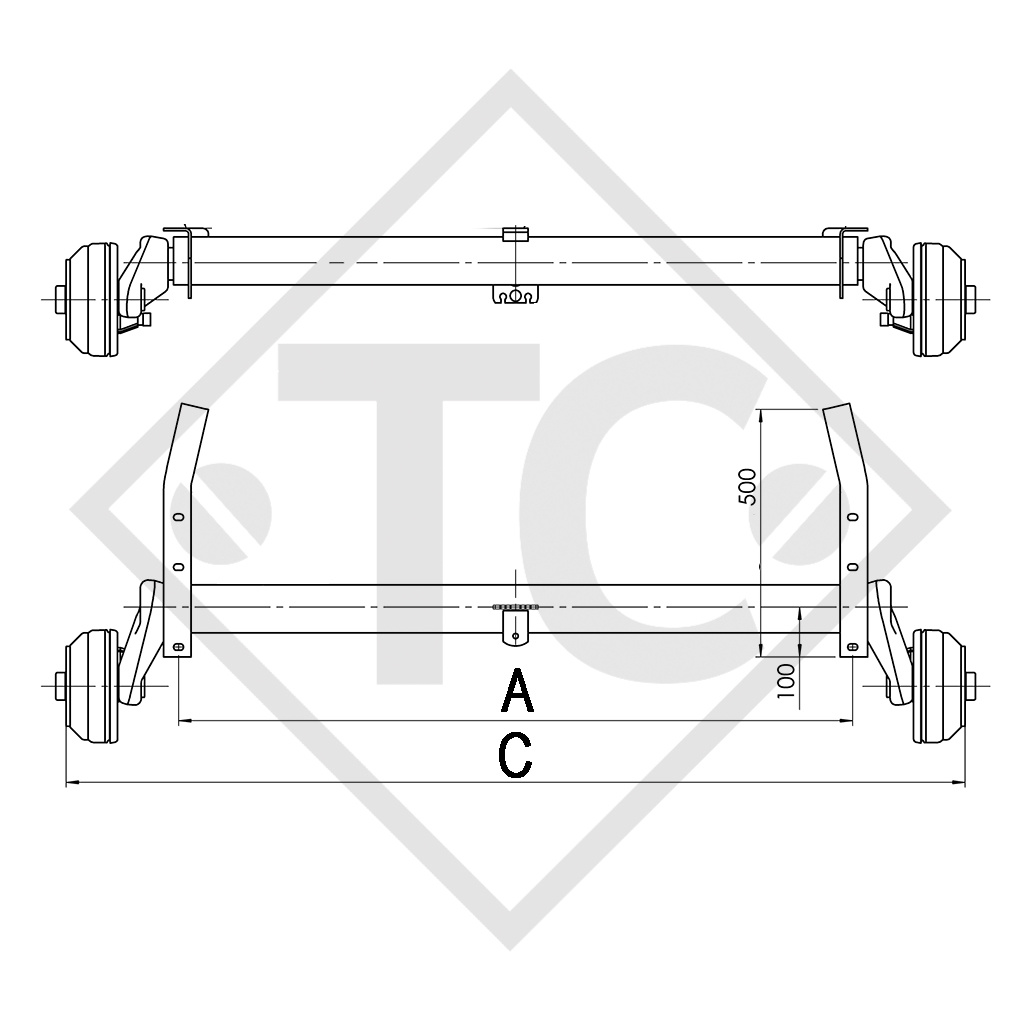

BC: dimension A 1350mm
OHF: dimension C 1800mm
Wheel connection 100x4
Offset (ET) 26-30mm
Swing arm position 25°
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) OLD 811294
Replacement part identification number (ETI) NEW 811947
TECHNOLOGY
Model: EURO1
Axle type: B 800-4
Axle load: Single axle 800kg
Axle load: Tandem axle 1600kg
Wheel brake: 2051 Aa
Suspension: Hexagonal rubber suspension

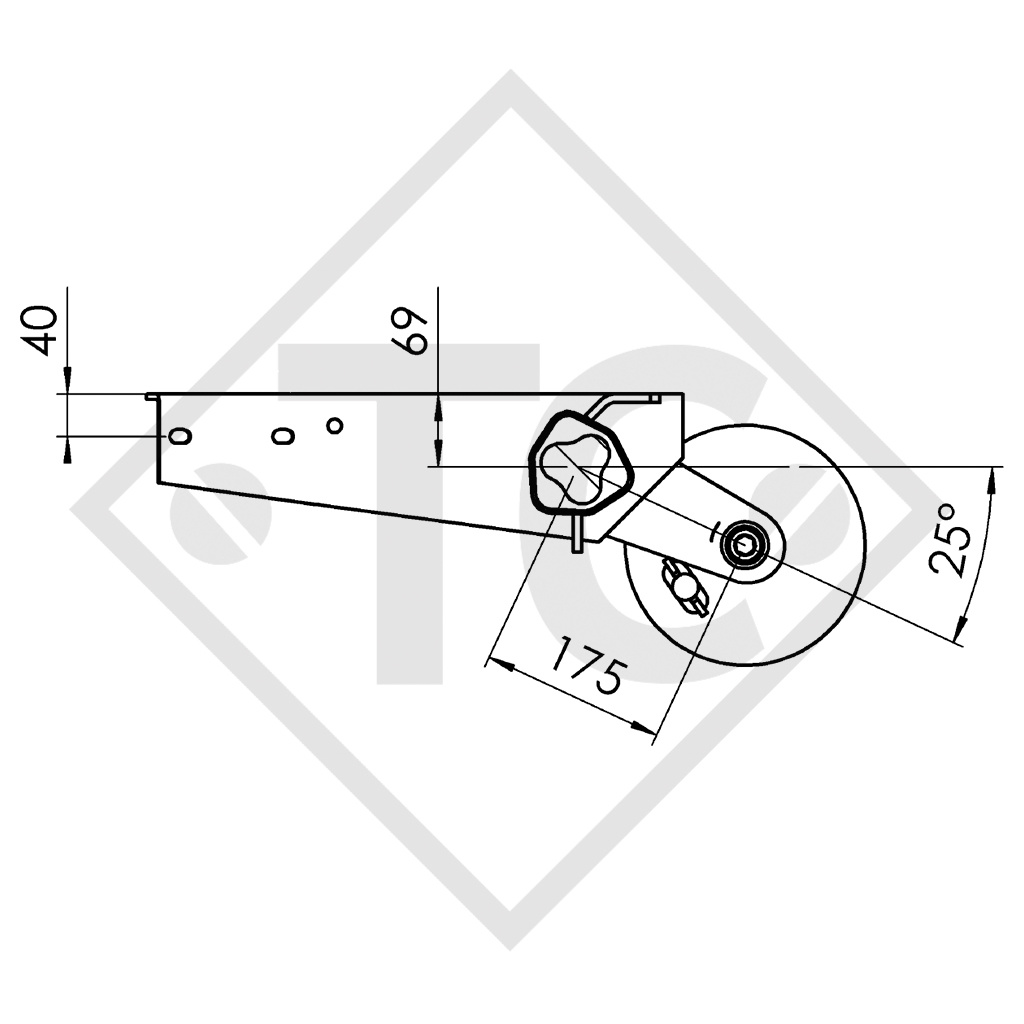

Swing arm length: 175mm
Wheel bearing: Reinforced compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
