BC: dimension A 1270mm, OHF: dimension C 1840mm, wheel connection 130x4, wheel brake type 2051 Aa, offset (ET) 20-33mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 1271024

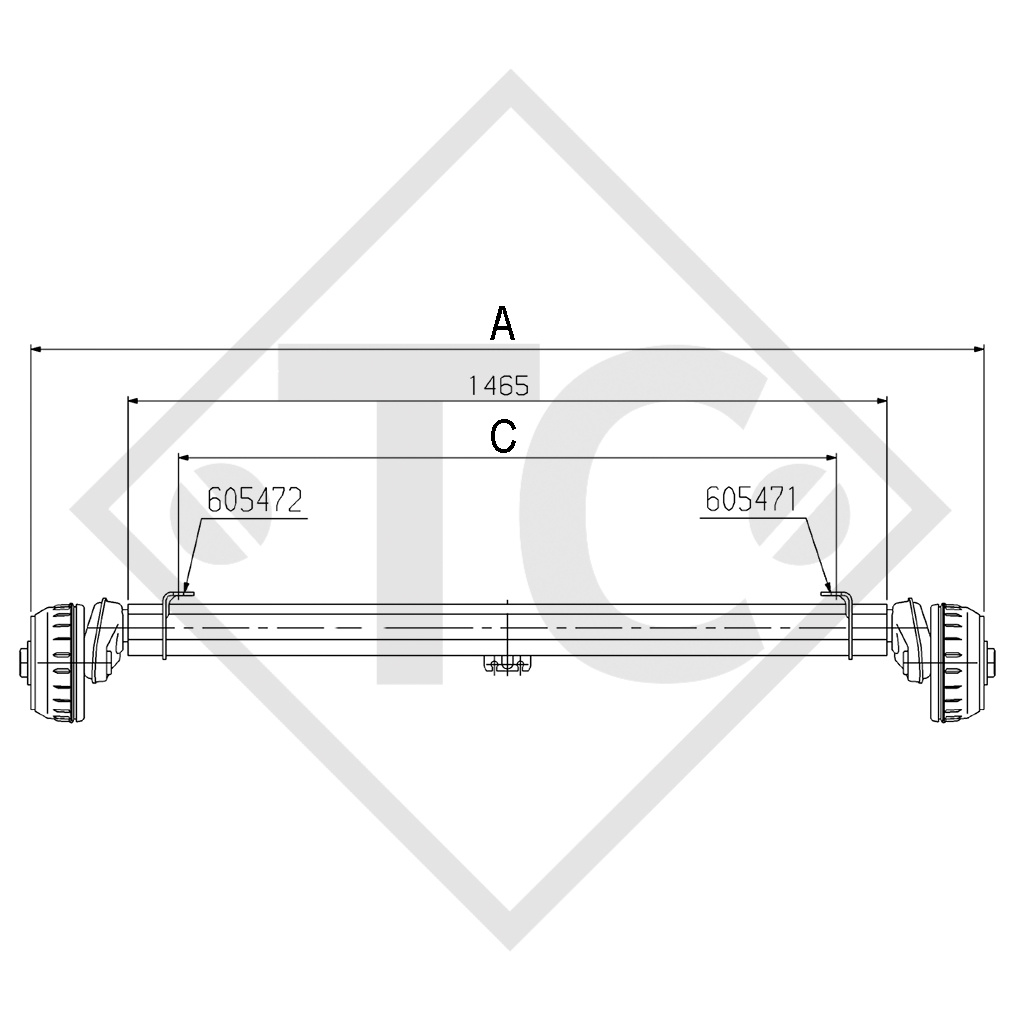

BC: dimension A 1270mm
OHF: dimension C 1840mm
Wheel connection 130x4
Offset (ET) 20-33mm

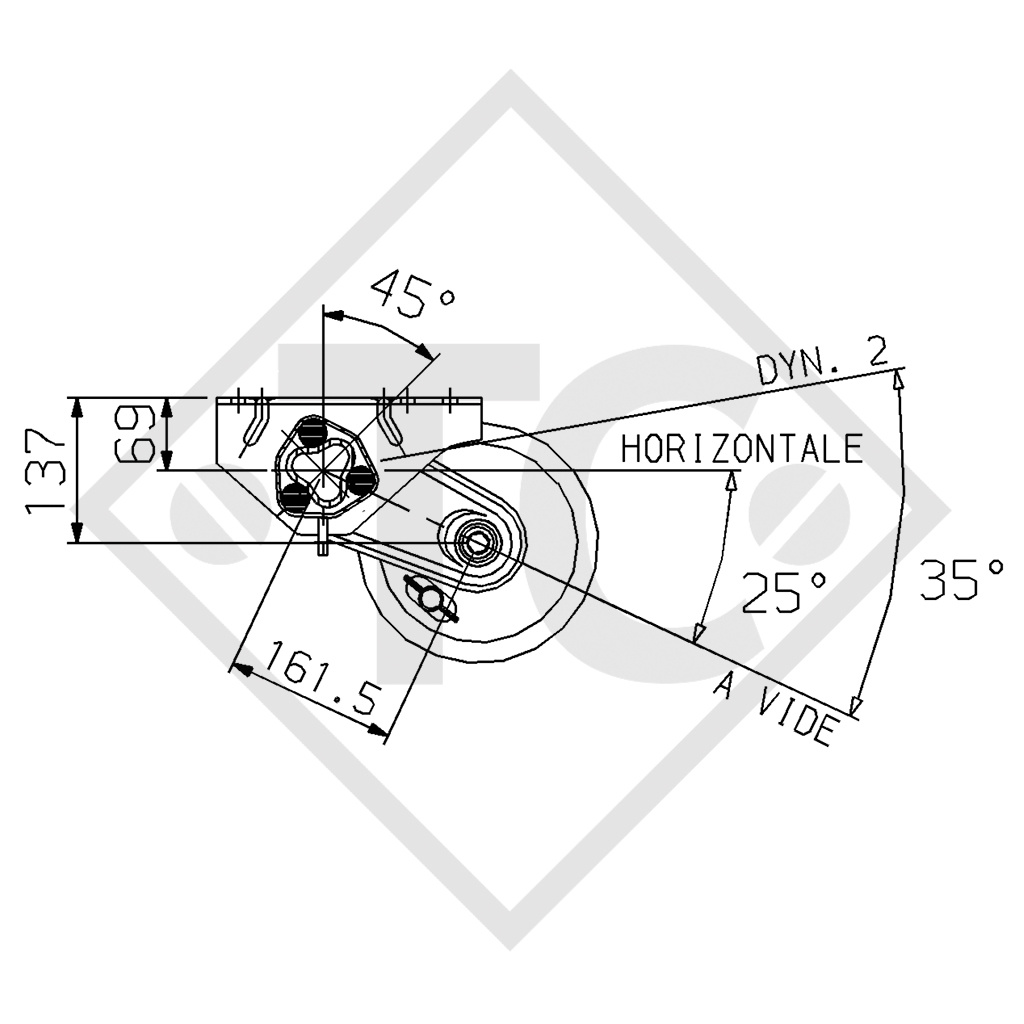

Swing arm position 25°

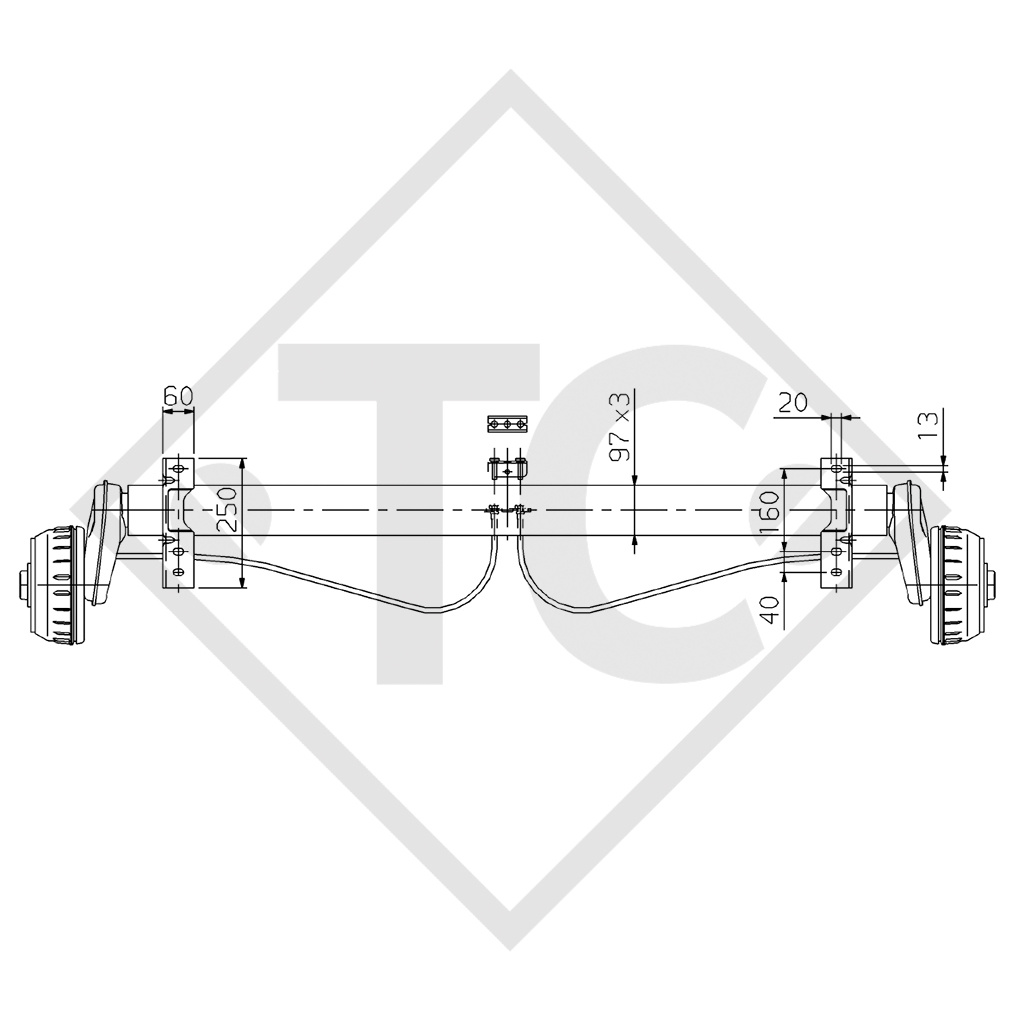

Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) OLD 811157
Replacement part identification number (ETI) NEW 811941
TECHNOLOGY
Model: COMPACT
Axle type: B 1200-5
Axle load: Single axle 1300kg
Axle load: Tandem axle 2600kg
Wheel brake: 2051 Aa
Suspension: Hexagonal rubber suspension
Swing arm length: 161.5mm
Wheel bearing: Reinforced compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
