Home / Braked tandem axle unit 1300kg EURO1 axle type 2xB 1200-5, MECANOREM
BC: dimension A 1320mm, OHF: dimension C 1820mm, wheel connection 140x5, wheel brake type 2051 vers. A, offset (ET) 0mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M14x1.5. Read more...
Part no. OLD 1709689
Part no. NEW 213967

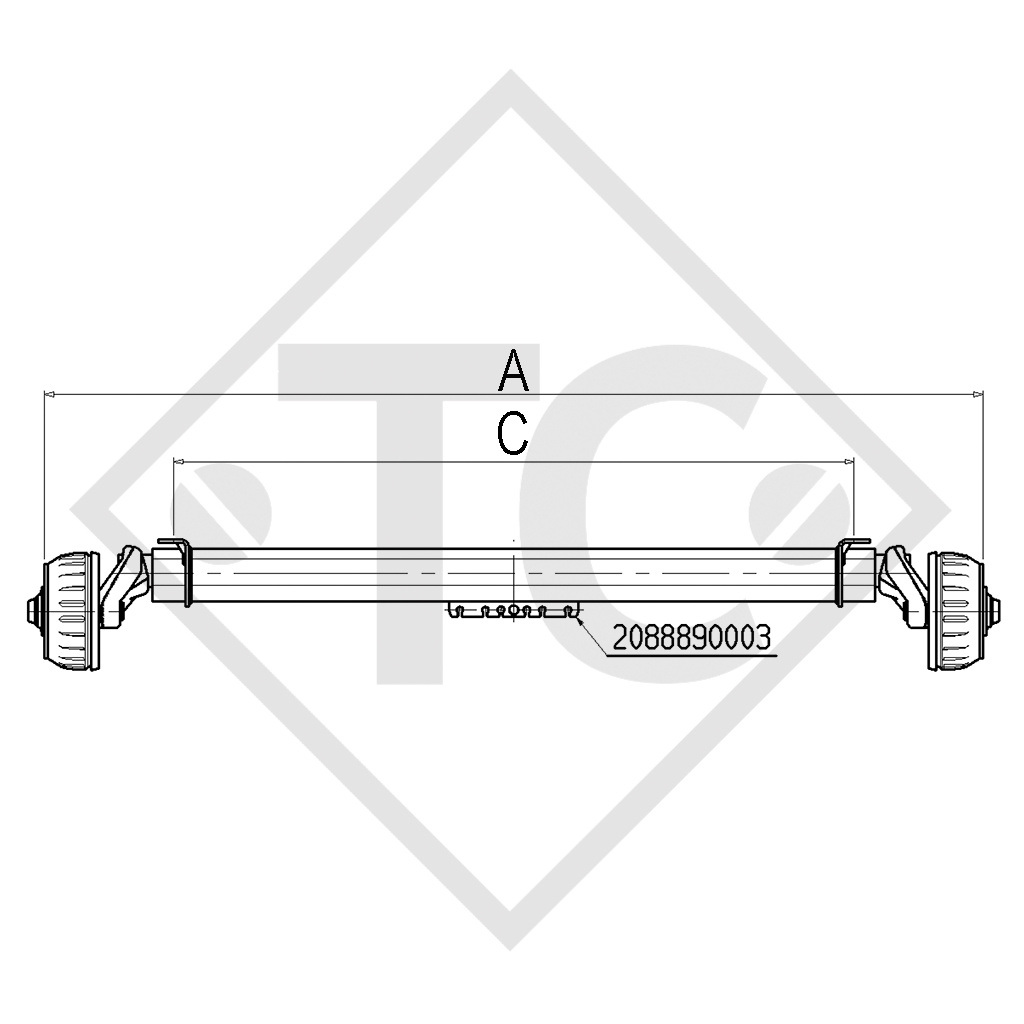

BC: dimension A 1320mm
OHF: dimension C 1820mm
Wheel connection 140x5
Offset (ET) 0mm

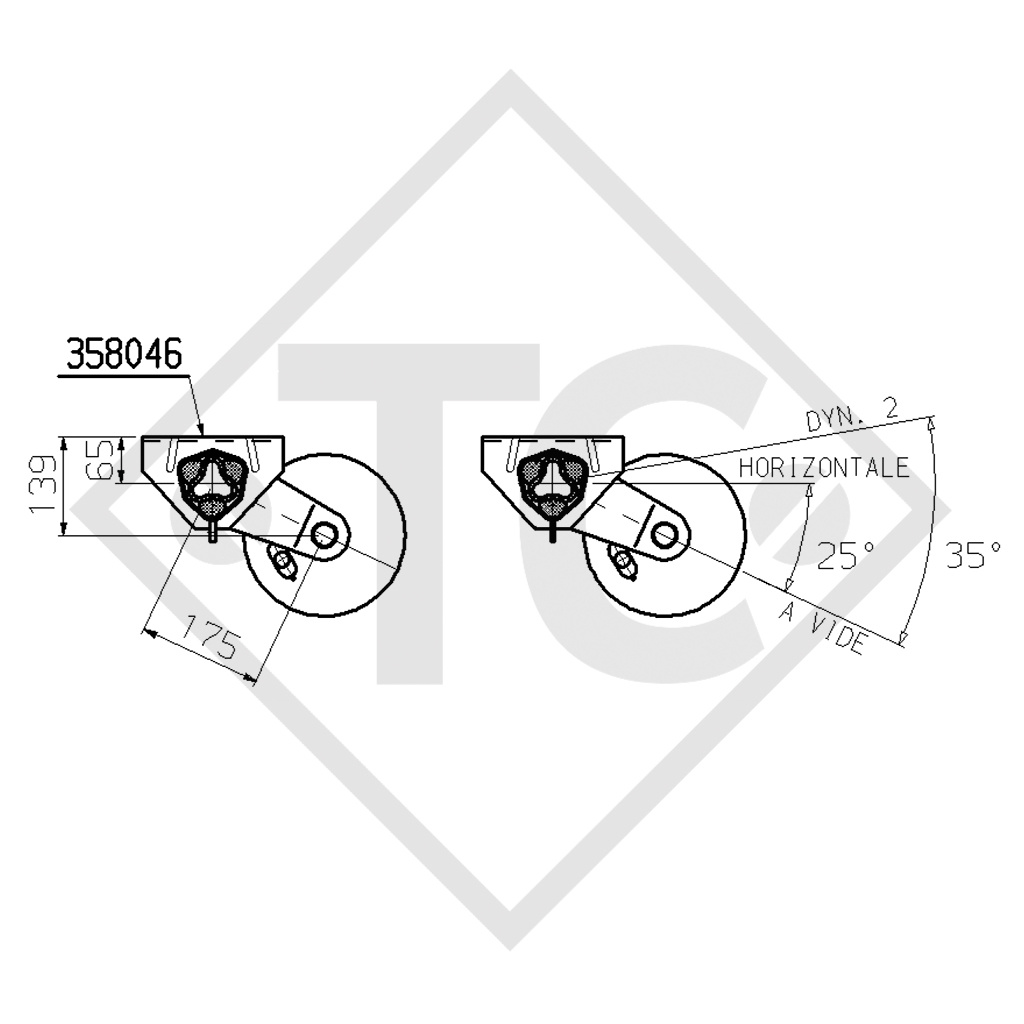

Swing arm position 25°
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) OLD 811294
Replacement part identification number (ETI) NEW 811947
TECHNOLOGY
Model: EURO1
Axle type: B 1200-5
Axle load: Single axle 1300kg
Axle load: Tandem axle 2600kg
Wheel brake: 2051 vers. A
Suspension: Hexagonal rubber suspension
Swing arm length: 175mm
Wheel bearing: Reinforced compact bearing
Rim centre hole: Min. 93mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M14x1.5 loose

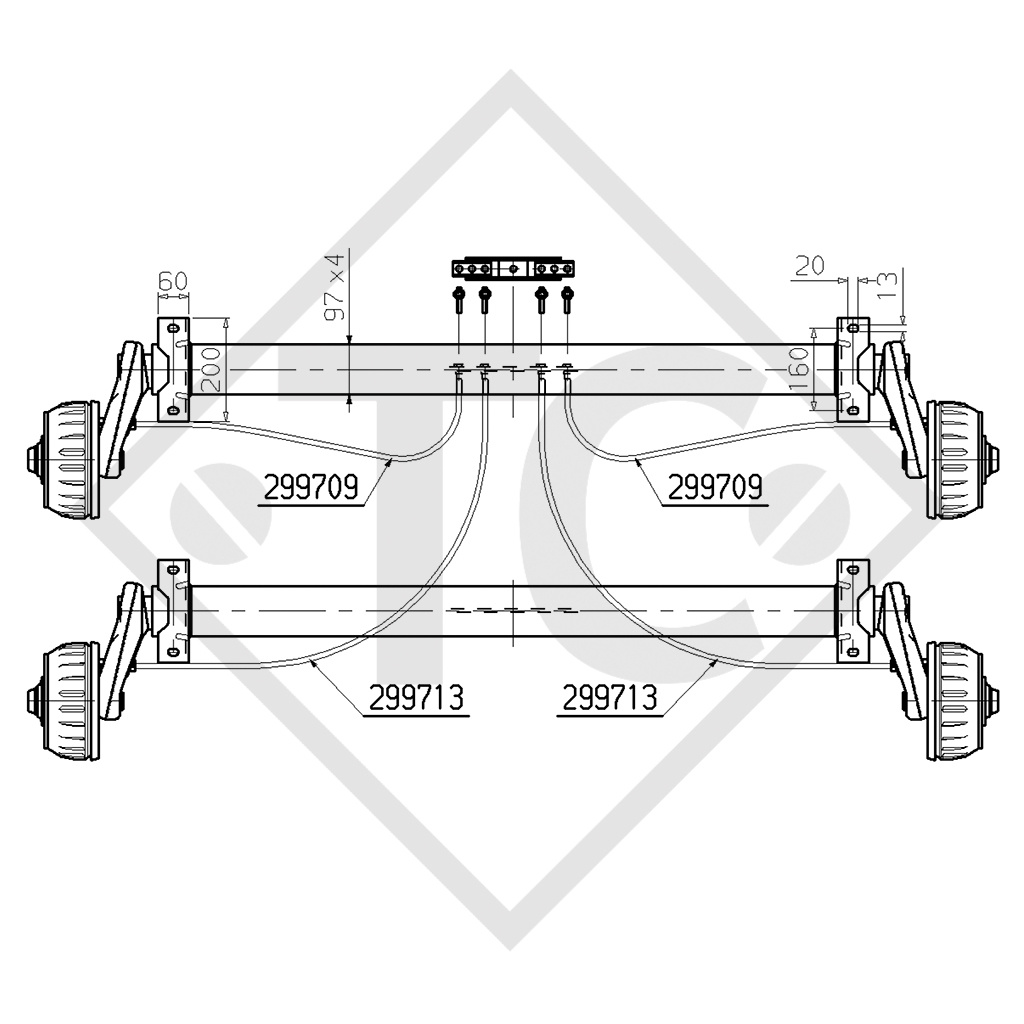

Tandem adapter bracket welded on
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
