BC: dimension A 1350mm, OHF: dimension C 1750mm, wheel connection 112x5, wheel brake type 2051 A, offset (ET) 30-33mm, swing arm position 25°, axle profile 97mm, M14x1.5. Read more...
Part no. 1745021_1350_1750

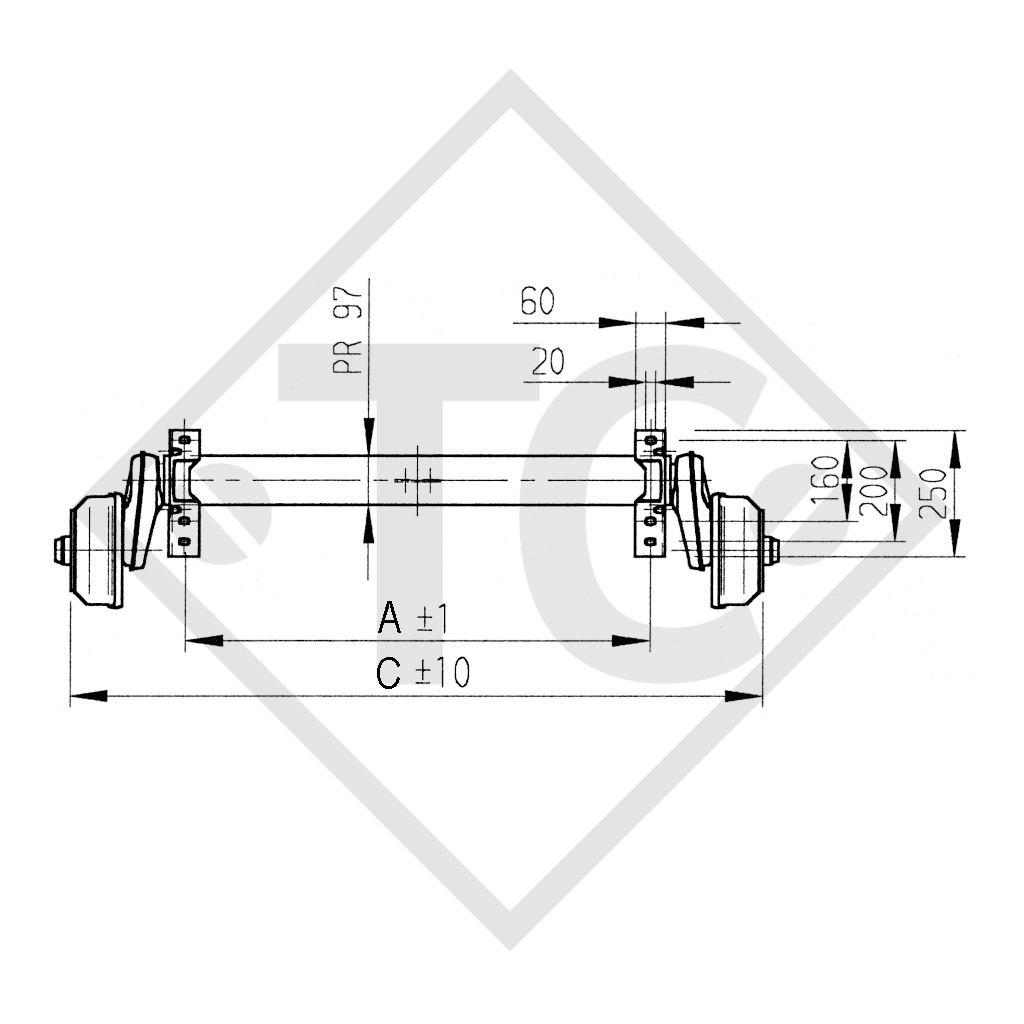

BC: dimension A 1350mm
OHF: dimension C 1750mm
Wheel connection 130x4

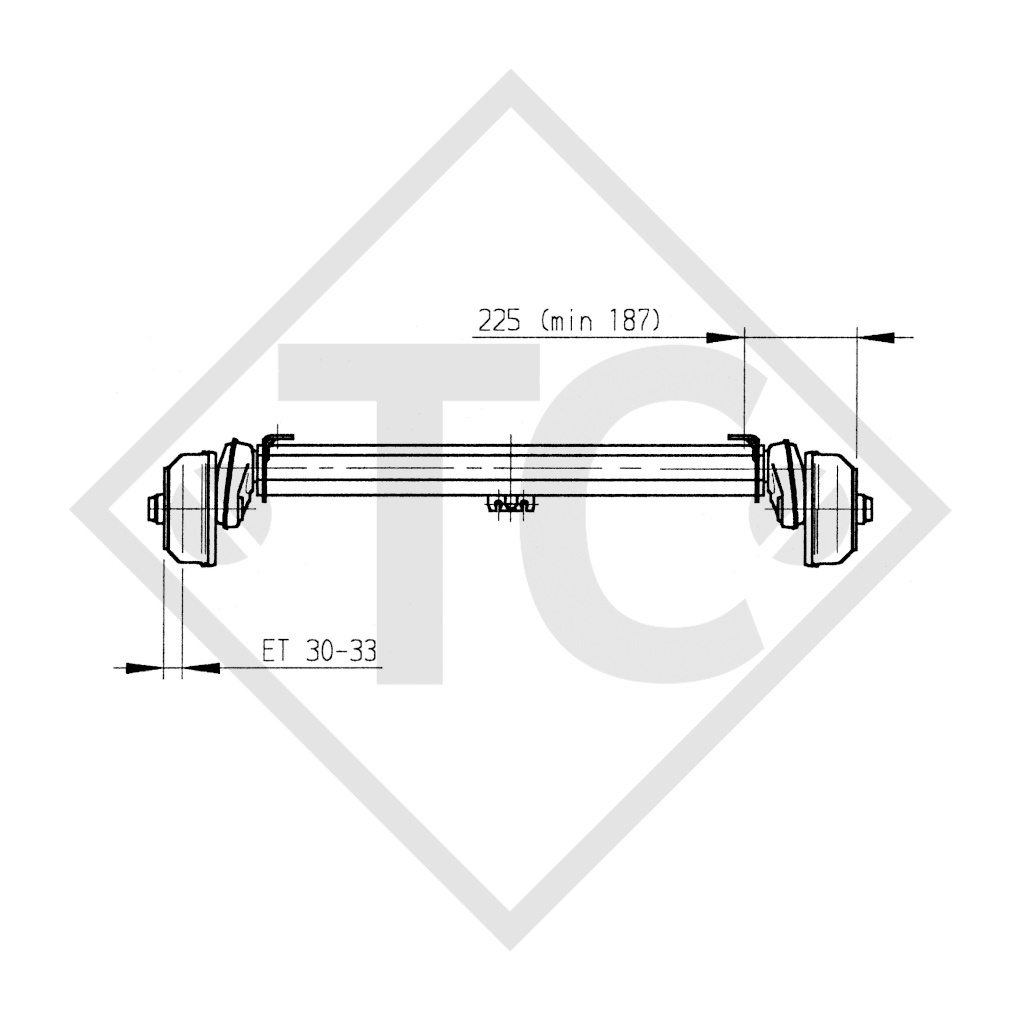

Offset (ET) 30-33mm

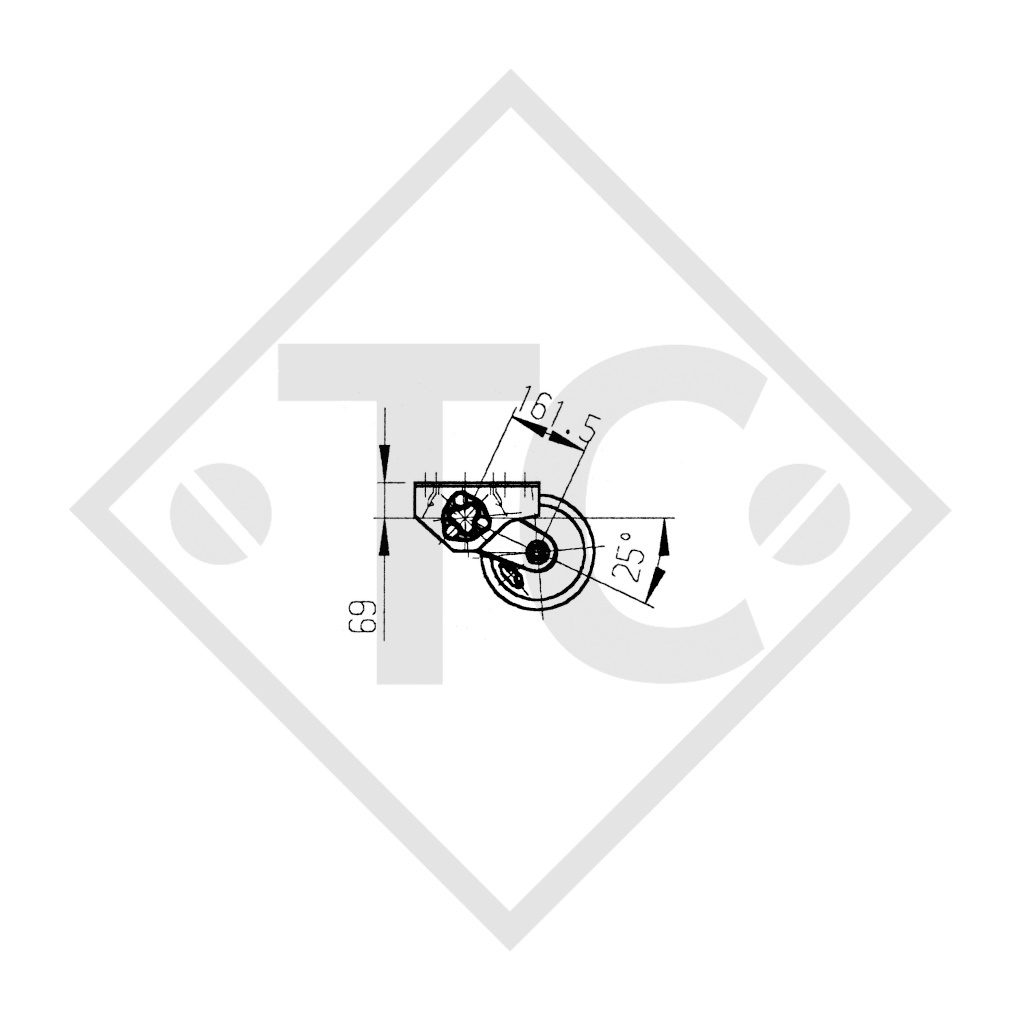

Swing arm position 25°
Axle profile 97mm
TECHNOLOGY
Model: EURO COMPACT
Axle type: B 1200-6
Axle load: Single axle 1350kg
Axle load: Tandem axle 2700kg
Wheel brake: 2051 A
Suspension: Hexagonal rubber suspension
Swing arm length: 161.5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle with brake
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
