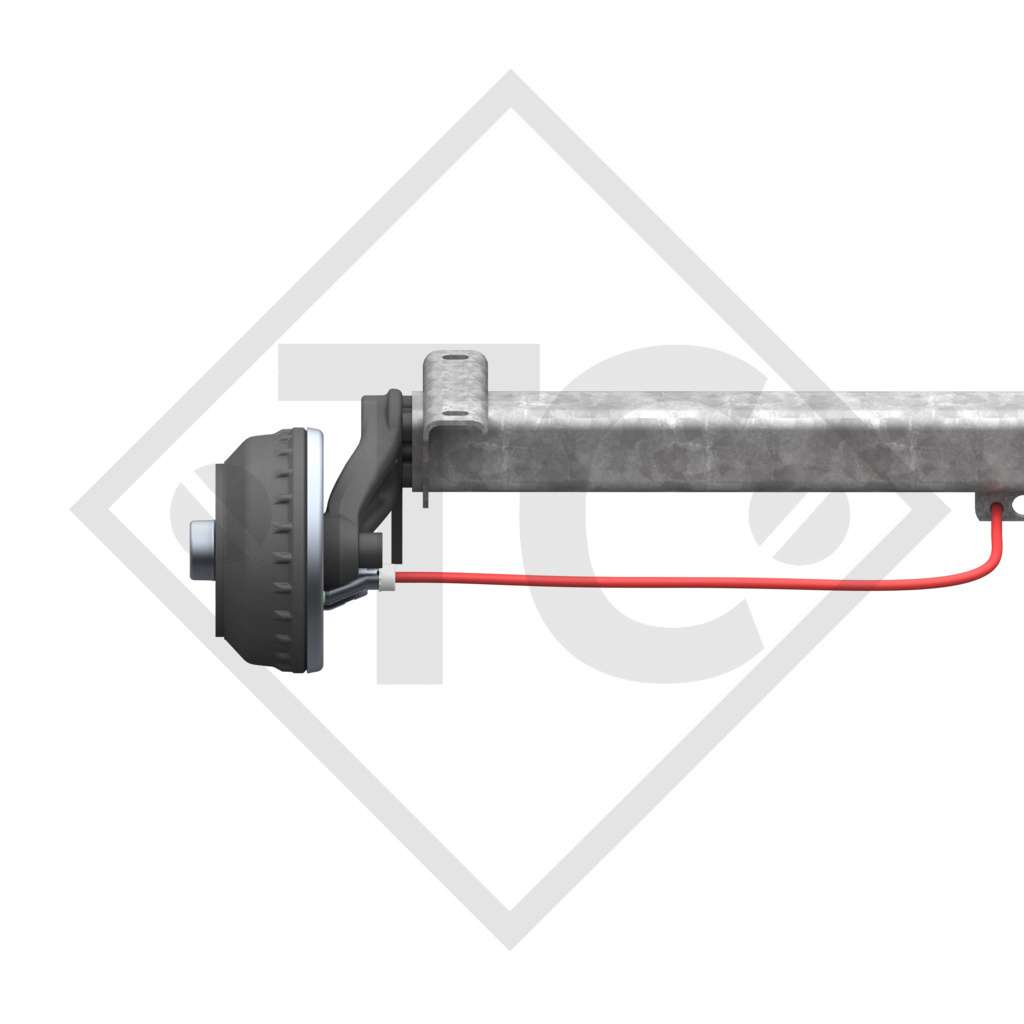

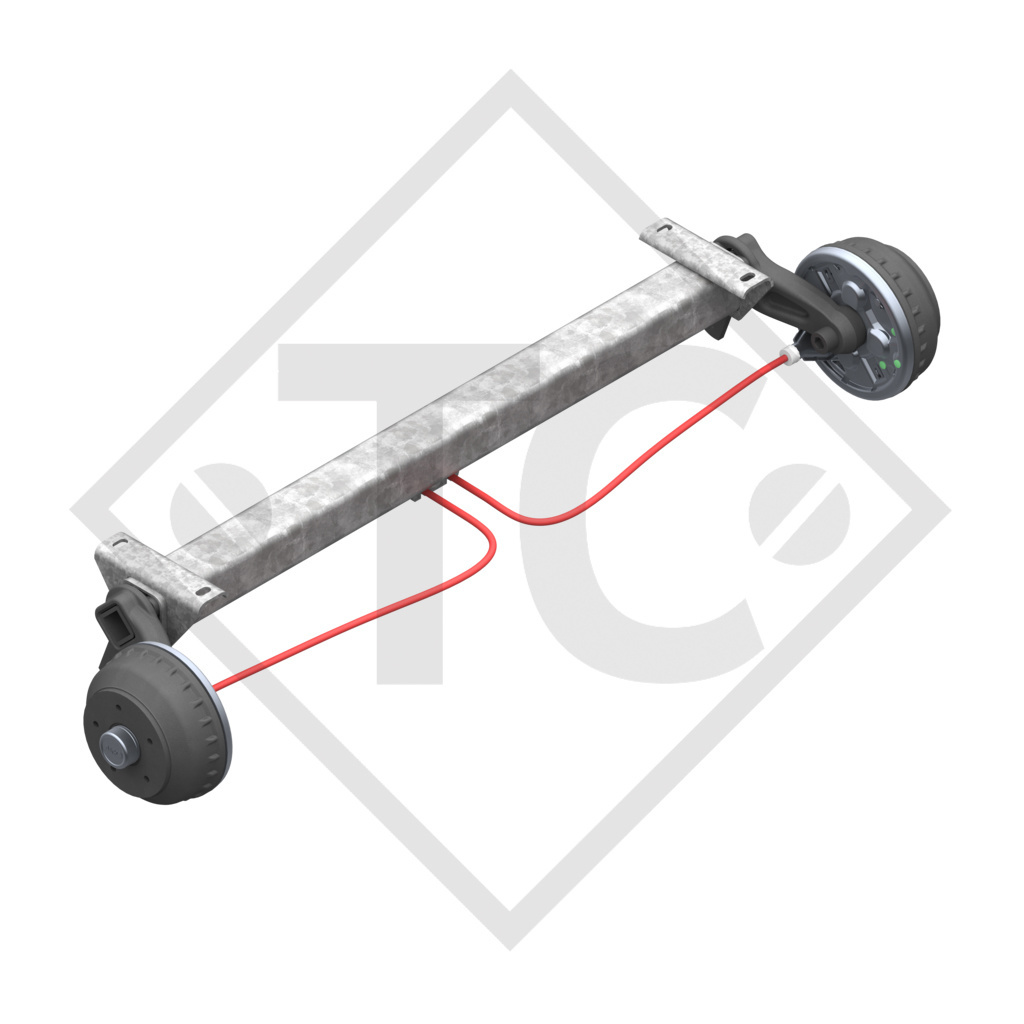

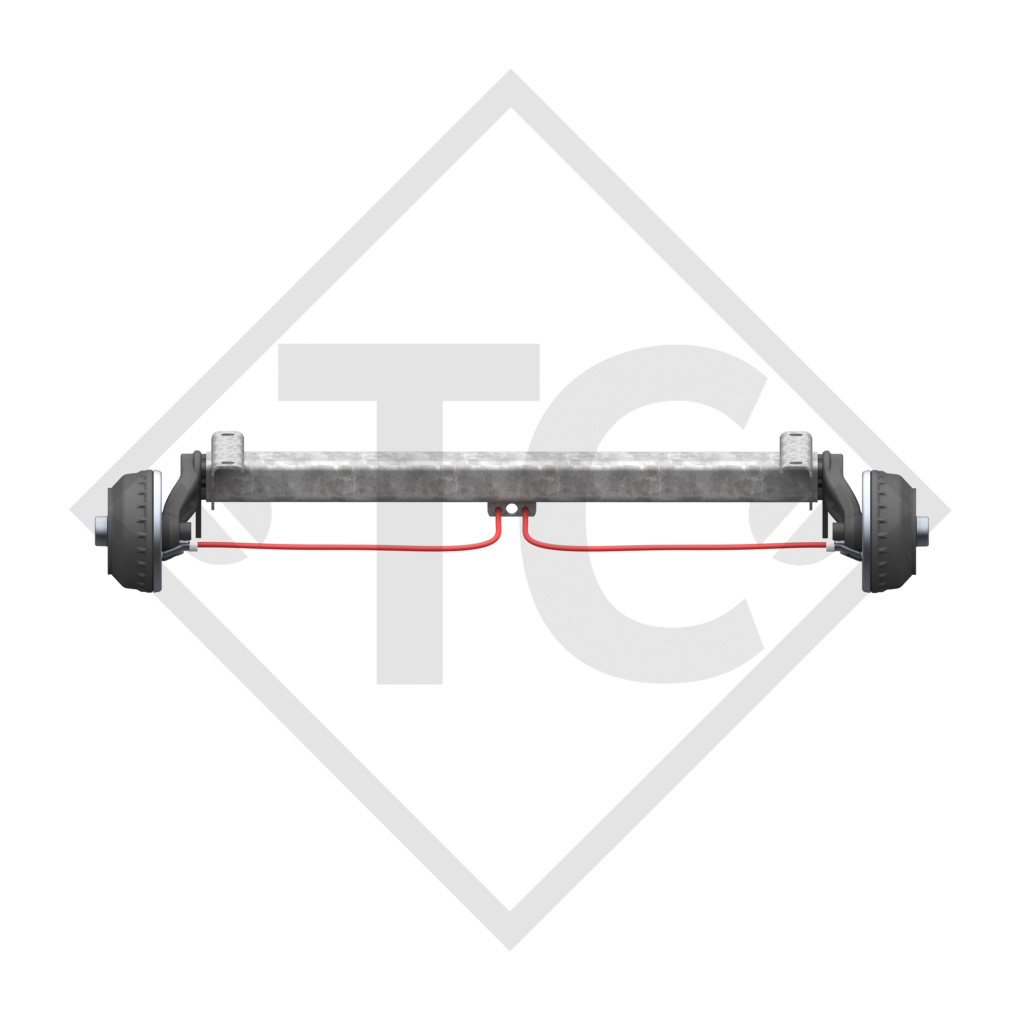

Braked axle 1350kg BASIC axle type CB1350, 4023451

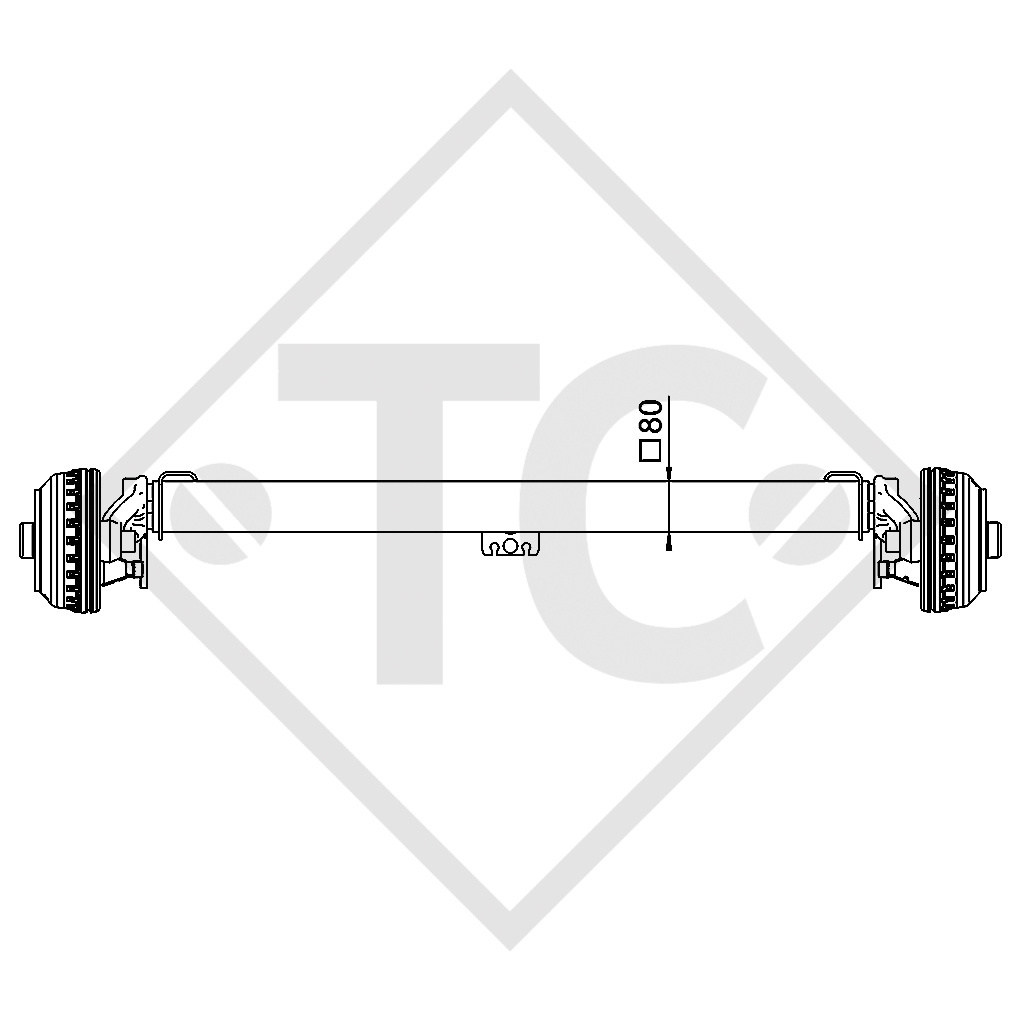

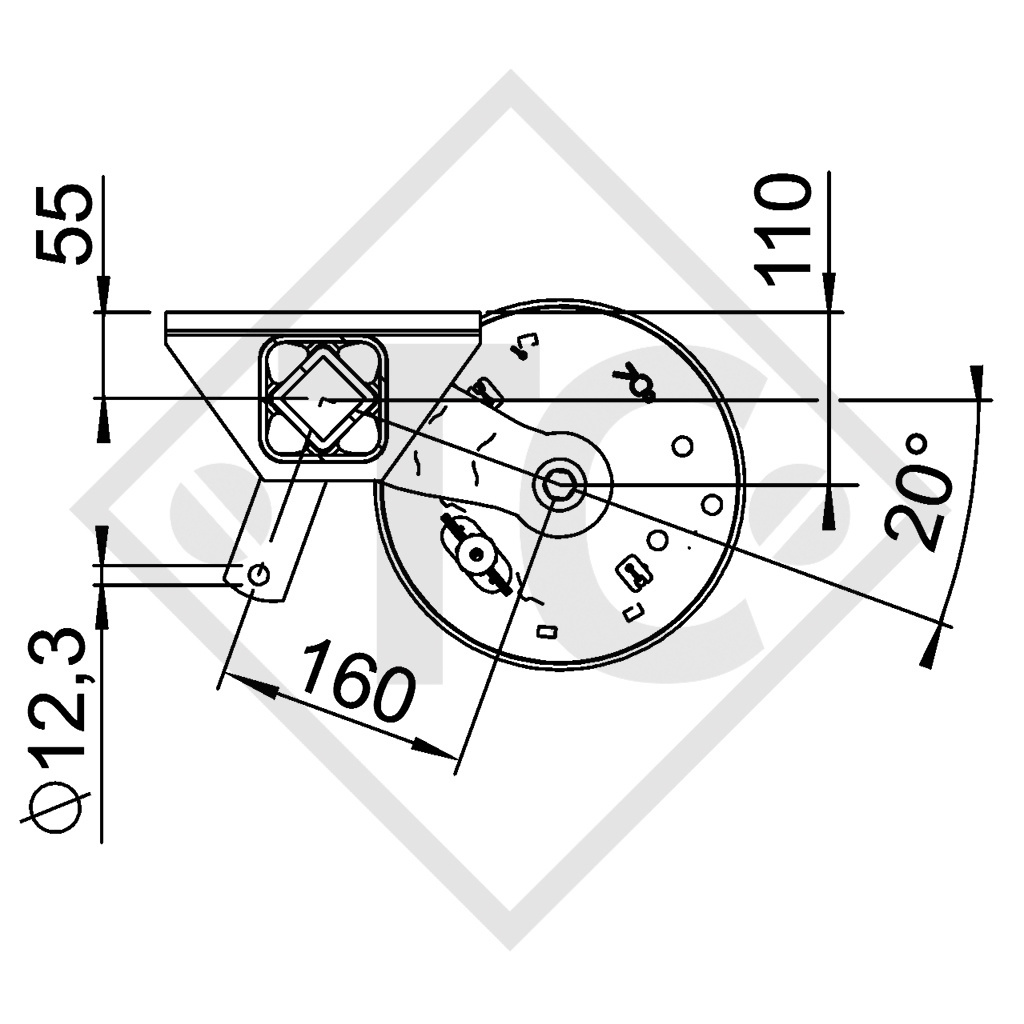

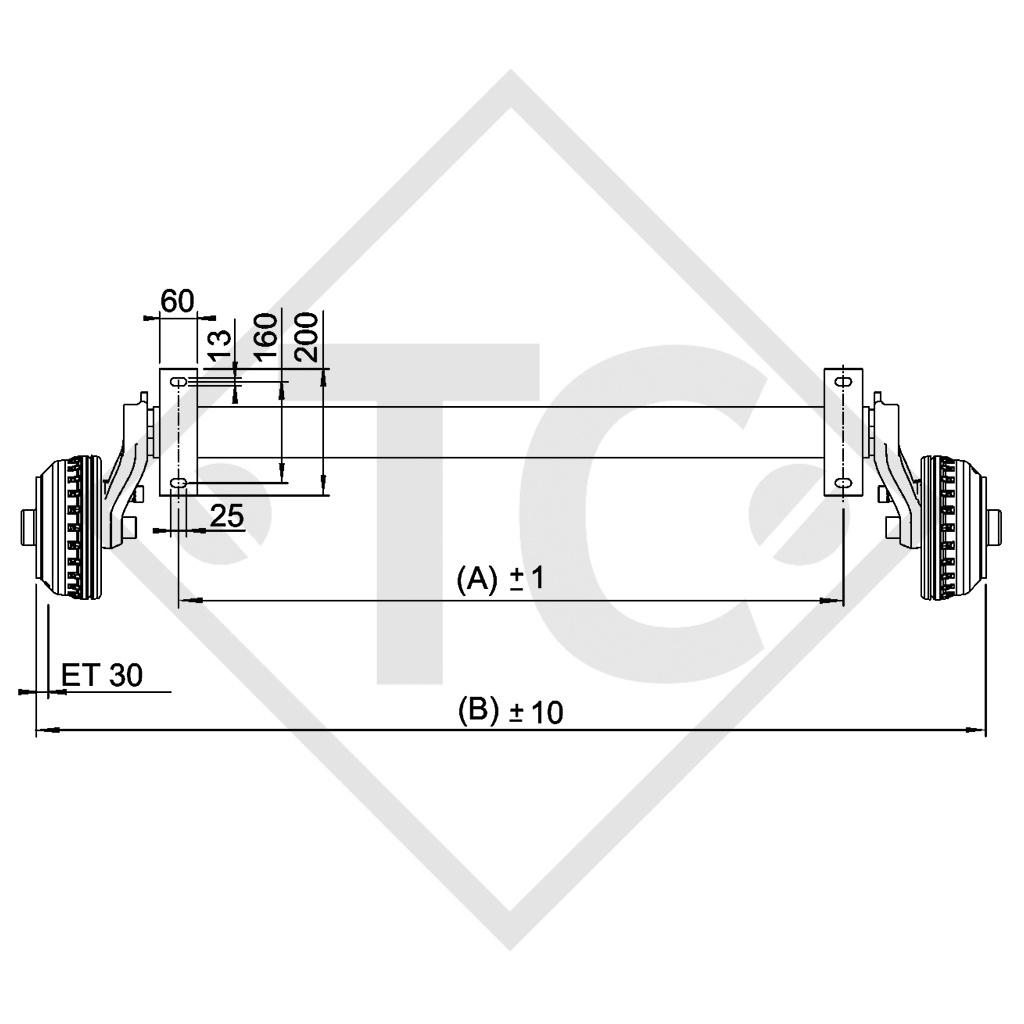

BC: dimension A 1800mm, OHF: dimension B 2250mm, wheel connection 112x5, wheel brake type 2051, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Price 651,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 1-3 working days (Mon-Fri)

- +

Add to cart

Part no. 4023451

BC (A)

1800mm

OHF (B)

2250mm

Model

BASIC

Axle type

CB1350

Axle load single axle

1350kg

Axle load: Tandem axel

2700kg

Wheel brake

2051

Suspension

Square rubber suspension

Swing arm

160mm

Wheel connection

112x5

Wheel bearing

Compact bearings

Centre hole rim

min. 57mm

Replacement part identification number (ETI) 811941

SCOPE OF DELIVERY
Single axle adapter bracket welded on
Welded-on shock absorber brackets
Compensation profile for single axle supplied
Bowden cables loose
Wheel bolts loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
Axle link cataphoretically coated

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

AL-KO Braked axle 1350kg BASIC axle type CB1350
