BC: dimension A 1500mm, OHF: dimension C 1950mm, wheel connection 130x4, wheel brake type 2051A, offset (ET) 30-33mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M14x1.5x25. Read more...
Part no. 663555

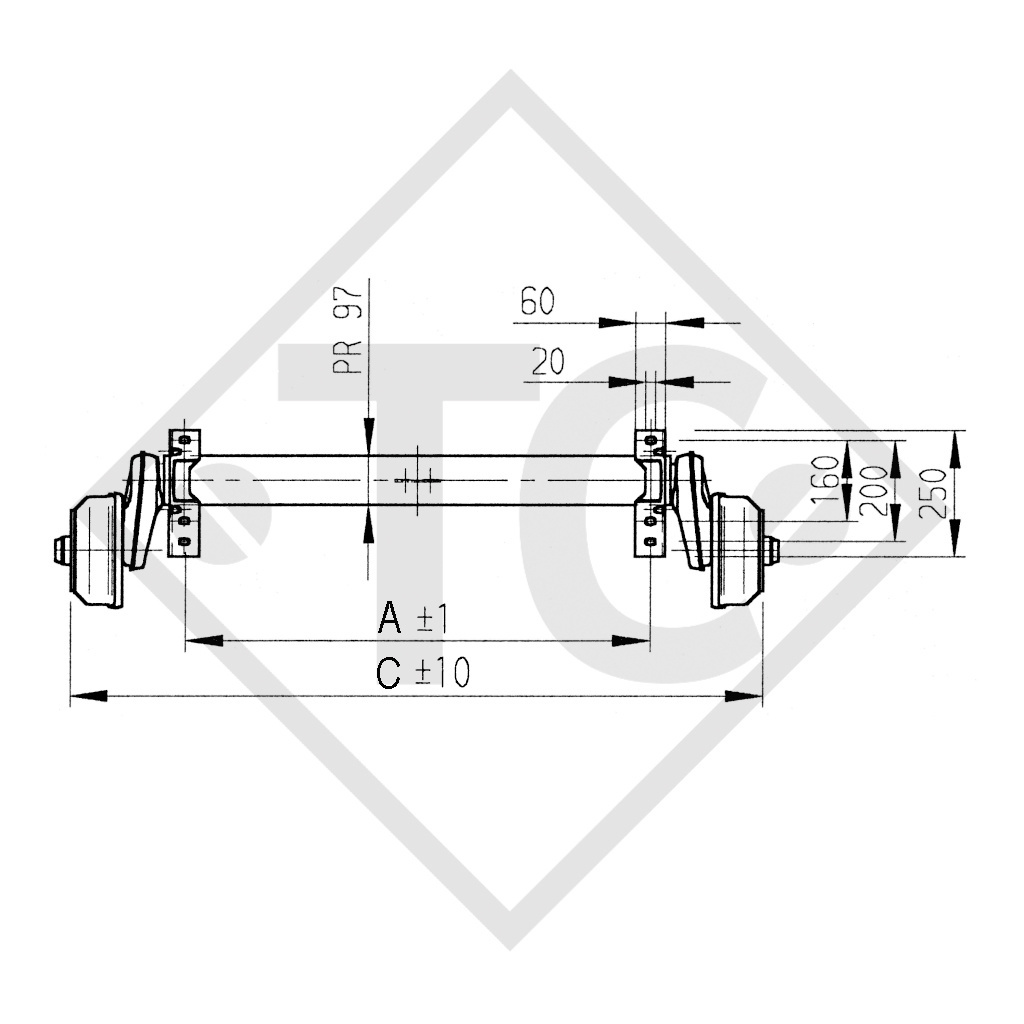

BC: dimension A 1500mm
OHF: dimension C 1950mm
Wheel connection 130x4

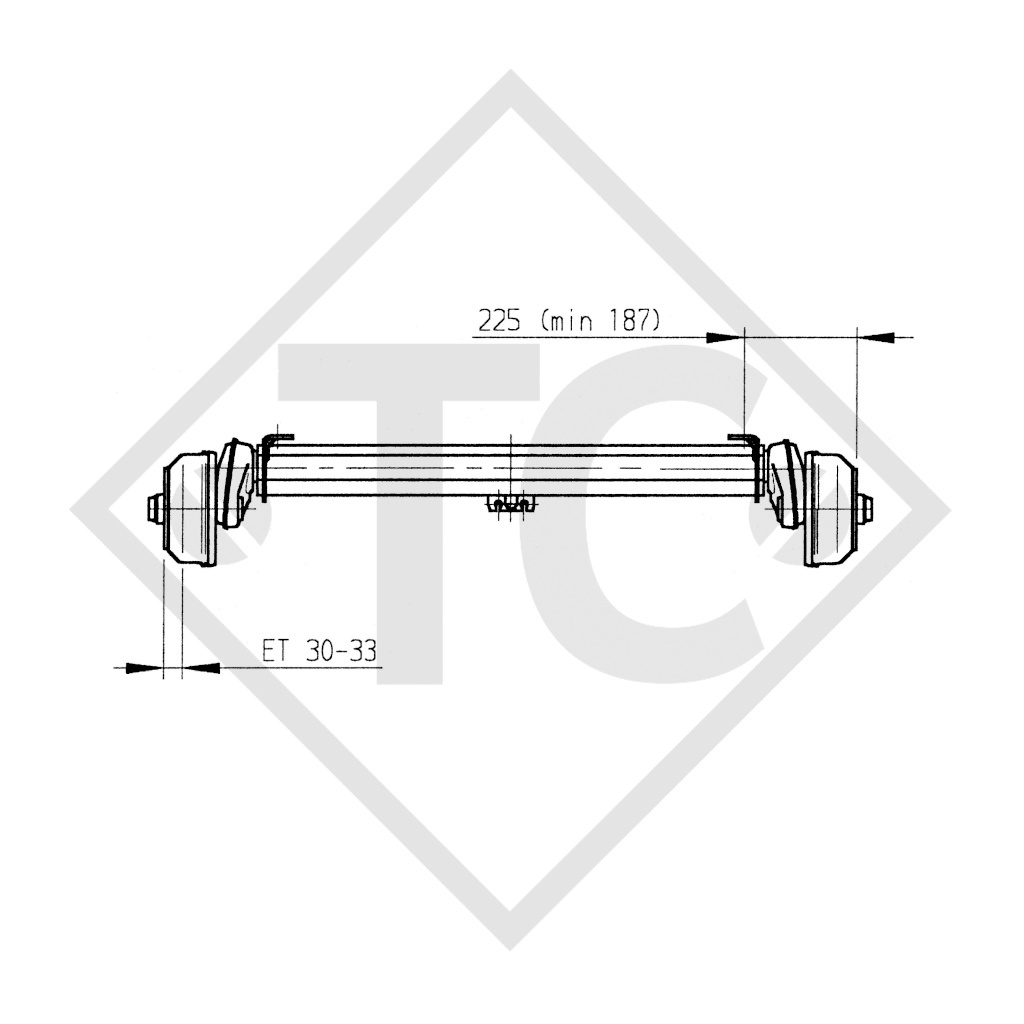

Offset (ET) 30-33mm
Swing arm position 25°
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) OLD 811157
Replacement part identification number (ETI) NEW 811941
TECHNOLOGY
Model: EURO COMPACT
Axle type: B 1200-6
Axle load: Single axle 1350kg
Axle load: Tandem axle 2700kg
Wheel brake: 2051 A
Suspension: Hexagonal rubber suspension

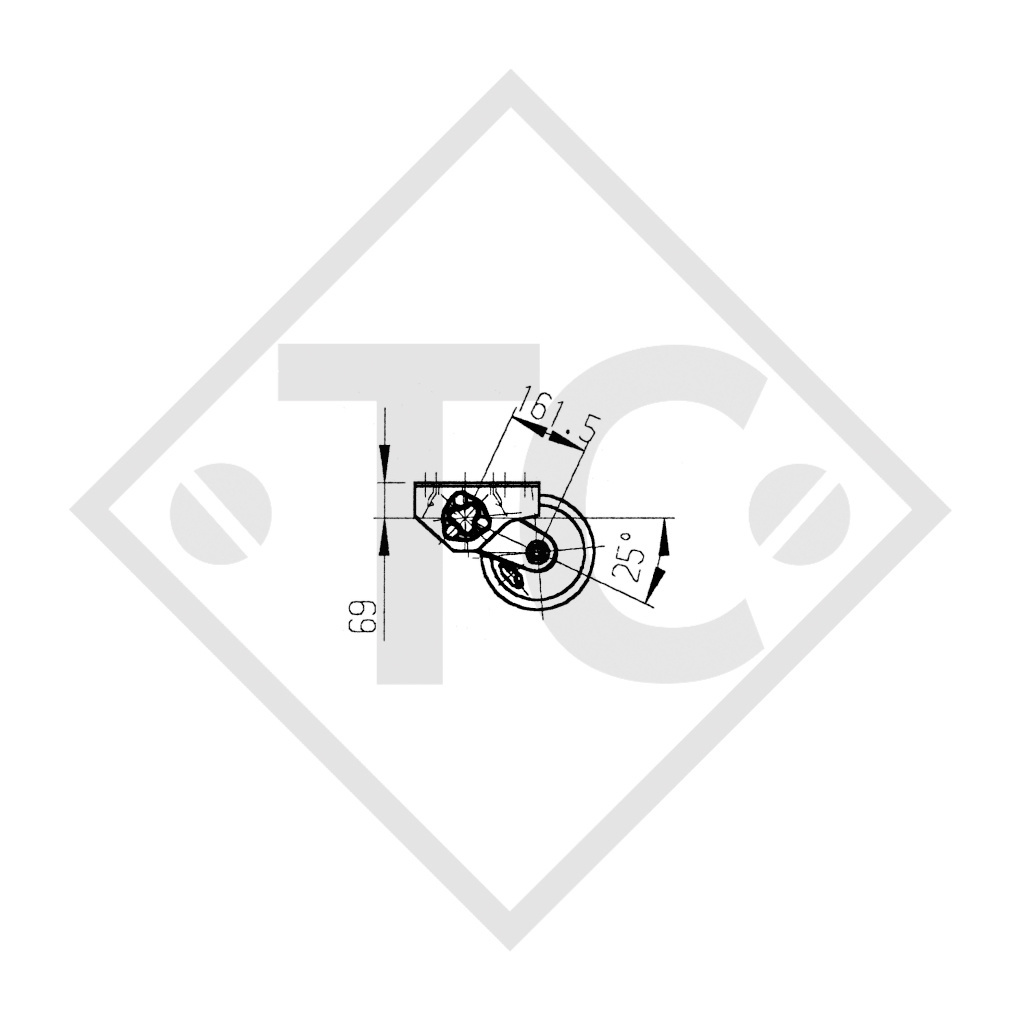

Swing arm length: 161.5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M14x1.5x25 loose
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
