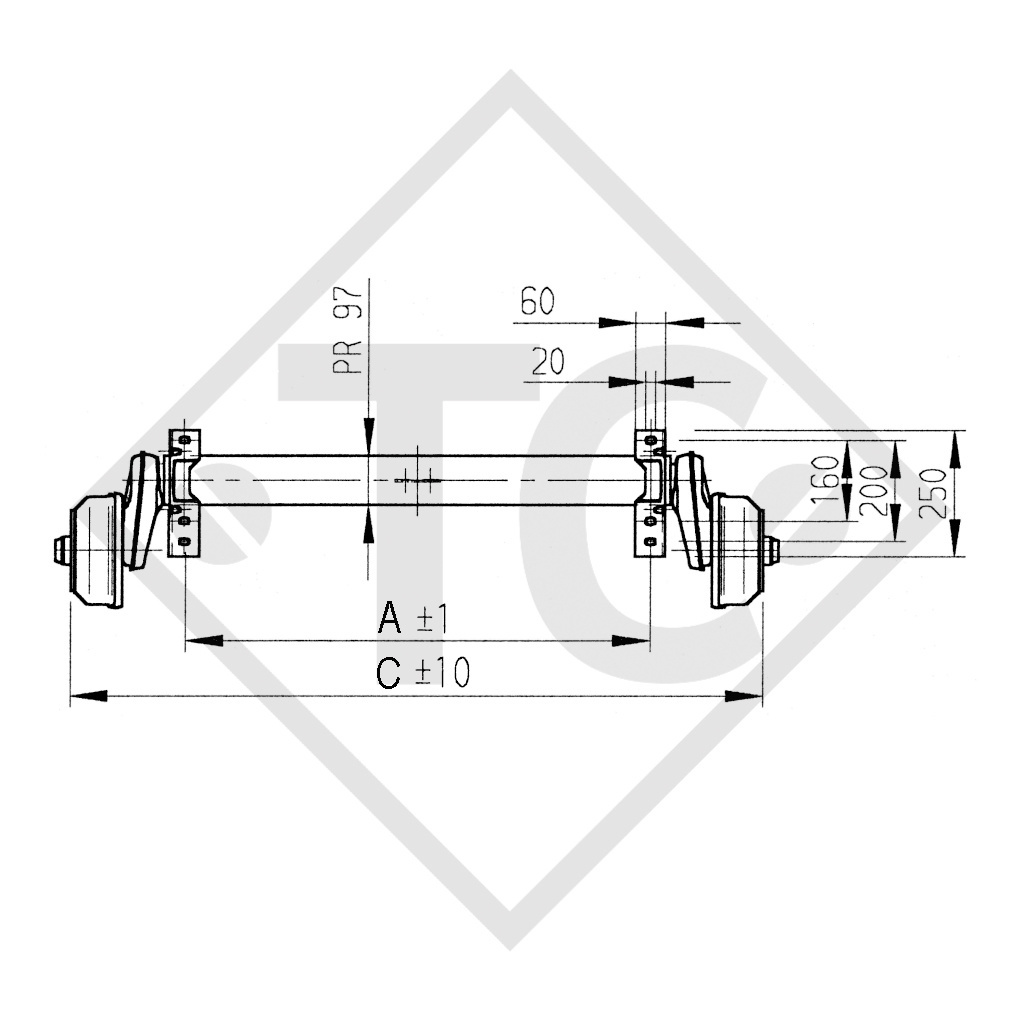

BC: dimension A 1040mm, OHF: dimension C 1490mm, wheel connection 112x5, wheel brake type 2051, offset (ET) 30-33mm, swing arm position 25°, axle profile 97mm, taper-head wheel bolts M12x1.5. Read more...
Part no. 20000652
BC: dimension A 1040mm
OHF: dimension C 1490mm
Wheel connection 112x5
Offset (ET) 30-33mm
Swing arm position 25°
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) OLD 811157
Replacement part identification number (ETI) NEW 811941
TECHNOLOGY

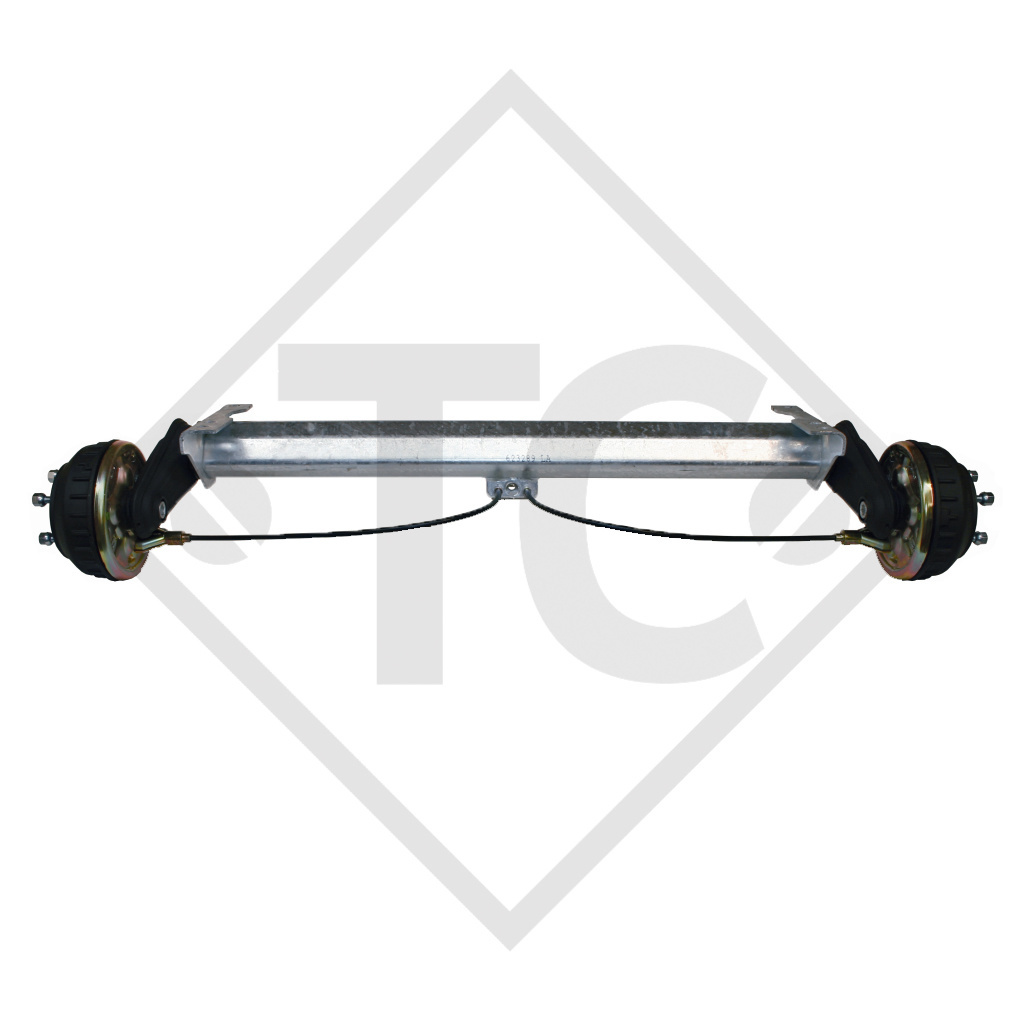

Model: BASIC
Axle type: B 1200-6
Axle load: Single axle 1350kg
Axle load: Tandem axle 2700kg
Wheel brake: 2051
Suspension: Hexagonal rubber suspension
Swing arm length: 161.5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
