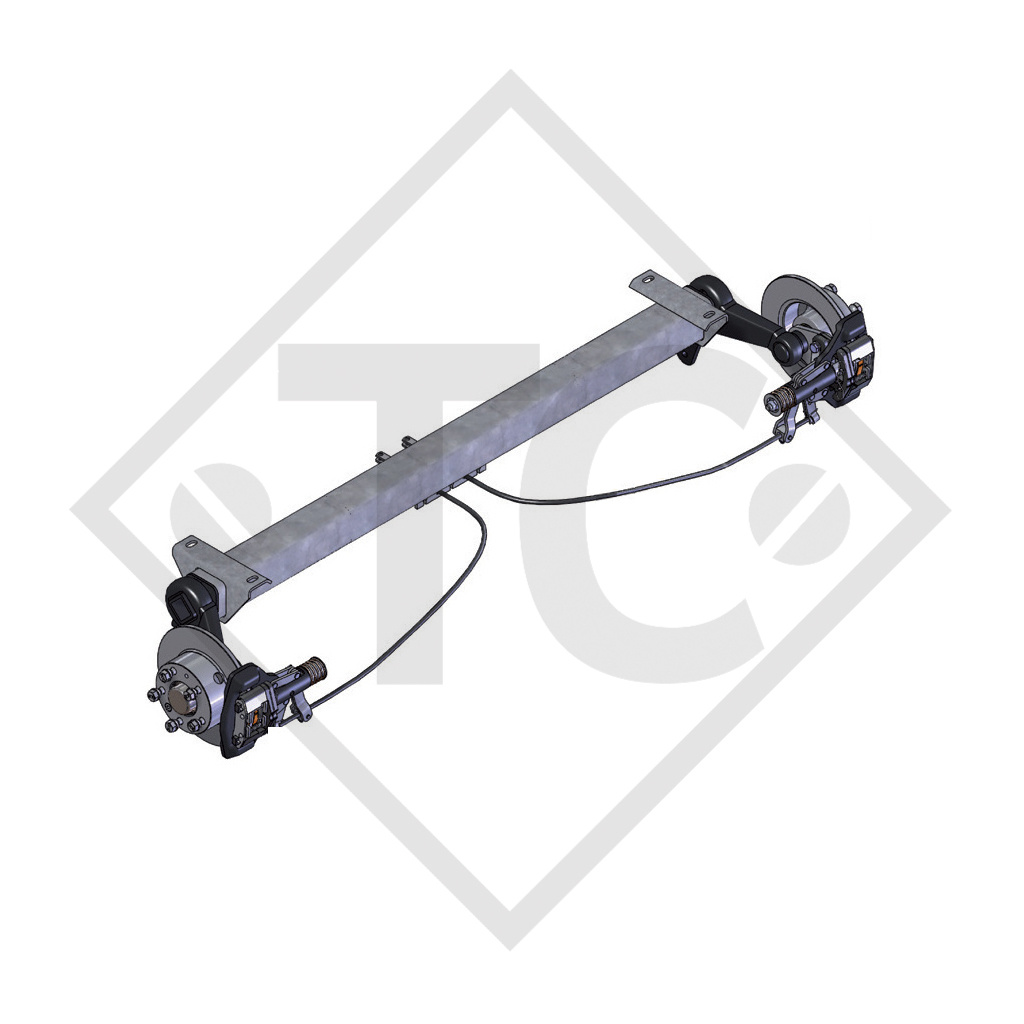

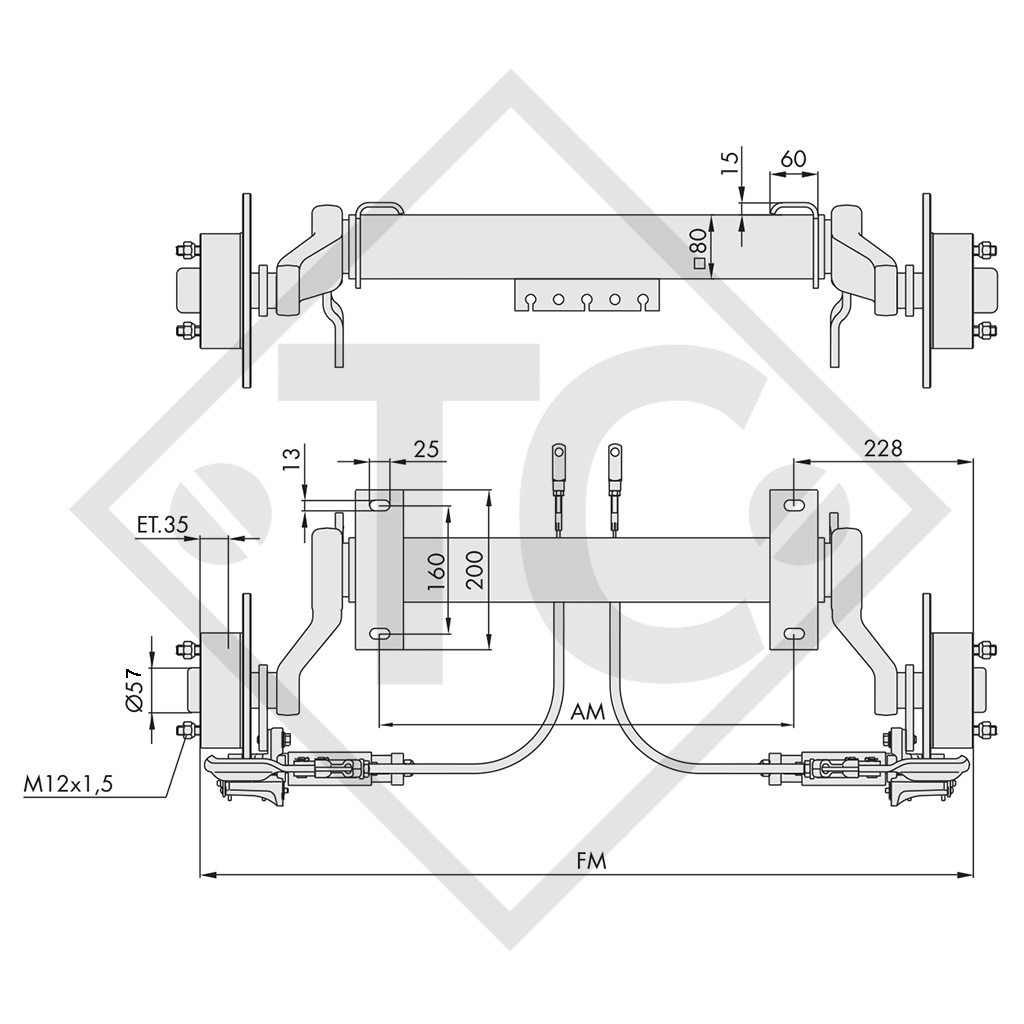

BC: dimension AM 800mm, OHF: dimension FM 1240mm, wheel connection 112x5, disk brake type WS 245, offset (ET) 35mm, ball-head wheel bolts M12x1.5. Read more...
| Part no. | WAPWAG135BS001 |
| Dimension AM |
800mm |
| Dimension FM |
1240mm |
| Wheel connection | 112x5 |
Spare part list for wheel brake WS 245
Bowden cables
TECHNOLOGY
Model: WAG-B
Axle type: WAG 135 BS
Axle load: 1350kg
Suspension: Square rubber suspension

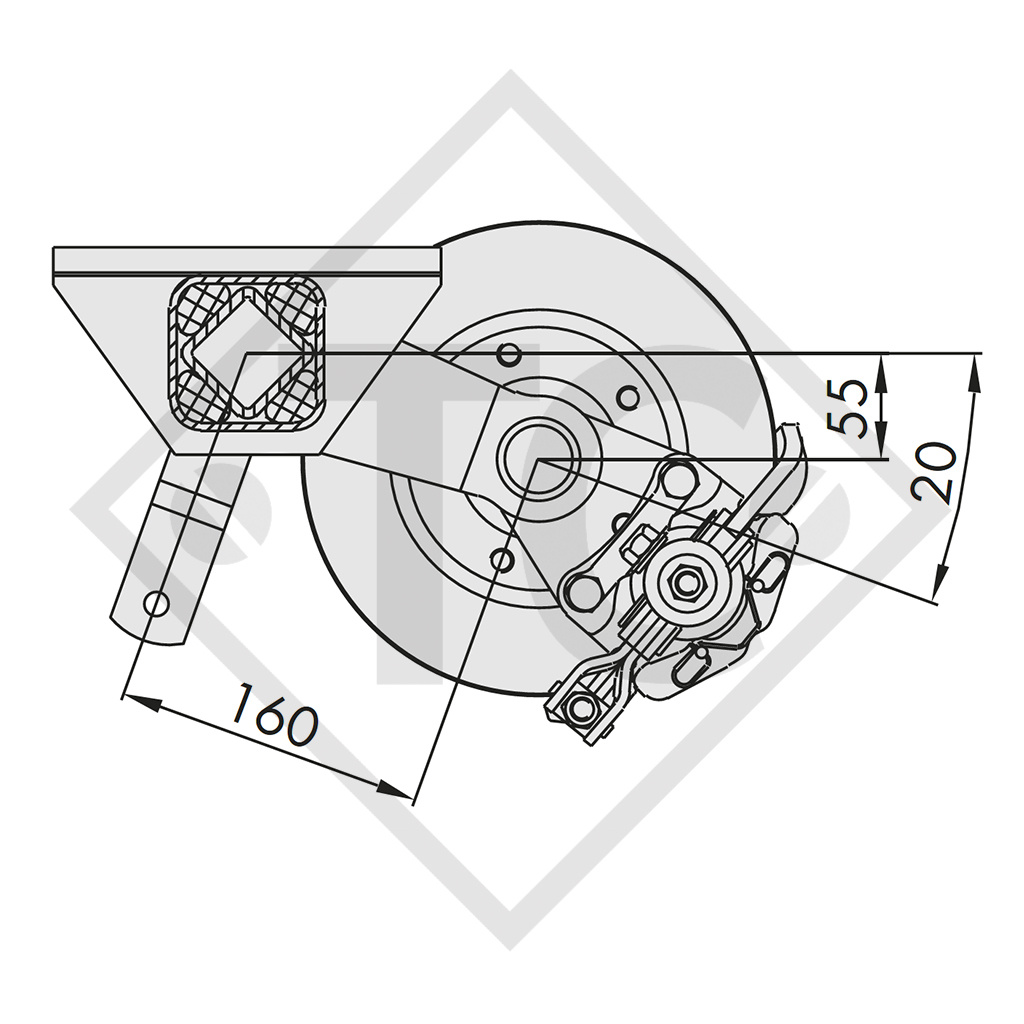

Swing arm length: 160mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle with wheel brake
Ball-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
Simply send us a photo of your axle type plate, together with your address and telephone number to
[email protected]
|
