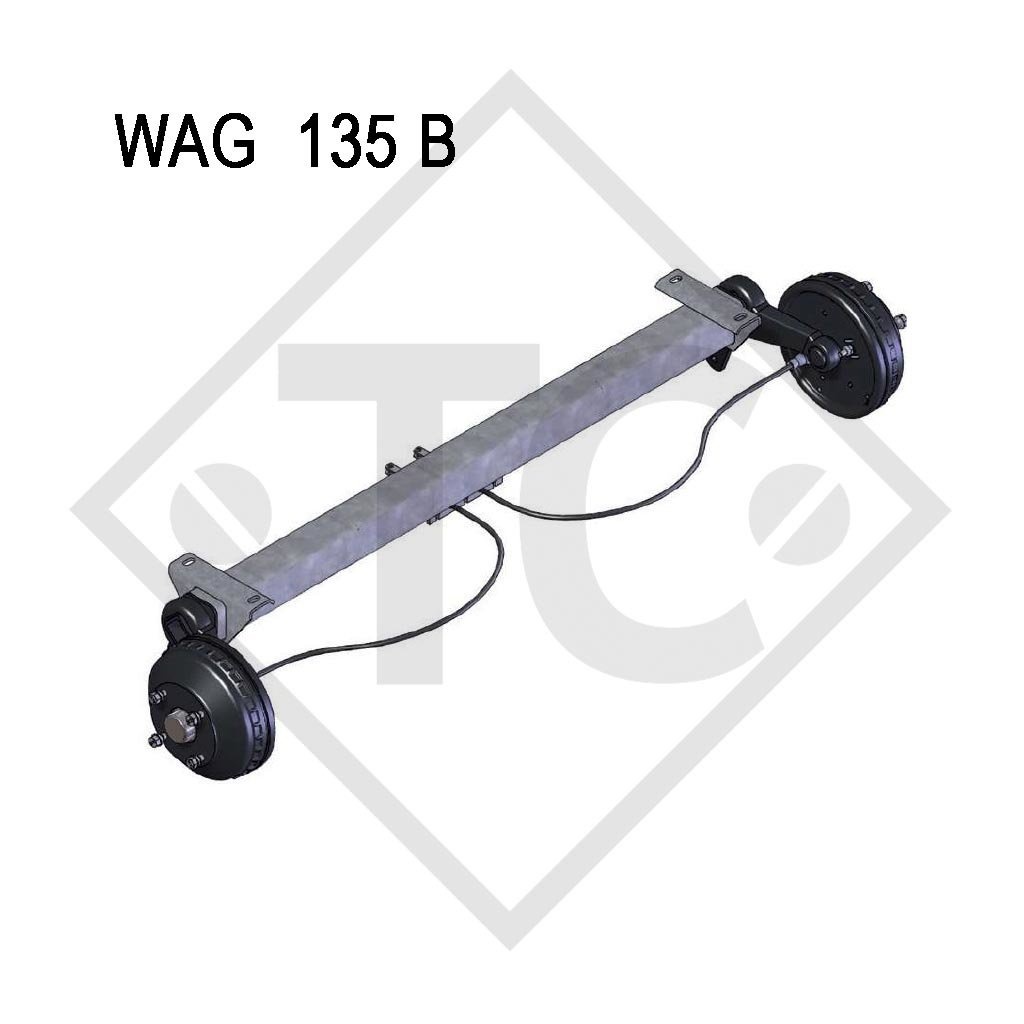

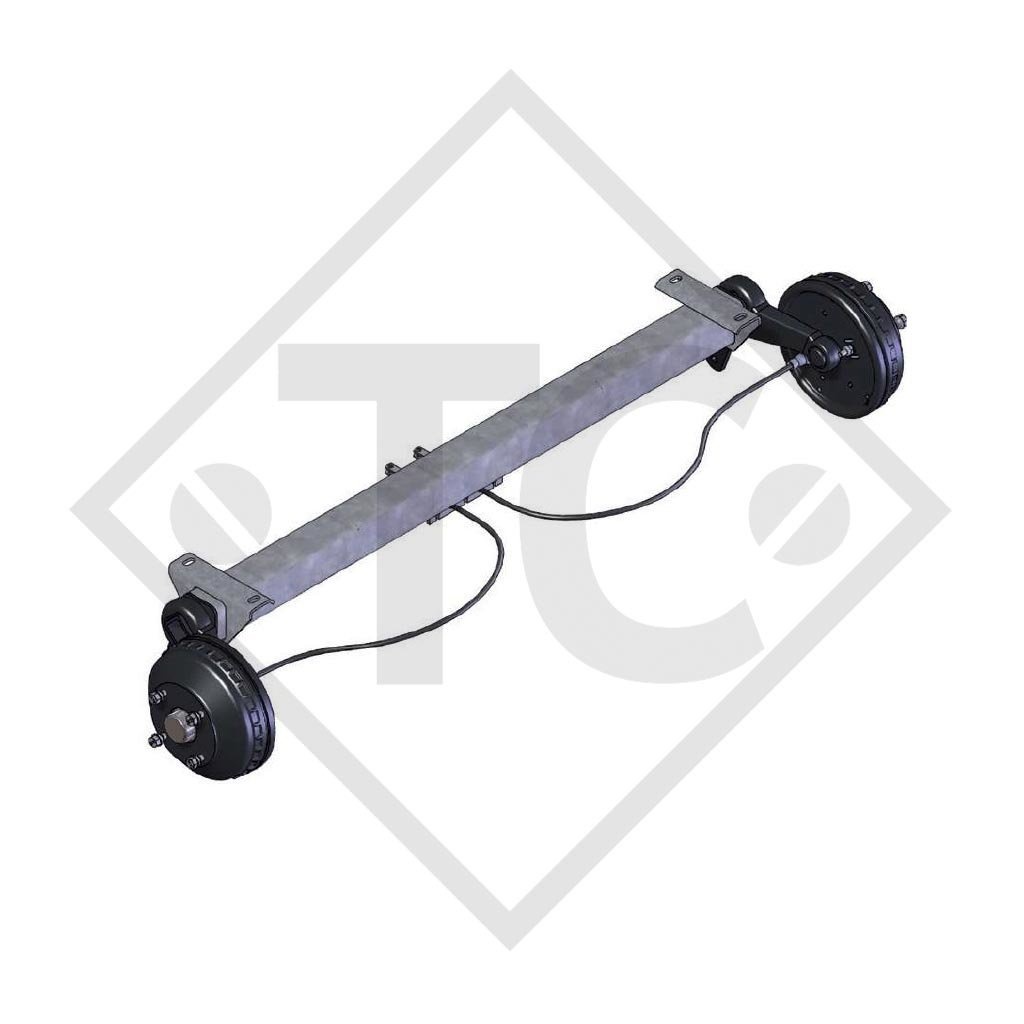

Braked axle 1350kg axle type WAG 135 B

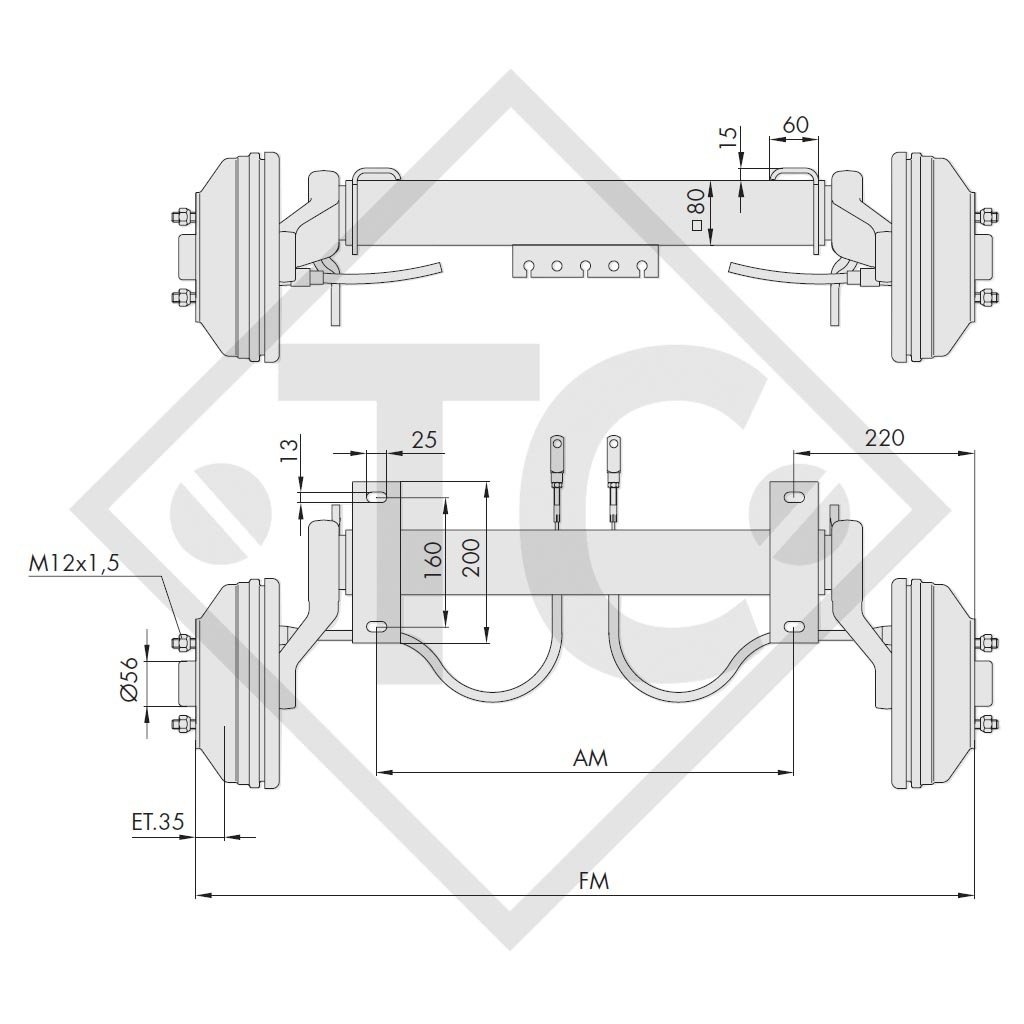

BC: dimension AM 1020mm, OHF: dimension FM 1450mm, wheel connection 112x5, wheel brake type W 234 RS, offset (ET) 35mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Price 810,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no.

WAP9202901-2

Dimension AM

1020mm

Dimension FM

1450mm

Wheel connection

112x5

Spare part list for wheel brake W 234 RS
Bowden cables

TECHNOLOGY
Model: WAG-B
Axle type: WAG 135 B
Axle load: 1350kg
Suspension: Square rubber suspension

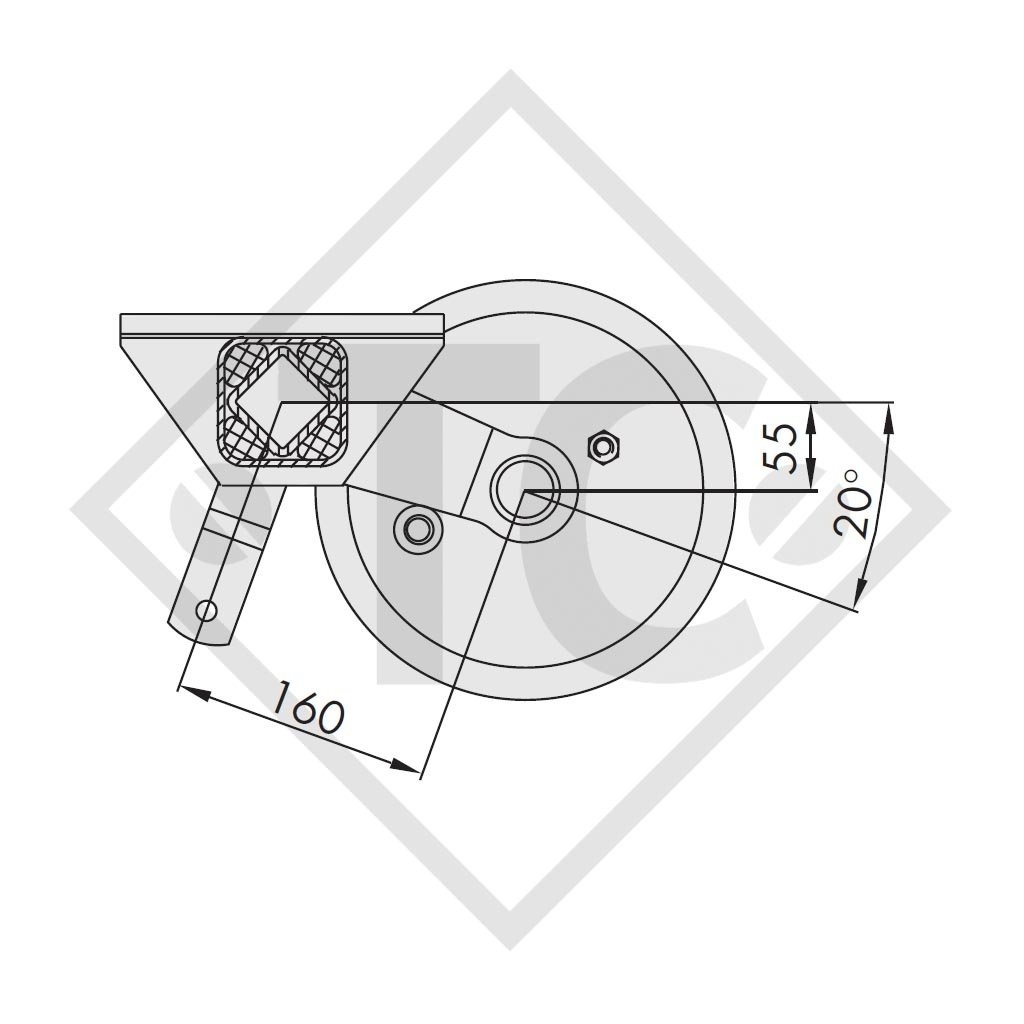

Swing arm length: 160mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose

SURFACE TREATMENT
Axle profile hot-dip galvanised

WAP Braked axle 1350kg axle type WAG 135 B - SARIS GG 303

Product description

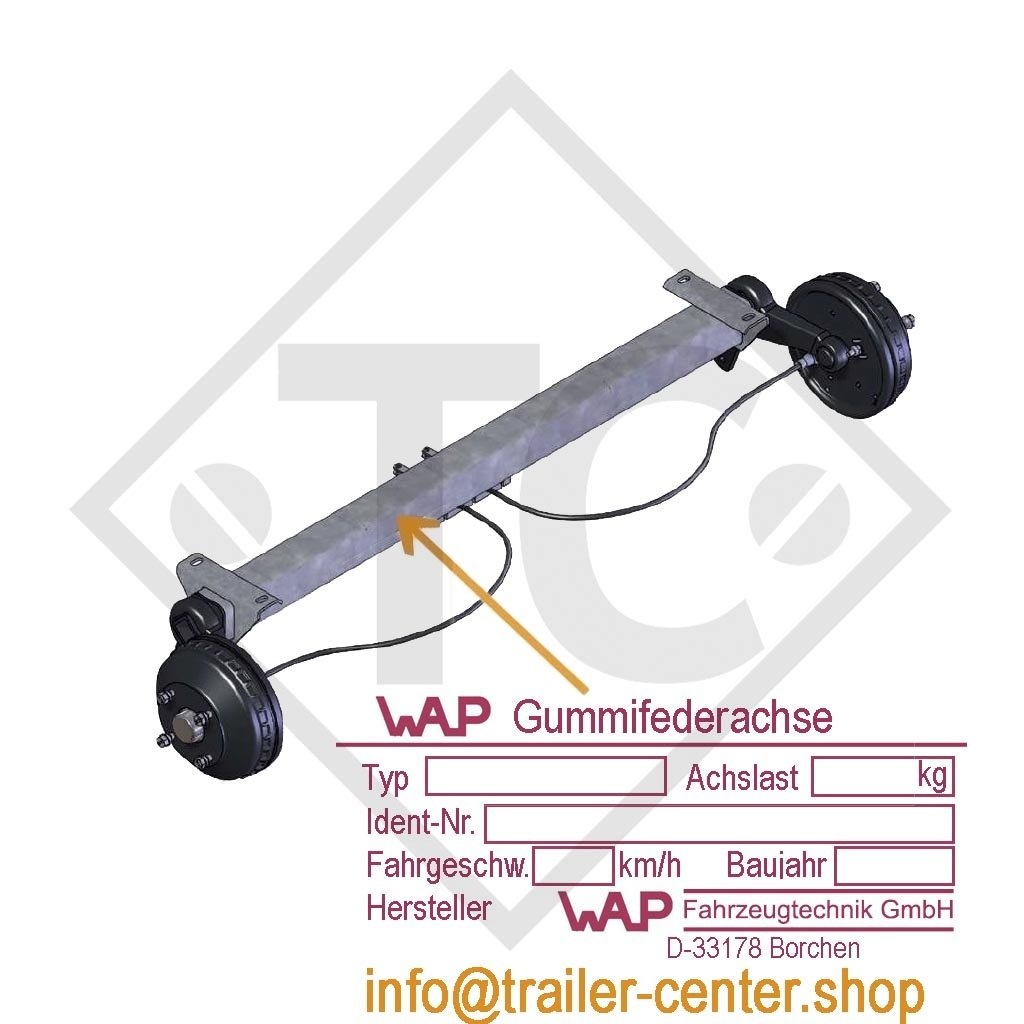

Simply send us a photo of your axle type plate, together with your address and telephone number to

[email protected]

Please feel free to avail of our service and request a non-binding offer by email today!
