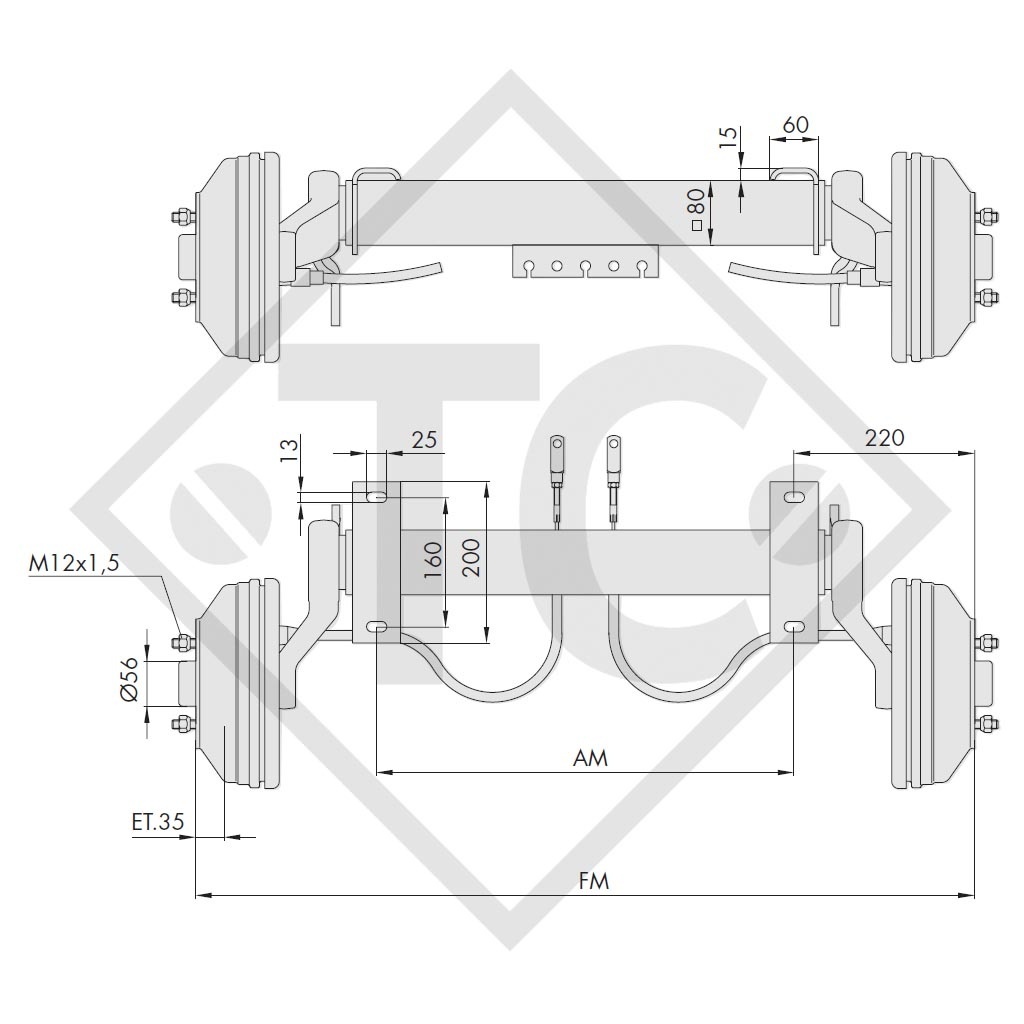

BC: dimension AM 850mm, OHF: dimension FM 1290mm, wheel connection 100x4, wheel brake type W 234 RS, offset (ET) 35mm, taper-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:
Part no. WAPWAG135B314
Dimension AM
850mm
Dimension FM
1290mm
Wheel connection 100x4



Spare part list for wheel brake W 234 RS
Bowden cables

TECHNOLOGY
Model: WAG-B
Axle type: WAG 135 B
Axle load: 1350kg
Suspension: Square rubber suspension

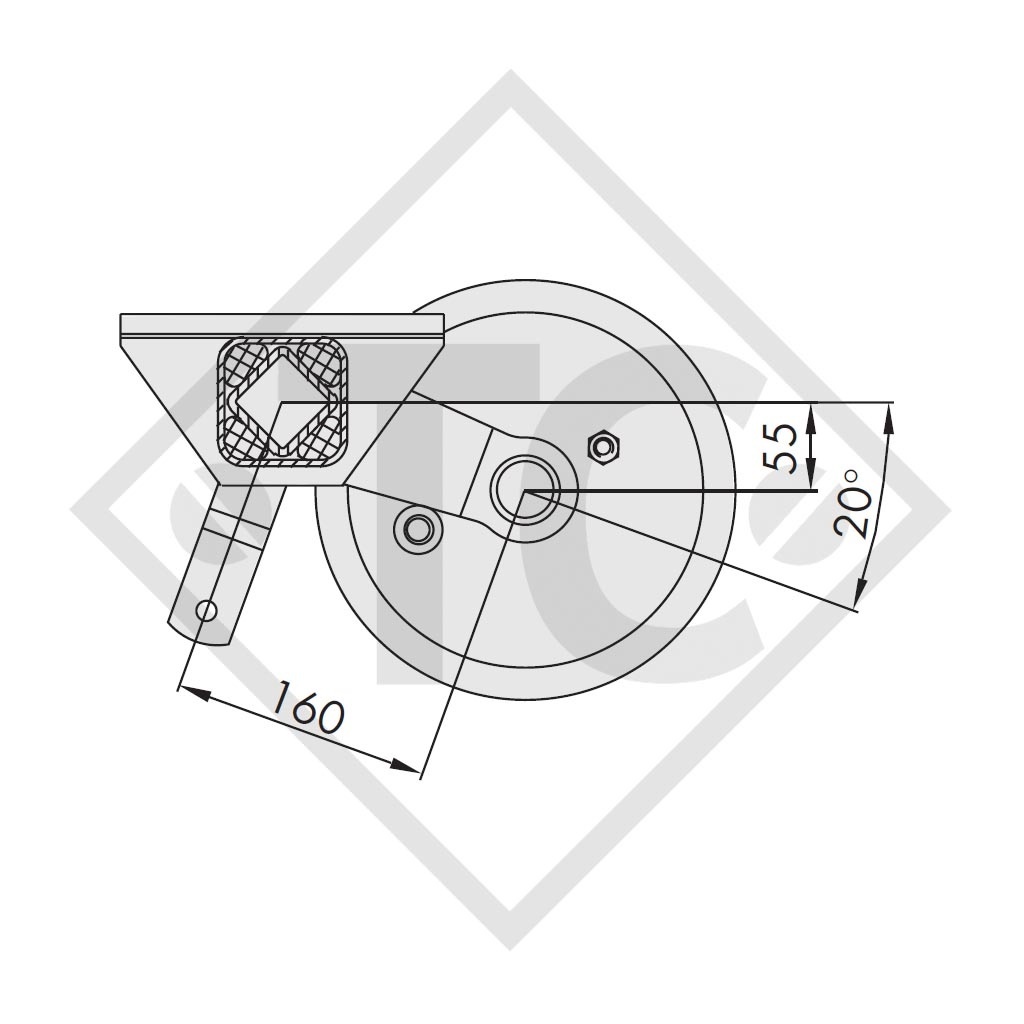

Swing arm length: 160mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
