BC: dimension A 1500mm, OHF: dimension C 1980mm, wheel connection 112x5, wheel brake type 2051 A, offset (ET) 30mm, swing arm position 30°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 1323439
BC: dimension A 1500mm
OHF: dimension C 1980mm
Wheel connection 112x5
Offset (ET) 30mm

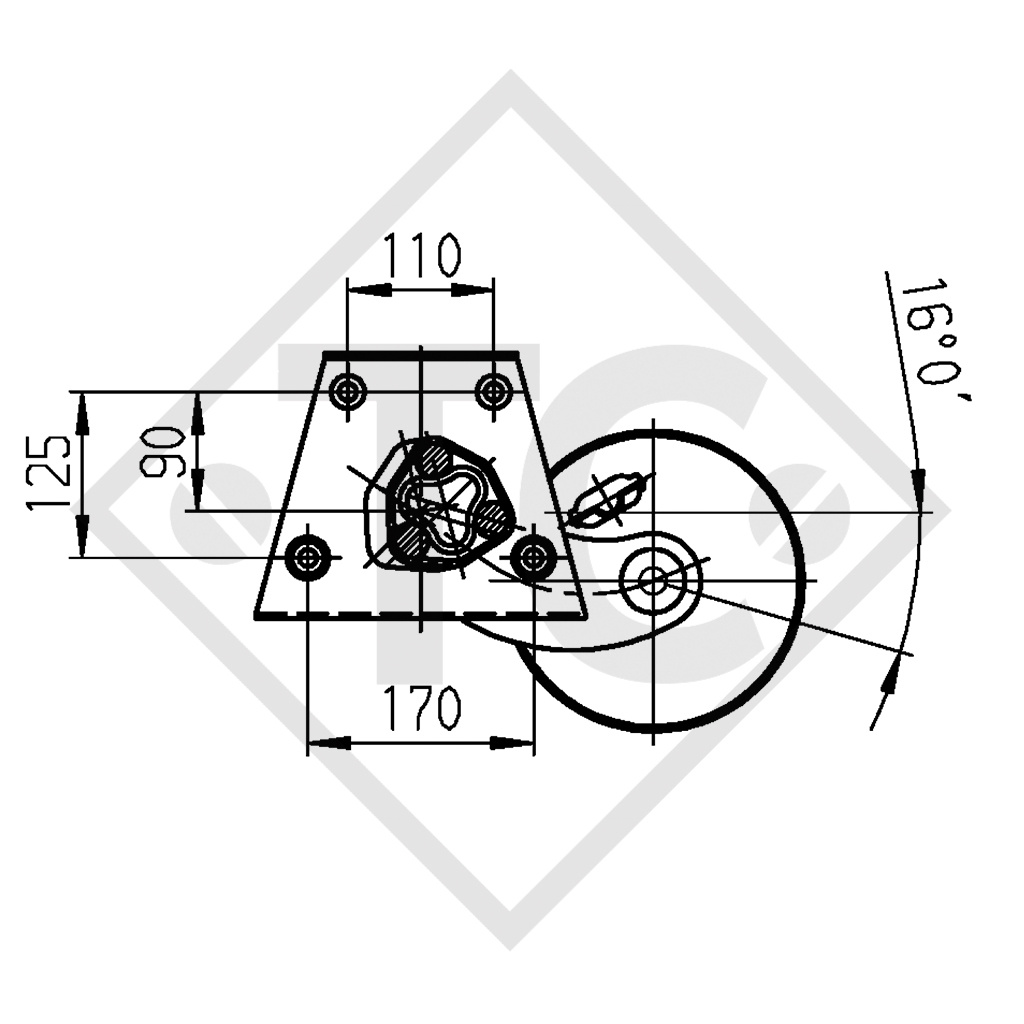

Swing arm position 16°
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) 811135
TECHNOLOGY
Model: EURO1
Axle type: DELTA SIN 12
Axle load: Single axle 1300kg
Axle load: Tandem axle 2600kg
Wheel brake: 2051 A
Suspension: Hexagonal rubber suspension
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm
SCOPE OF DELIVERY
Axle with brake
Ball-head wheel bolts M12x1.5 loose
Axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
