Home / Braked axle 1300kg EURO1 axle type B 1200-5 - Wilk de Luxe 500 caravan
BC: dimension A 1475mm, OHF: dimension C 1990mm, wheel connection 112x5, wheel brake type 2051A, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 1424134 (1527666)

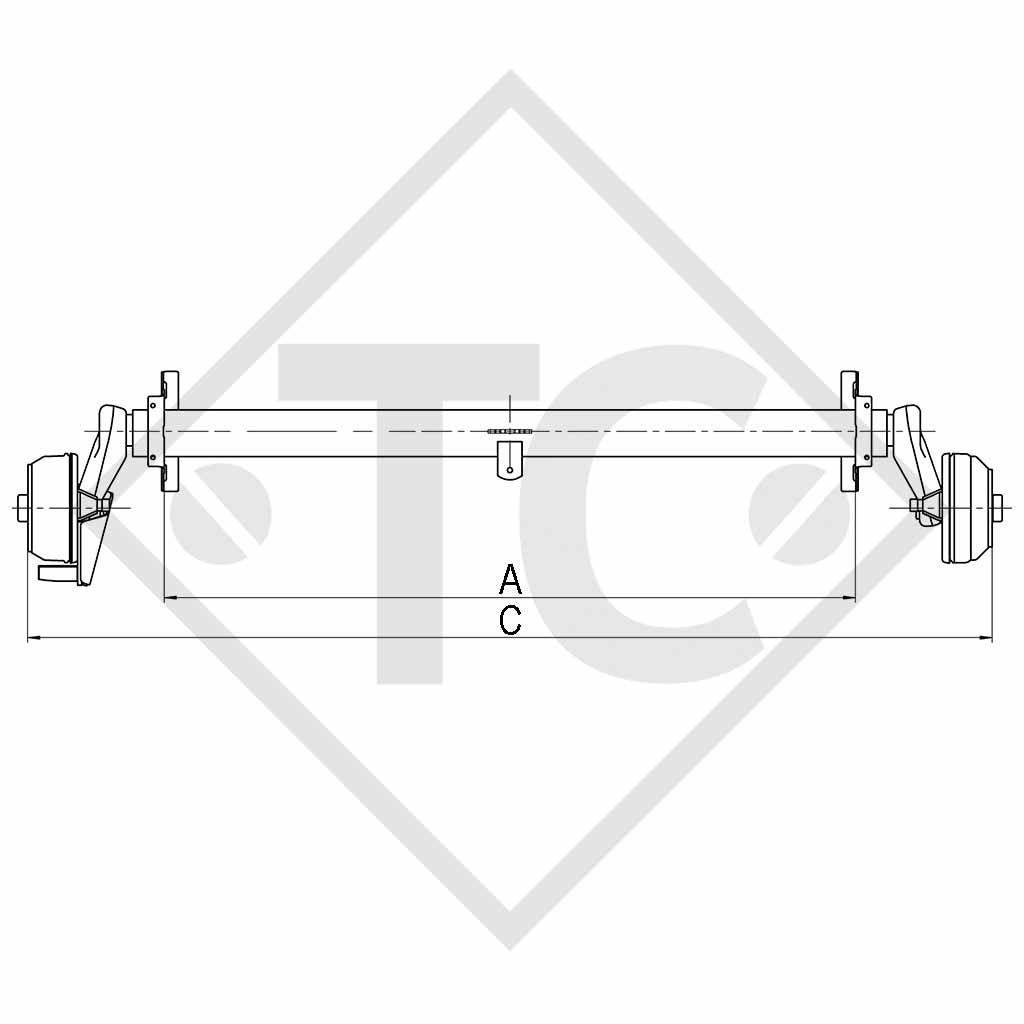

BC: dimension A 1475mm
OHF: dimension C 1990mm
Wheel connection 112x5
Offset (ET) 26-30mm

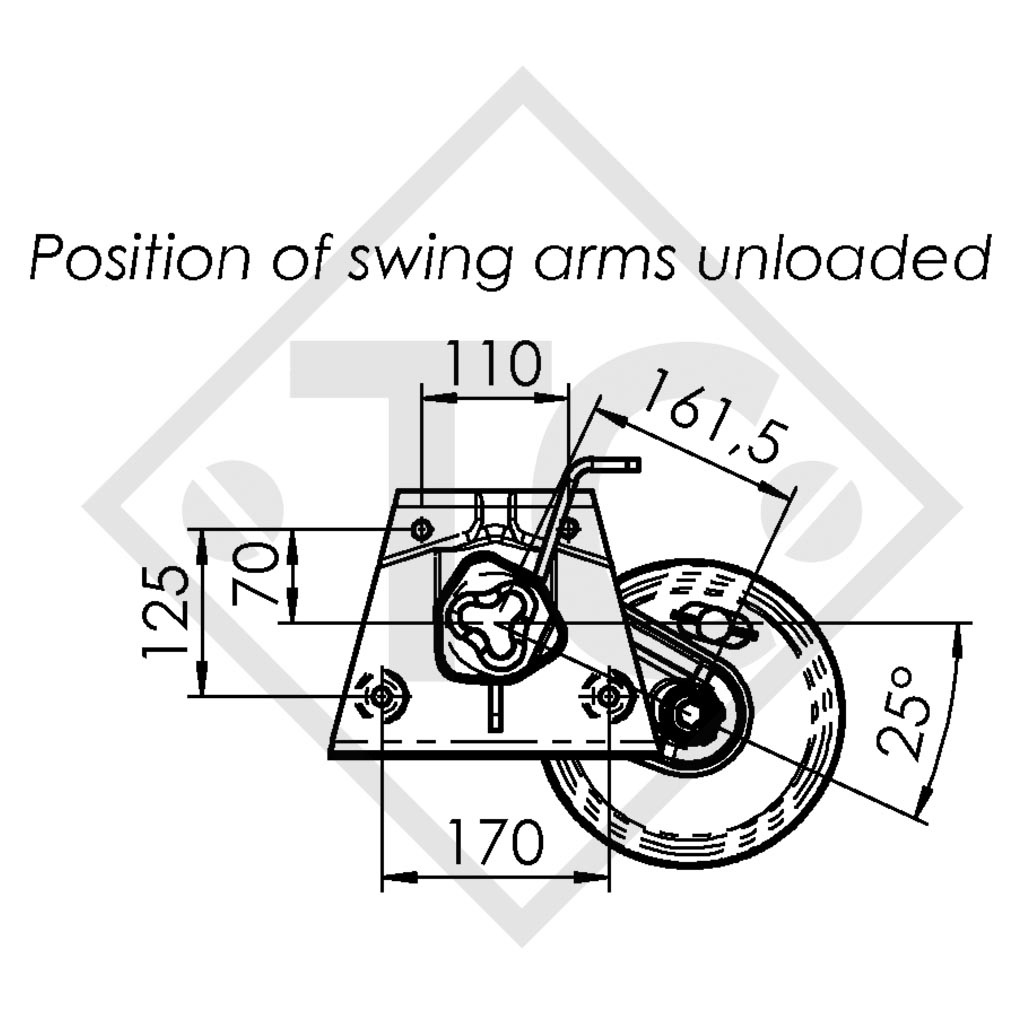

Swing arm position 25°
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) OLD 811294
Replacement part identification number (ETI) NEW 811947
TECHNOLOGY
Model: EURO1
Axle type: B 1200-5
Axle load: Single axle 1300kg
Wheel brake: 2051A
Suspension: Hexagonal rubber suspension
Swing arm length: 161.5mm
Wheel bearing: Reinforced compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle with wheel brake
Ball-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
