Braked axle 1200kg axle type BT97012 , Sir Caravelair

BC: dimension A 1350mm, OHF: dimension C 1790mm, wheel connection 130x4, wheel brake type 2051 vers. A, offset (ET) 20mm, swing arm position 23°, axle profile 70x4mm, ball-head wheel bolts M14x1.5. Read more...

Wishlist: Add to comparison:

Price 1.310,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 277752

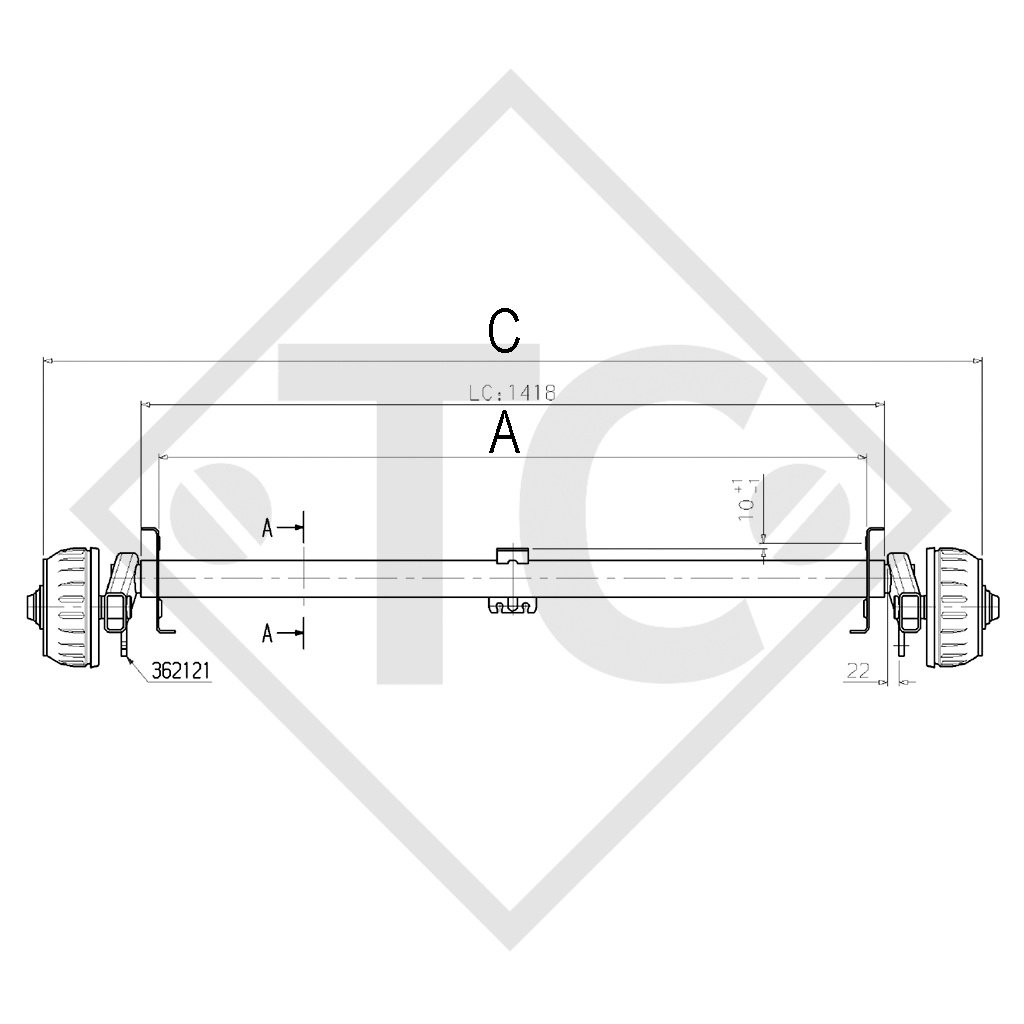

BC: dimension A 1350mm
OHF: dimension C 1790mm
Wheel connection 130x4
Offset (ET) 20mm

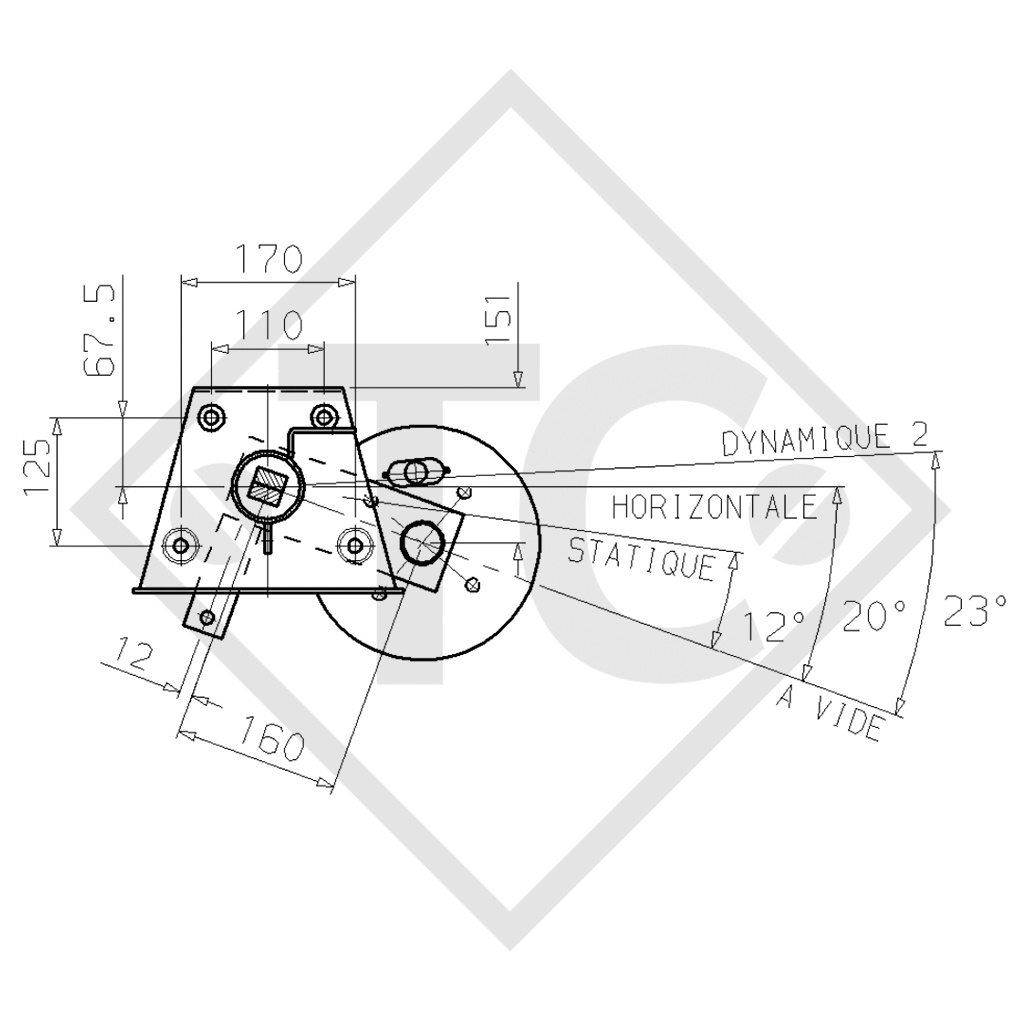

Swing arm position 23°

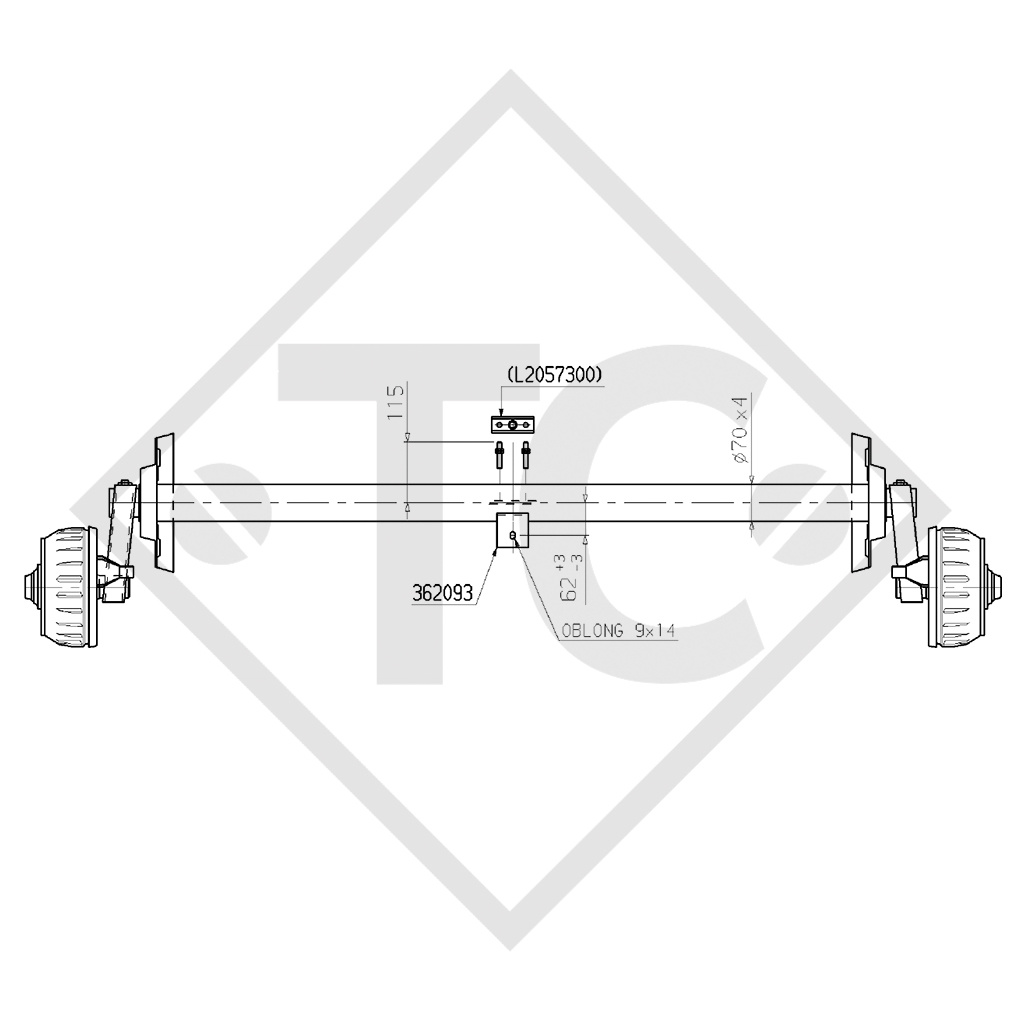

Axle profile 70x4mm

Original operating instructions
Replacement part identification number (ETI) OLD 811294
Replacement part identification number (ETI) NEW 811947

TECHNOLOGY
Model: FTF
Axle type: BT97012
Axle load: Single axle 1200kg
Wheel brake: 2051vers. A
Suspension: Torsion bar suspension
Swing arm length: 160mm
Wheel bearing: Reinforced compact bearing
Rim centre hole: Min. 84mm

SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M14x1.5 loose
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber

AL-KO FTF Braked axle 1200kg axle type BT97012 , Sir Caravelair
