AL-KO Braked axle 1300kg EURO1 axle type B 1200-5 - KNAUS SUDWIND 8306

Part no. 1211933 (1322696)

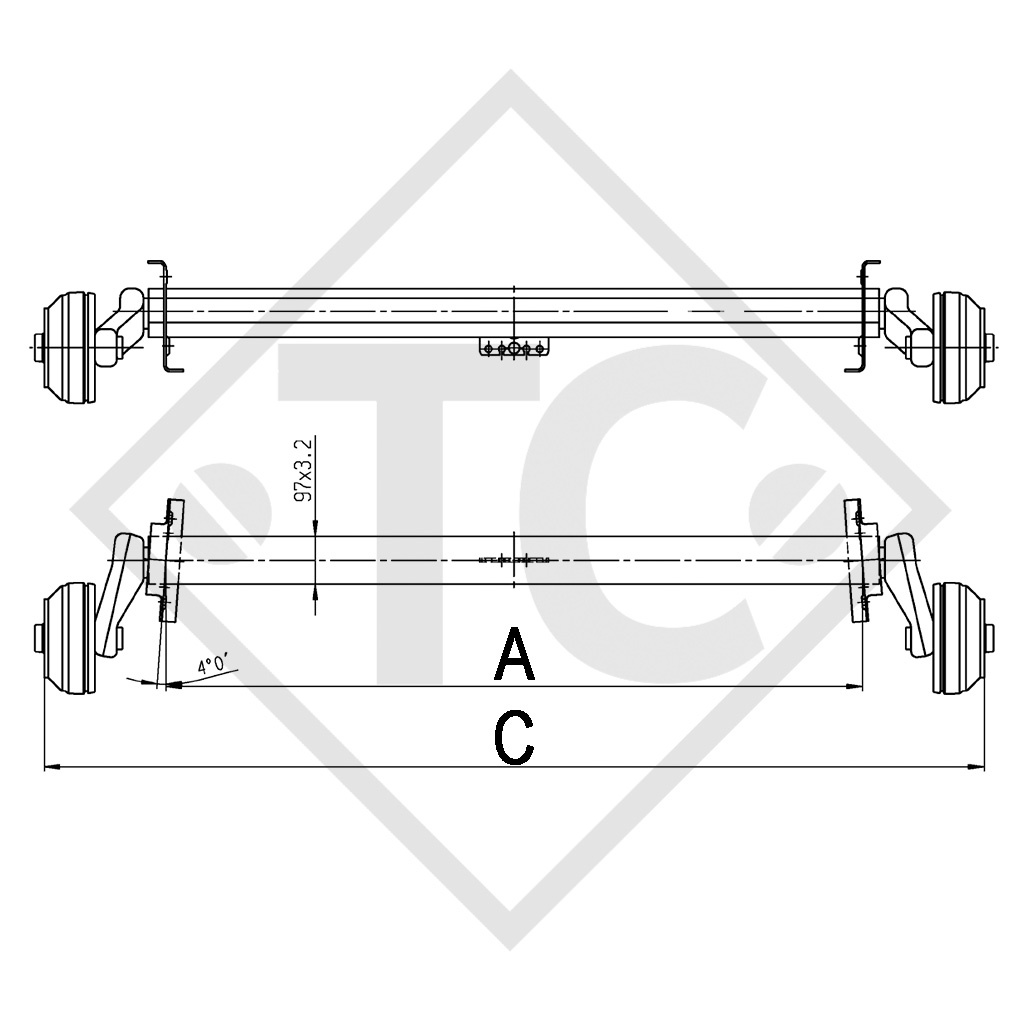

BC: dimension A 1415mm
OHF: dimension C 1910mm
Wheel connection 100x4
Offset (ET) 26-30mm
Swing arm position 25°
Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) 811268

TECHNOLOGY
Model: EURO PLUS
Axle type: B 1200-5
Axle load: Single axle 1300kg
Axle load: Tandem axle 2600kg
Wheel brake: 2051 vers. A
Suspension: Hexagonal rubber suspension
Swing arm length: 175mm
Wheel bearing: Reinforced compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber
