BC: dimension A 1310mm, OHF: dimension C 1760mm, wheel connection 112x5, wheel brake type 2051A, offset (ET) 26-30mm, swing arm position 5°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 1709451

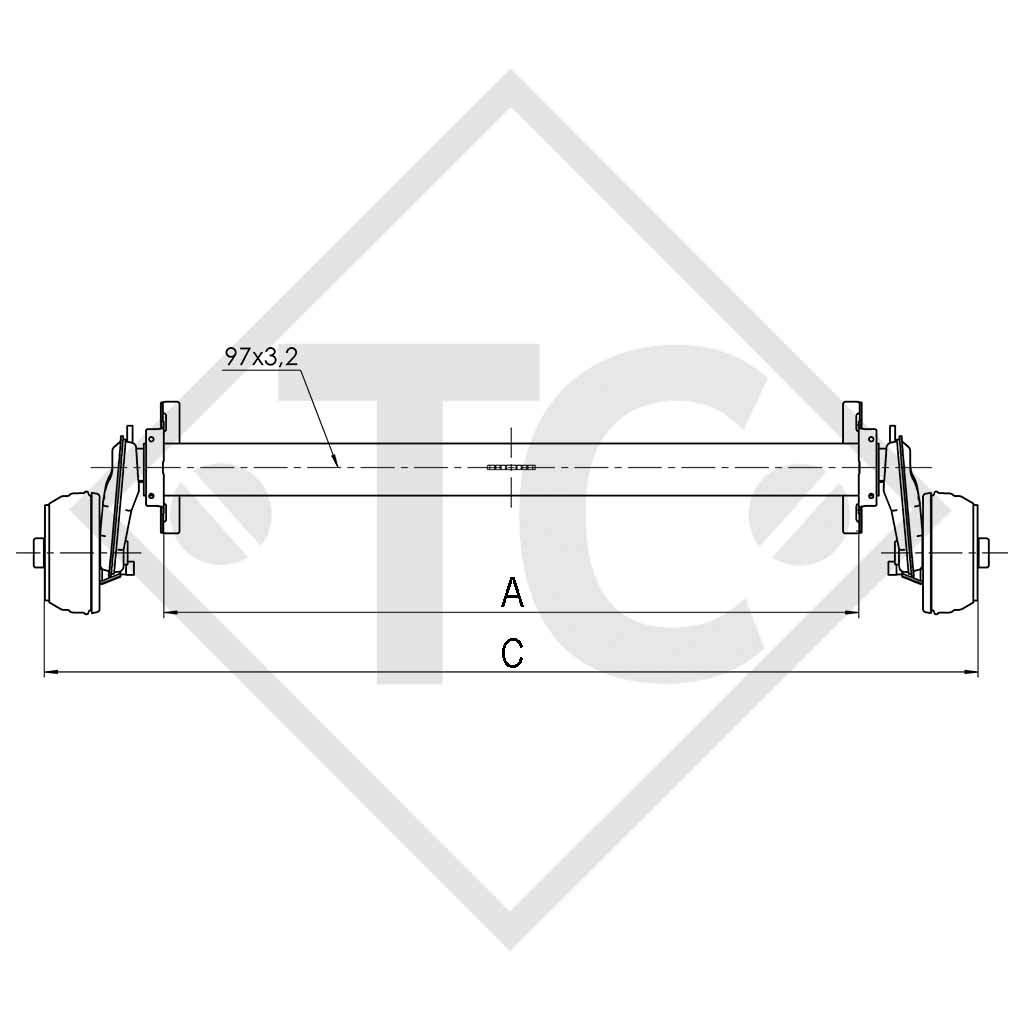

BC: dimension A 1310mm
OHF: dimension C 1760mm
Wheel connection 112x5
Offset (ET) 26-30mm
Swing arm position 5°
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) OLD 811294
Replacement part identification number (ETI) NEW 811947
TECHNOLOGY
Model: EURO COMPACT
Axle type: B 1200-5
Axle load: Single axle 1300kg
Wheel brake: 2051A
Suspension: Hexagonal rubber suspension

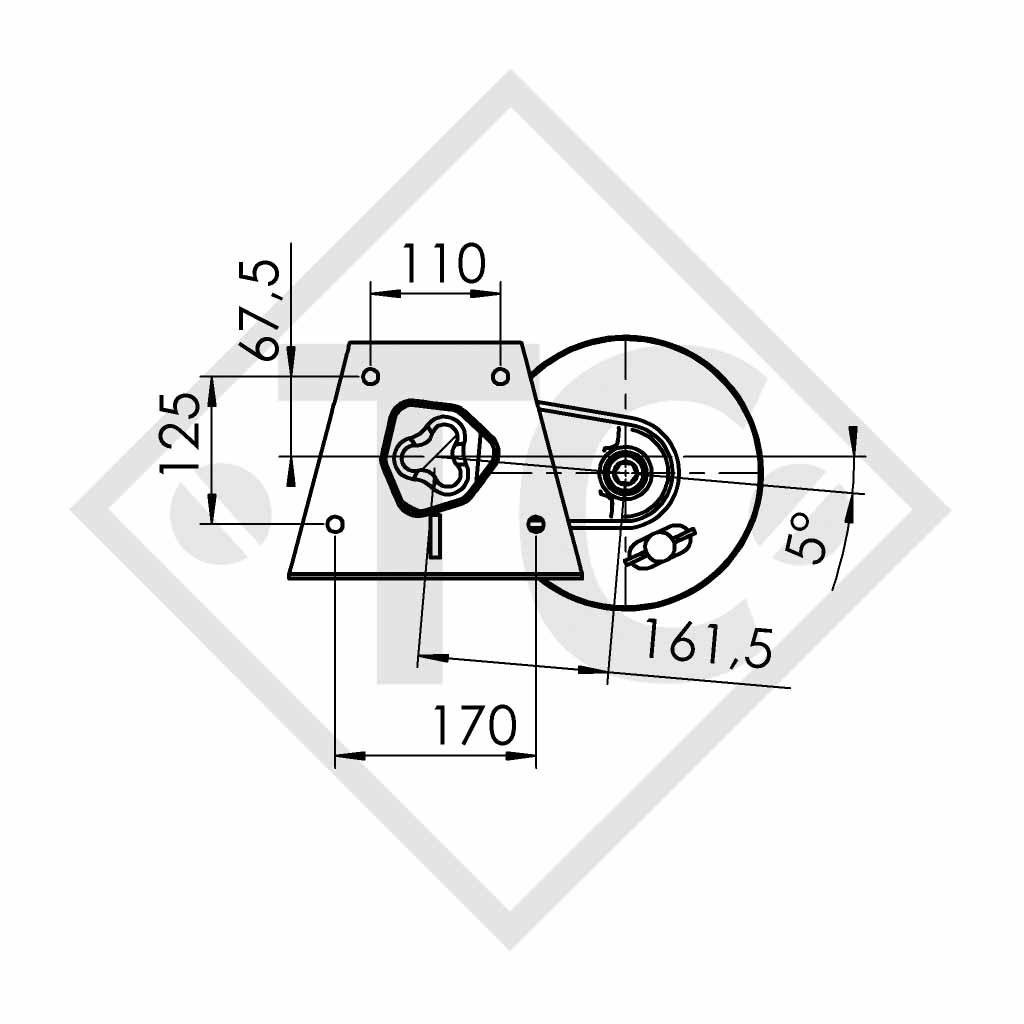

Swing arm length: 161.5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
