Home / Braked axle 1300kg EURO COMPACT axle type B 1200-5, LANCY TM 2502
BC: dimension A 450/710mm, OHF: dimension C 1290mm, wheel connection 130x4, wheel brake type 2051 A, offset (ET) 26-30mm, swing arm position 5°, axle profile 97mm, ball-head wheel bolts M14x1.5. Read more...
Part no. 1762983
BC: dimension A 450 / 710mm
OHF: dimension C 1290mm
Wheel connection 130x4

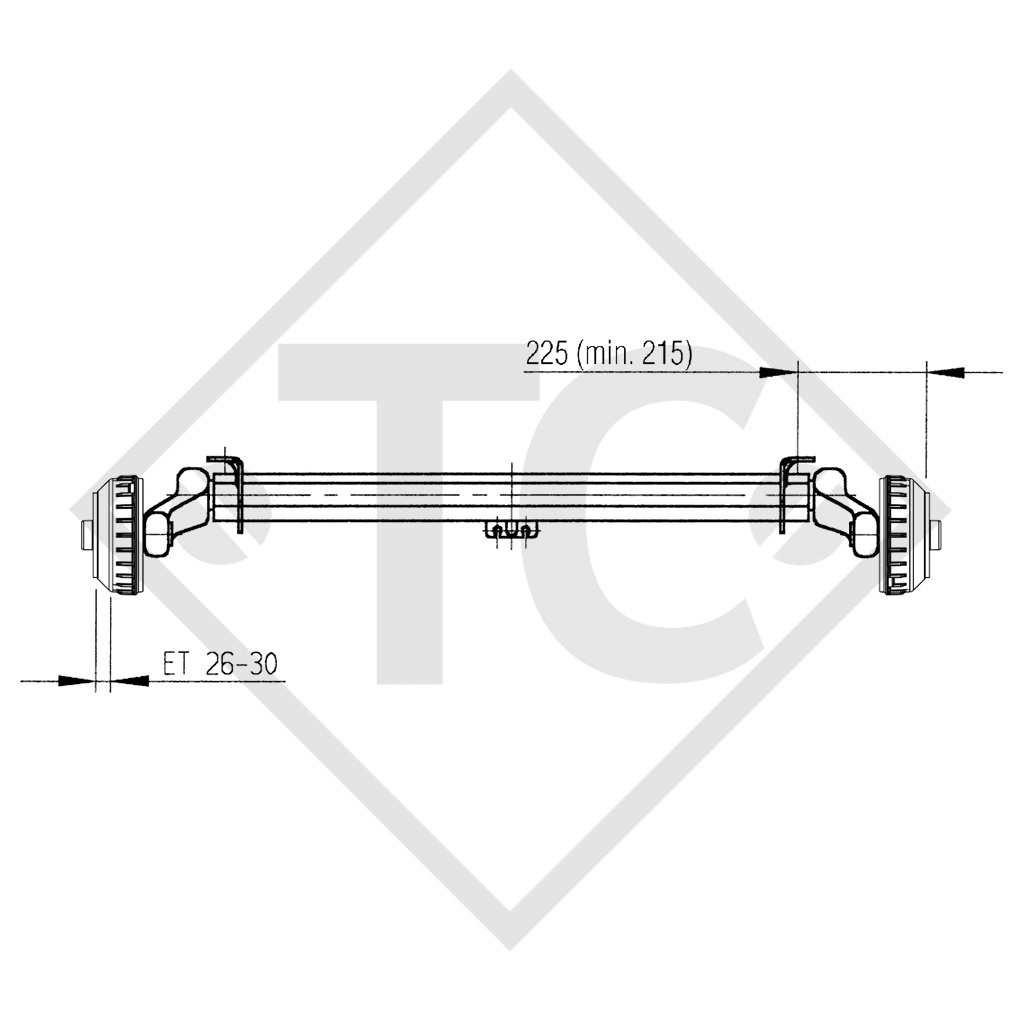

Offset (ET) 26-30mm

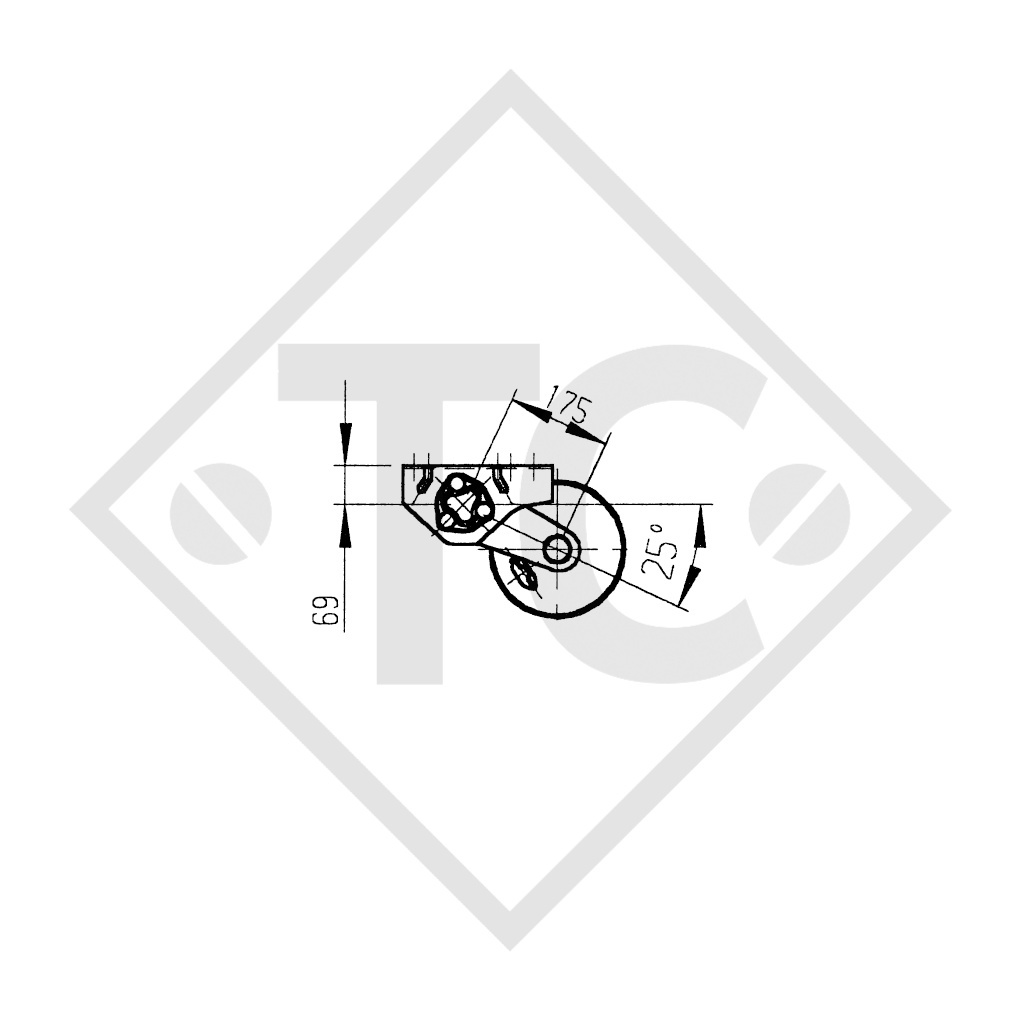

Swing arm position 5°
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) 811225
TECHNOLOGY
Model: EURO COMPACT
Axle type: B 1200-5
Axle load: Single axle 1300kg
Axle load: Tandem axle 2600kg
Wheel brake: 2051 A
Suspension: Hexagonal rubber suspension
Swing arm length: 161,5mm
Wheel bearing: Reinforced compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle with wheel brake + 8x M14x1,5
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
