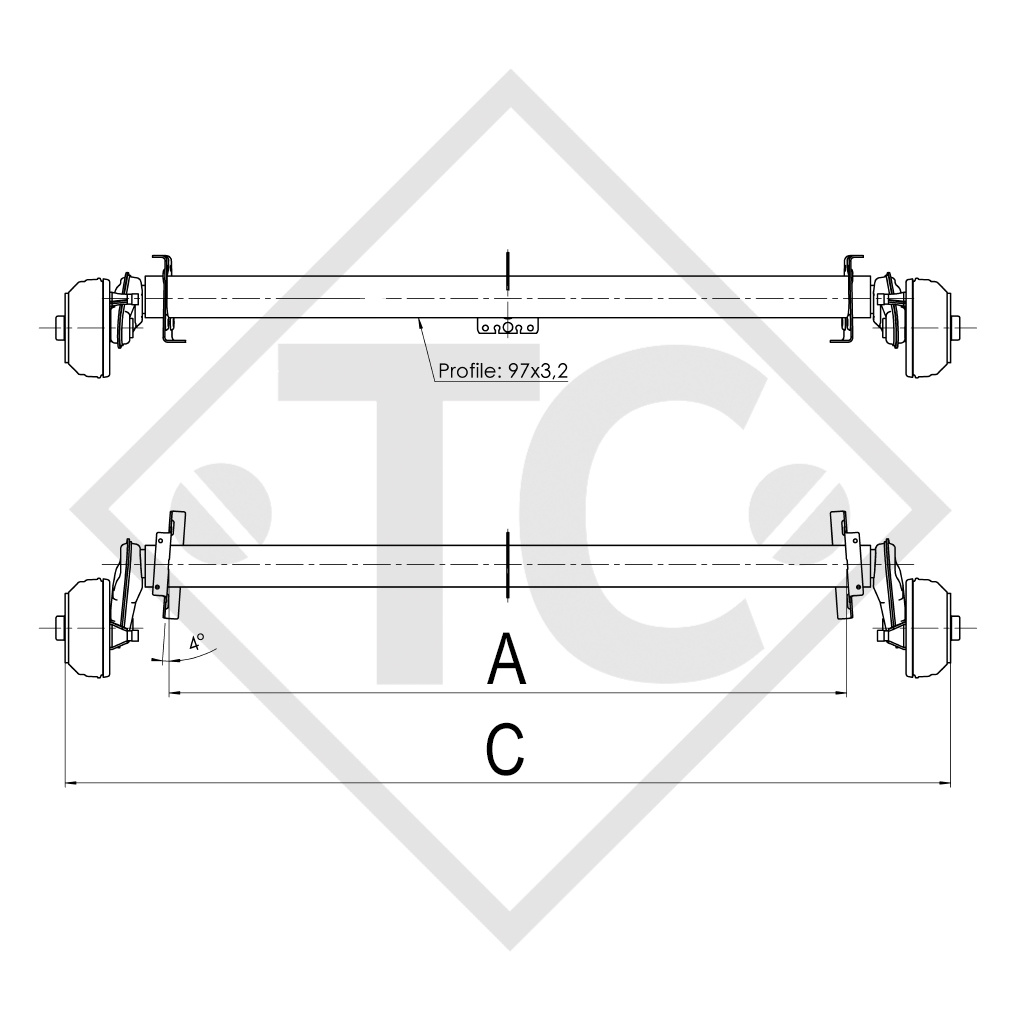

BC: dimension A 1530mm, OHF: dimension C 2040mm, wheel connection 112x5, wheel brake type 2051 vers. Aa, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm. Read more...
Part no. 185002763
BC: dimension A 1530mm
OHF: dimension C 2010mm
Wheel connection 112x5
Offset (ET) 26-30mm

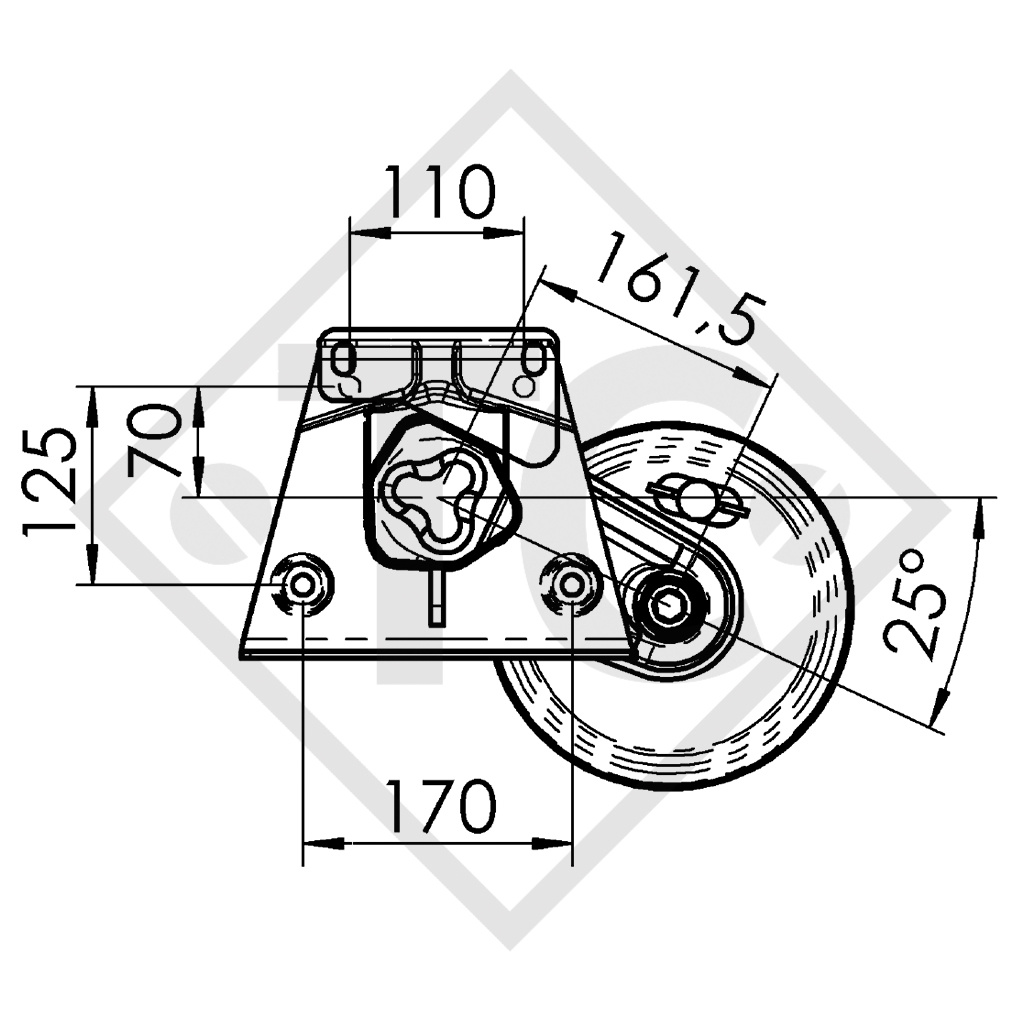

Swing arm position 25°
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) OLD 811294
Replacement part identification number (ETI) NEW 811947
TECHNOLOGY
Model: EURO1
Axle type: B 1200-5
Axle load: Single axle 1300kg
Wheel brake: 2051 vers. Aa
Suspension: Hexagonal rubber suspension
Swing arm length: 175mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle with brake
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
