AL-KO Braked axle 1300kg EURO1 axle type B 1200-5 - Turatello

Part no. 1424344  (1527837)

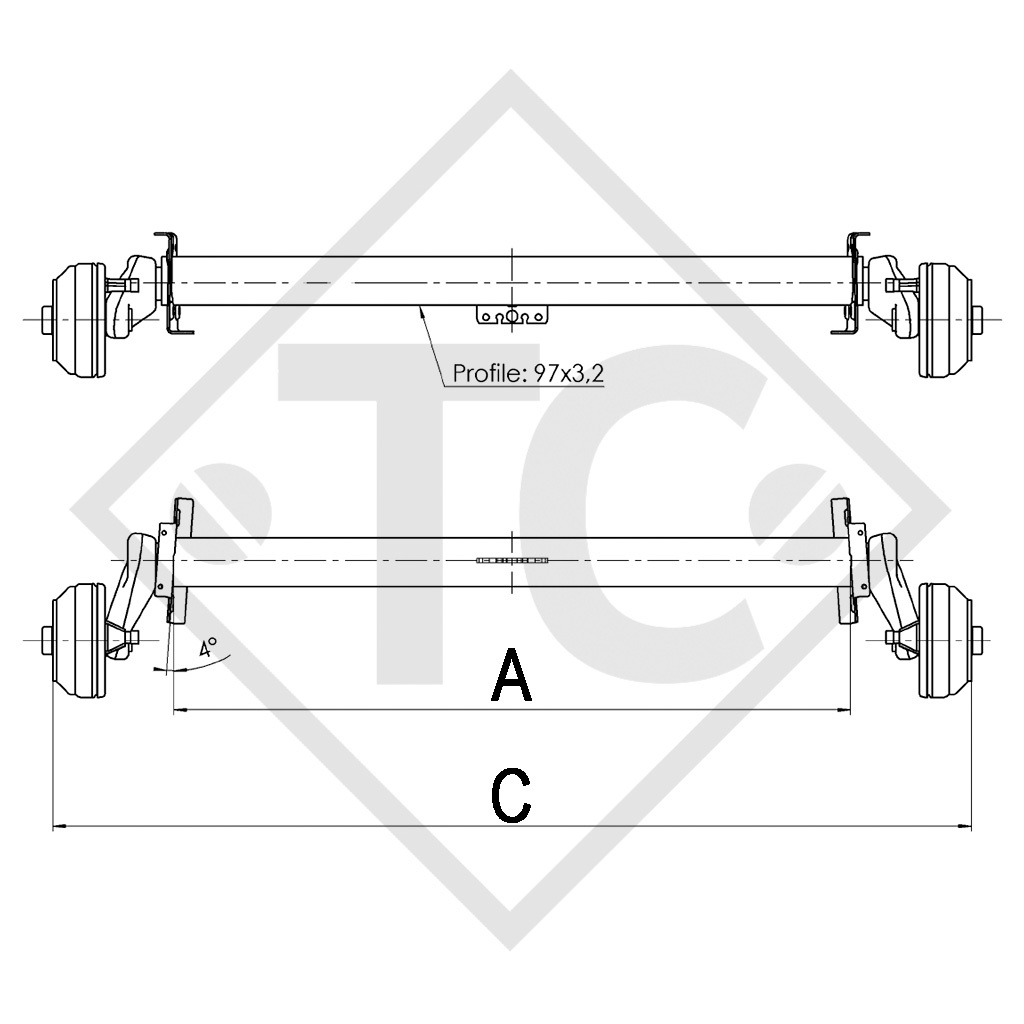

BC: dimension A 1580mm
OHF: dimension C 2160mm
Wheel connection 112x5
Offset (ET) 26-30mm
Swing arm position 25°
Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) OLD 811294
Replacement part identification number (ETI) NEW 811947

TECHNOLOGY
Model: EURO1
Axle type: B 1200-5
Axle load: Single axle 1300kg, tandem 2600kg
Wheel brake: 2051 vers. A
Suspension: Hexagonal rubber suspension
Swing arm length: 160mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle with brake
Tandem axle adapter bracket welded on

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber
