BC: dimension A 1595mm, OHF: dimension C 2090mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm, taper-head wheel bolts M12x1.5. Read more...
Part no. 1703689 (1903186)

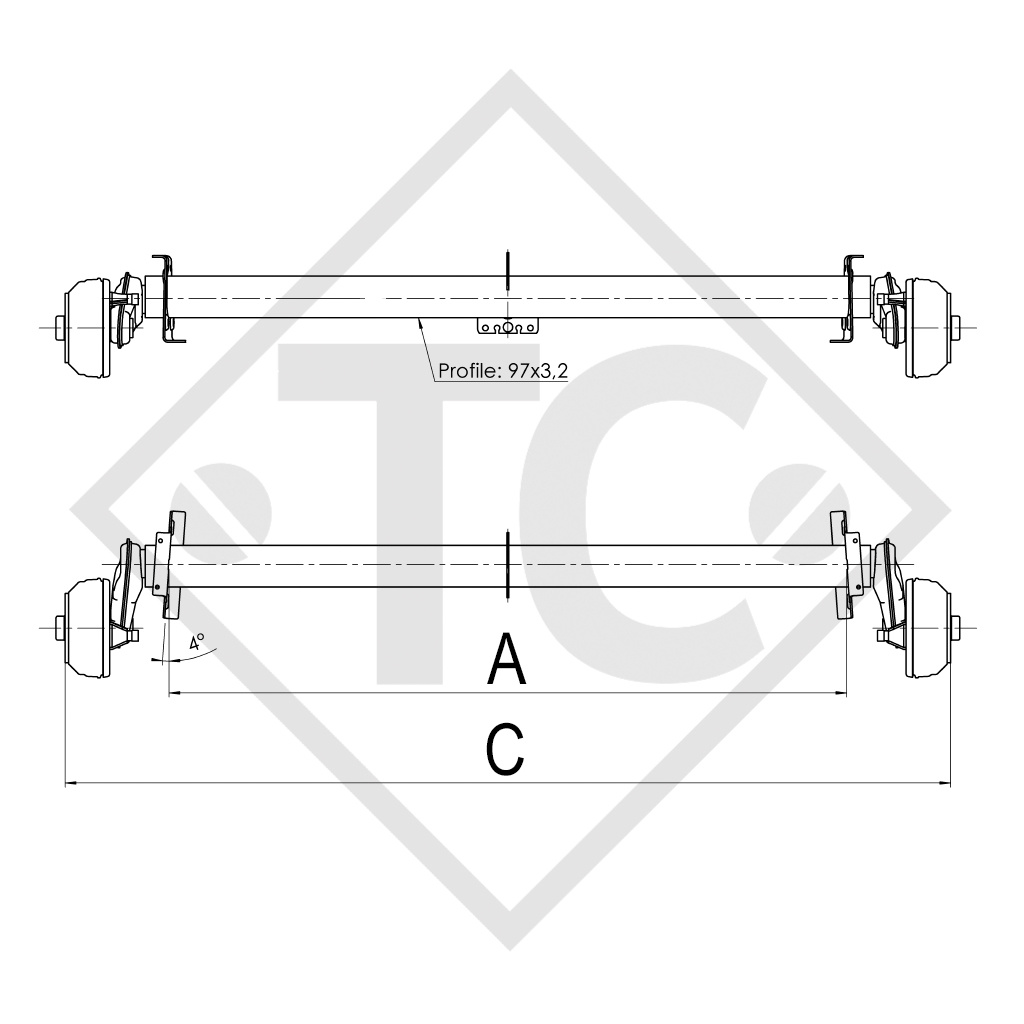

BC: dimension A 1595mm
OHF: dimension C 2090mm
Wheel connection 112x5
Offset (ET) 26-30mm
Swing arm position 25°
Axle profile 97mm
TECHNOLOGY
Model: EURO1
Axle type: B 1200-5
Axle load: Single axle 1300kg
Wheel brake: 2051 vers. A
Suspension: Hexagonal rubber suspension
Swing arm length: 161,5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded on
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
