BC: dimension A 1500mm, OHF: dimension C 1940mm, wheel connection 130x4, wheel brake type 2051 vers. A, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm, M14x1,5. Read more...
Part no. 1706245
BC: dimension A 1500mm
OHF: dimension C 1940mm
Wheel connection 130x4

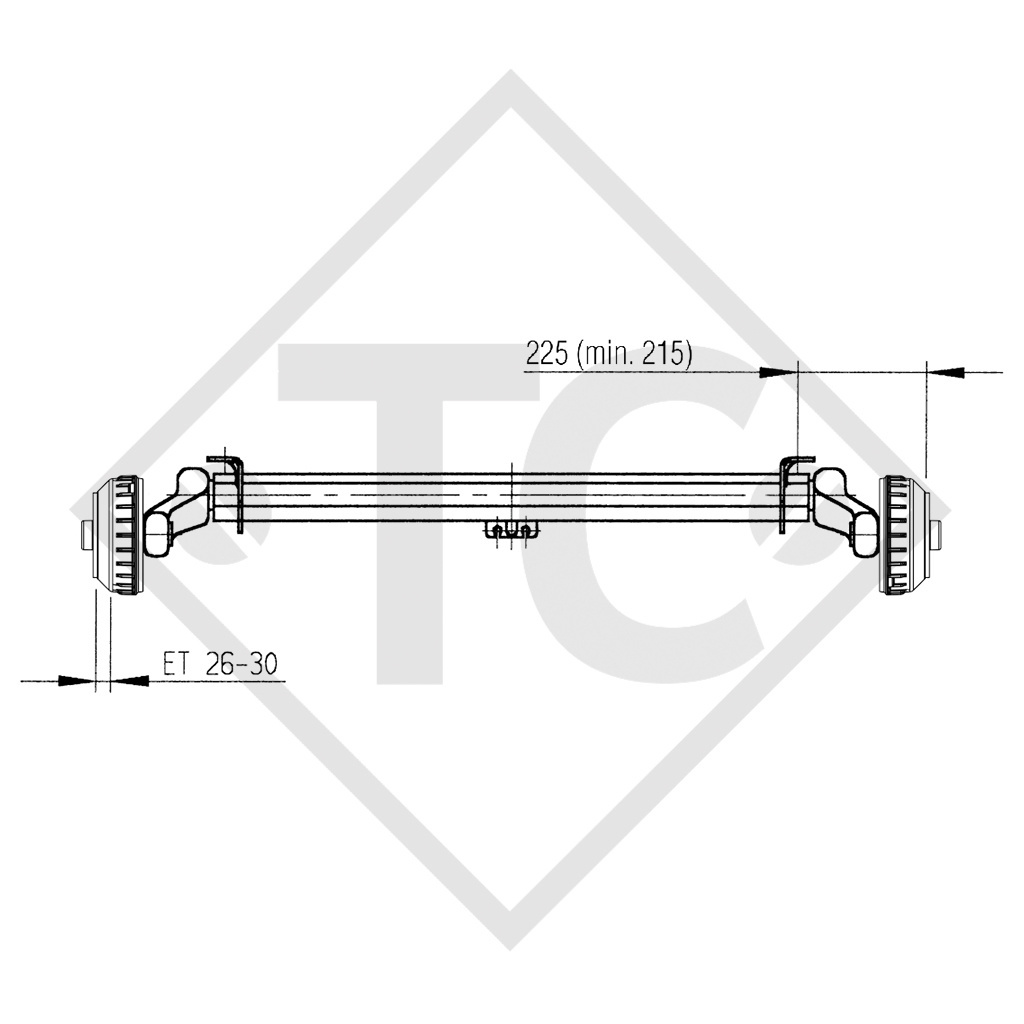

Offset (ET) 26-30mm

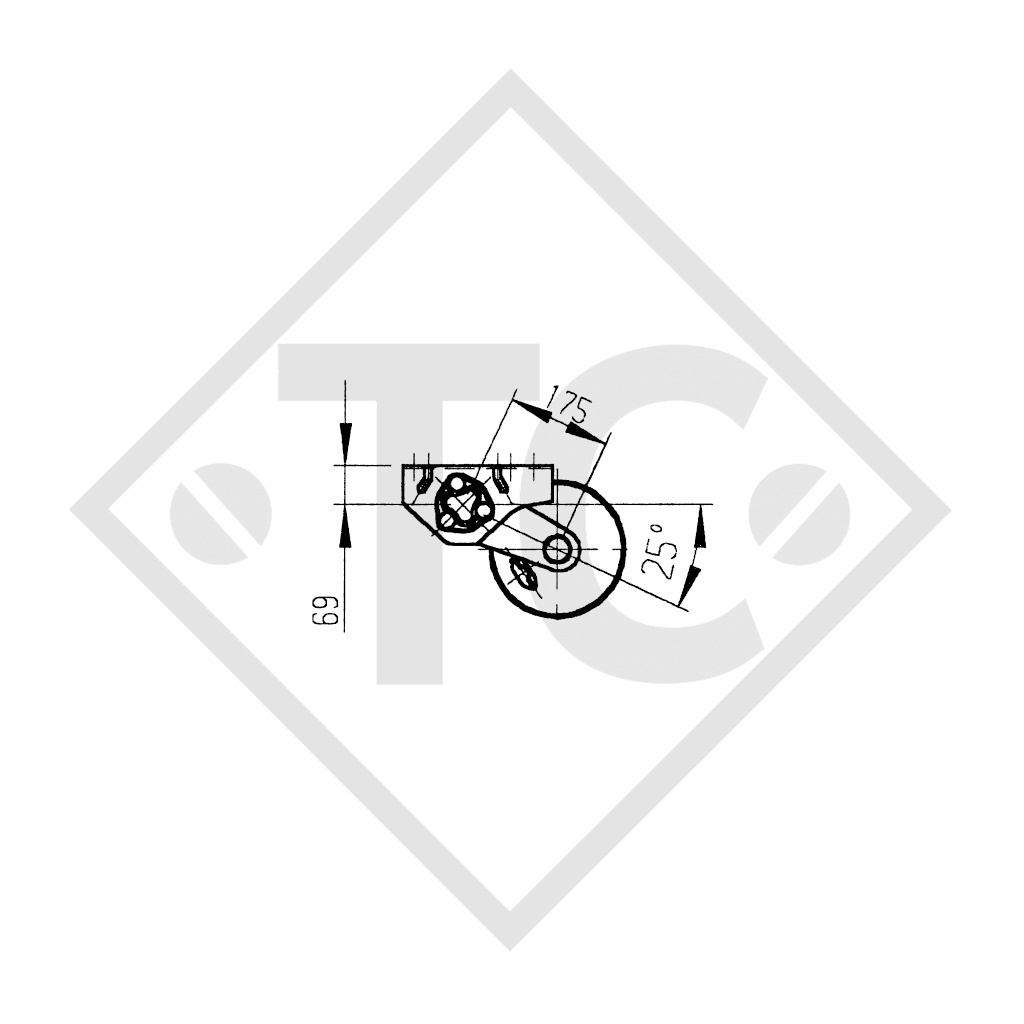

Swing arm position 25°
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) OLD 811157
Replacement part identification number (ETI) NEW 811941
TECHNOLOGY
Model: EURO1
Axle type: B 1200-5
Axle load: Single axle 1100kg
Axle load: Tandem axle 2200kg
Wheel brake: 2051 vers. A
Suspension: Hexagonal rubber suspension
Swing arm length: 175mm
Wheel bearing: Reinforced compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle with brake, bowden cables, bolts M14x1,5
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
