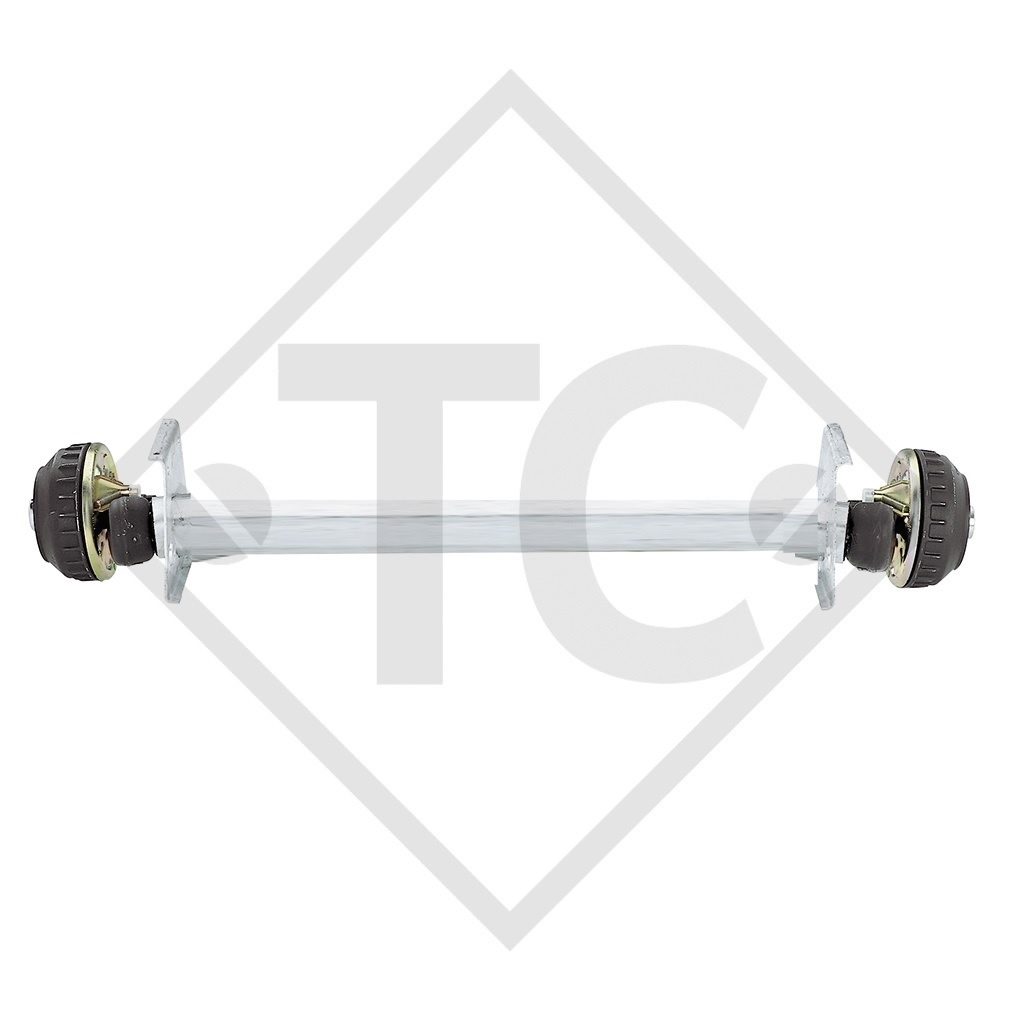

AL-KO Braked axle 1100kg EURO1 axle type B 1000-5, CARAVELAIR

Part no. 1941994 (801358)

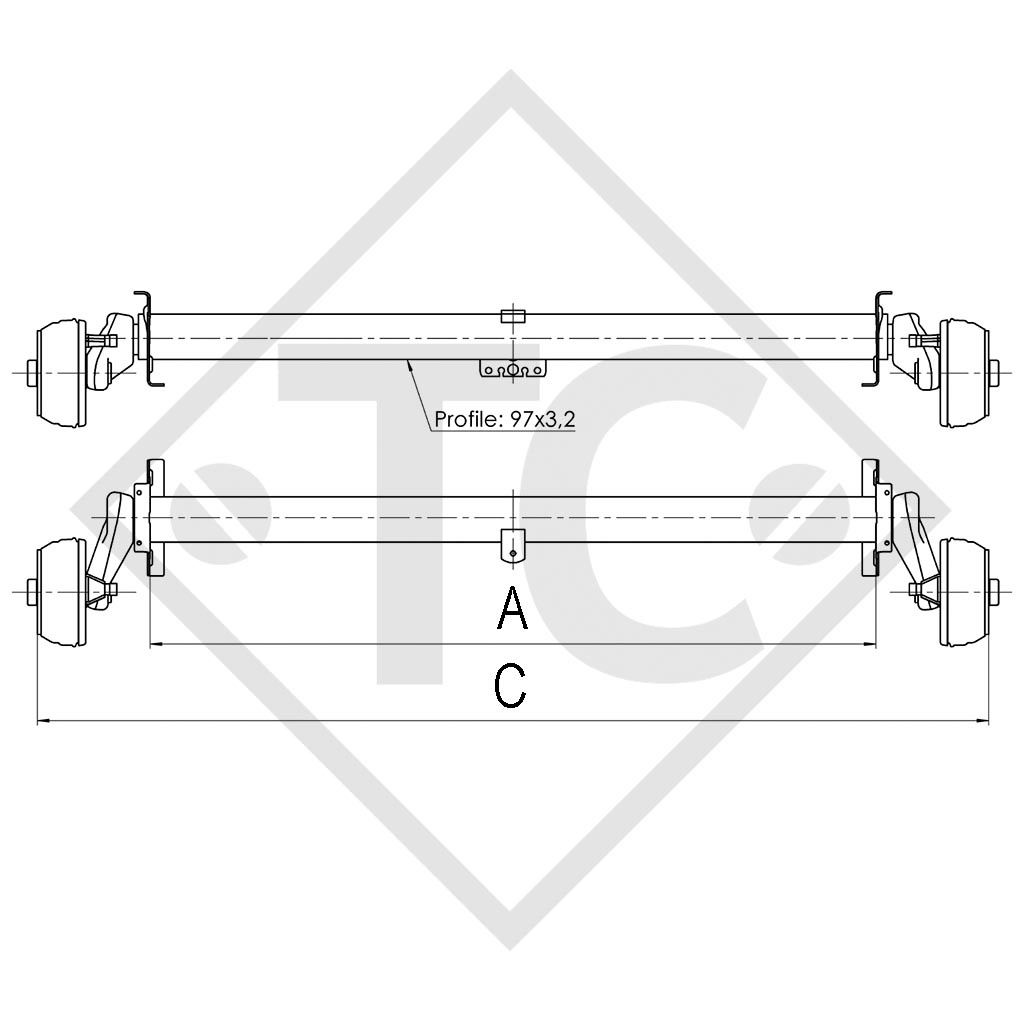

BC: dimension A 1545mm
OHF: dimension C 1990mm
Wheel connection 130x4
Offset (ET) 26-30mm

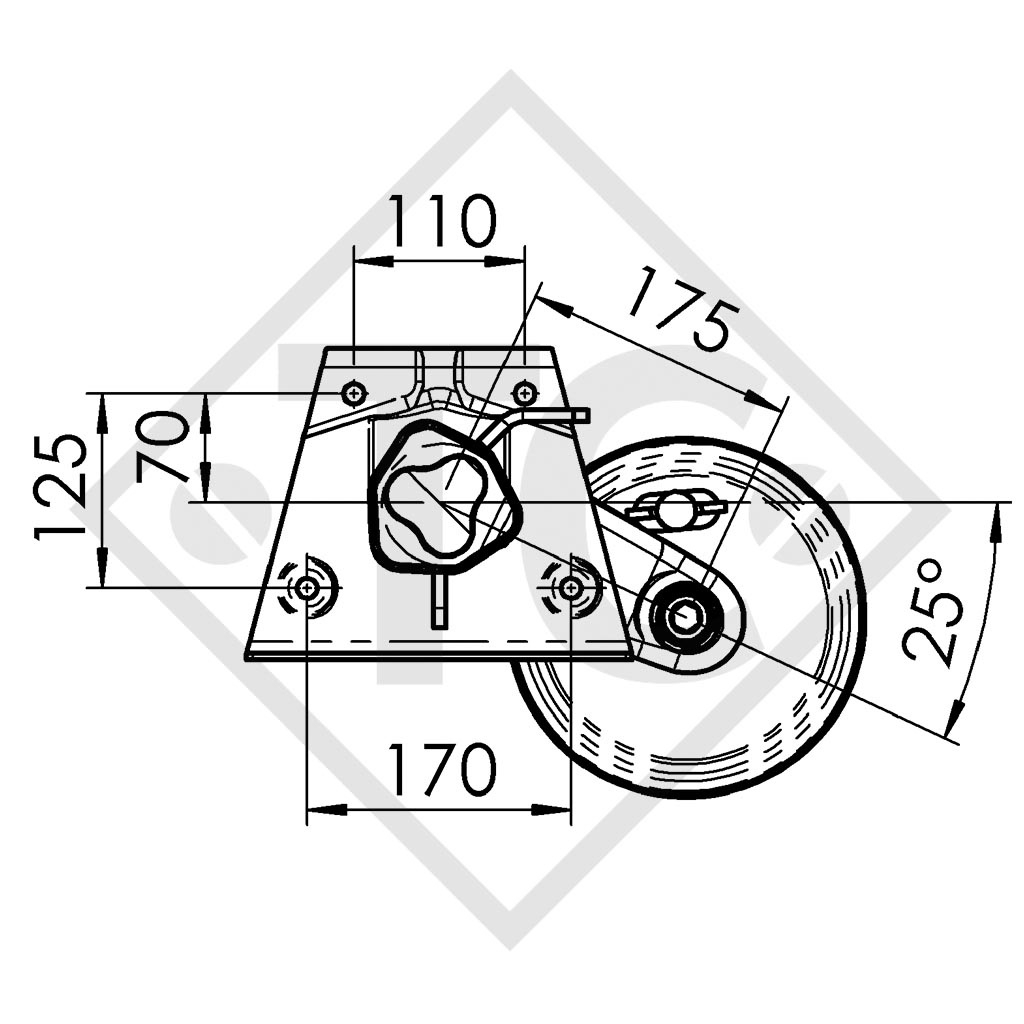

Swing arm position 25°
Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) OLD 811294
Replacement part identification number (ETI) NEW 811947

TECHNOLOGY
Model: EURO1
Axle type: B 1000-5
Axle load: Single axle 1100kg
Wheel brake: 2051vers. A
Suspension: Hexagonal rubber suspension
Swing arm length: 161,5mm
Wheel bearing: Reinforced compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Single axle adapter bracket welded on
Compensation profile for single axle supplied

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber
