Home / Braked axle 1300kg EURO Plus axle type DELTA SI-N 12, KNAUS 500 SPORT with AAA (automatic adjustment of the brake pads)
BC: dimension A 1550mm, OHF: dimension C 2080mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 30mm, swing arm position 16°, axle profile 97mm, with AAA (automatic adjustment of the brake pads). Read more...
Part no. 1704815 (1904407)
BC: dimension A 1550mm
OHF: dimension C 2080mm
Wheel connection 112x5
Offset (ET) 30mm

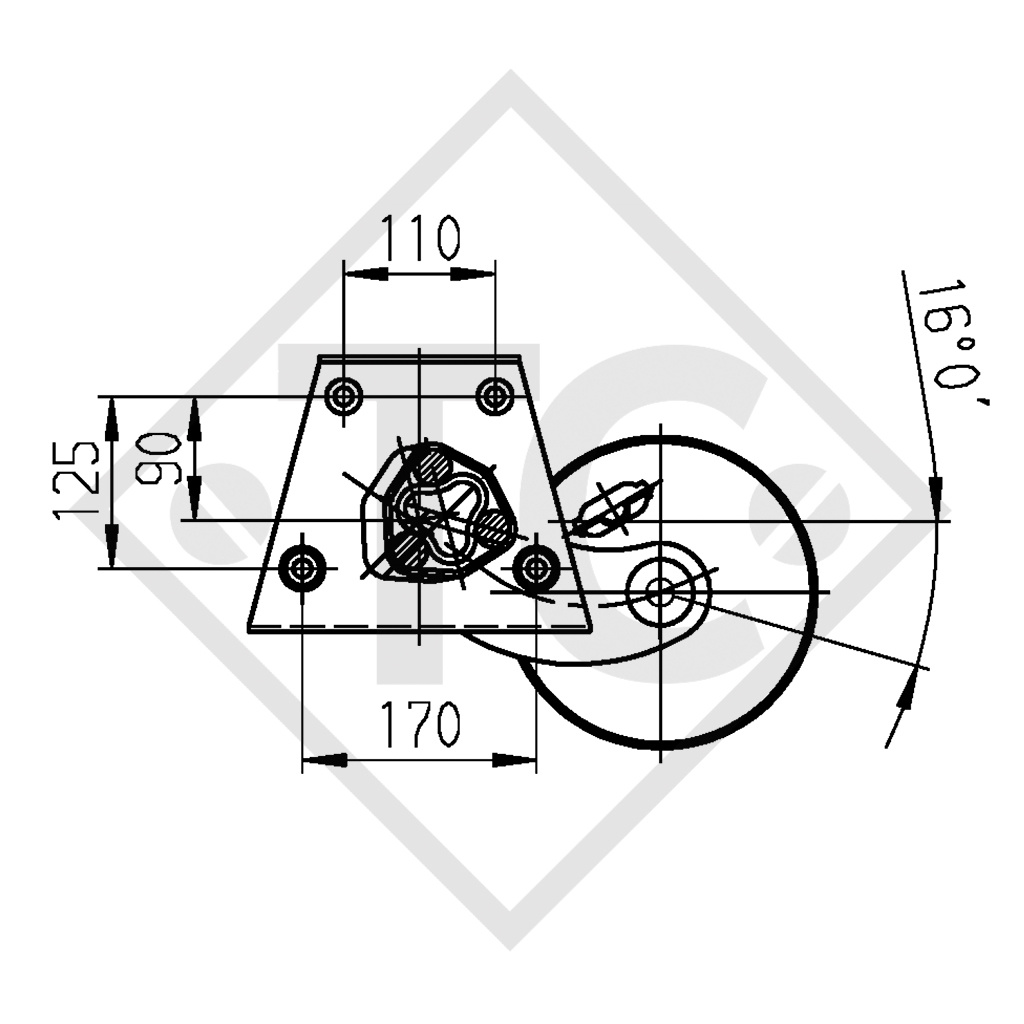

Swing arm position 16°
Axle profile 97mm
Original operating instructions
TECHNOLOGY
Model: EURO Plus
Axle type: DELTA SI-N 12
Axle load: Single axle 1300kg
Axle load: Tandem axle 2600kg
Wheel brake: 2051 vers. A + AAA
Suspension: Hexagonal rubber suspension
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm
SCOPE OF DELIVERY
Axle with brake
Axle adapter bracket welded on
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
