BC: dimension A 1425mm, OHF: dimension C 1852mm, wheel connection 112x5, wheel brake type 2051 A, offset (ET) 26-30mm, swing arm position 5°, axle profile 97mm. Read more...

Wishlist: Add to comparison:

Part no. 185008351  (ID: 13-7485)
BC: dimension A 1425mm
OHF: dimension C 1852mm
Wheel connection 112x5
Offset (ET) 26-30mm

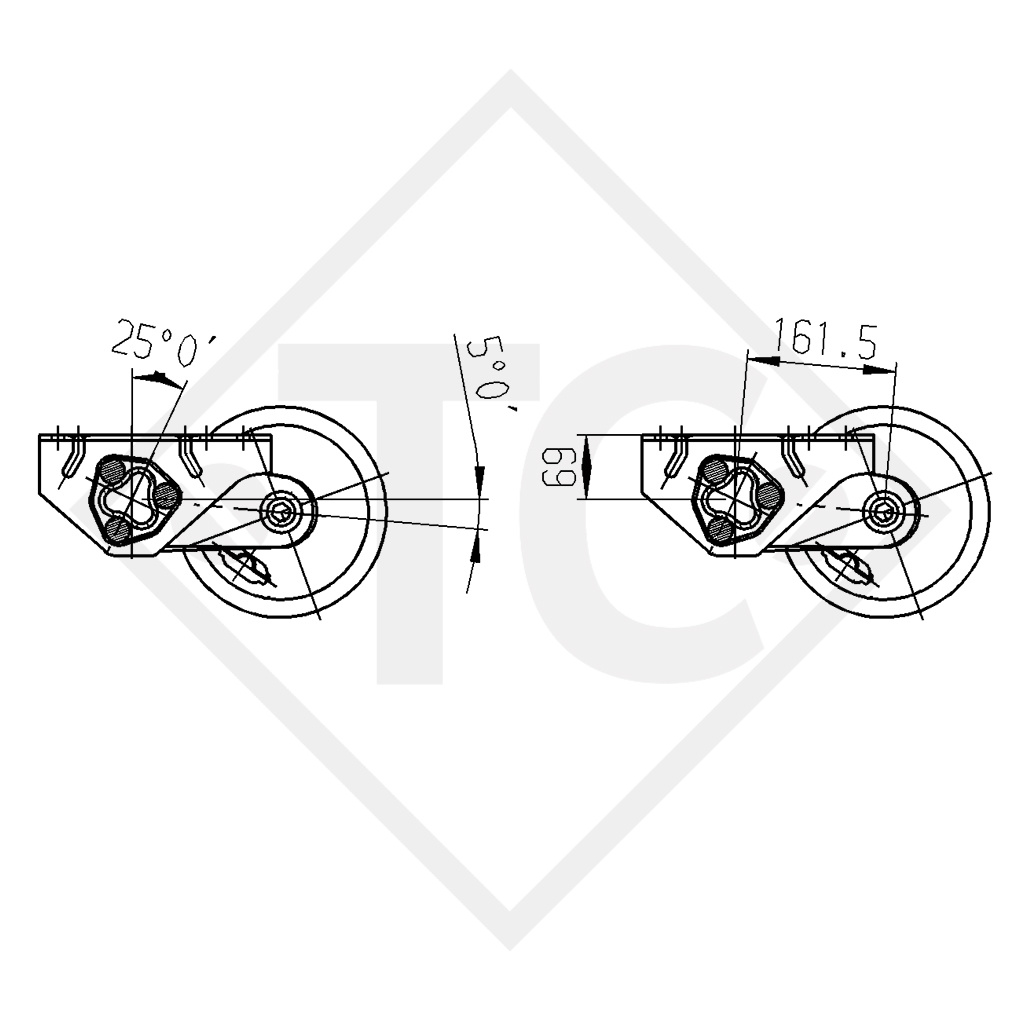

Swing arm position 5°
Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) 811942

TECHNOLOGY
Model: EURO Compact
Axle type: B 1200-5
Axle load: Single axle 1300kg
Axle load: Tandem axle 2600kg
Wheel brake: 2051 A
Suspension: Hexagonal rubber suspension
Swing arm length: 161,5mm
Wheel bearing: Reinforced compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle with brake

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber
