Home / Braked axle 1300kg BASIC axle type B 1200-6 with tandem adapter bracket from top

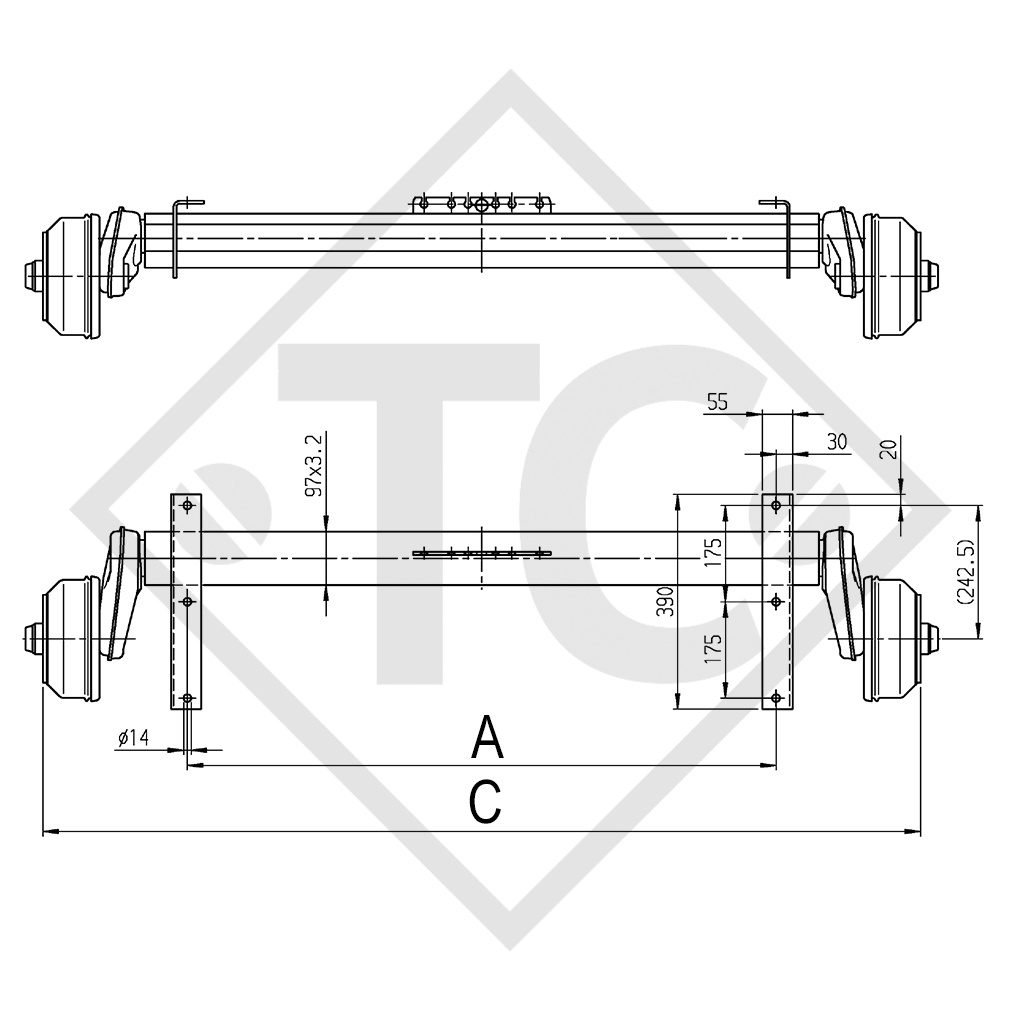

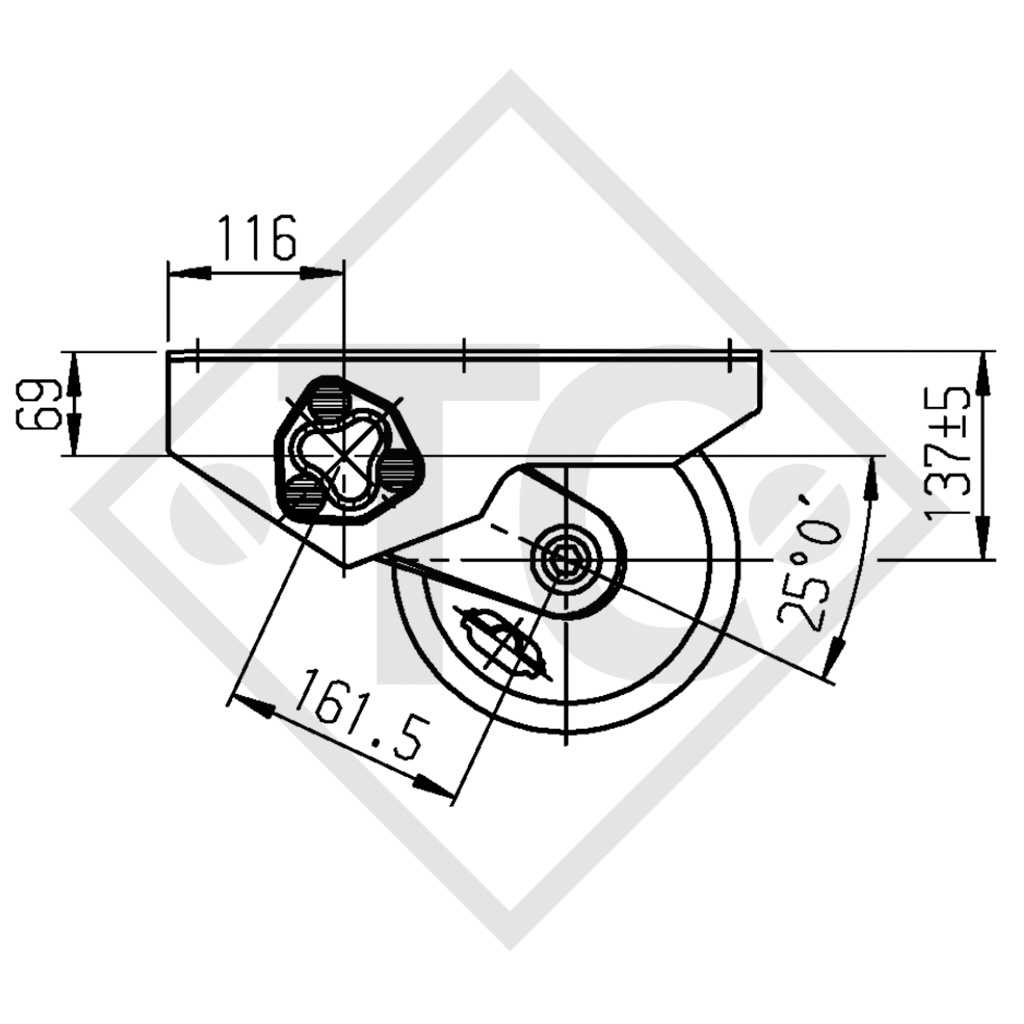

BC: dimension A 1070mm, OHF: dimension C 1595mm, wheel connection 112x5, wheel brake type 2051, offset (ET) 30-33mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5.
