Home / 2x Braked axle 1200kg EURO COMPACT axle type B 1200-3 HUMBAUR HP2400 Rapid
BC: dimension A 1691mm, OHF: dimension C 2065mm, wheel connection 112x5, wheel brake type 2051 vers. Aa, offset (ET) 26-30mm, swing arm position 15°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 1220890

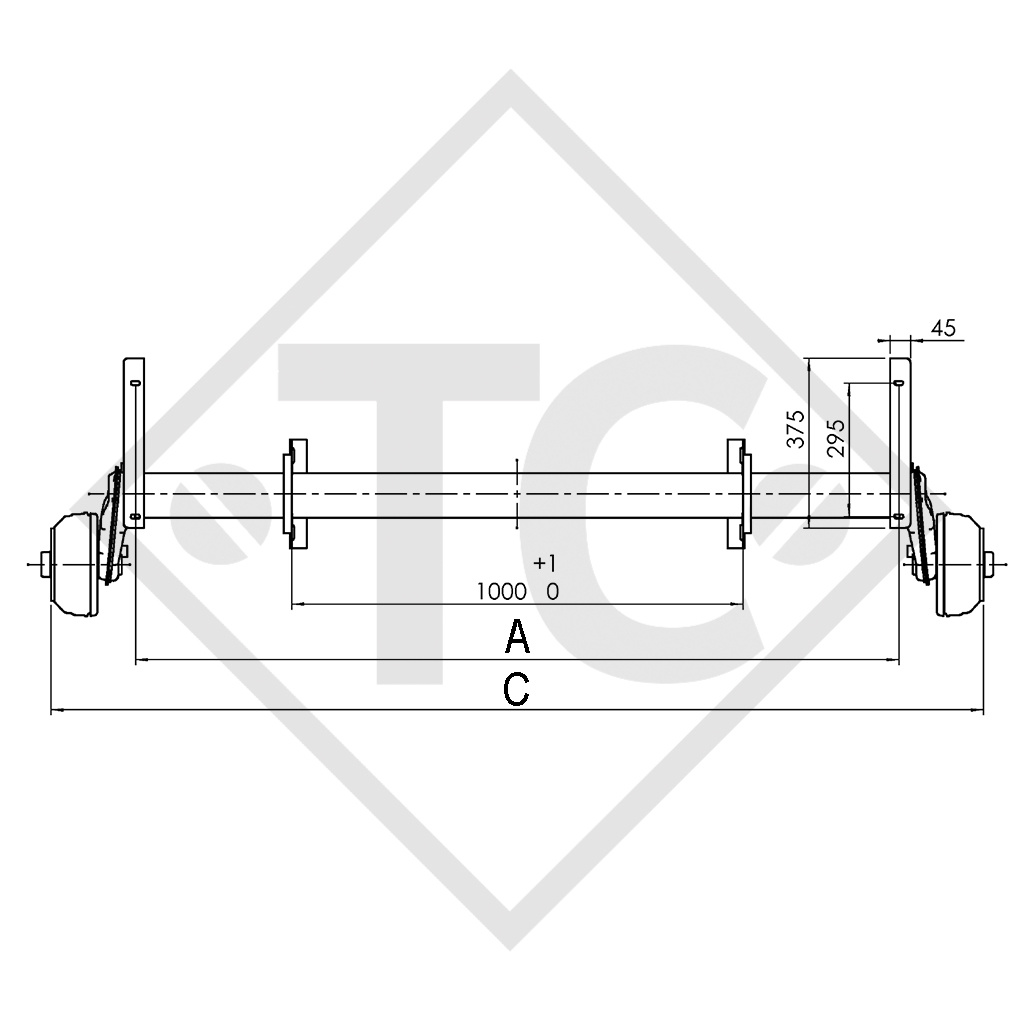

BC: dimension A 1691mm
OHF: dimension C 2065mm
Wheel connection 112x5
Offset (ET) 30-33mm

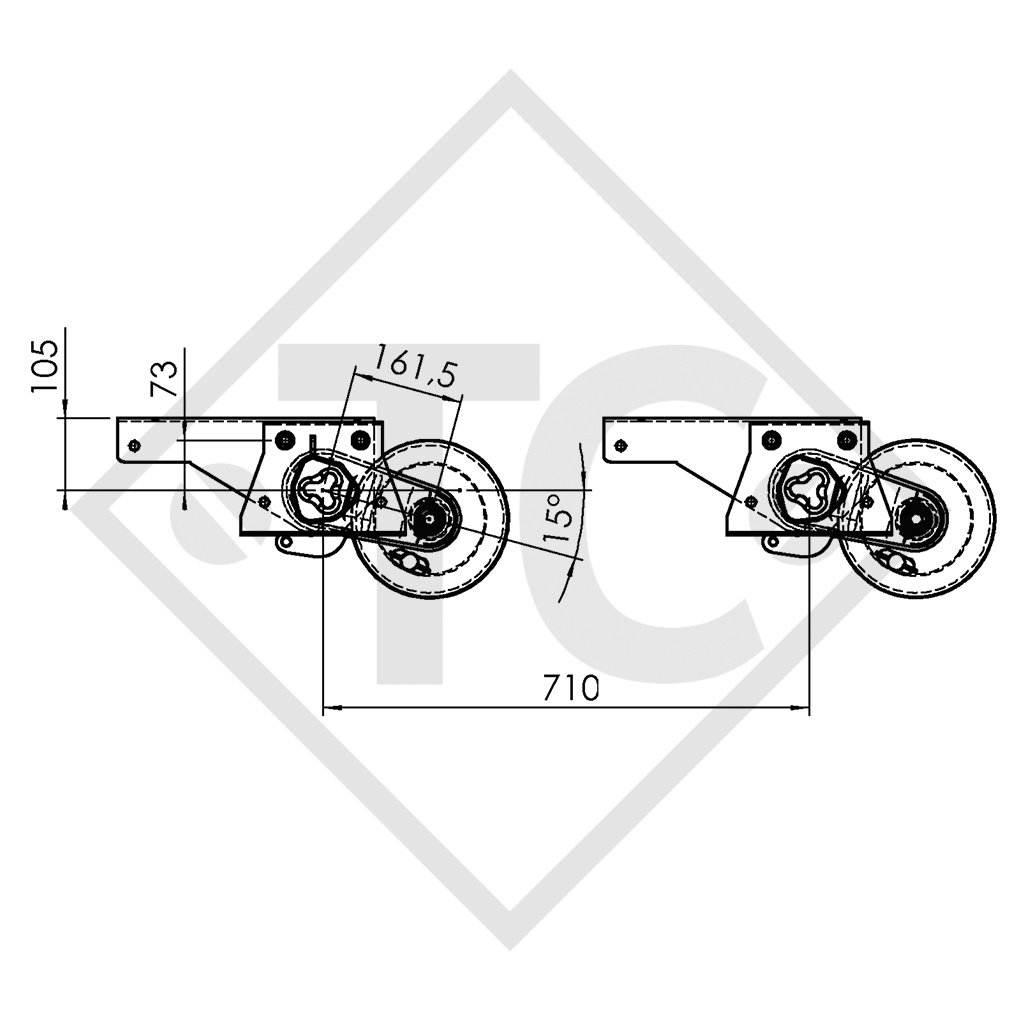

Swing arm position 15°

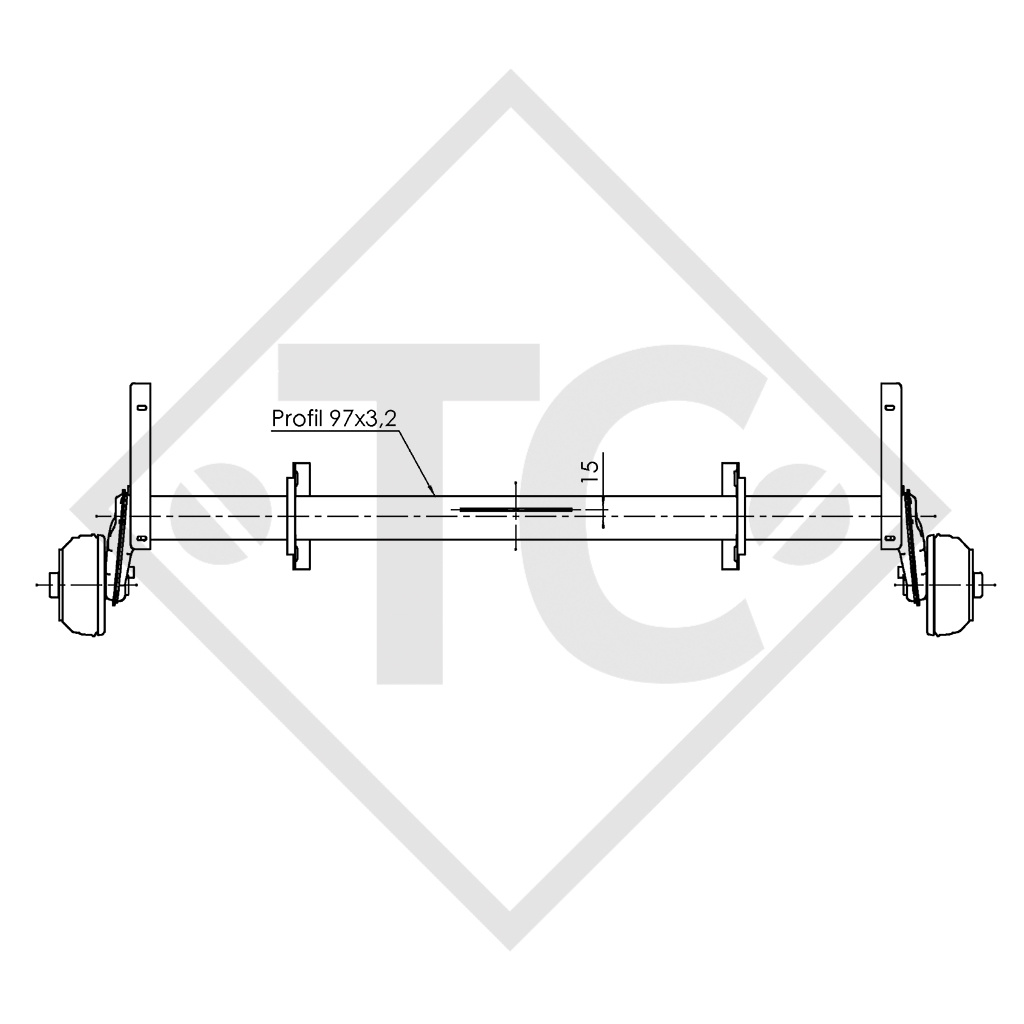

Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) OLD 811294
Replacement part identification number (ETI) NEW 811947
TECHNOLOGY
Model: EURO COMPACT
Axle type: B 1200-3
Axle load: Single axle 1200kg
Axle load: Tandem axle 2400kg
Wheel brake: 2051 vers. Aa
Suspension: Hexagonal rubber suspension
Swing arm length: 161.5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
2x Axle with brake
Ball-head wheel bolts M12x1.5 loose
Tandem axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
