Home / Braked axle 1200kg EURO axle type DELTA SI-N 12-2 - WILK
BC: dimension A 1475mm, OHF: dimension C 1980mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 30mm, swing arm position 10°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 240864

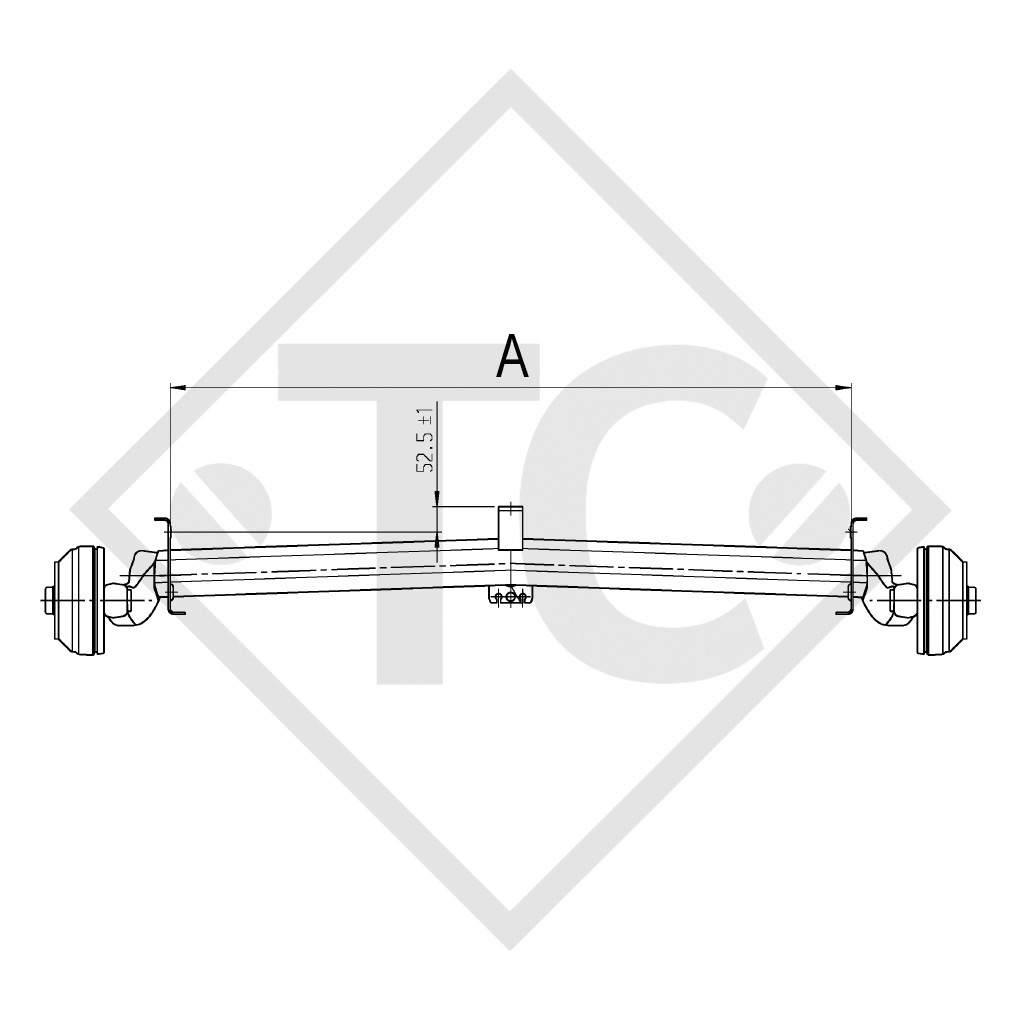

BC: dimension A 1475mm

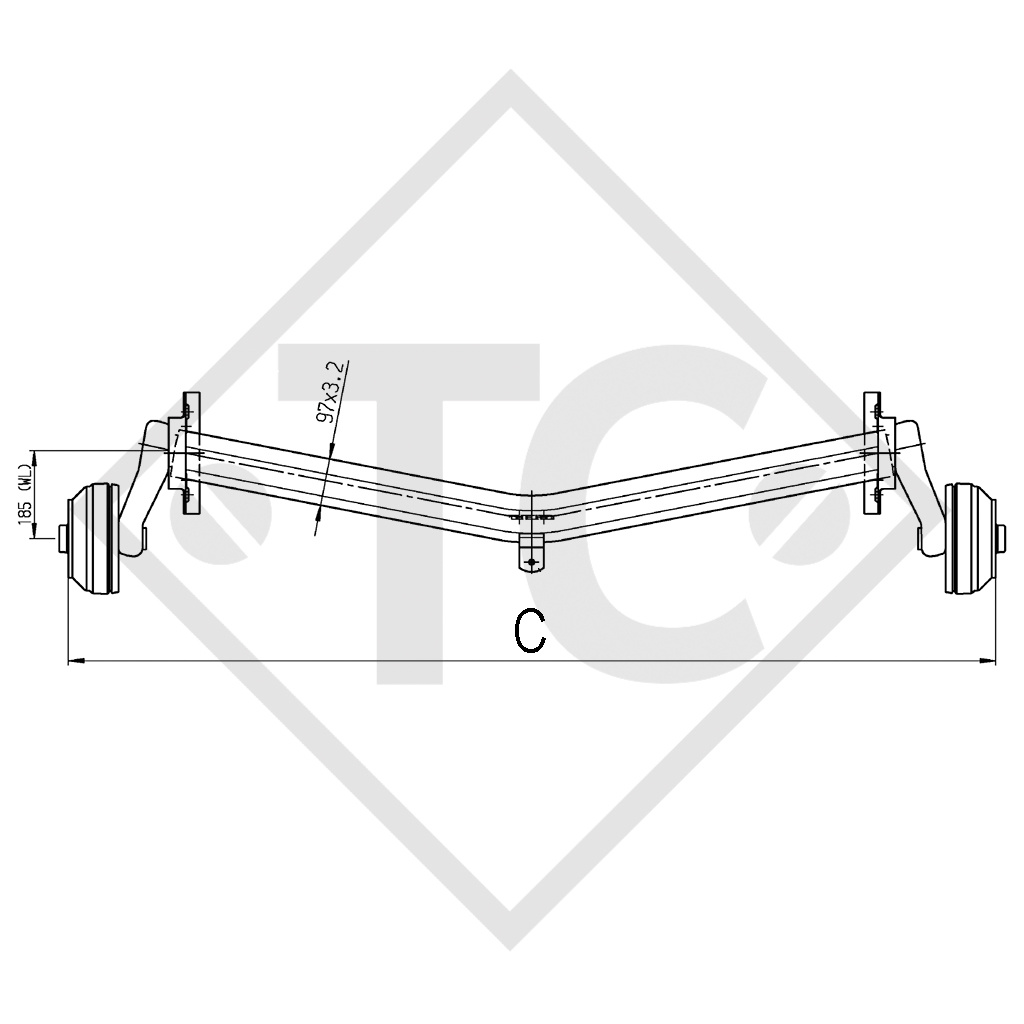

OHF: dimension C 1980mm
Wheel connection 112x5
Offset (ET) 30mm
Swing arm position 10°
Axle profile 97mm
Original operating instructions
TECHNOLOGY
Model: EURO
Axle type: DELTA SI-N 12-2
Axle load: Single axle 1200kg
Axle load: Tandem axle 2400kg
Wheel brake: 2051 vers. A
Suspension: Hexagonal rubber suspension
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm
SCOPE OF DELIVERY
Axle with brake
Ball-head wheel bolts M12x1.5 loose
Axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
