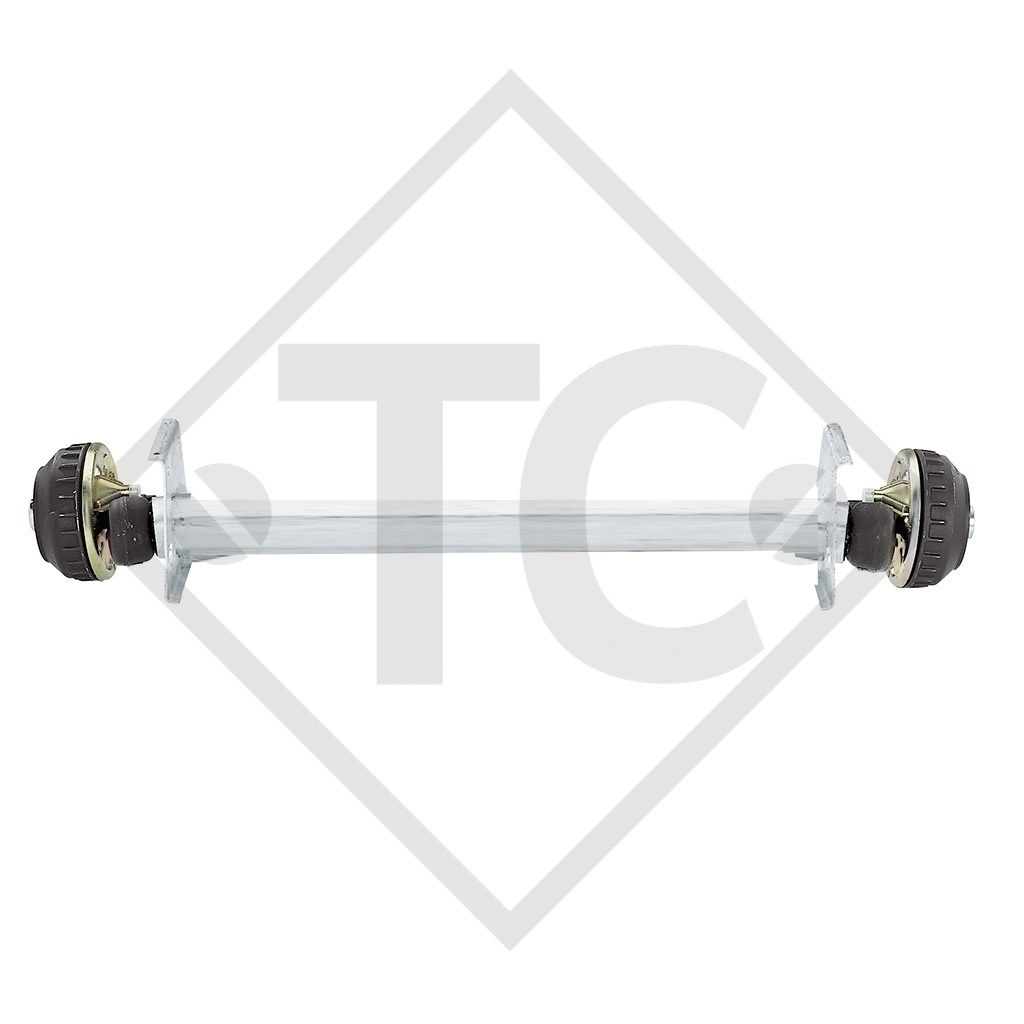

Braked axle 1100kg EURO1 axle type Delta SIN 12-1

Braked axle 1100kg EURO1 axle type Delta SIN 10-1, HYMER NOVA 391 caravan

BC: dimension A 1390mm, OHF: dimension C 1870mm, wheel connection 112x5, wheel brake type 2051 A, offset (ET) 27-33mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Price 1.335,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 1423756
BC: dimension A 1390mm
OHF: dimension C 1870mm
Wheel connection 112x5
Offset (ET) 27-33mm

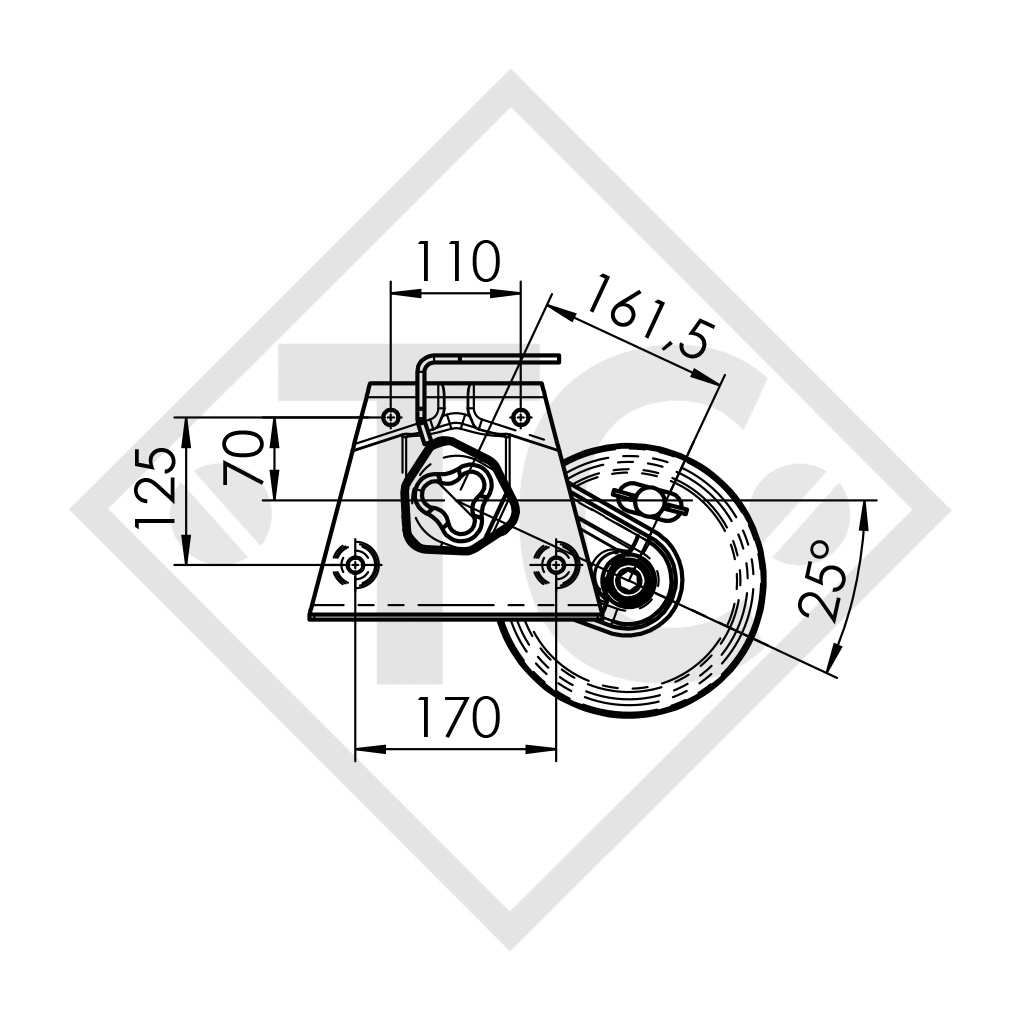

Swing arm position
Axle profile 97mm

TECHNOLOGY
Model: EURO1
Axle type: delta sin 12-1
Axle load: Single axle 1100kg
Axle load: Tandem axle 2000kg
Wheel brake: 2051 A
Suspension: Hexagonal rubber suspension
Swing arm length:
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
Compensation profile for single axle supplied
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

AL-KO Braked axle 1100kg EURO1 axle type Delta SIN 10-1, HYMER NOVA 391 caravan
