BC: dimension A 1490mm, OHF: dimension C 1970mm, wheel connection 112x5, wheel brake type 2051, offset (ET) 27-33mm, swing arm position 20°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 275863 (630137)

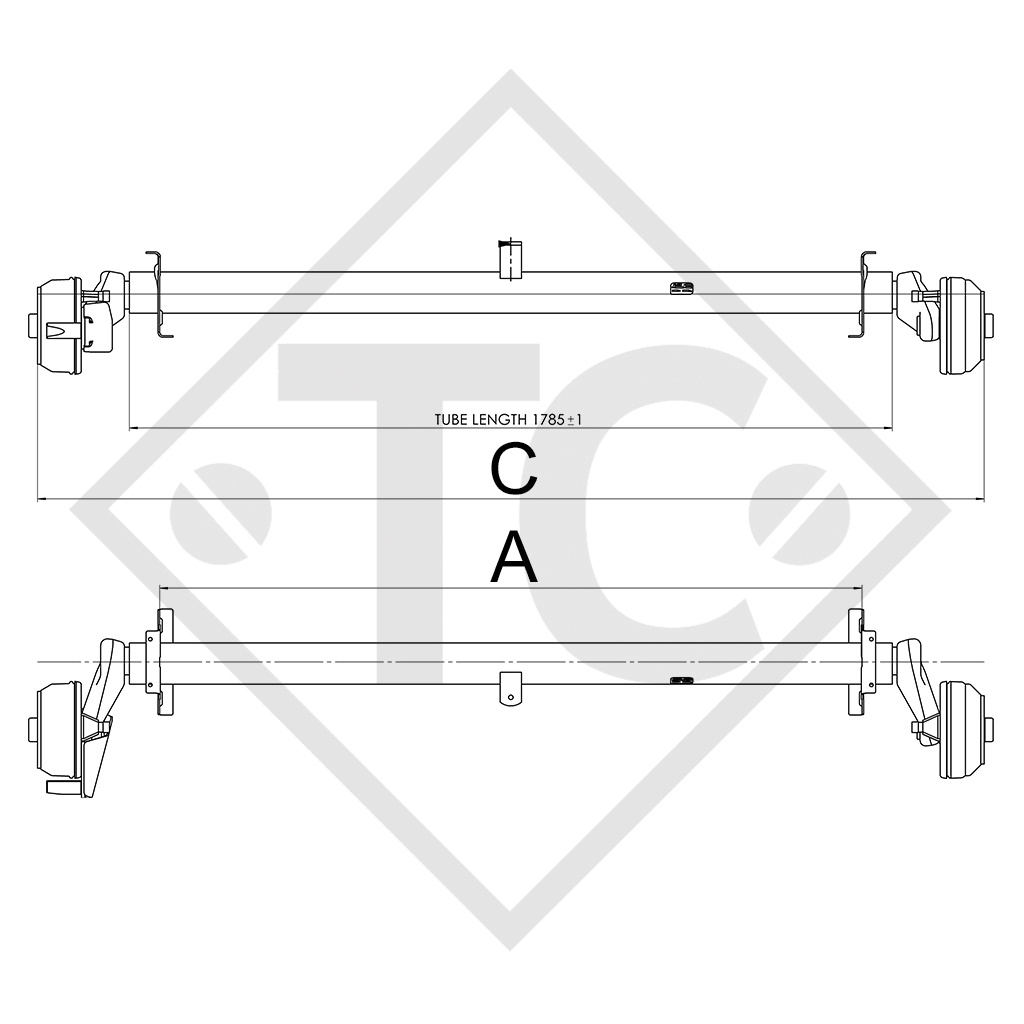

BC: dimension A 1490mm
OHF: dimension C 1970mm
Wheel connection 112x5
Offset (ET) 27-33mm
Swing arm position 20°
Axle profile 70mm
TECHNOLOGY
Axle type: BT97011
Axle load: Single axle 1100kg
Axle load: Tandem axle 2000kg
Wheel brake: 2051
Suspension: Torsion bar suspension
Swing arm length: 160mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle with wheel brake
Taper-head wheel bolts M12x1.5 loose
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
Original operating instructions
Replacement part identification number (ETI) 811942
