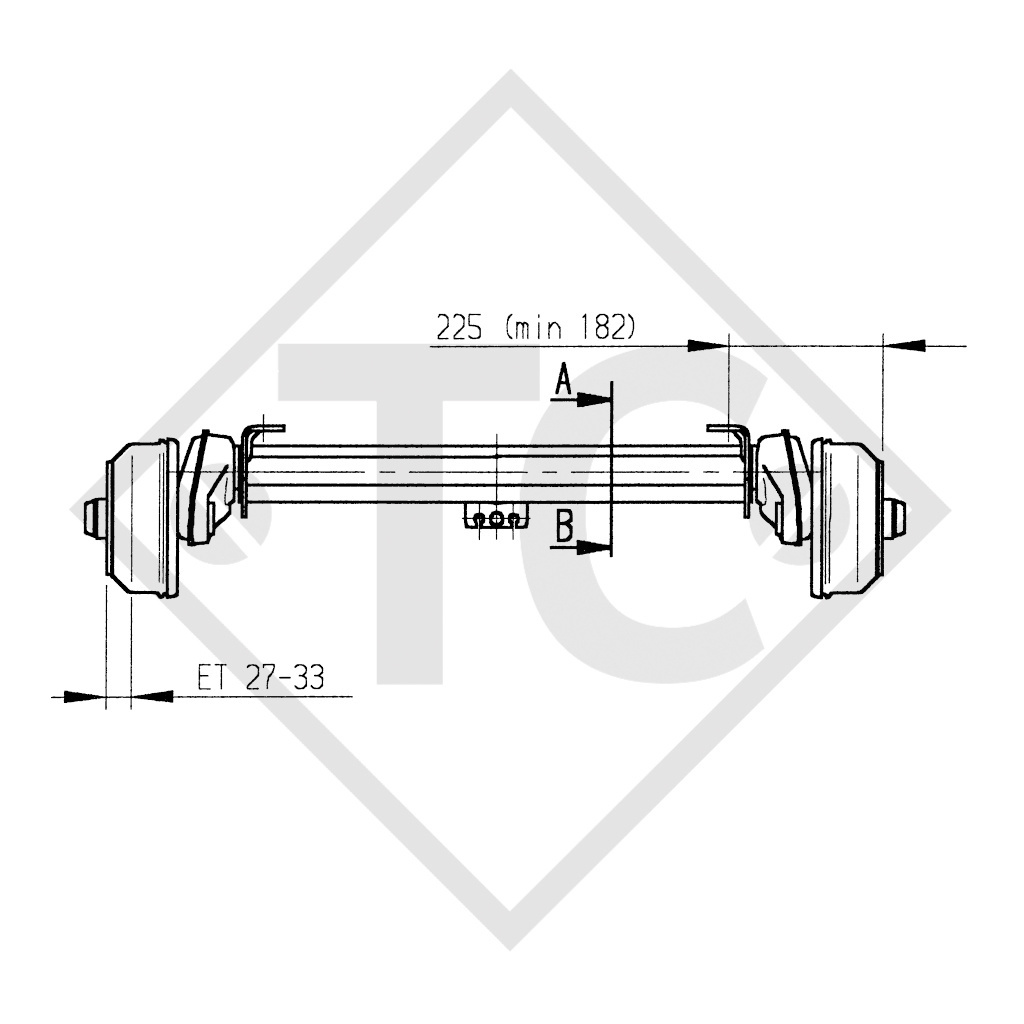

BC: dimension A 750mm, OHF: dimension C 1200mm, wheel connection 100x4, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 25°, axle profile 80mm. Read more...
Part no. 1387279
BC: dimension A 750mm
OHF: dimension C 1200mm
Wheel connection 100x4
Offset (ET) 27-33mm

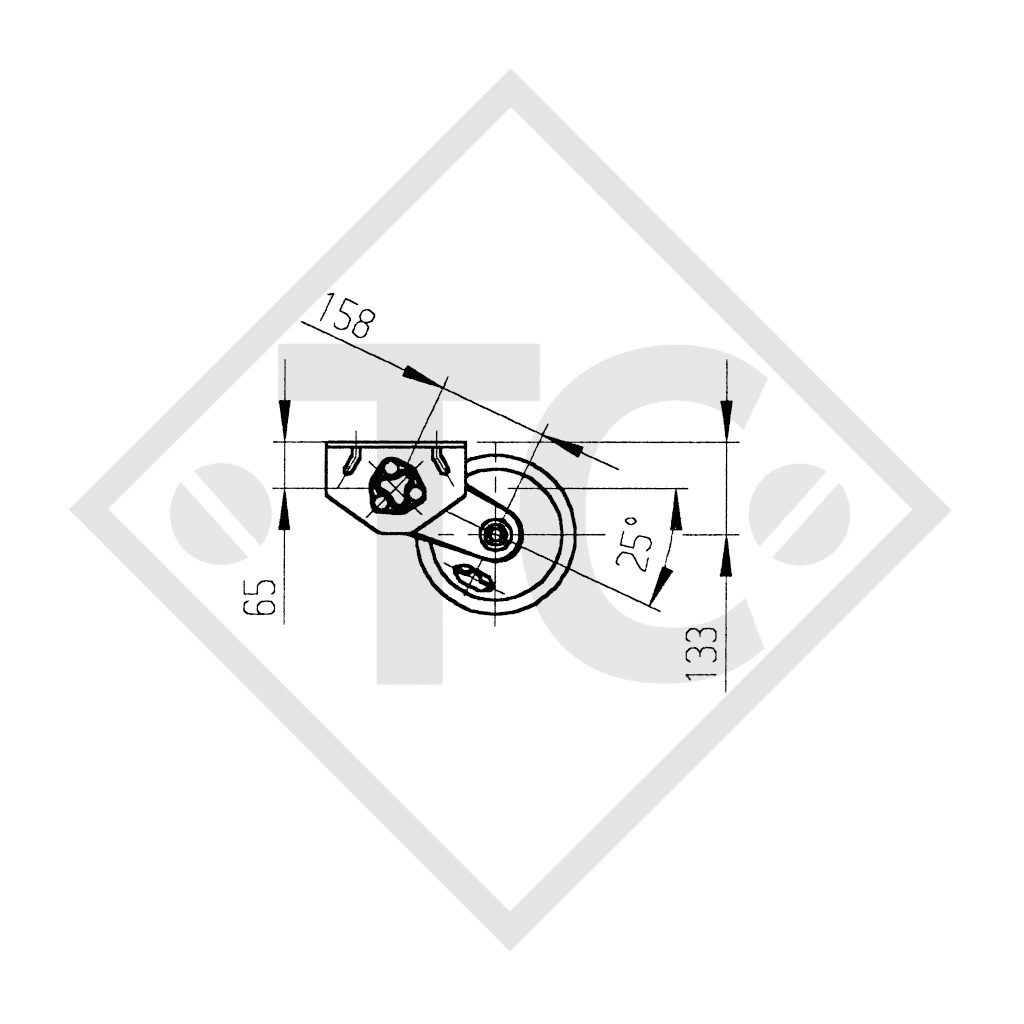

Swing arm position 25°
Axle profile 80mm
Original operating instructions
Replacement part identification number (ETI) OLD 811156
Replacement part identification number (ETI) NEW 811973
TECHNOLOGY
Model: EURO Compact
Axle type: B 850-10
Axle load: Single axle 1000kg
Axle load: Tandem axle 2000kg
Wheel brake: 1637
Suspension: Hexagonal rubber suspension
Swing arm length: 158mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle with brake
Taper-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded on
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
