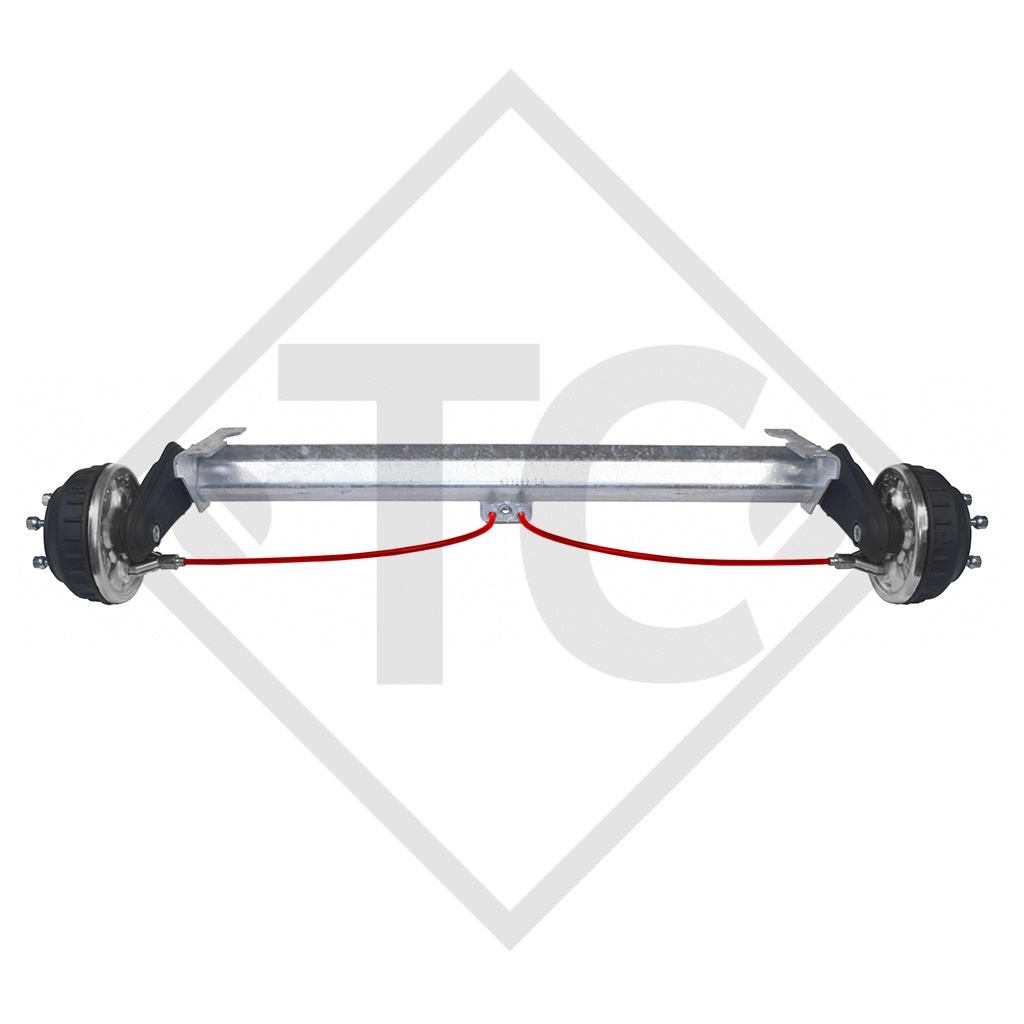

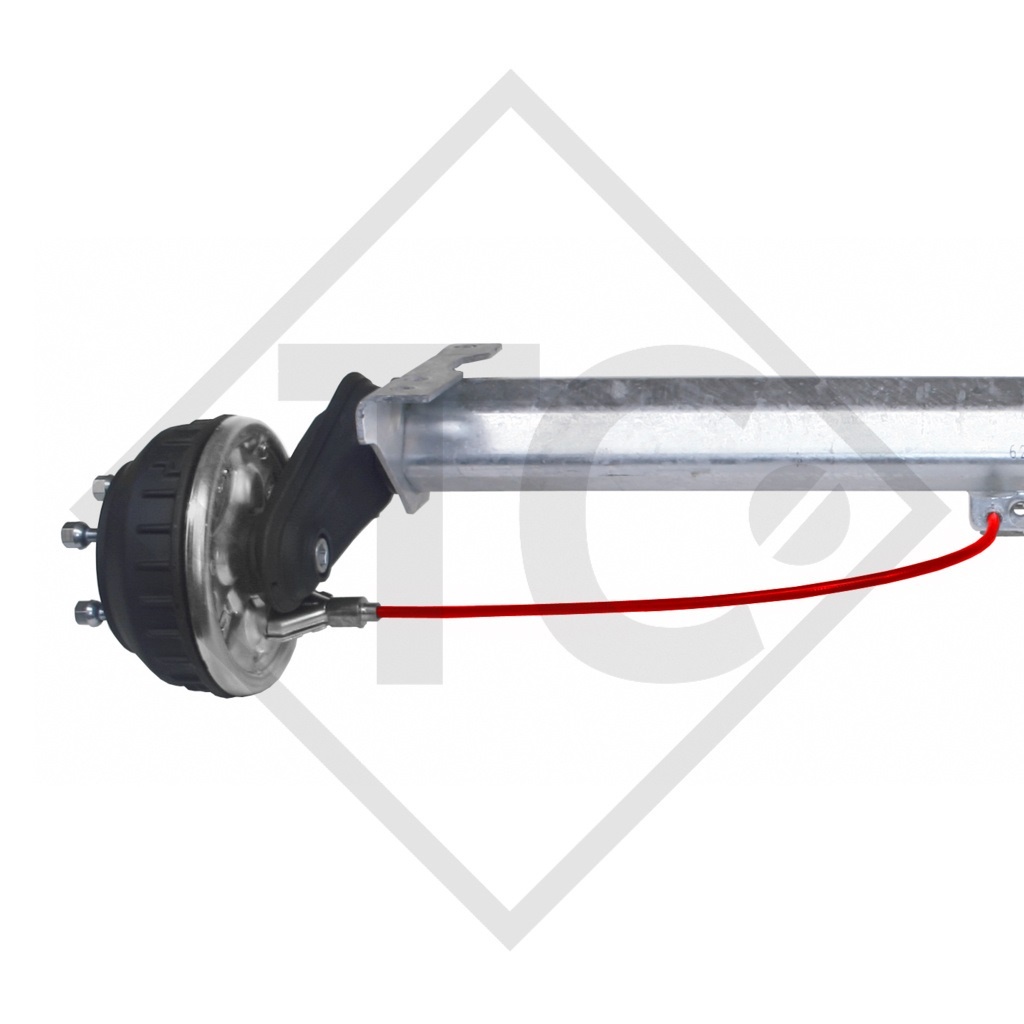

Braked axle 1000kg EURO Compact axle type B 1000-3

BC: dimension A 1470mm, OHF: dimension C 1970mm, wheel connection 98x4, wheel brake type 2051 vers. A, offset (ET) 27-33mm, swing arm position 25°, axle profile 97mm. Read more...

Wishlist: Add to comparison:

Price 795,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 220913 (648325)
BC: dimension A 1470mm
OHF: dimension C 1970mm
Wheel connection 98x4
Offset (ET) 27-33mm

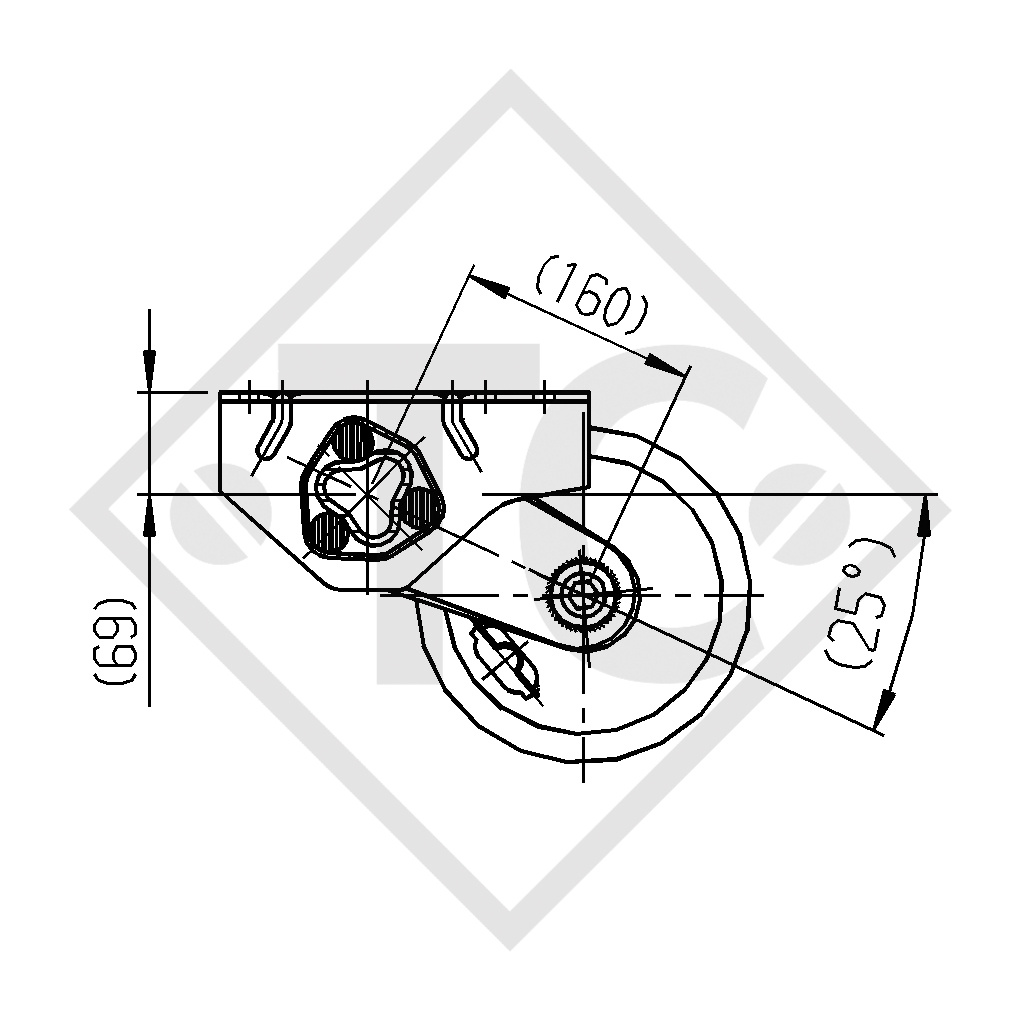

Swing arm position 25°
Axle profile 97mm

TECHNOLOGY
Model: EURO Compact
Axle type: B 1000-3
Axle load: Single axle 1000kg
Axle load: Tandem axle 2000kg
Wheel brake: 2051 vers. A
Suspension: Hexagonal rubber suspension
Swing arm length: 161.5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

AL-KO Braked axle 1000kg EURO Compact axle type B 1000-3
