Home / Braked axle 1000kg COMPACT axle type B 850-10, watertight
BC: dimension A 1640mm, OHF: dimension C 2210mm, wheel connection 130x4, wheel brake type 2051 Aa, offset (ET) 20-33mm, swing arm position 10°, axle profile 80mm, ball-head wheel bolts M14x1.5. Read more...
Part no. 1375386

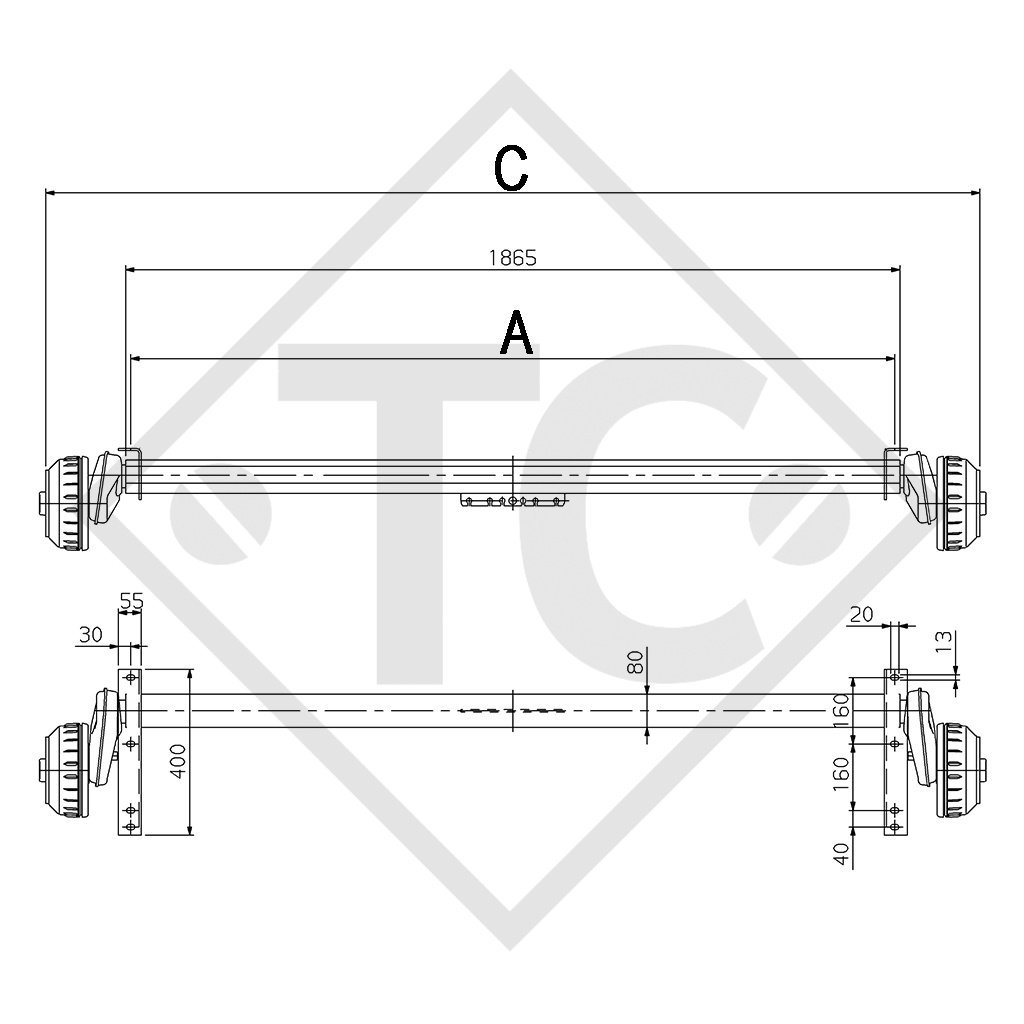

BC: dimension A 1640mm
OHF: dimension C 2210mm
Wheel connection 130x4
Offset (ET) 20-33mm

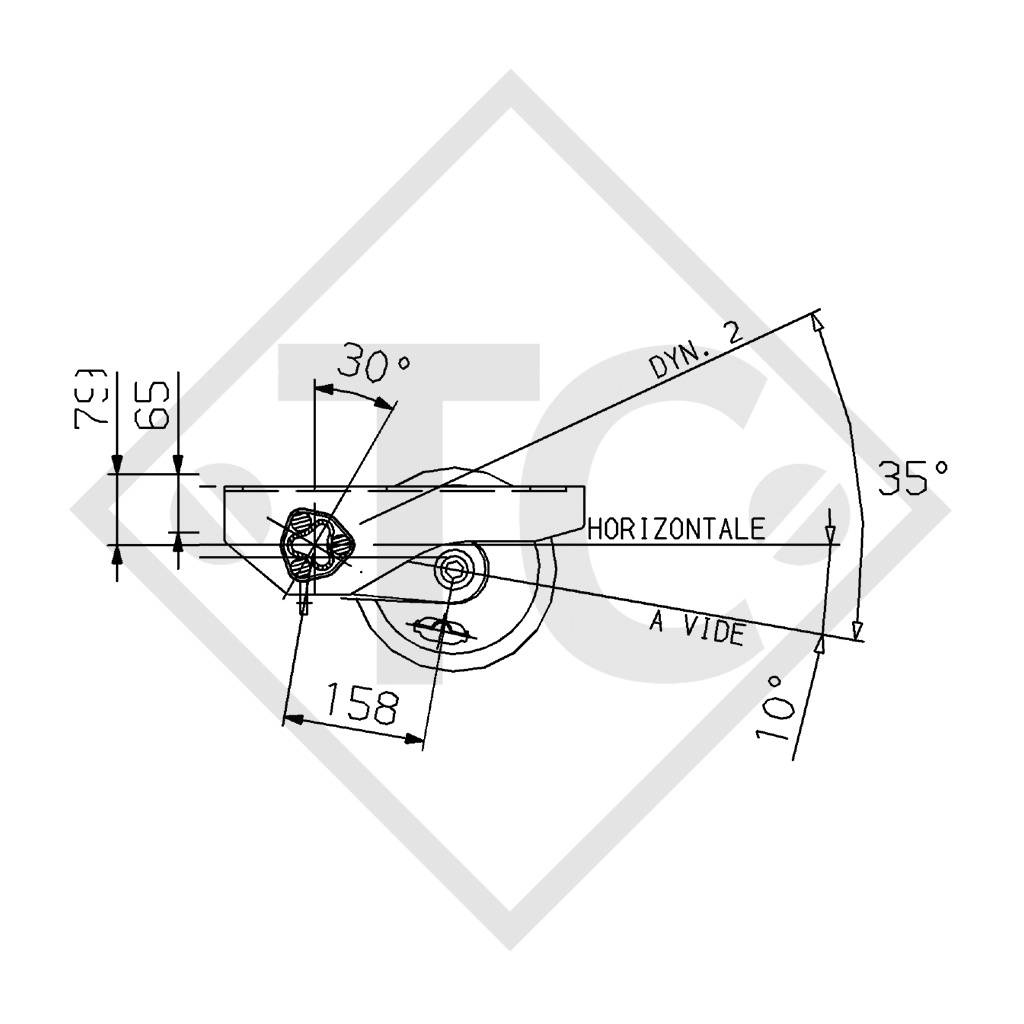

Swing arm position 10°
Axle profile 80mm
Original operating instructions
Replacement part identification number (ETI) 811527
TECHNOLOGY
Model: EURO COMPACT
Axle type: B 850-10
Axle load: Single axle 1000kg
Axle load: Tandem axle 2000kg
Wheel brake: 2051 Aa
Suspension: Hexagonal rubber suspension
Swing arm length: 158mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 84mm
SCOPE OF DELIVERY
Axle with brake
Ball-head wheel bolts M14x1.5
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
