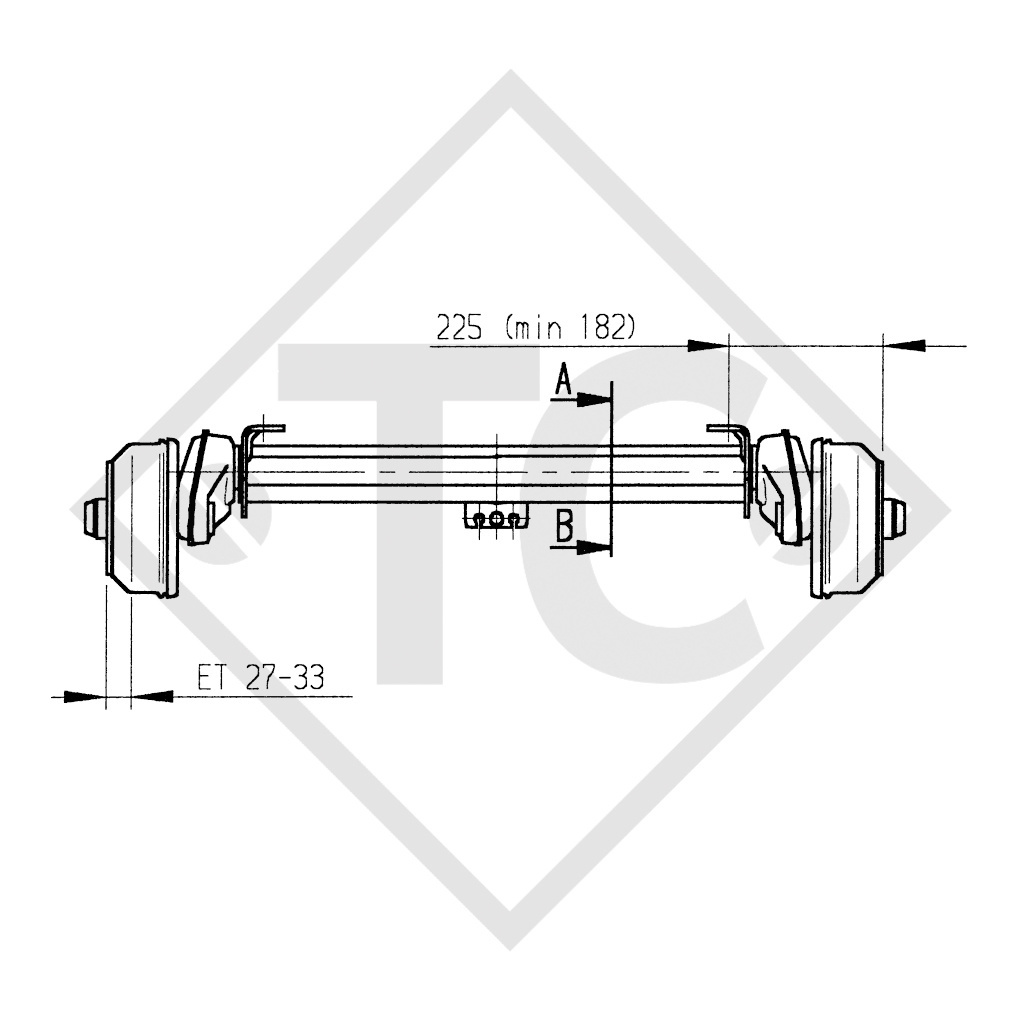

BC: dimension A 750mm, OHF: dimension C 1200mm, wheel connection 100x4, wheel brake type 2051, offset (ET) 27-33mm, swing arm position 25°, axle profile 80mm, taper-head wheel bolts M12x1.5. Read more...
TECHNOLOGY

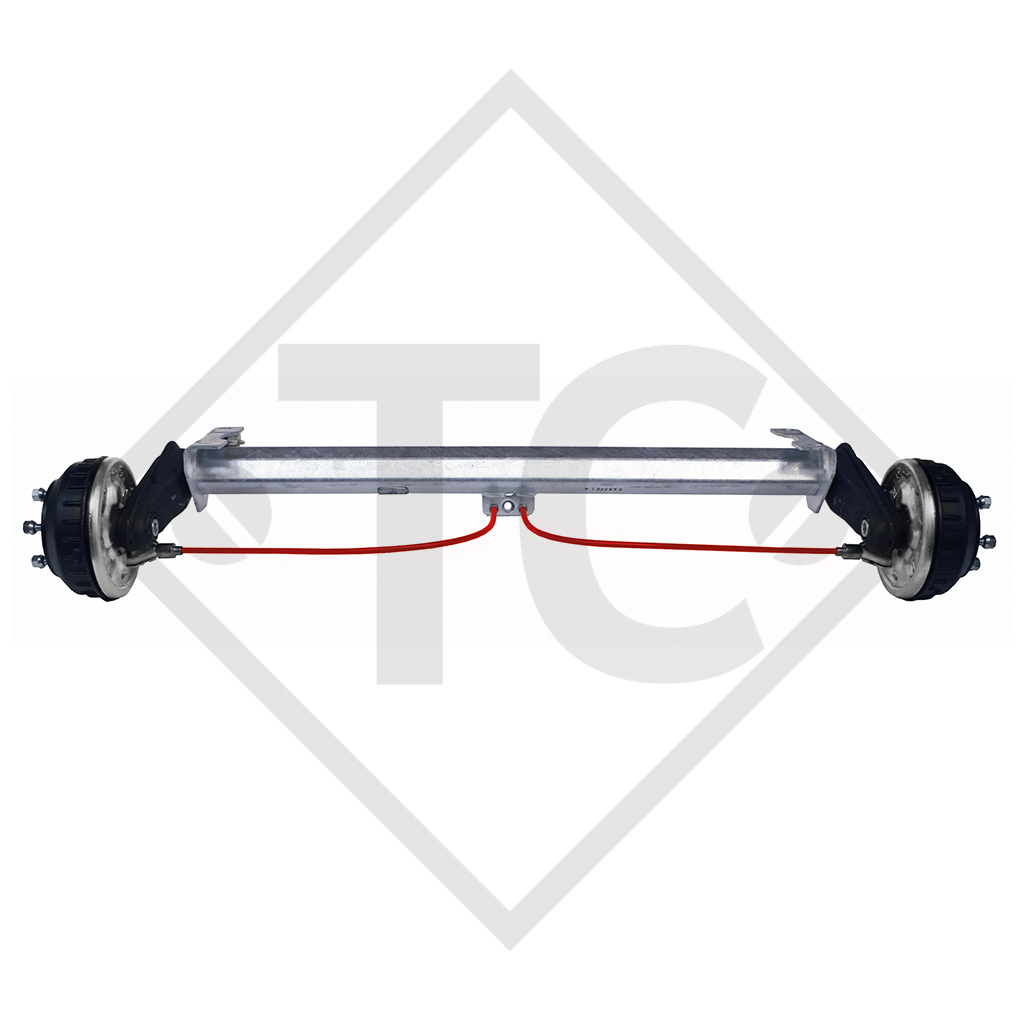

Model: BASIC
Axle type: B 1000-3
Axle load: Single axle 1000kg
Axle load: Tandem axle 2000kg
Wheel brake: 2051 or 2051 AAA (automatic adjustment of the brake pads)
Suspension: Hexagonal rubber suspension

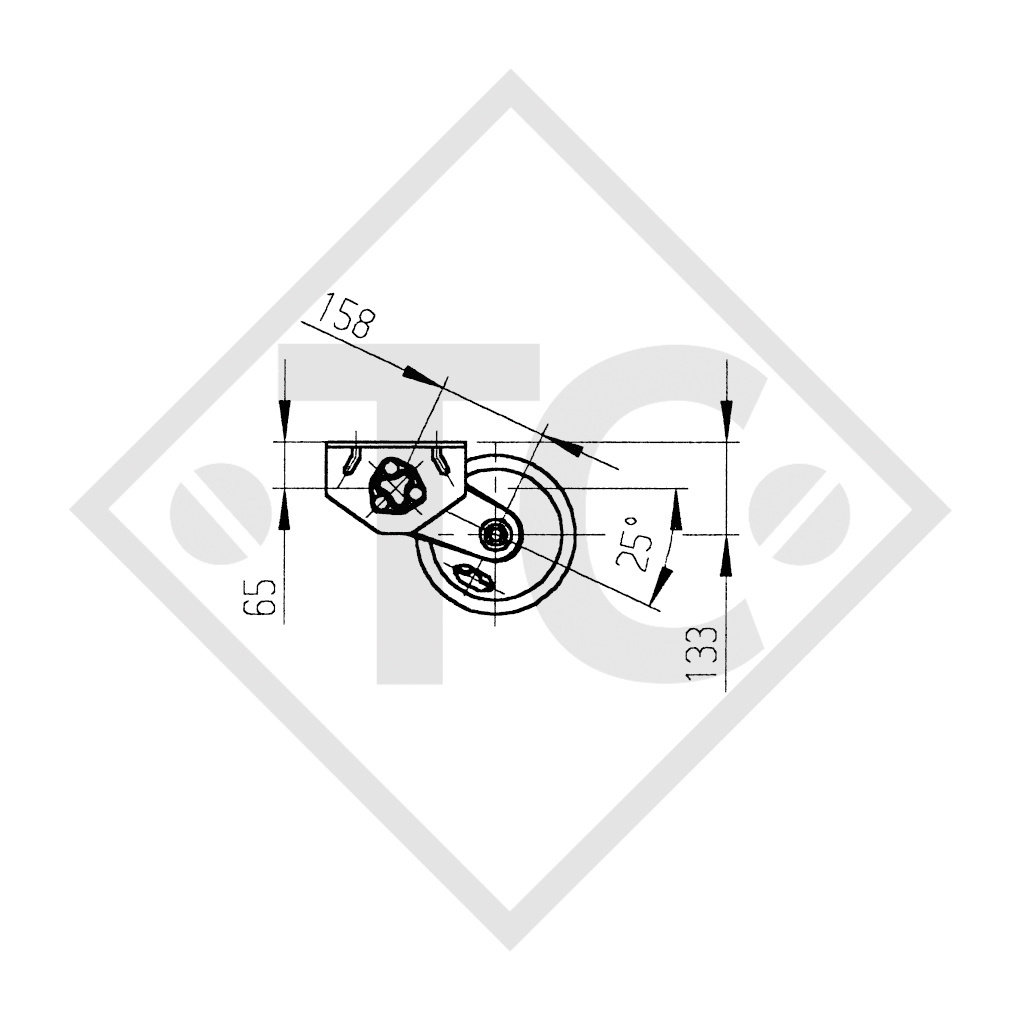

Swing arm: 158mm
Wheel connection: 100x4 or 112x5
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Single axle adapter bracket welded onto top hat profile (single axle and tandem adapter bracket)
Compensation profile for single axle supplied
Bowden cables loose
Wheel bolts loose
Separate order for tandem
Bolt-on tandem adapter bracket 249236
Tandem compensation 238576
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
Original operating instructions
Replacement part identification number WITHOUT AAA (automatic adjustment of the brake pads)
Replacement part identification number (ETI) OLD 811157
Replacement part identification number (ETI) NEW 811941
Replacement part identification number WITH AAA (automatic adjustment of the brake pads)
Replacement part identification number (ETI) OLD 811709
Replacement part identification number (ETI) NEW 811943
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
Axles according to order overview optionally available with AAA = AL-KO Automatic Adjustment (automatic adjustment of the brake pads)

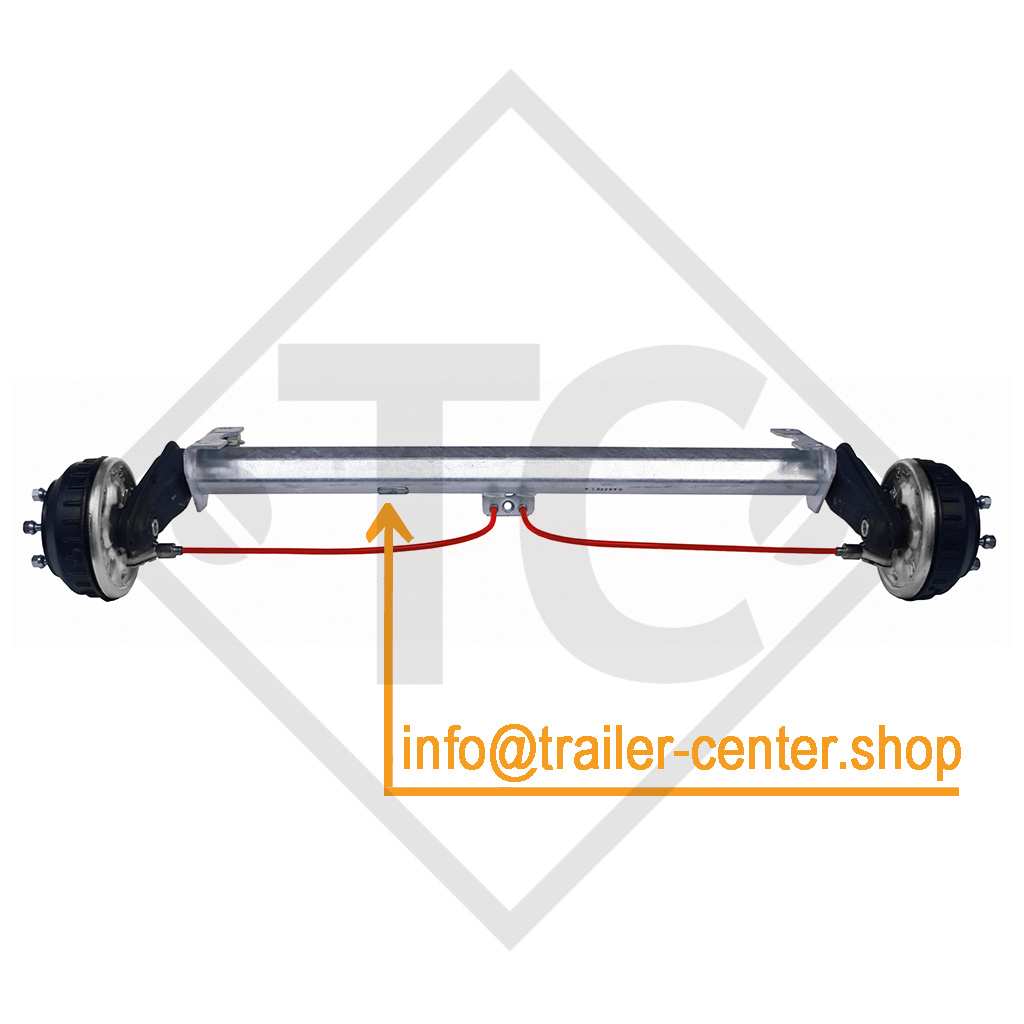

Simply send us a photo of your axle type plate, together with your address and telephone number to
