AL-KO Braked axle 1000kg COMPACT axle type B 850-10, Trigano

Part no. 1271100  (1905968, 1372156)

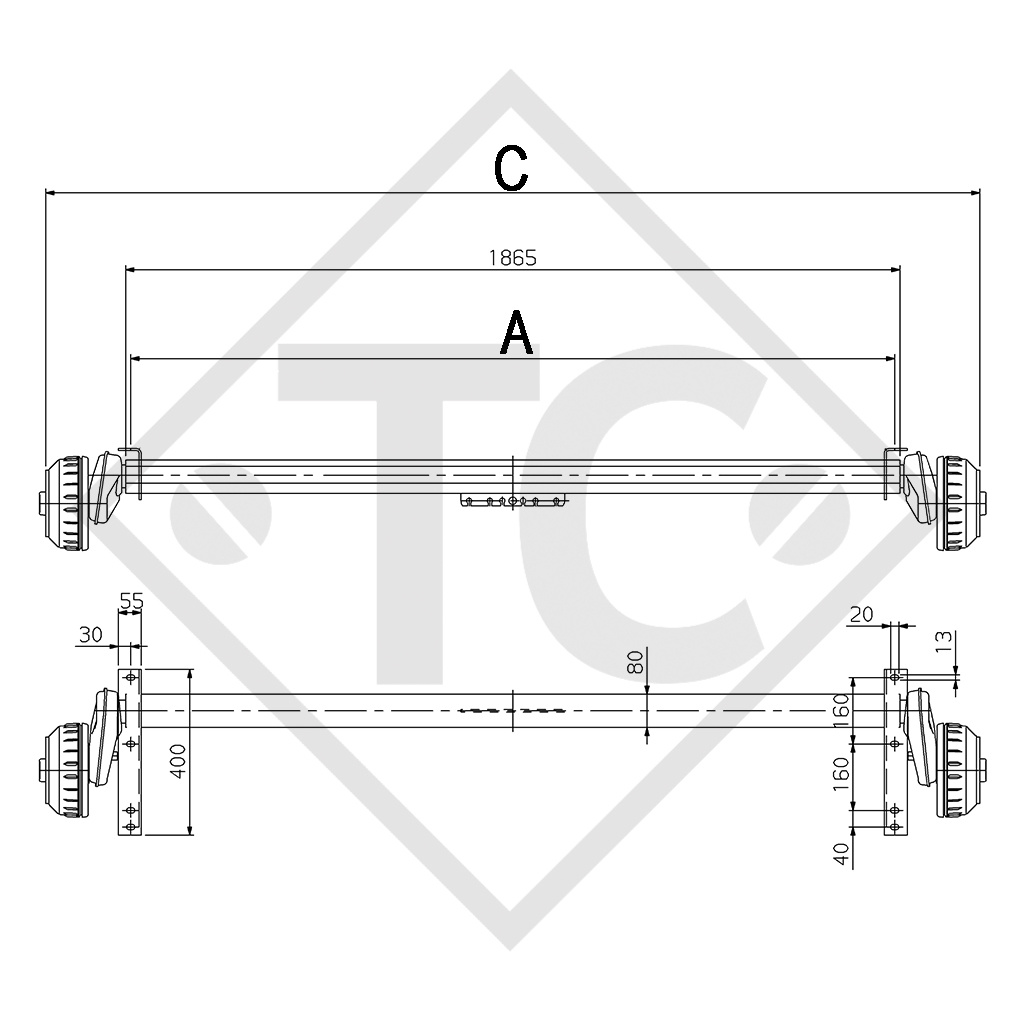

BC: dimension A 1840mm
OHF: dimension C 2250mm
Wheel connection 130x4
Offset (ET) 20mm

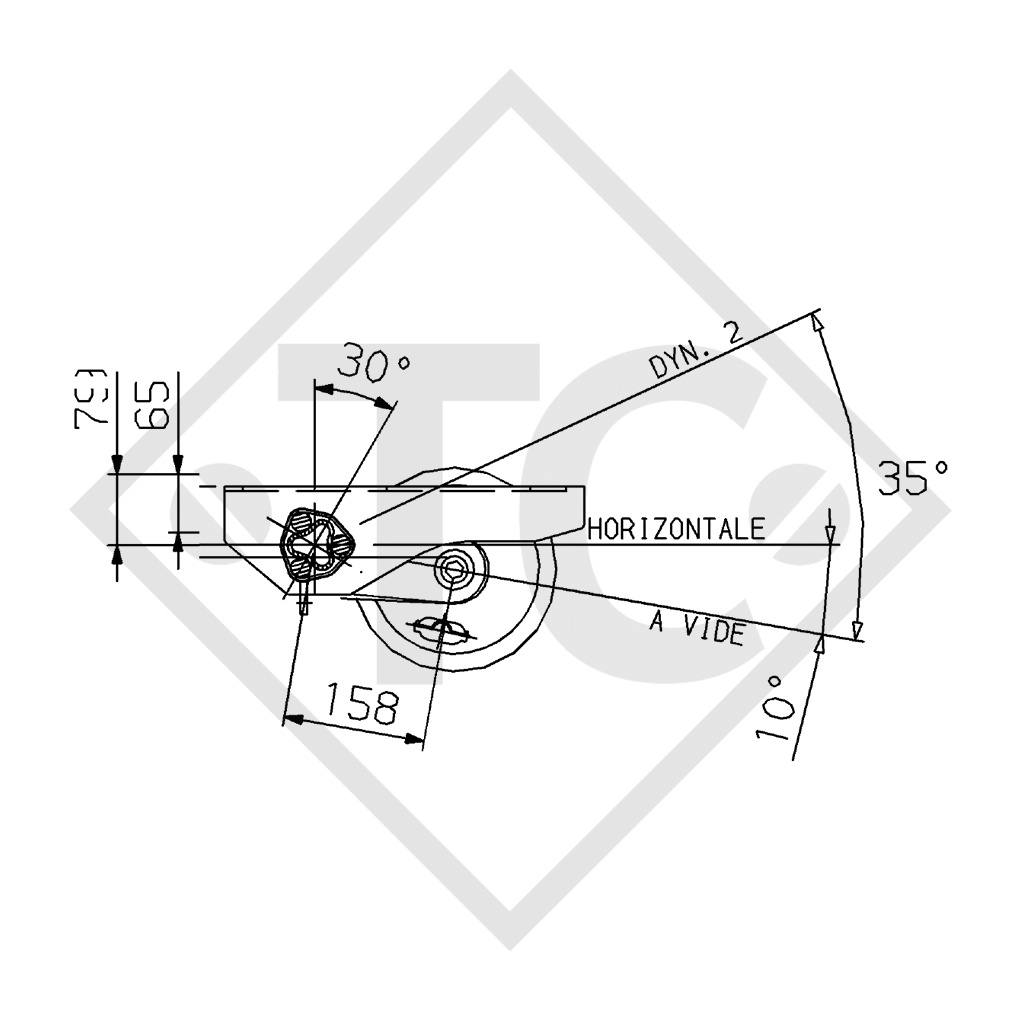

Swing arm position 10°
Axle profile 80mm

Original operating instructions
Replacement part identification number (ETI) OLD 811157
Replacement part identification number (ETI) NEW 811941

TECHNOLOGY
Model: EURO COMPACT
Axle type: B 850-10
Axle load: Single axle 1000kg
Axle load: Tandem axle 2000kg
Wheel brake: 2051 Aa
Suspension: Hexagonal rubber suspension
Swing arm length: 158mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 84mm

SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M14x1.5 loose
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber
