BC: dimension A 920mm, OHF: dimension C 1320mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 27-33mm, swing arm position 35°, axle profile 80mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 1271516

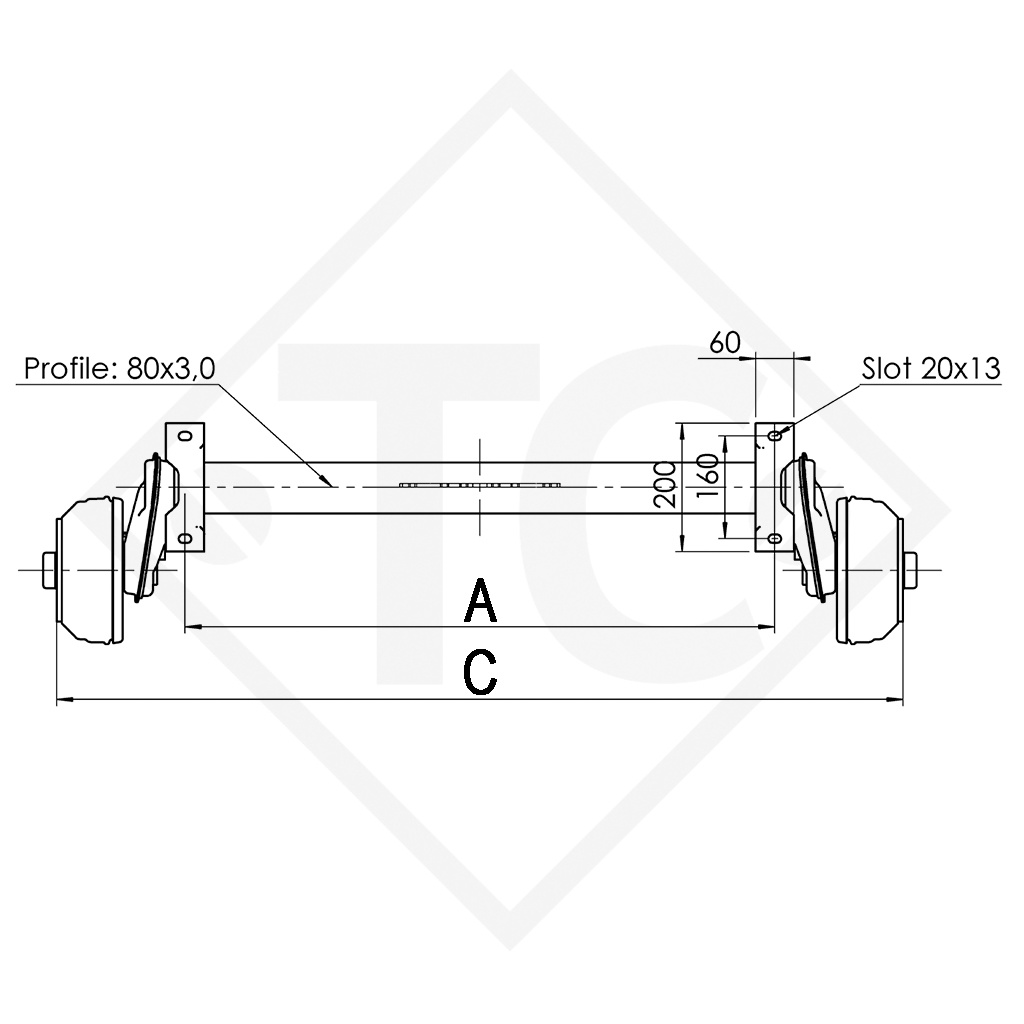

BC: dimension A 920mm
OHF: dimension C 1320mm
Wheel connection 112x5
Offset (ET) 27-33mm

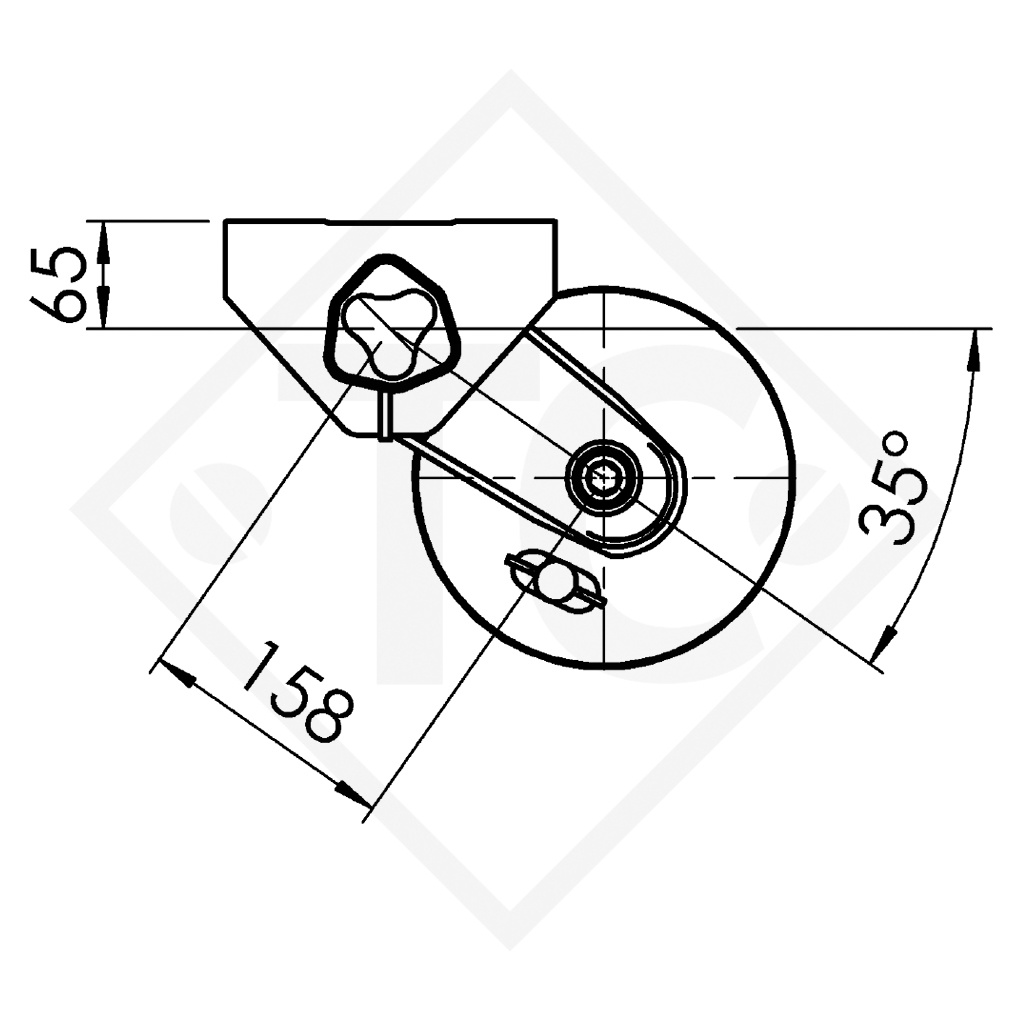

Swing arm position 35°
Axle profile 80mm
Original operating instructions
Replacement part identification number (ETI) OLD 811157
Replacement part identification number (ETI) NEW 811941
TECHNOLOGY
Model: COMPACT
Axle type: B 850-10
Axle load: Single axle 1000kg
Axle load: Tandem axle 2000kg
Wheel brake: 2051 vers. A
Suspension: Hexagonal rubber suspension
Swing arm length: 158mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
Tandem axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
