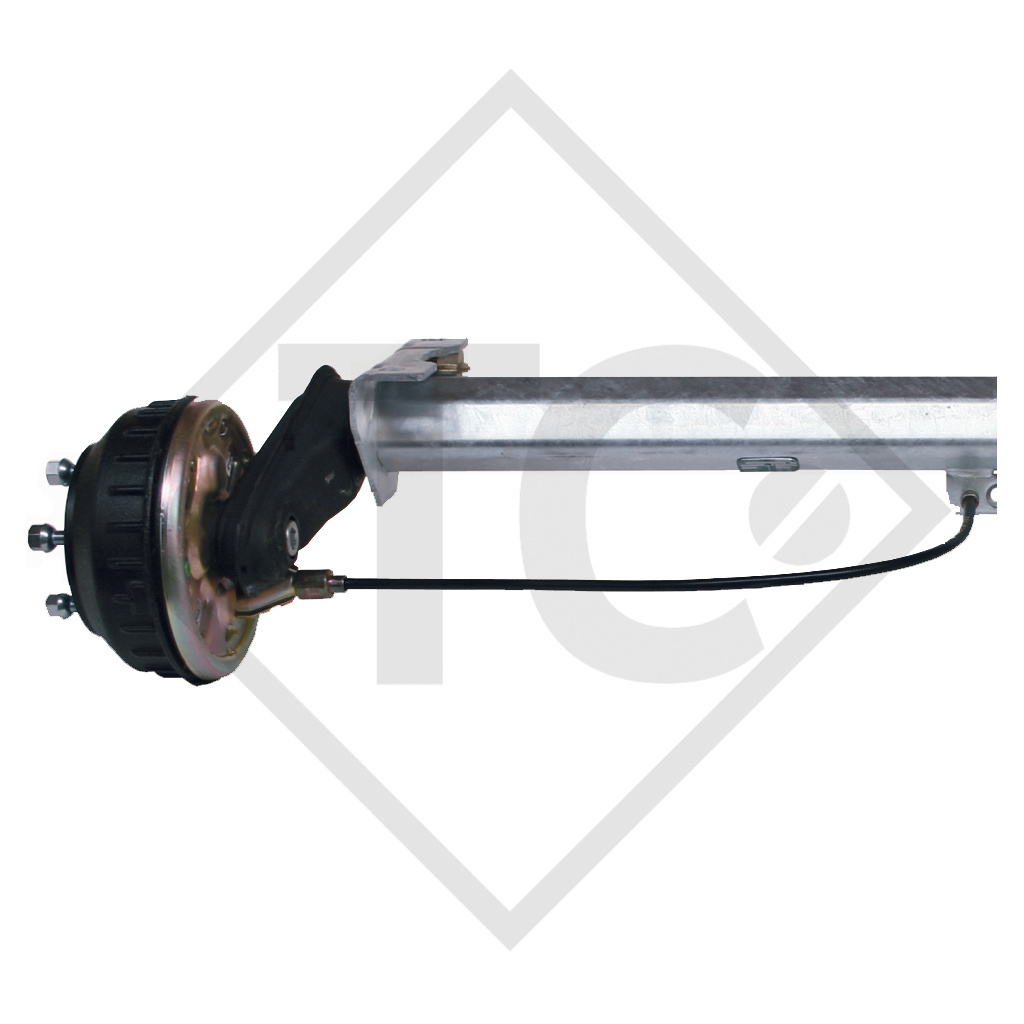

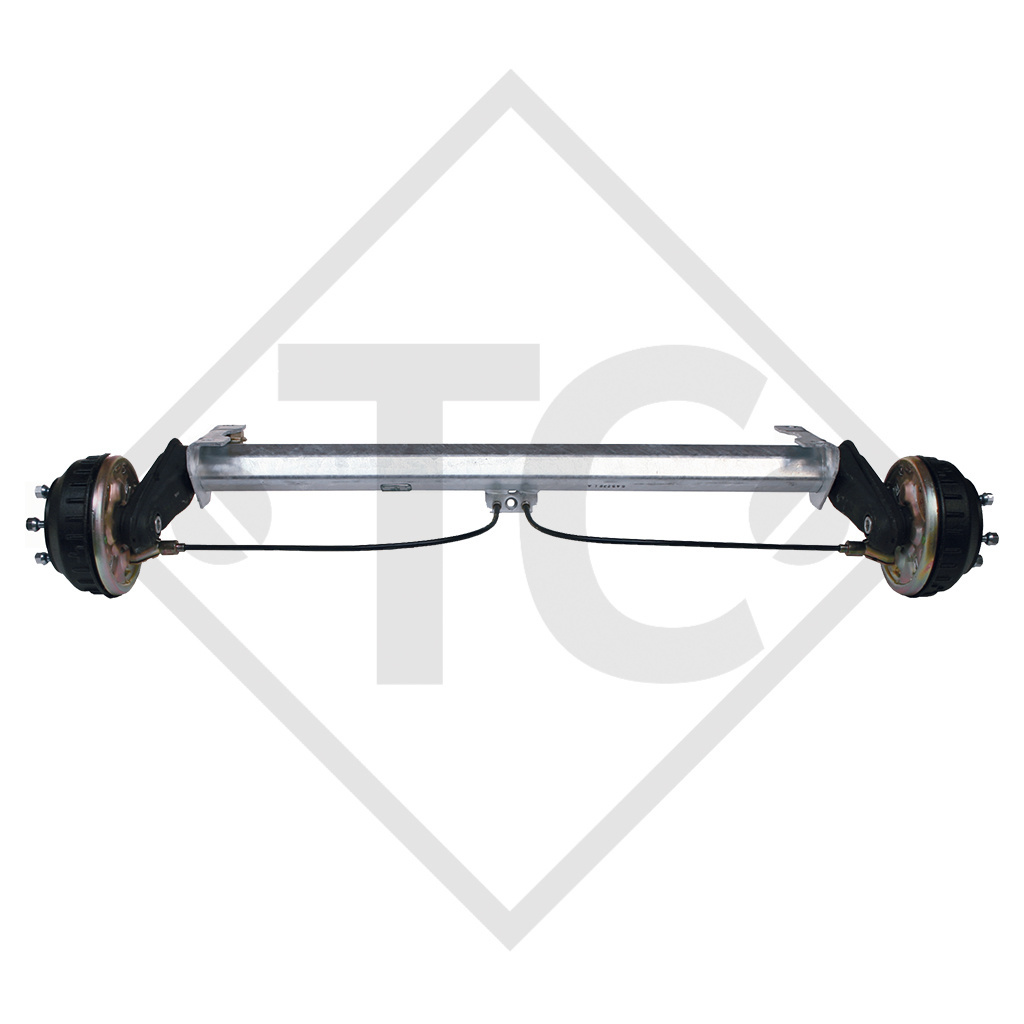

Home / Braked axle 1000kg BASIC axle type B 850-10 with AAA (automatic adjustment of the brake pads)
BC: dimension A 1070mm, OHF: dimension C 1520mm, wheel connection 100x4, wheel brake type 2051 with AAA, offset (ET) 27-33mm, swing arm position 25°, axle profile 80mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 20058808

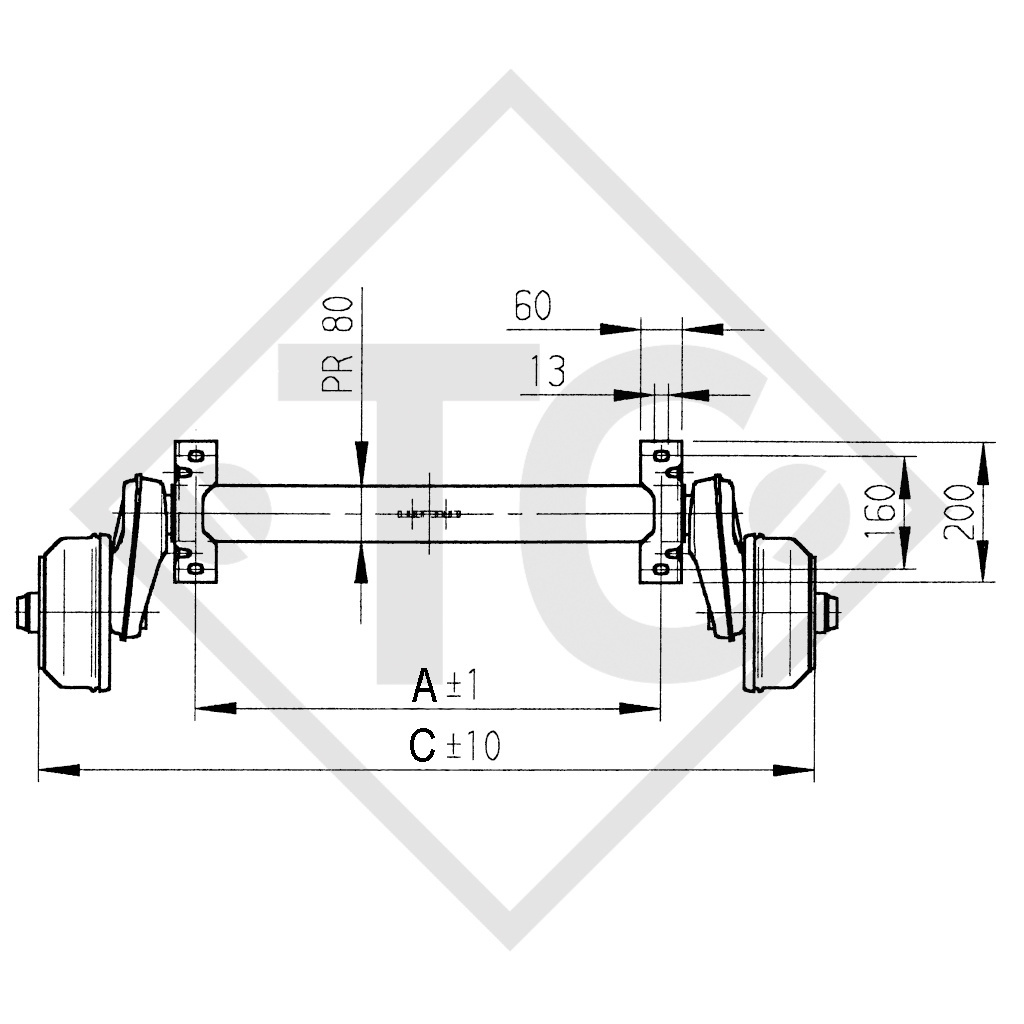

BC: dimension A 1070mm
OHF: dimension C 1520mm
Wheel connection 100x4

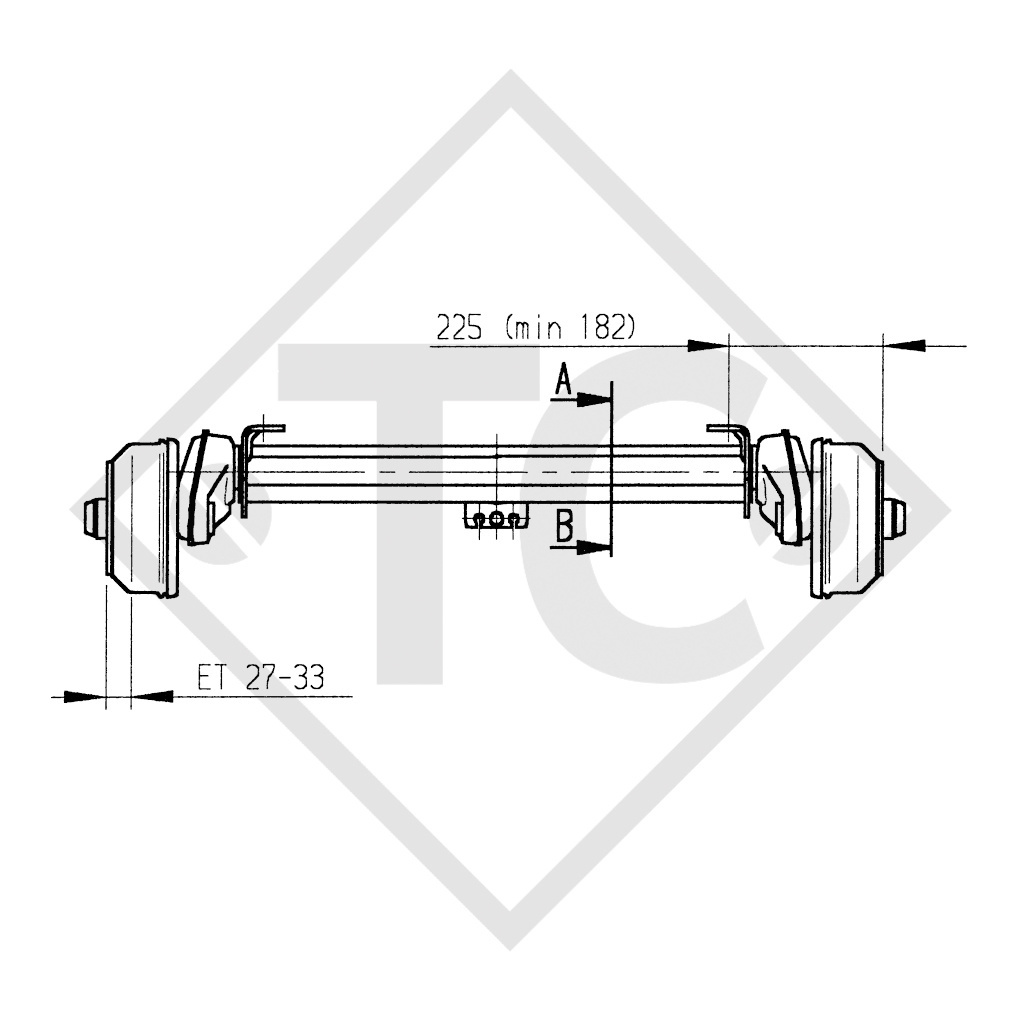

Offset (ET) 27-33mm

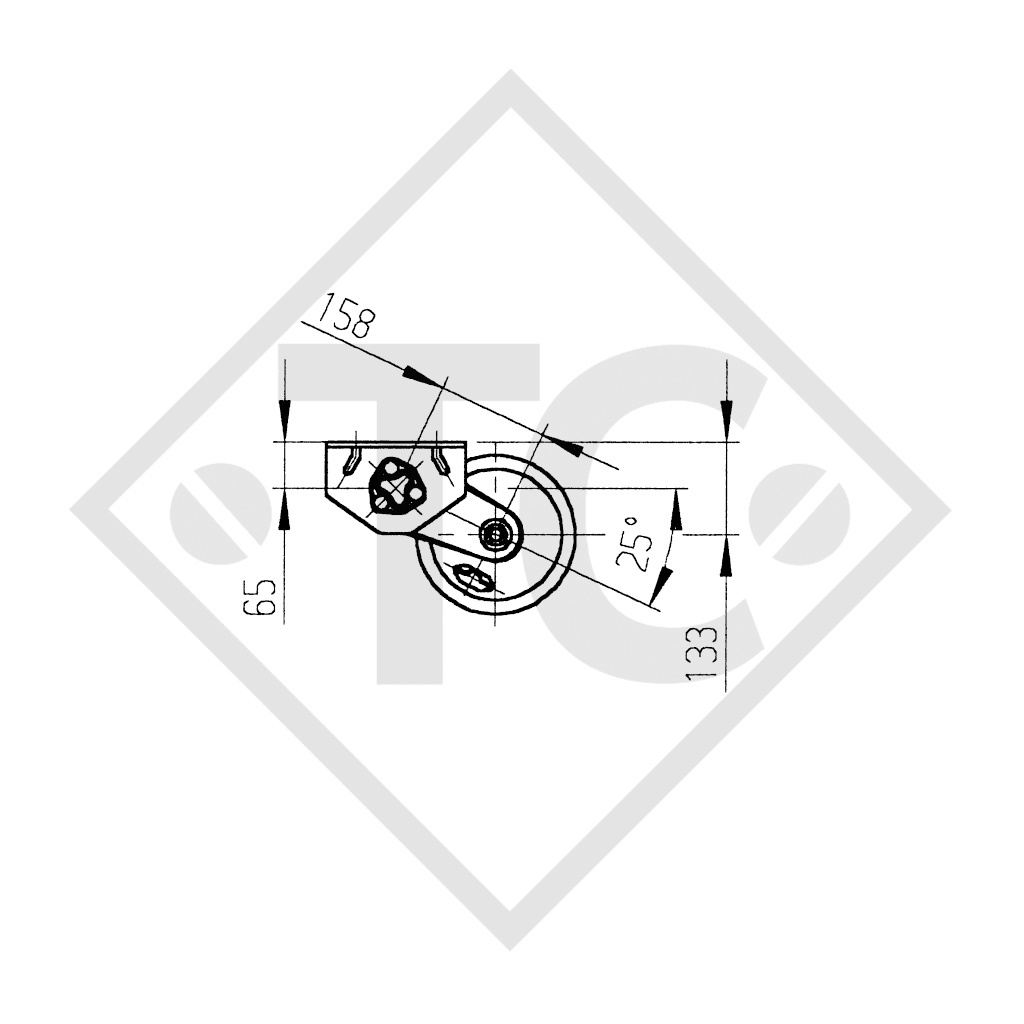

Swing arm position 25°
Axle profile 80mm
Original operating instructions
Replacement part identification number (ETI) OLD 811709
Replacement part identification number (ETI) NEW 811943
TECHNOLOGY
Model: BASIC
Axle type: B 850-10
Axle load: Single axle 1000kg
Axle load: Tandem axle 2000kg
Wheel brake: 2051 with AAA (automatic adjustment of the brake pads)
Suspension: Hexagonal rubber suspension
Swing arm length: 158mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
