Home / Brake shoe kit for wheel brake type S 2504-7 RASK, brake size 250x40mm, for one axle
consisting of brake shoes, tension springs, clamping pin, clamping spring, for one axle (2 wheel brakes left + right). Read more...
Part no. OLD 09.801.03.80.0
Part no. NEW 4018193
| Wheel brake type (1) |
S 2504-7 RASK und S 2504-7 SK |
| Brake shoe diameter |
250mm |
| Brake shoe width | 40mm |
| Casting number brake pads |

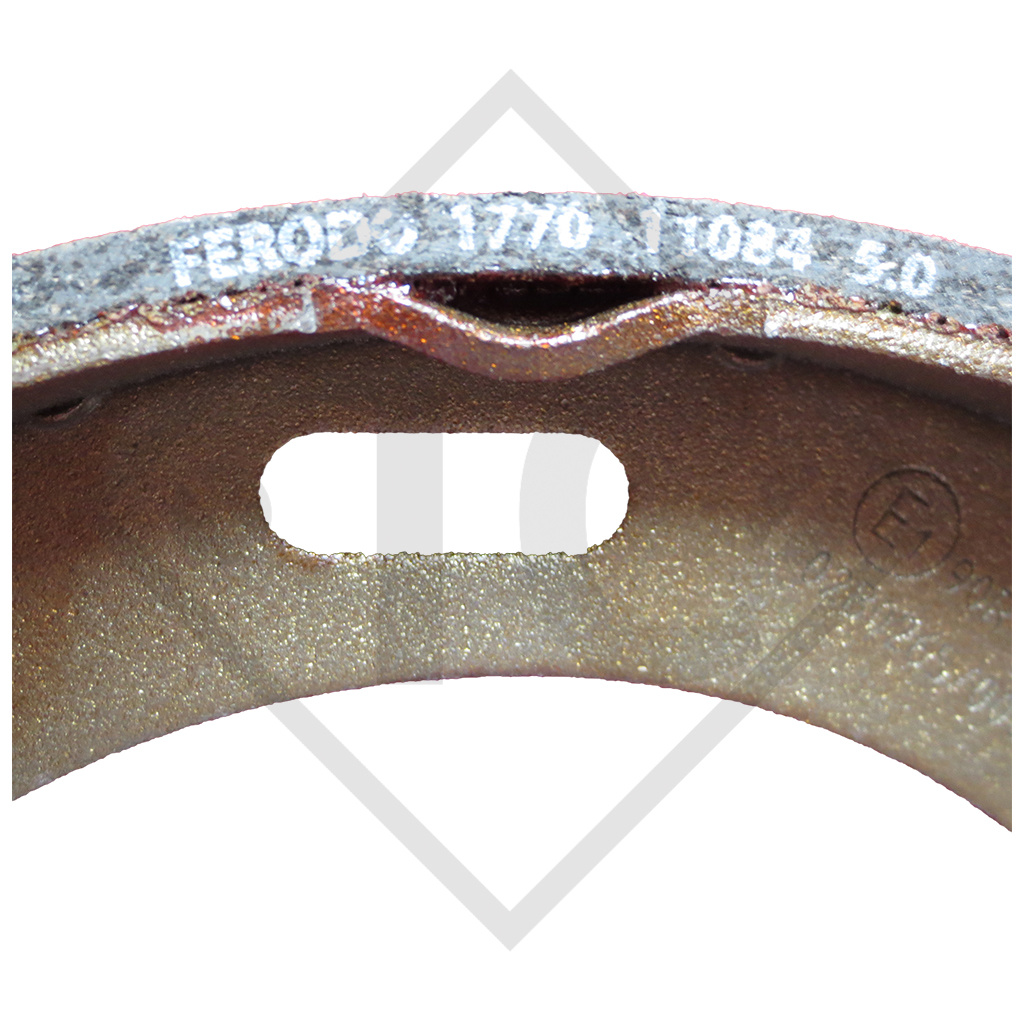

FERODO 1770 53052 4.0 |

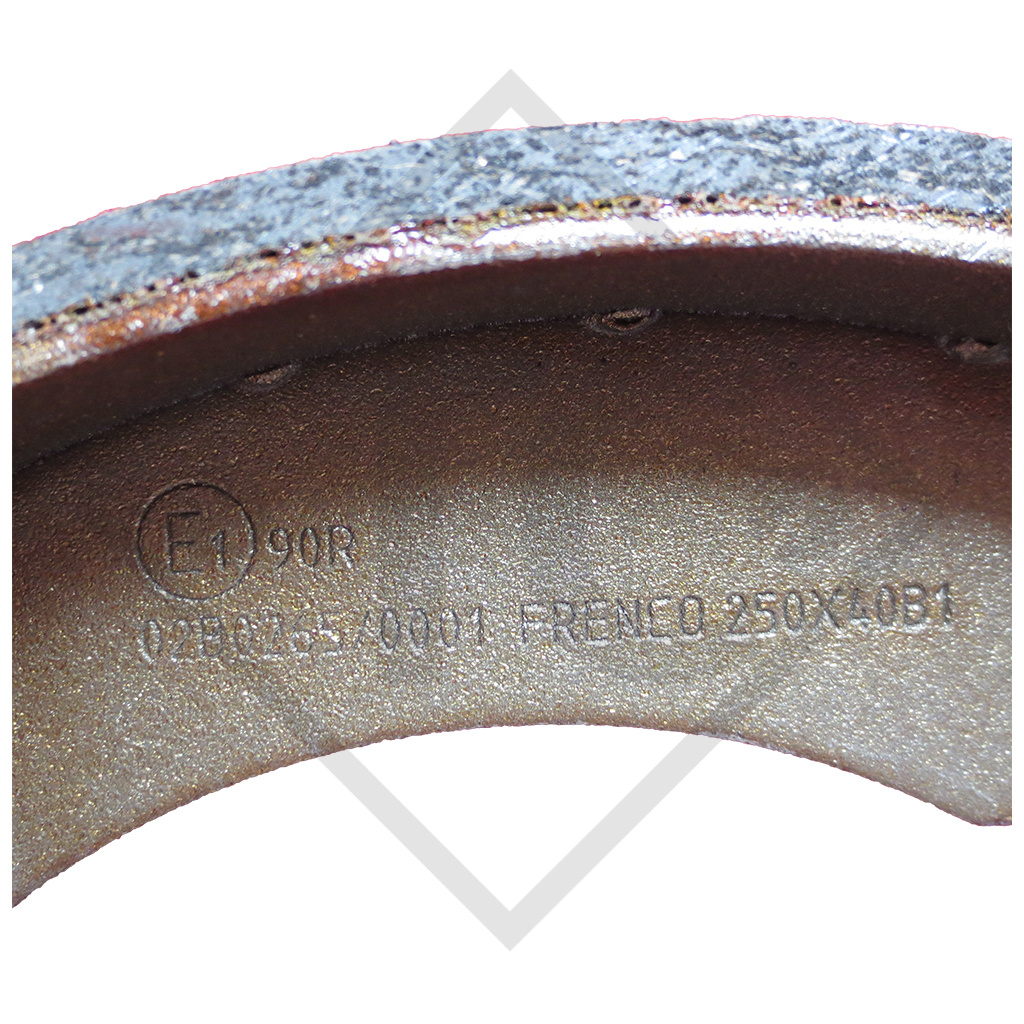

| Casting number brake shoes | 02B0265/0001 FRENCO 250X40B1 |

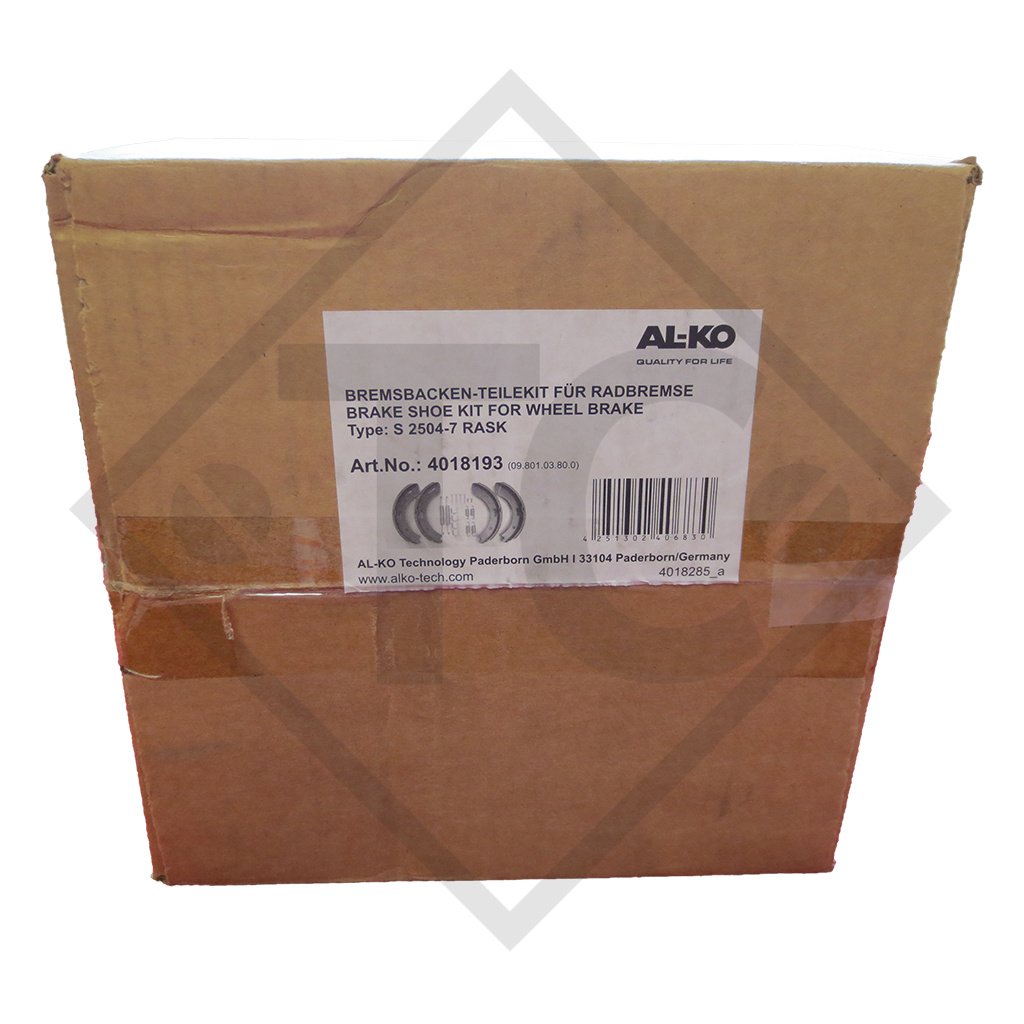

Scope of delivery for one axle (2 wheelbrakes) - see illustration

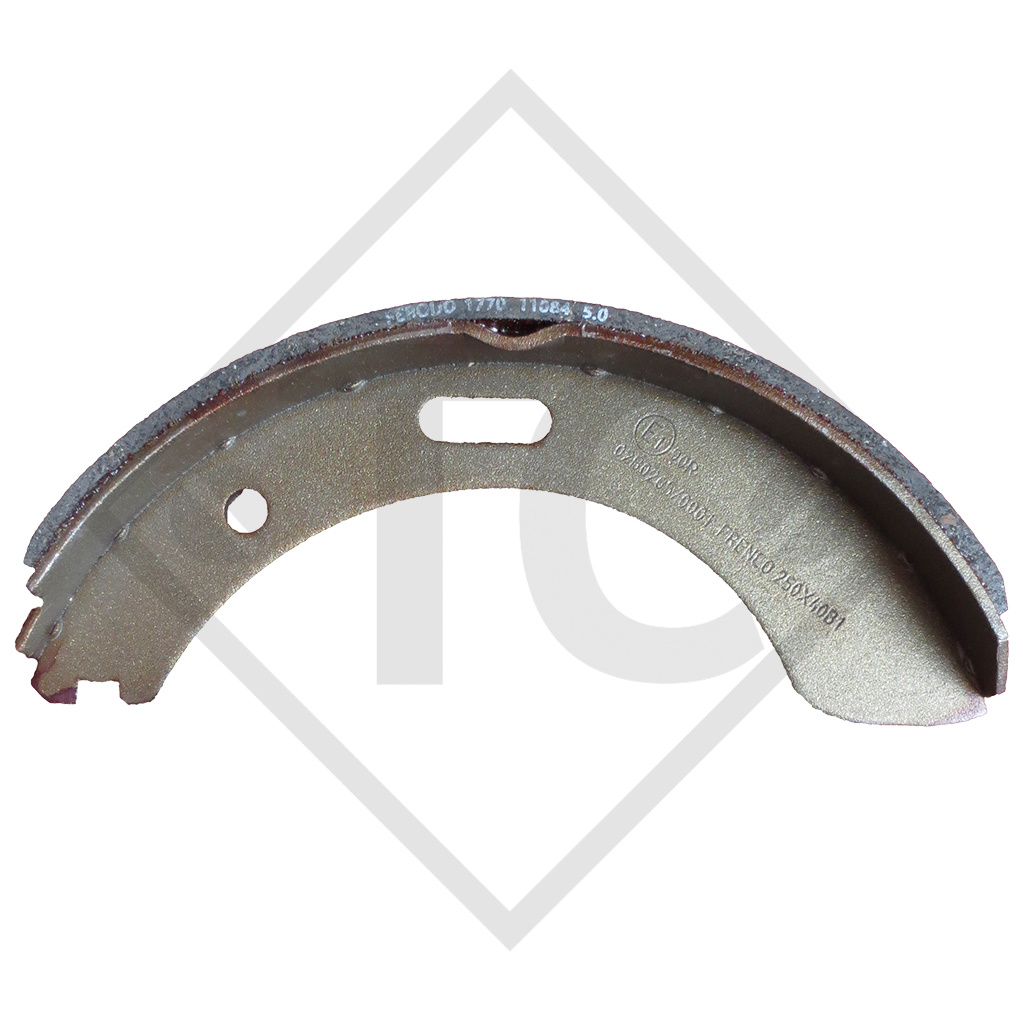

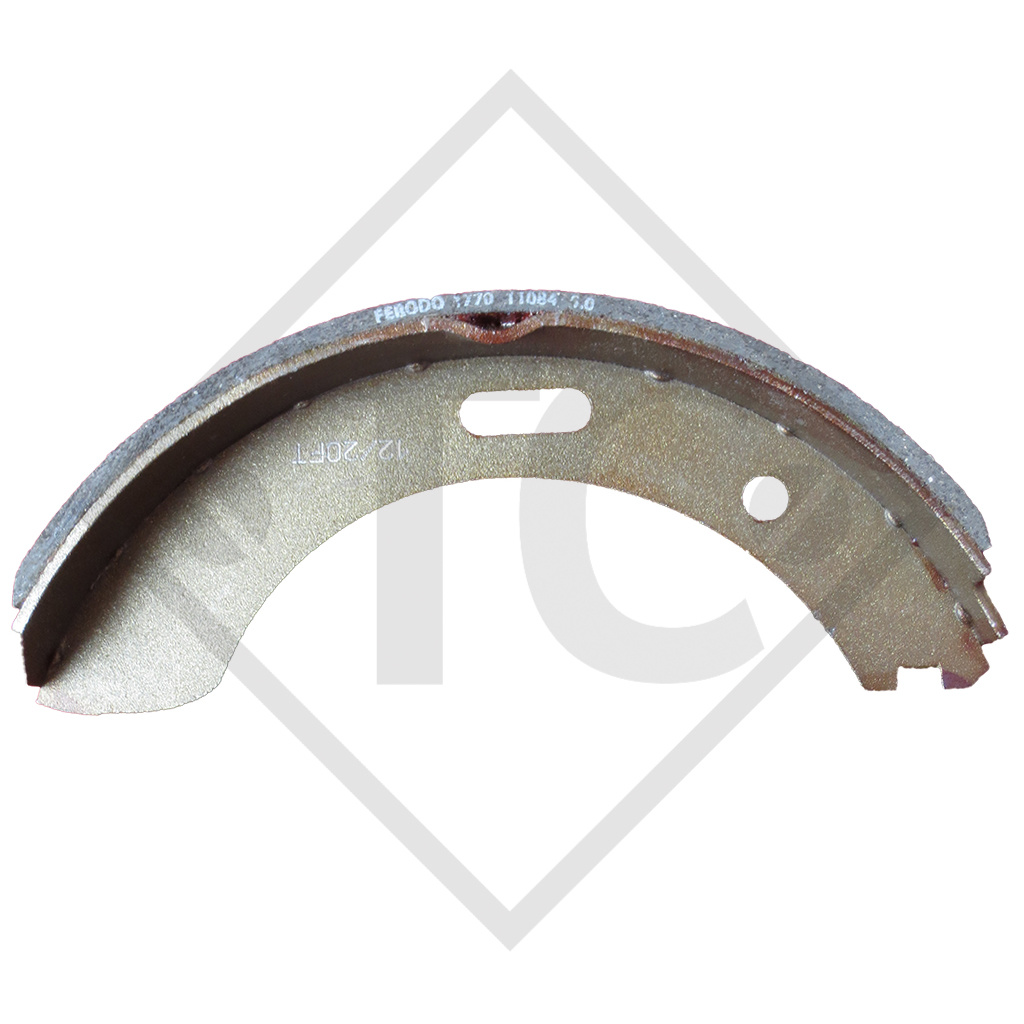

4x Brake shoes (2x secondary shoe, 2x primary jaw)
2x Tension springs (big)
4x Tension springs (small)
4x Clamping spring
4x Clamping pin
2x Bolt (dispensed with from 06/98)
For axle type (2)
CB 1805
DB 1805
DB 2/1805

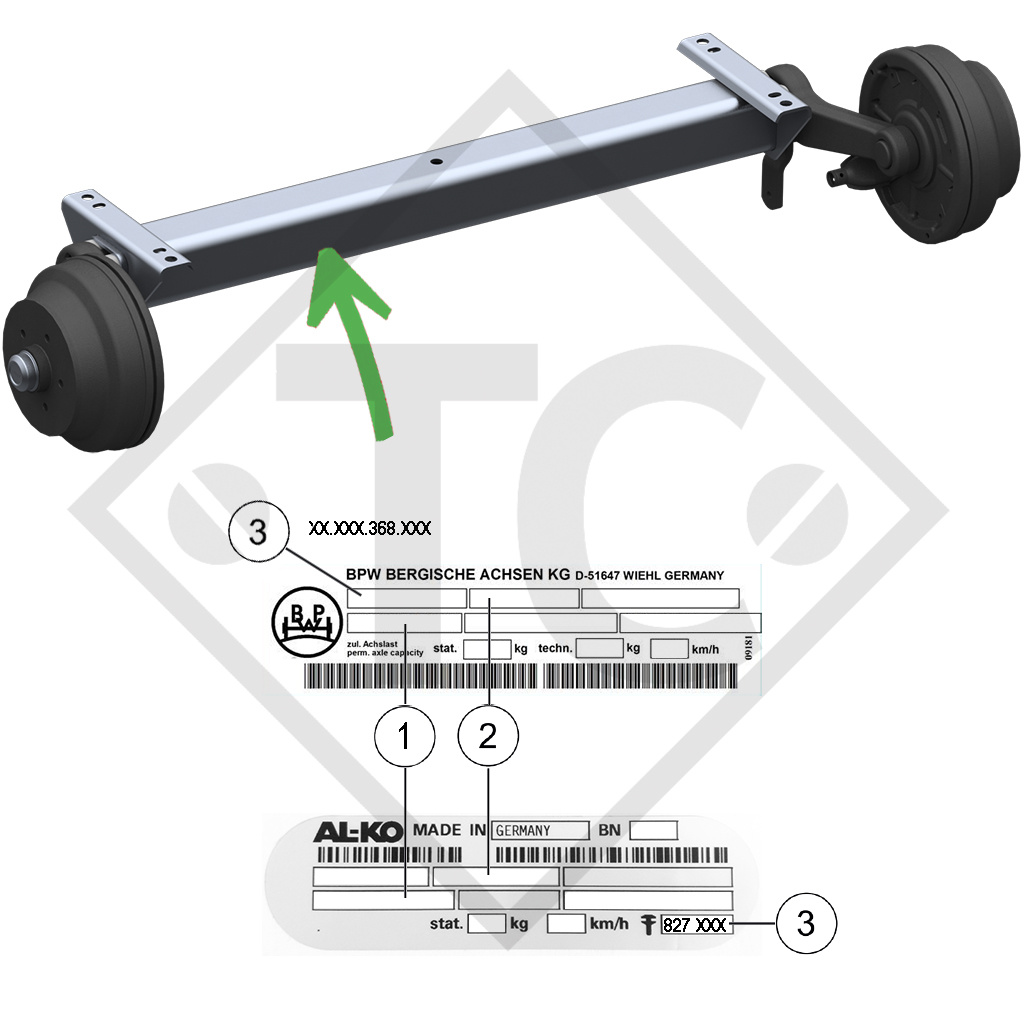

Suitable for replacement part identification number (3)
| XX.XXX.368.XXX (OLD) | 827080 (NEW) | 827038 (NEW) |
IMPORTANT INFORMATION: The manufacturer BPW has been sold (AL-KO).
Service manual, installation / brake shoe replacement
Installation instructions
Caution! Brake shoes are a safety element of the braking system. Following the replacement of the brake shoes, the entire braking system must be fine-tuned. The assembly and replacement of brake shoes may only be carried out by an authorized specialist workshop.
BPW Change of brake shoes
Adjusting the BPW brake system. Following the replacement of the brake shoes, the entire braking system must be fine-tuned.
Use only parts and accessories from AL-KO/BPW. Original parts vs. replica.
