Home / Brake shoe kit for wheel brake type R 234-76, brake size 230x40mm, for one axle
consisting of brake shoes, tension springs, hold down spring, for one axle (2 wheel brakes left + right). Read more...
Part no. OLD 09.801.03.76.0
Part no. NEW 4018191

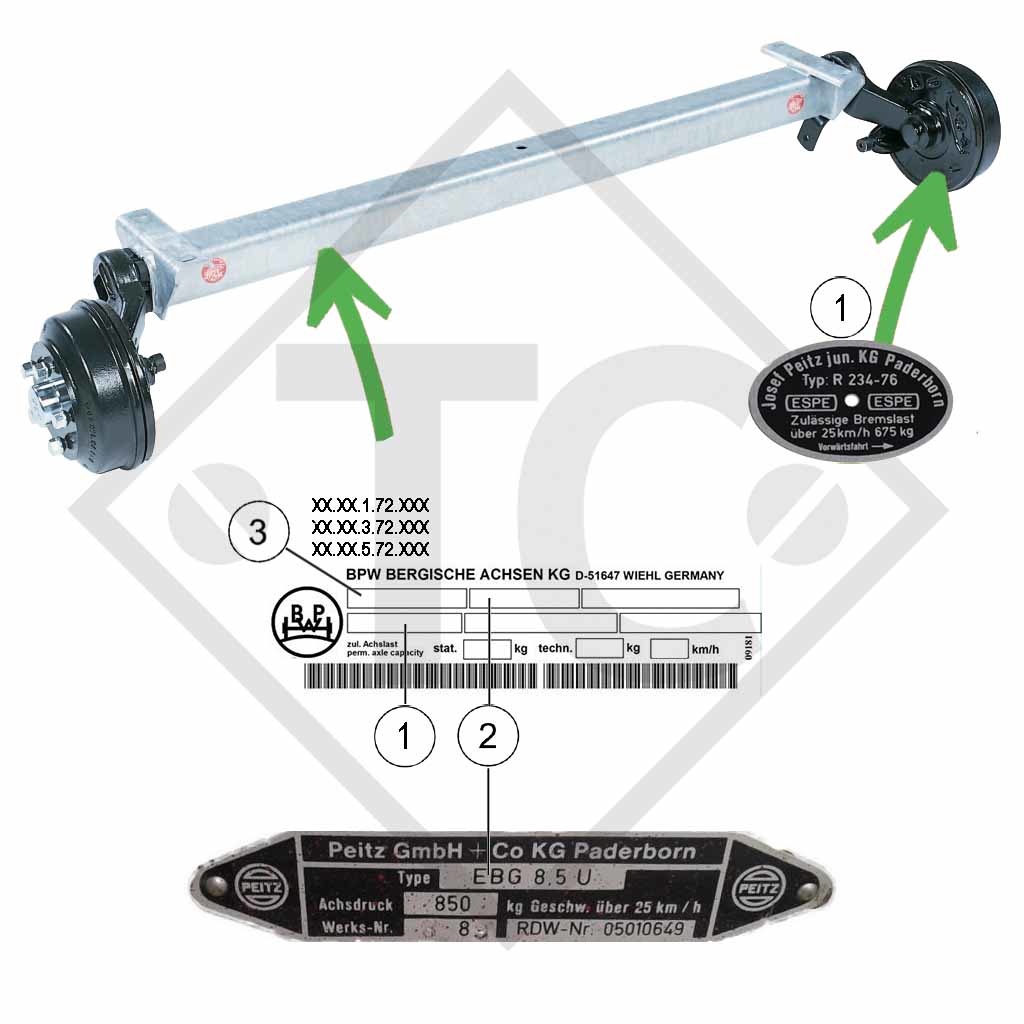

| Wheel brake type (1) |
PEITZ R 234-76 |
| Brake shoe diameter |
230mm |
| Brake shoe width | 40mm |

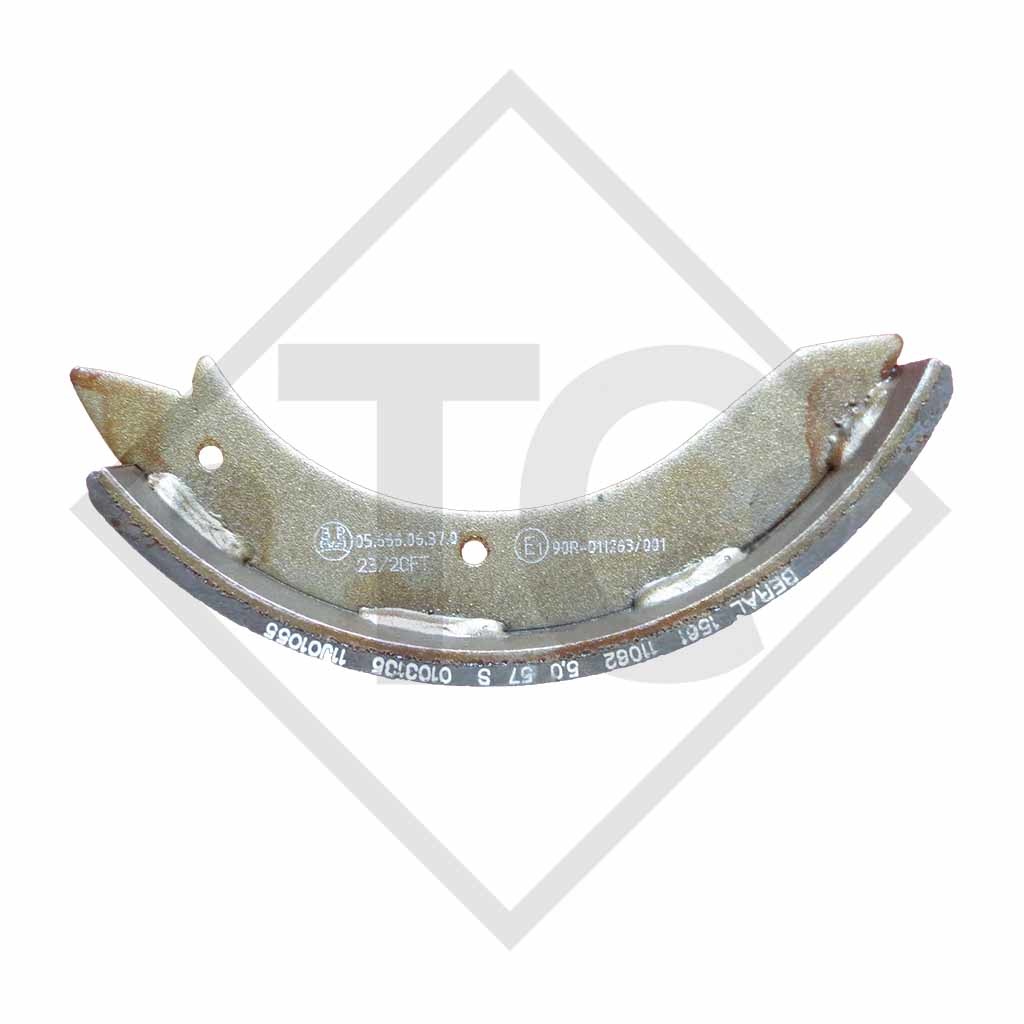

| Casting number brake pads |

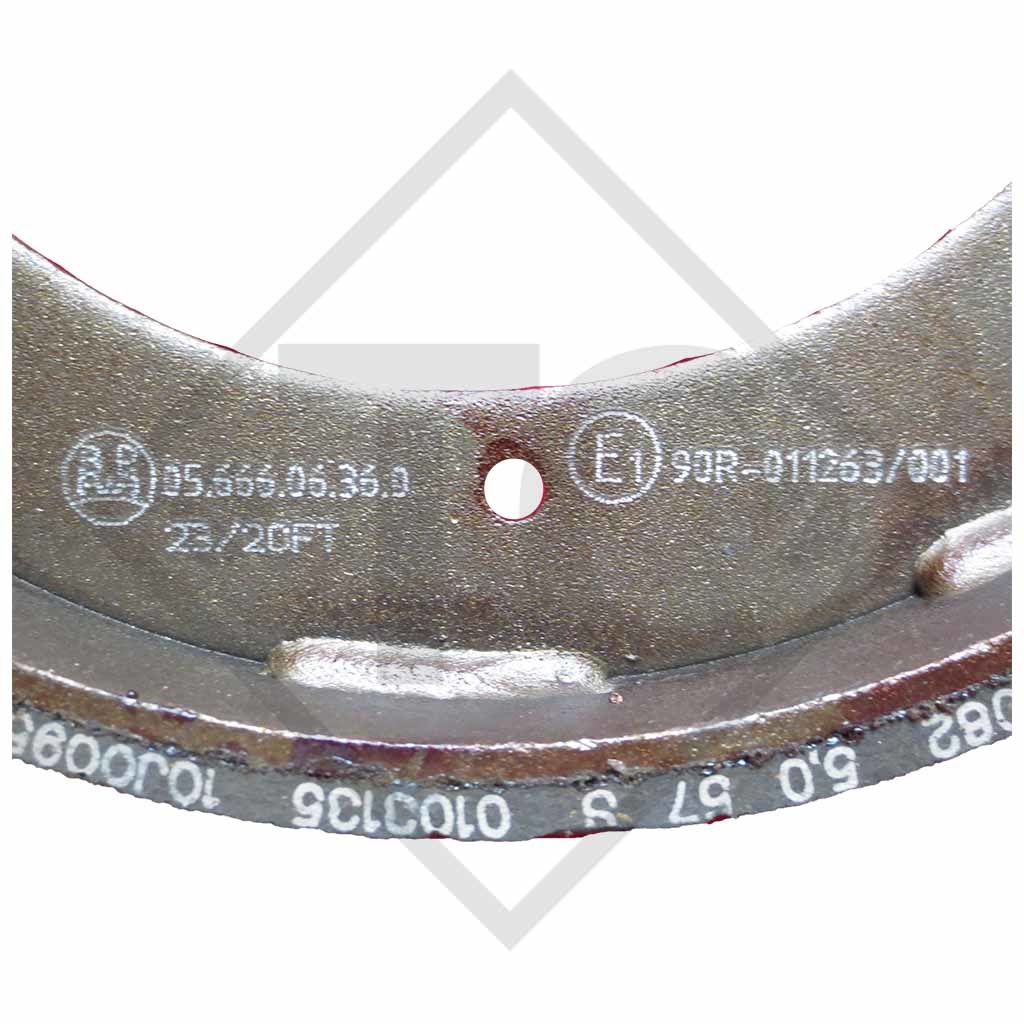

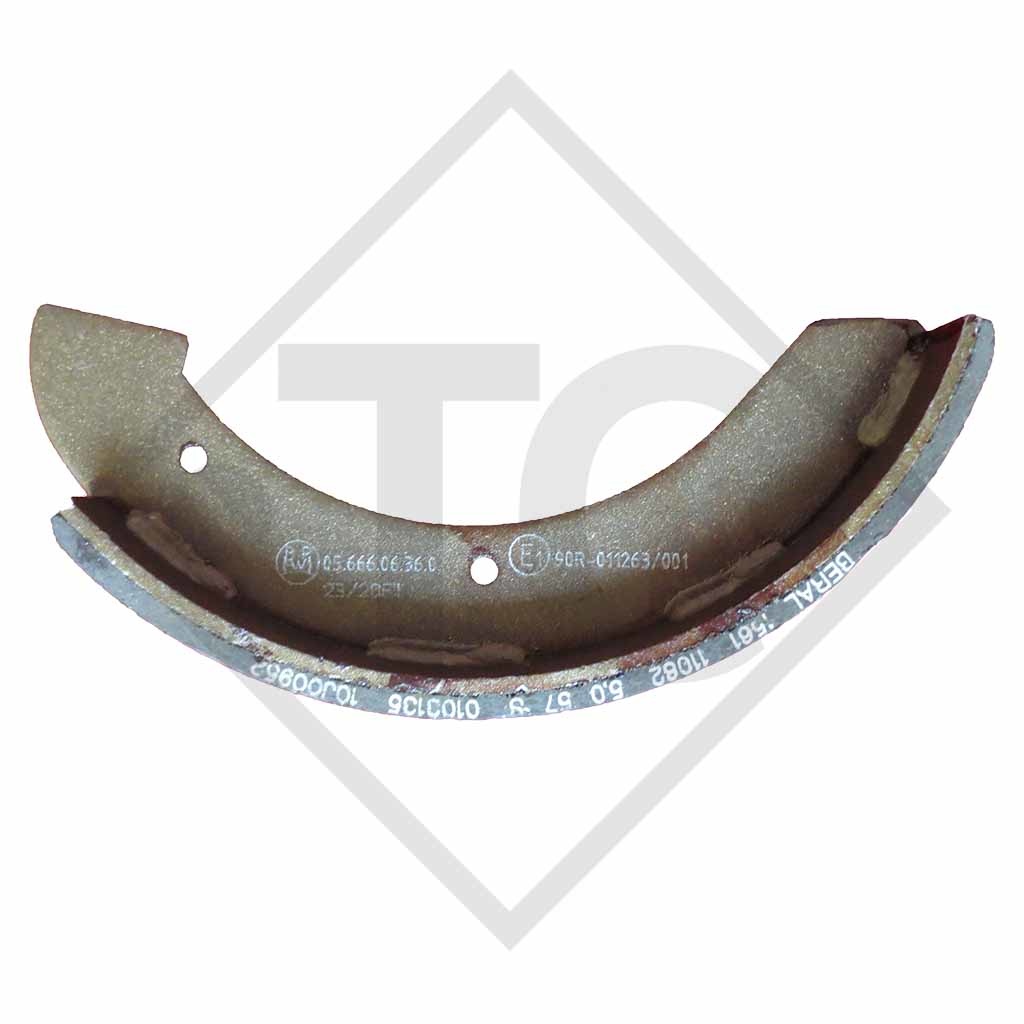

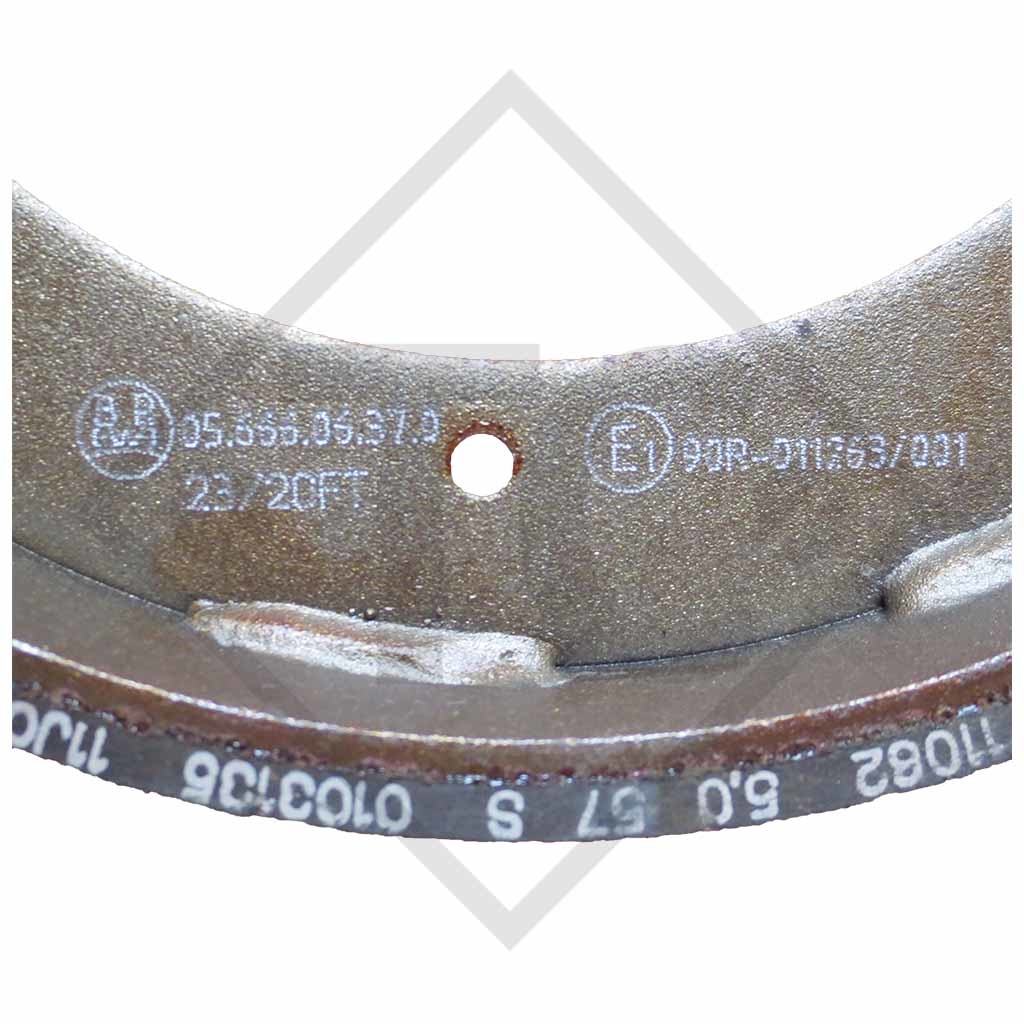

05.666.06.36.0 and 05.666.06.37.0 |

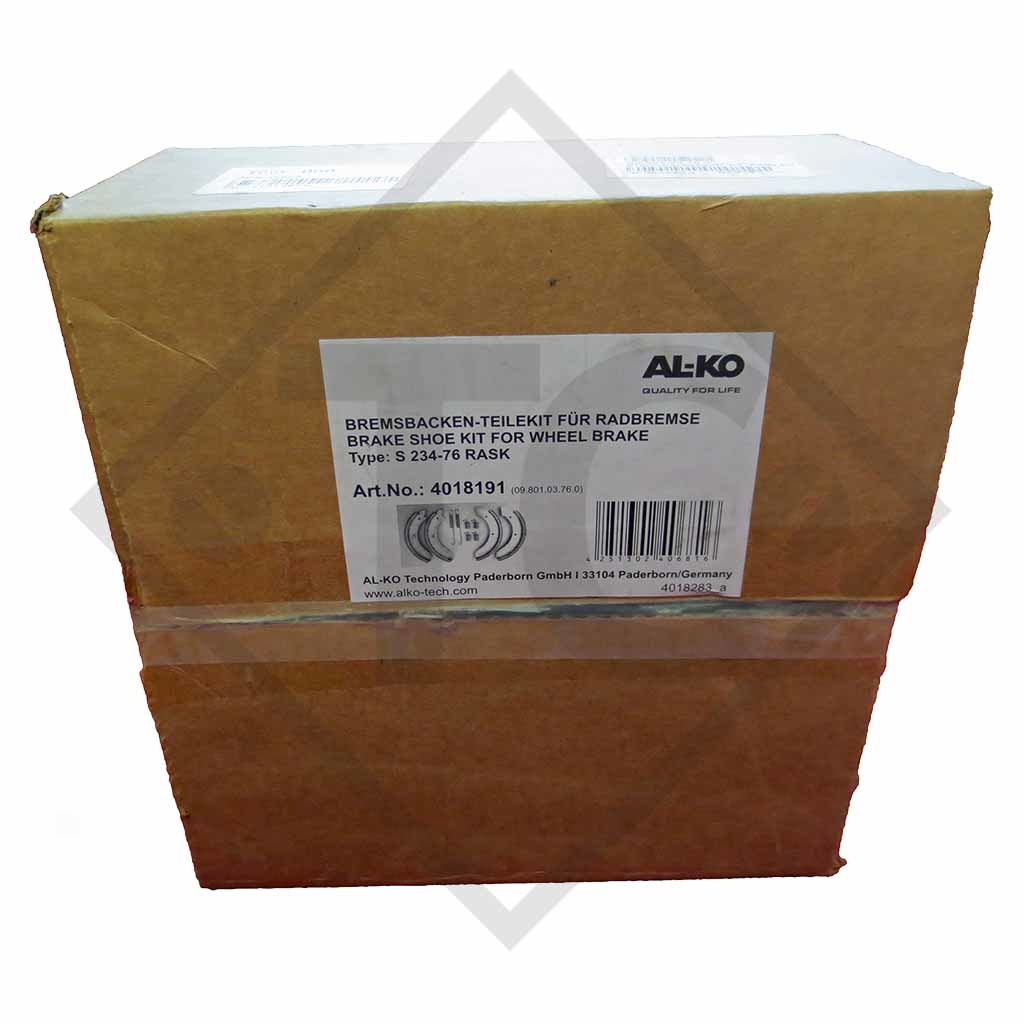

Scope of delivery for one axle (2 wheelbrakes) - see illustration
4x Brake shoes (2x secondary shoe, 2x primary jaw)
4x Hold down spring
2x Tension springs
For axle type (2)
EBG 8,5 U
EBG 8,5 V
EBD 8,5 U
EBD 8,5 V
EBG 10 U
EBG 10 V
EBD 10 U
EBD 10 V
EBG 12 U
EBG 12 V
EBD 12 U
EBD 12 V
Suitable for replacement part identification number (3)
| XX.XX.1.72.XXX | XX.XX.3.72.XXX | XX.XX.5.72.XXX |
IMPORTANT INFORMATION: The manufacturer PEITZ has been sold (BPW/AL-KO).
Installation instructions
Caution! Brake shoes are a safety element of the braking system. Following the replacement of the brake shoes, the entire braking system must be fine-tuned. The assembly and replacement of brake shoes may only be carried out by an authorized specialist workshop.
BPW Change of brake shoes
Adjusting the BPW brake system. Following the replacement of the brake shoes, the entire braking system must be fine-tuned.
Use only parts and accessories from AL-KO/BPW. Original parts vs. replica.
