Home / CHASSIS PARTS / CHASSIS PARTS BPW / AXLES / TANDEM AXLE UNIT 2100 TO 3500KG SWING, AXLE TYPE CB 2/1054, CB 2/1055, CB 2/1354, CB 2/1355, CB 2/1505 AND CB 2/1805 / TANDEM AXLE UNIT UP TO 2500KG SWING, AXLE TYPE CB 2/1355 / Bowden cable 241111 hook in with thread M10, vers. steel
sheath length (H) 1300mm, cable length (S) 1560mm, can be used with wheel brake 3062 and 3081 from year of manufacture 01/1989, bell internal diam. 25.5mm, outside 30mm. Read more...

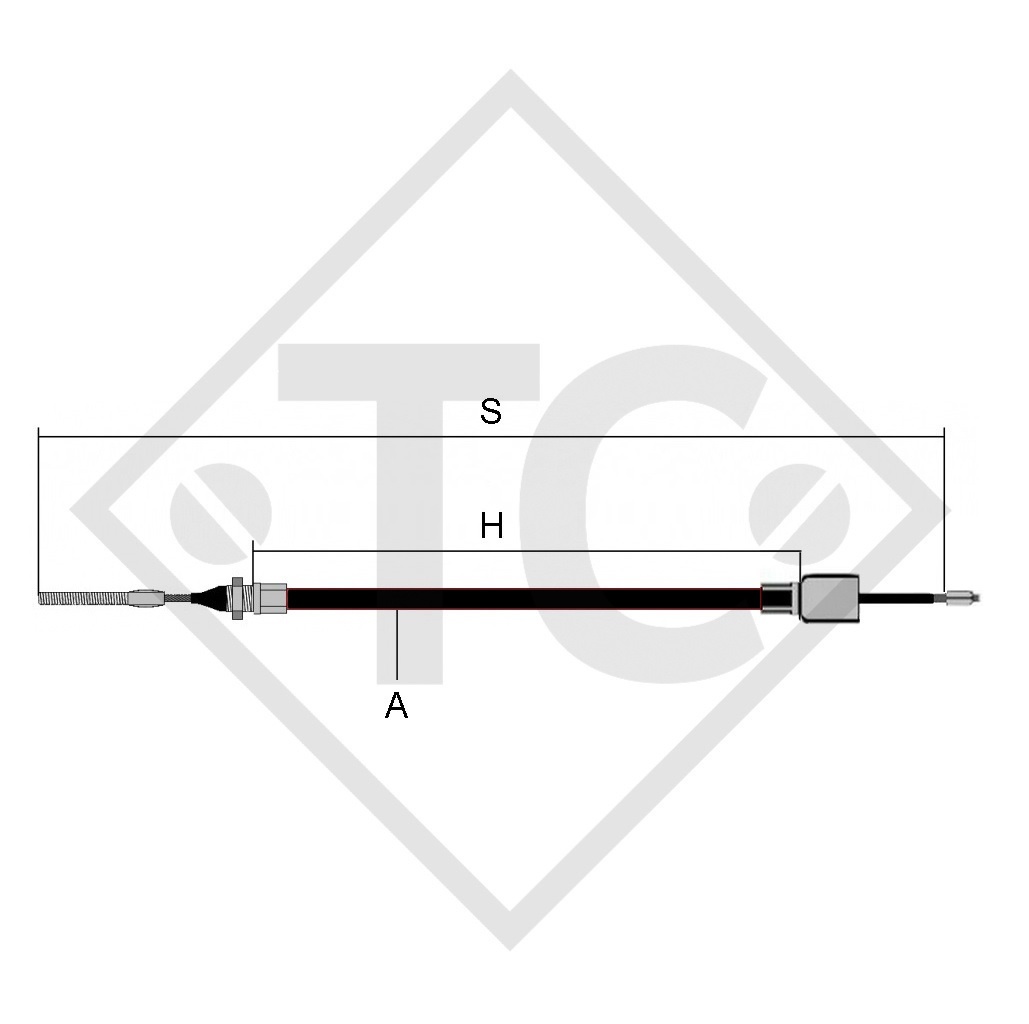

| A = Part no. |
241111 |
| H = sheath length |
1300mm |
| S = cable length | 1560mm |
| can be used with wheel brake | 3062 and 3081 from year of manufacture 01/1989 |
| Bell internal diam. | 25.5mm |
| Bell outside |
30mm |
SCOPE OF DELIVERY
1 Bowden cable
Per axle, please order: 2 units
