Home / PARTS LIST FOR AXLES / PARTS LIST FOR AXLES AL-KO / BRAKE SHOES WHEEL BRAKE AL-KO / Bowden cable 05.089.80.57.0 hook in with thread M8, with grease nipple
sheath length (L) 1330mm, cable length (L1) 1555mm, can be used with wheel brake S1704-7, S2005-7, S2035-7, S2304-7 and S2504-7, bell internal diam. 23.3mm, outside 26mm. Read more...

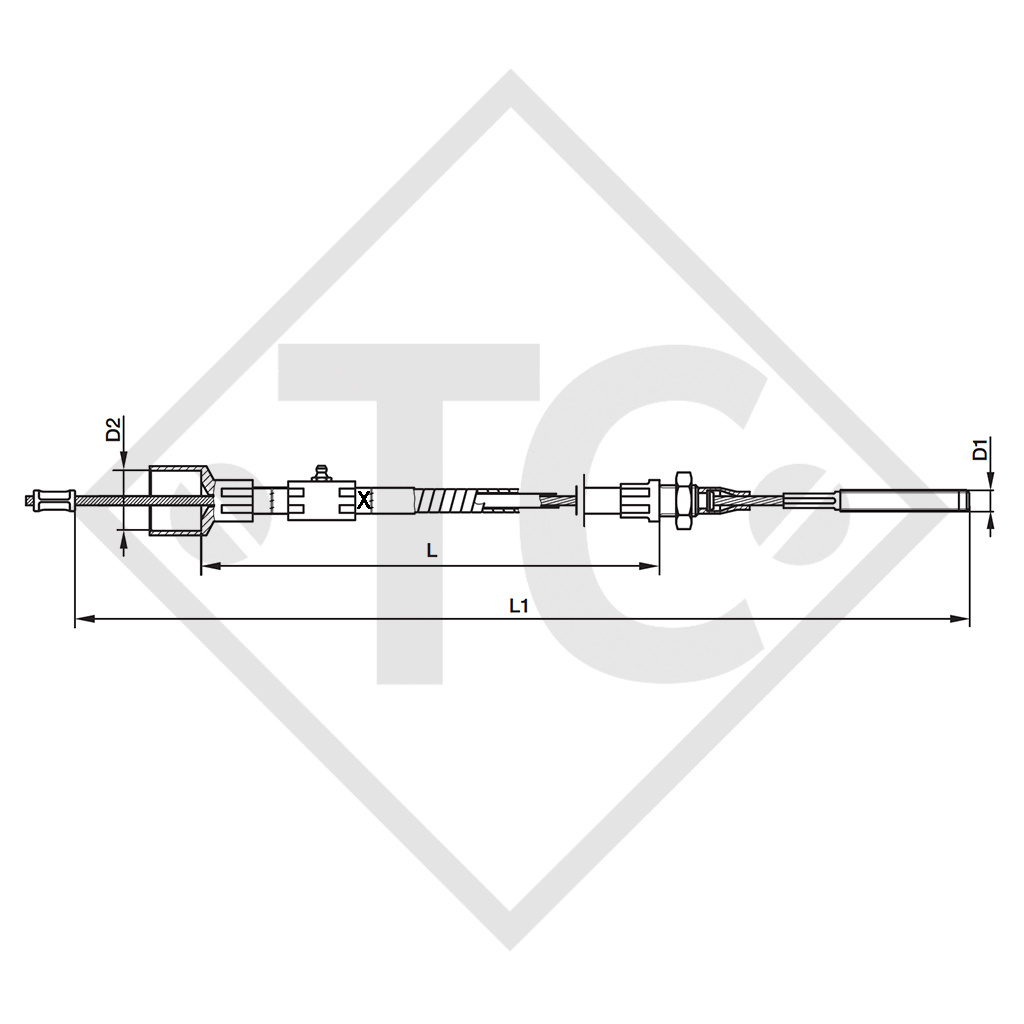

X = part no. OLD / NEW |
05.089.80.57.0 / 4017402 |
L = sheath length |
1330mm |
L1 = cable length | 1555mm |
D1 |
M8 |
D2 | 18.5mm |
can be used with wheel brake | S1635-5, S1635-6, S2003-5, S2005-5 and S2504-5 |
SCOPE OF DELIVERY
1 Bowden cable
Per axle, please order: 2 units
Here, you can find the catalogue page as a convenient PDF download.
