Home / JOCKEY WHEELS / SIMOL JOCKEY WHEELS / Axle BTR 1800 bis 2120kg without brakes AMC / FPC

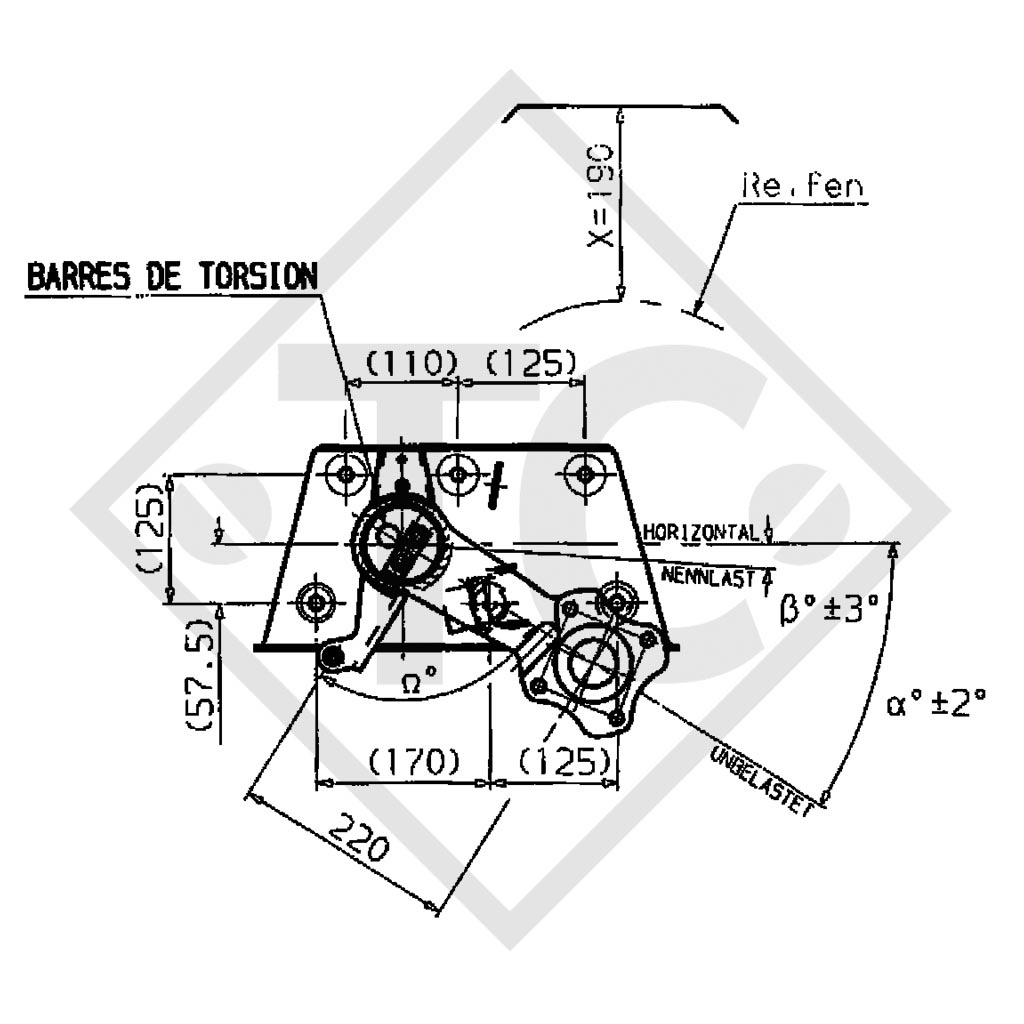

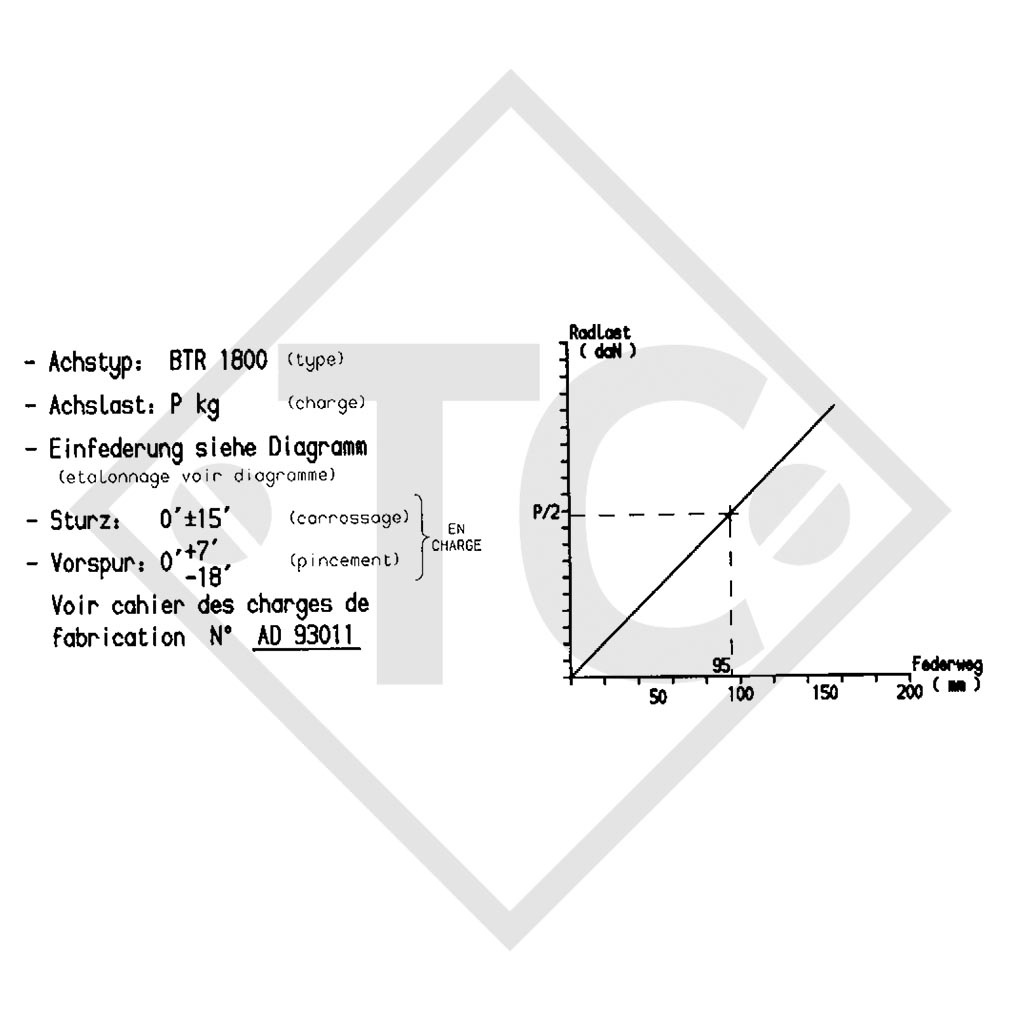

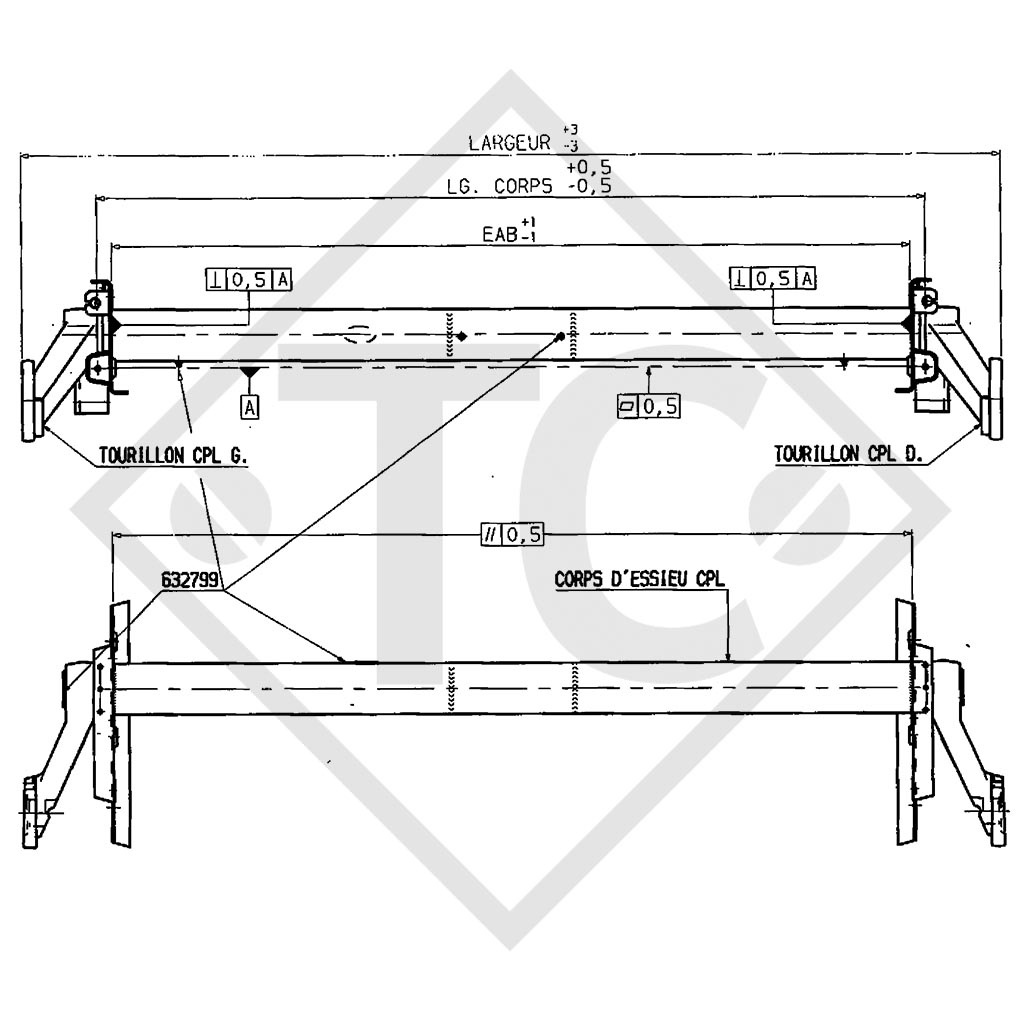

EAB 1420mm, LG Corps 1484mm, width 1744mm, without brakes. Scope of delivery corresponds to the technical drawing. Read more...
Part no. 279747 / 279382
Total weight |
2120kg |
Dimension EAB |
1420mm |
Dimension LG. CORPS |
1484mm |
Dimension LARGEUR |
1744mm |
Dimension VOIE |
1860mm |
SURFACE TREATMENT
black primed
Original operating instructions
SCOPE OF DELIVERY
Axle without brakes
