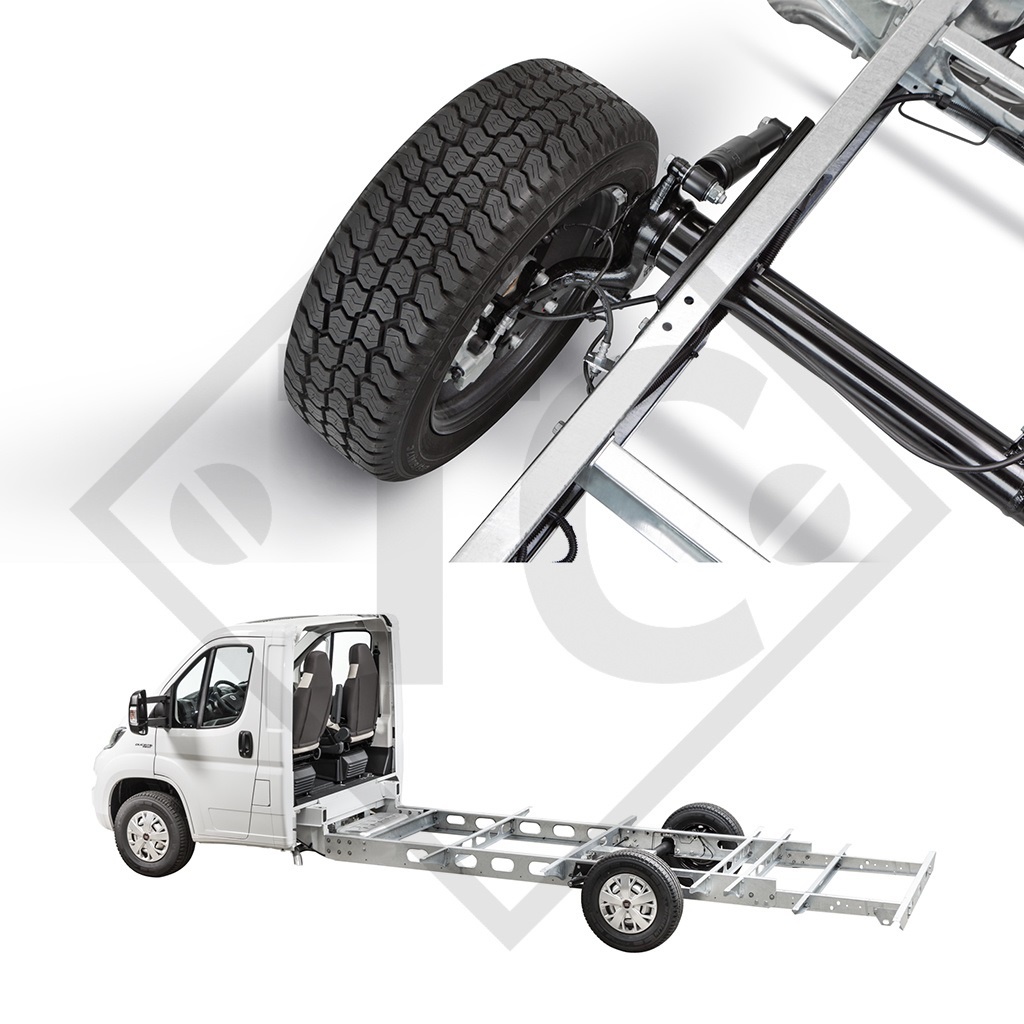

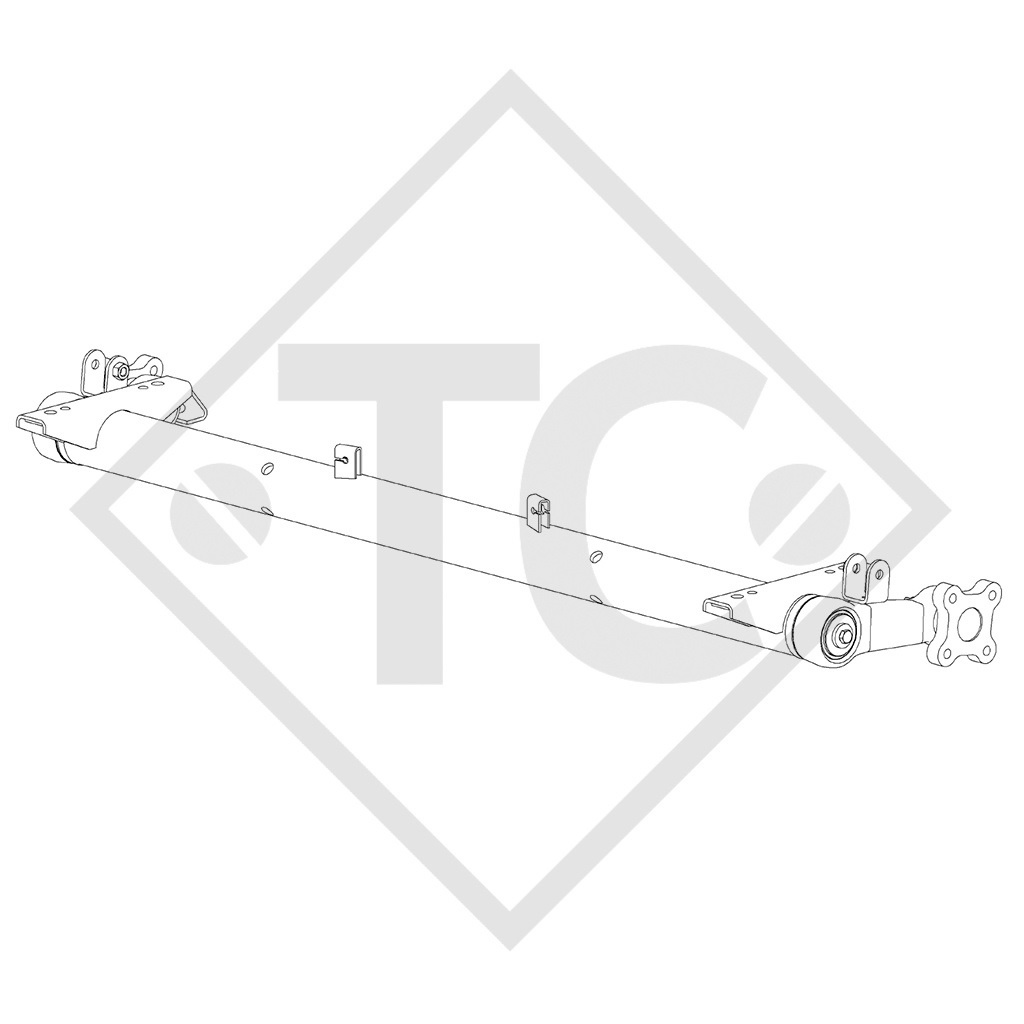

Home / Axle without brakes 2100kg FIAT DUCATO 244 axle type DB 2100, 37.92.000.003
BC: dimension AM 1660mm, OHF: dimension FL 1985mm, connection 82x82mm, WITHOUT wheel brake, swing arm position 5°, axle profile 92mm. Read more...
Part no. OLD 37.92.000.003
Part no. NEW 4018918

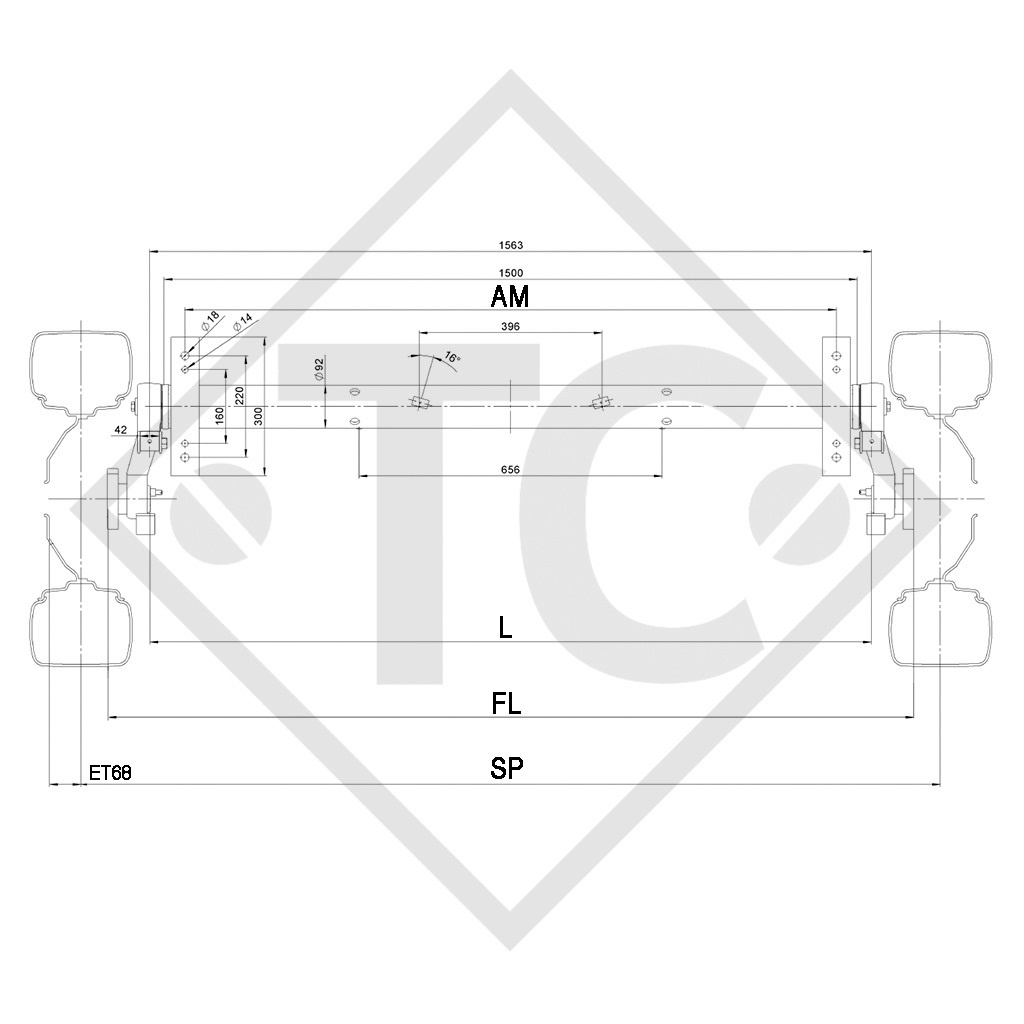

| Dimension FL |
1985mm |
| Dimension SP |
2100mm |
| Dimension AM |
1660mm |
| Dimension L |
1801mm |
| Offset (ET) | 68mm |
| Model | Fiat Ducato |
| Axle type | DB2100 |
| Axle load single axle | 2100kg |
| Axle load: Tandem axel | - - - |
| Wheel brake | WITHOUT wheel brake |
| Suspension | Square rubber suspension |

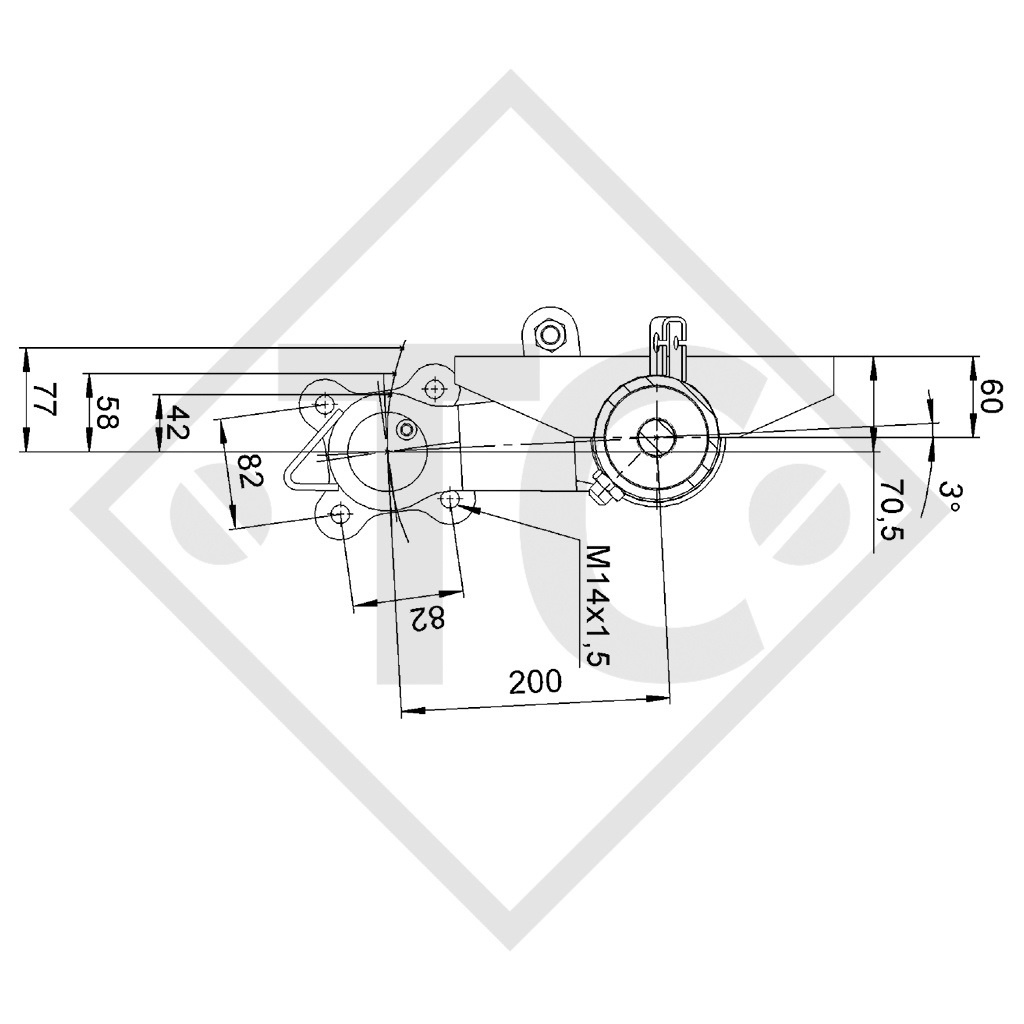

| RONDO arm | 200mm |
| Connection | 82x82mm |
SCOPE OF DELIVERY
Axle WITHOUT wheel brake
DETAILS
