Axle 2100kg Peugeot axle type CA6 2100TR2

BC: dimension A 1535mm, OHF: dimension C 1986mm, swing arm position 2°, axle profile 91.3mm, Lieferumfang entspricht der technischen Zeichnung. Read more...

Wishlist: Add to comparison:

Price 4.426,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 1480603
BC: dimension A 1535mm
OHF: dimension C 1986mm

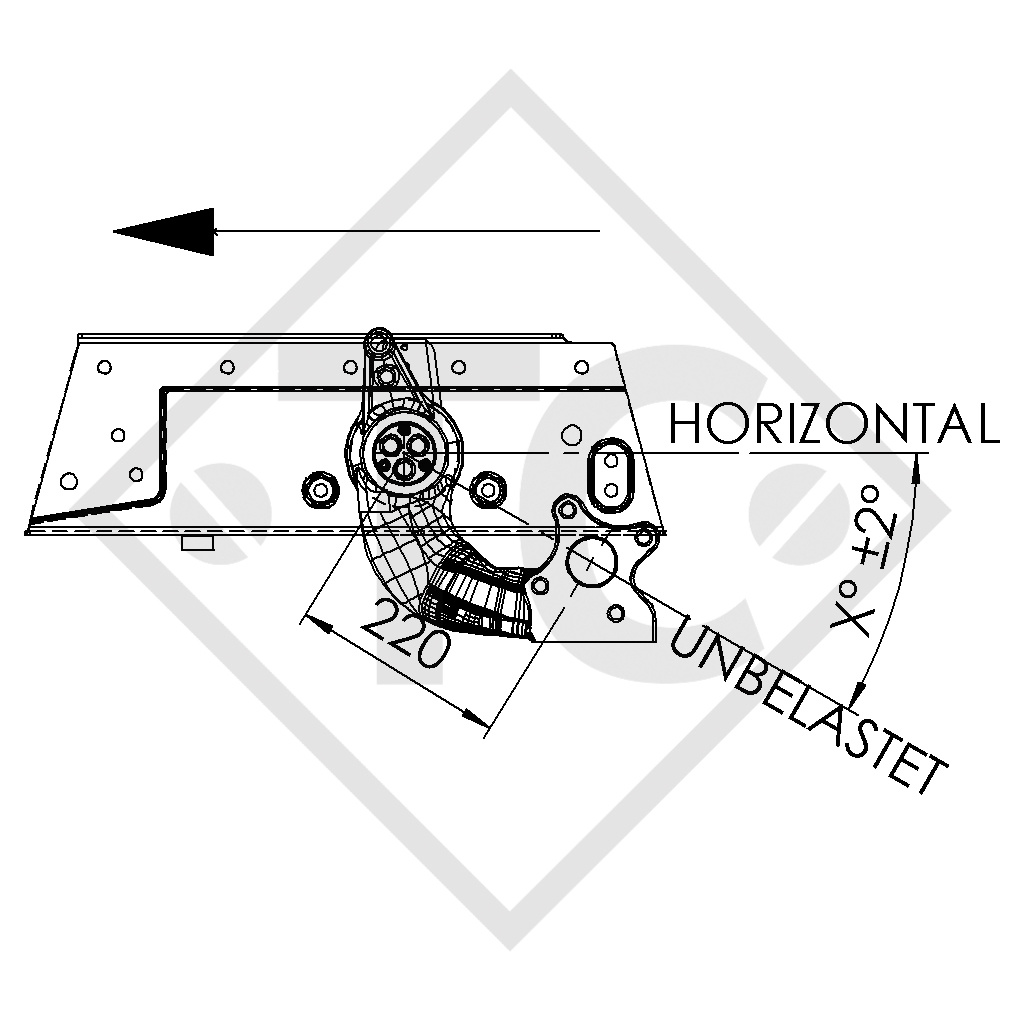

Swing arm position 2°
Axle profile 91.3mm

Replacement part identification number (ETI) 812039

TECHNOLOGY
Model: Peugeot
Axle type: CA6 2100TR2
Axle load: Single axle 2100kg
Swing arm length: 220mm

Original operating instructions

SCOPE OF DELIVERY

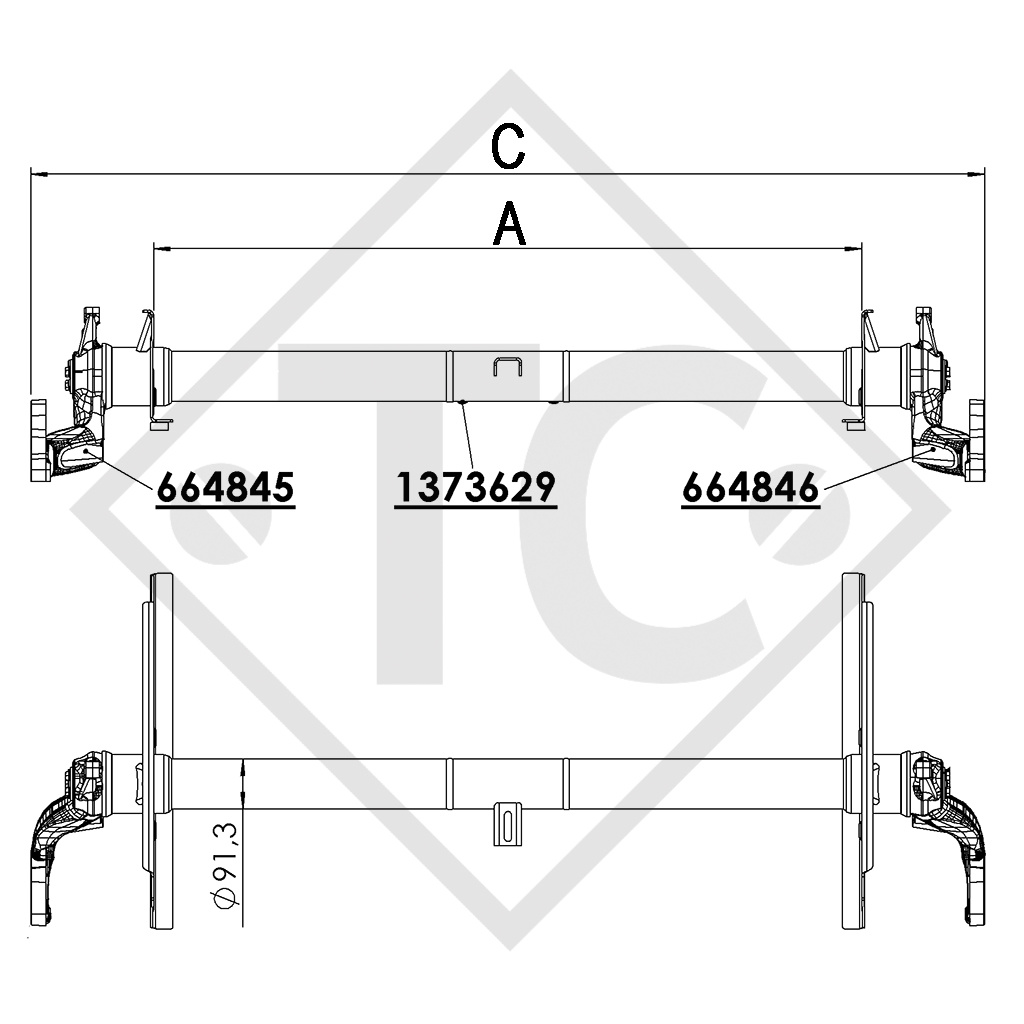

Axle (see technical drawing)

AL-KO Axle 2100kg Peugeot axle type CA6 2100TR2

Product description
