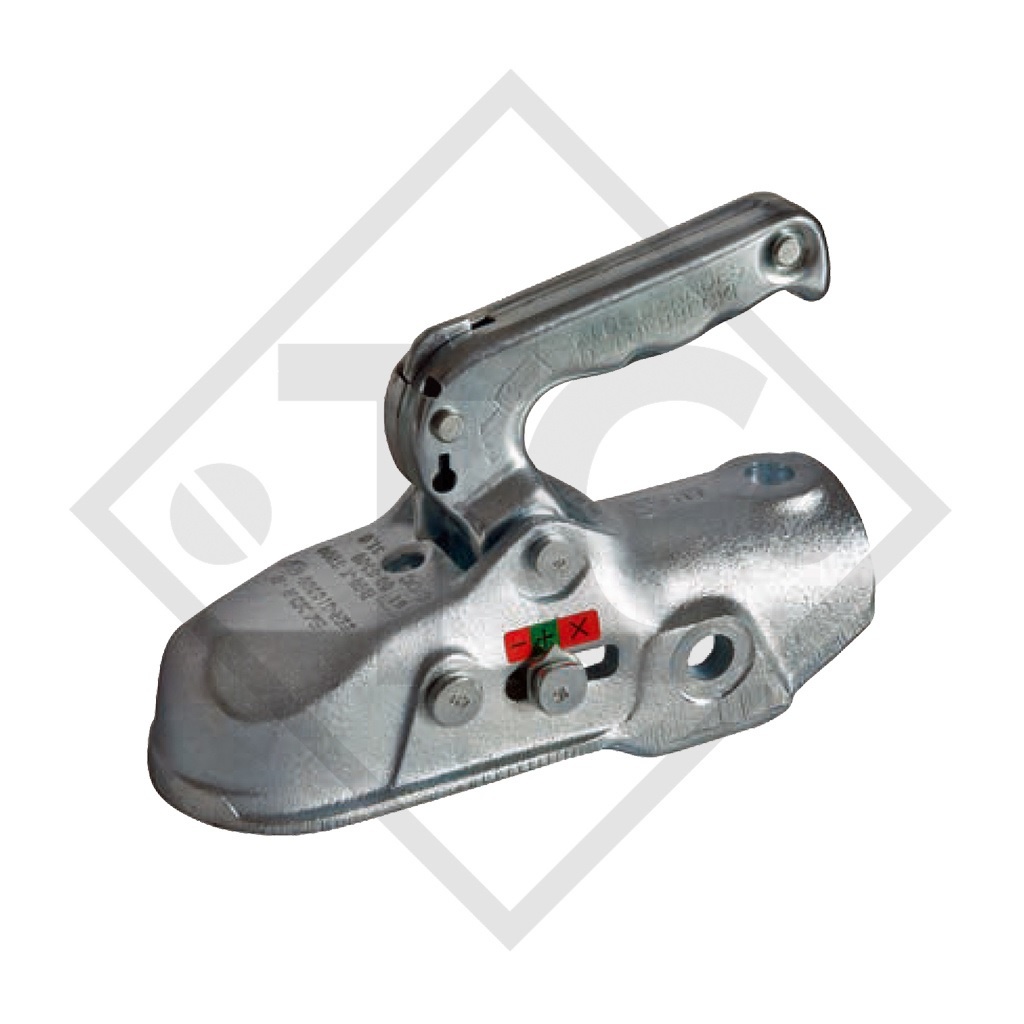

Home / (ALBE BERNDES) Coupling head EM 350 R-B without fixing bolts for braked trailers

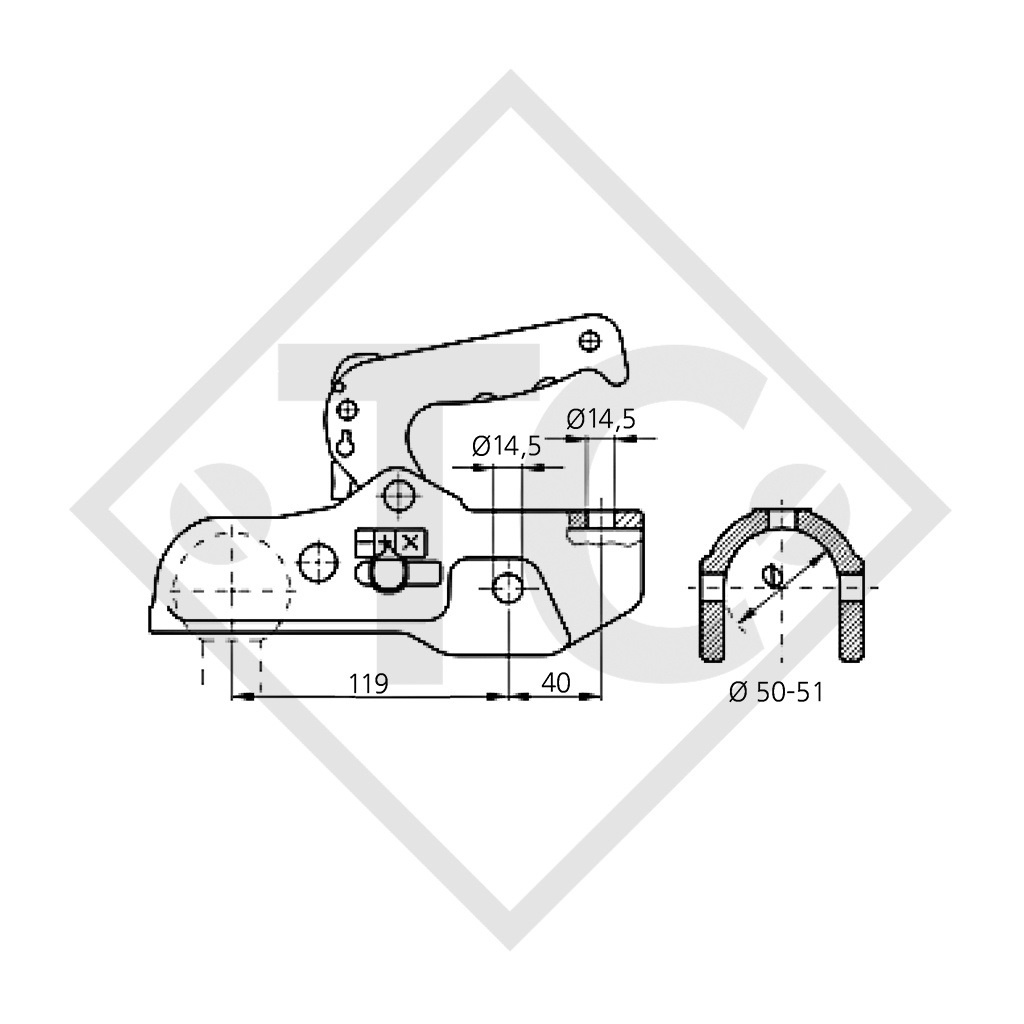

drawbar ⌀50-51mm round, holes (screw connection) cross 14.5mm, hole distance 40mm, perm. gross weight 3500kg, nose load 200kg, material: malleable cast iron. Read more...
IMPORTANT INFORMATION: The manufacturer ALBE BERNDES has been sold. Item 1860805 (W1182) will be automatically supplied as an alternative. This item exhibits identical characteristics. It is merely produced by a different manufacturer.
| Drawbar ⌀ |
50-51mm |
| Holes (screw connection) | cross 14,5mm |
| Hole distance | 40mm |
| Perm. gross weight | 3500 kg |
| Nose load |
200 kg |
| D / Dc value |
31 kN |
| Material | malleable cast iron |
| Tightening torque |
175 Nm |
| ECE type approval no. | R55-010380 E1 |
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
