Home / 2x Braked axle 1000kg EURO COMPACT axle type B 1000-3 - tandem 2000kg
BC: dimension A 1650mm, OHF: dimension C 2080mm, wheel connection 98x4, wheel brake type 2051 vers. A, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm, taper-head wheel bolts M12x1.5. Read more...
Part no. 1250258

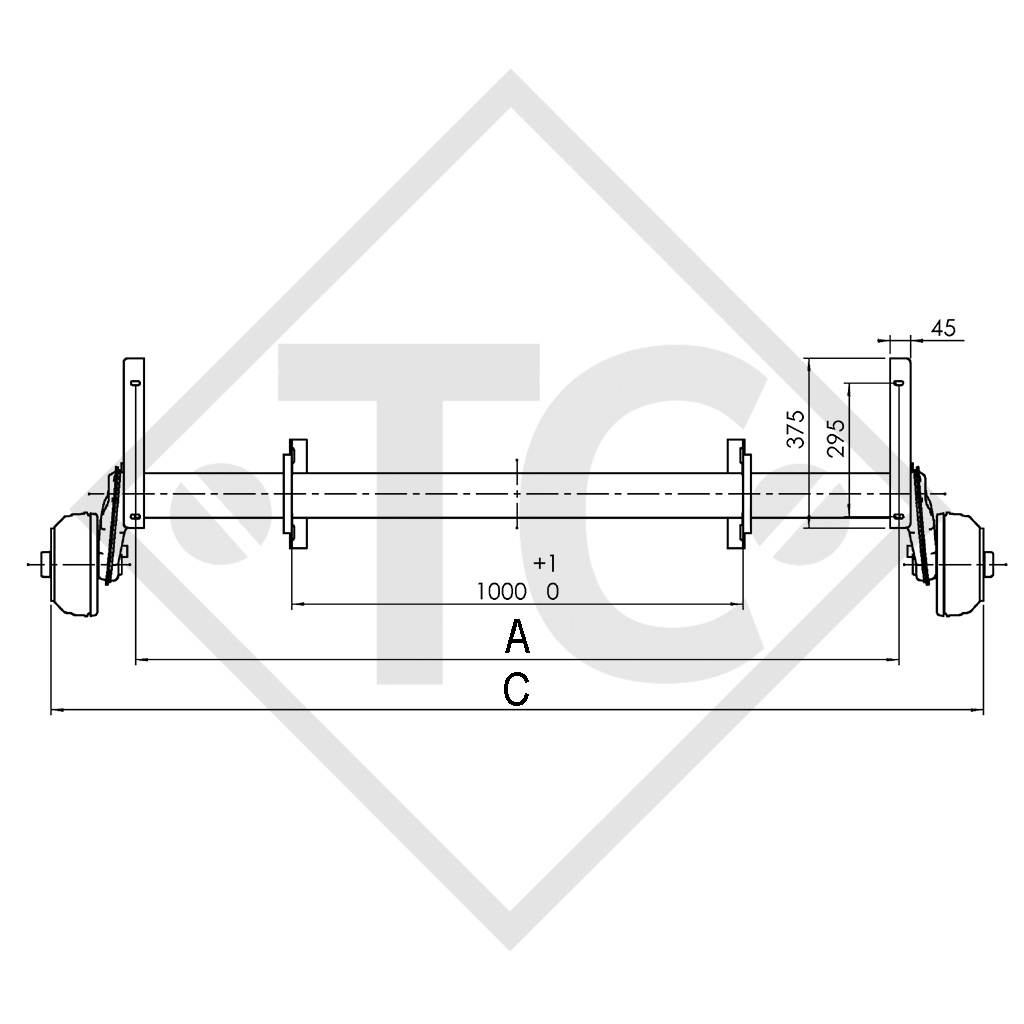

BC: dimension A 1650mm
OHF: dimension C 2080mm
Wheel connection 98x4
Offset (ET) 26-30mm
Swing arm position 25°

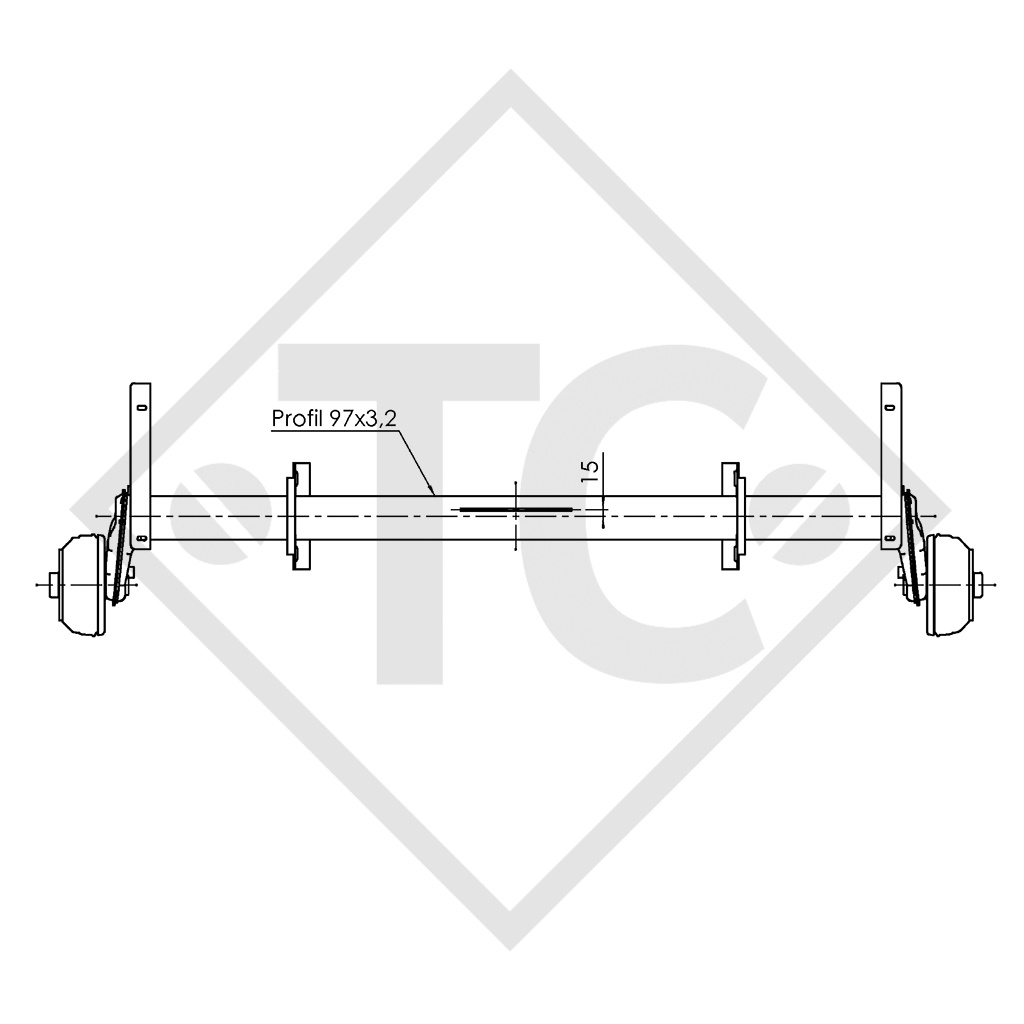

Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) OLD 811157
Replacement part identification number (ETI) NEW 811941
TECHNOLOGY
Model: EURO COMPACT
Axle type: B 1000-3
Axle load: Single axle 1000kg
Axle load: Tandem axle 2000kg
Wheel brake: 2051 vers. A
Suspension: Hexagonal rubber suspension

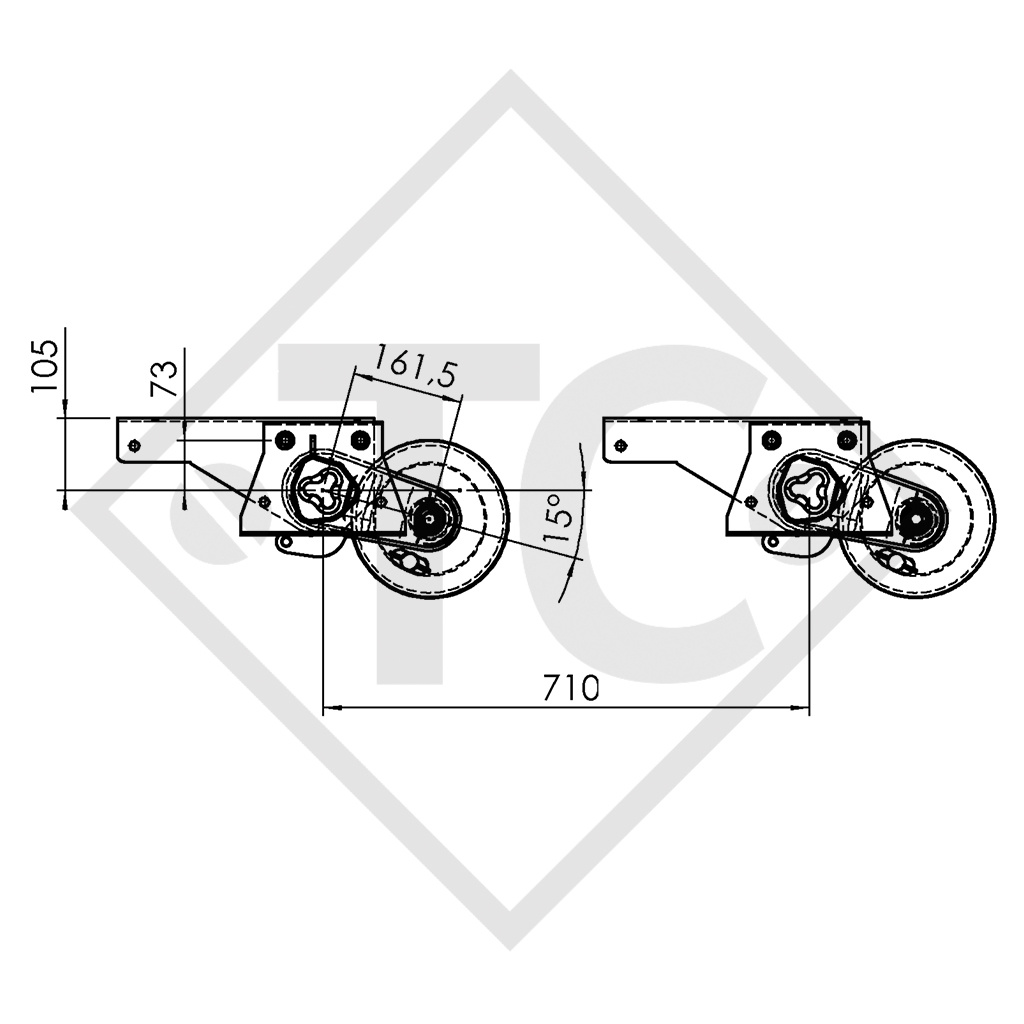

Swing arm length: 161.5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
2x Axle
Taper-head wheel bolts M12x1.5 loose
Tandem axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
