BC: dimension A 1643mm, OHF: dimension C 2215mm, wheel connection 98x4, wheel brake type 2051, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm, wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Part no. 185006046  (185006577 + 185006578)

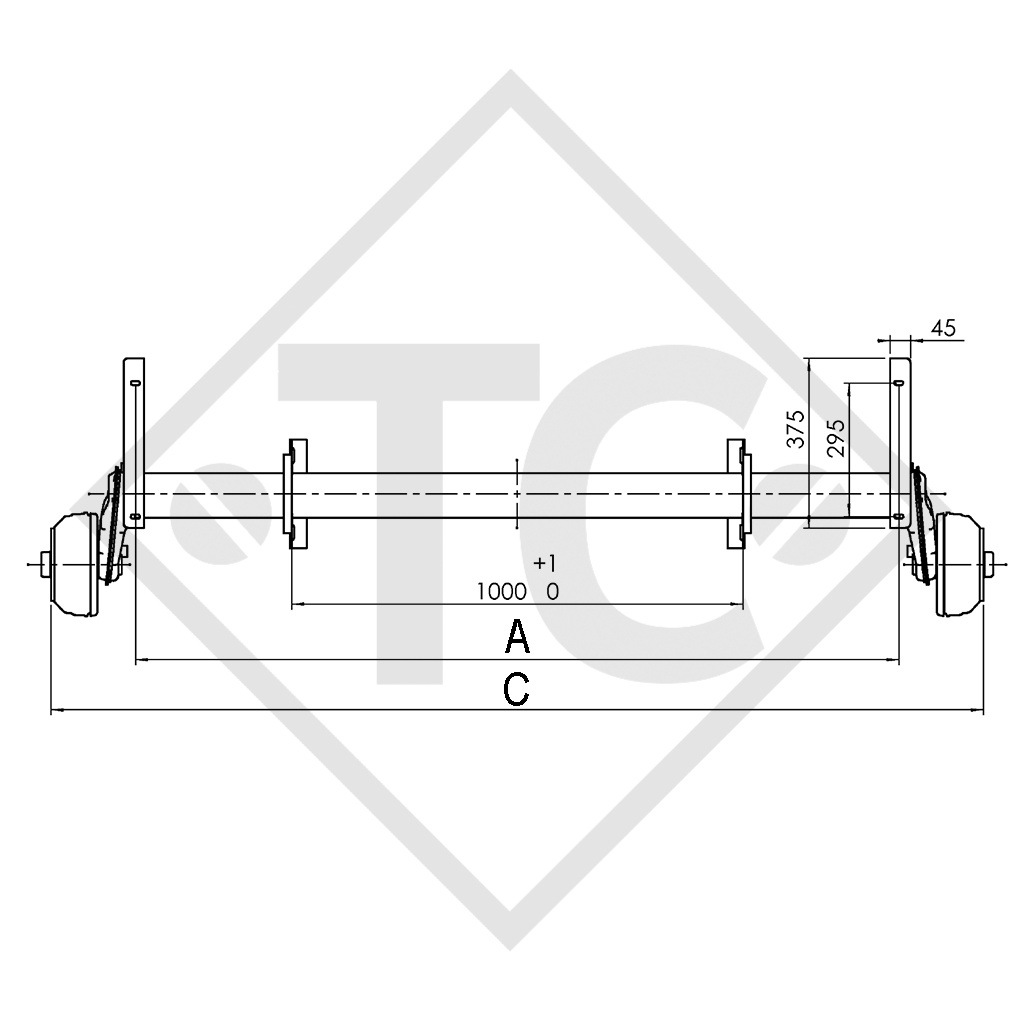

BC: dimension A 1643mm
OHF: dimension C 2215mm
Wheel connection 98x4
Offset (ET) 26-30mm

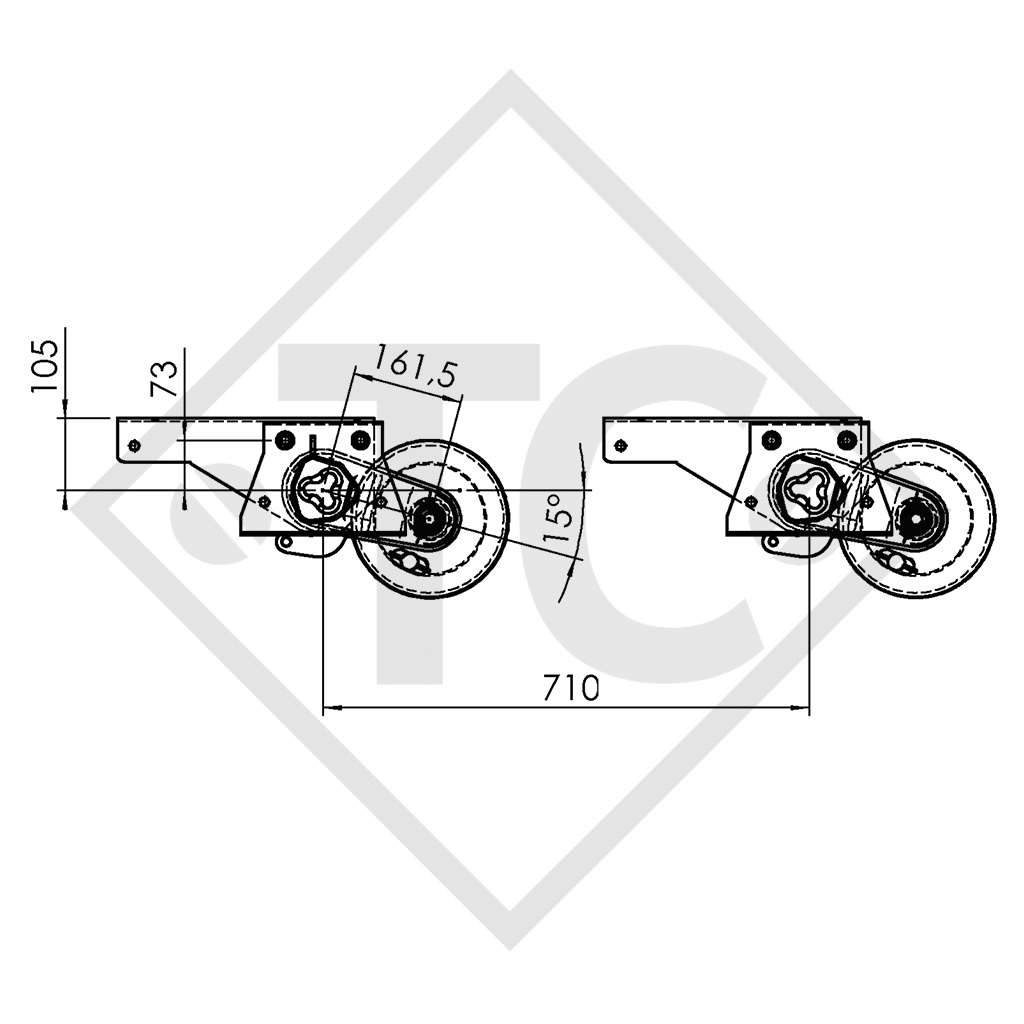

Swing arm position 25°

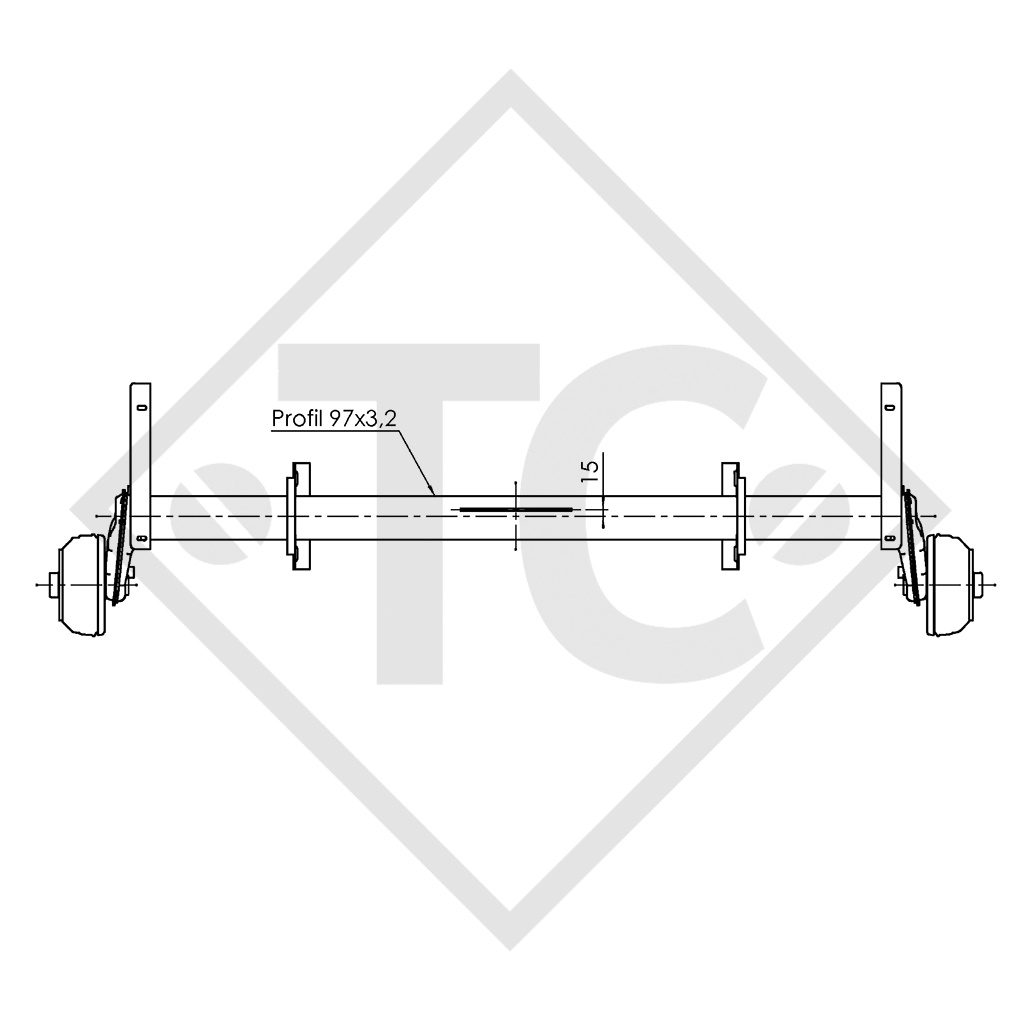

Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) 811942

TECHNOLOGY
Model: EURO
Axle type: B 1000-5
Axle load: Single axle 1100kg
Axle load: Tandem axle 2000kg
Wheel brake: 2051
Suspension: Hexagonal rubber suspension
Swing arm length: 175mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
2x Axle with brake
16x Wheel bolts M12x1.5 loose
Tandem axle adapter bracket welded on
Balance bar for single axle supplied
4x Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber
